Pinout Values and Diagnostic Parameters

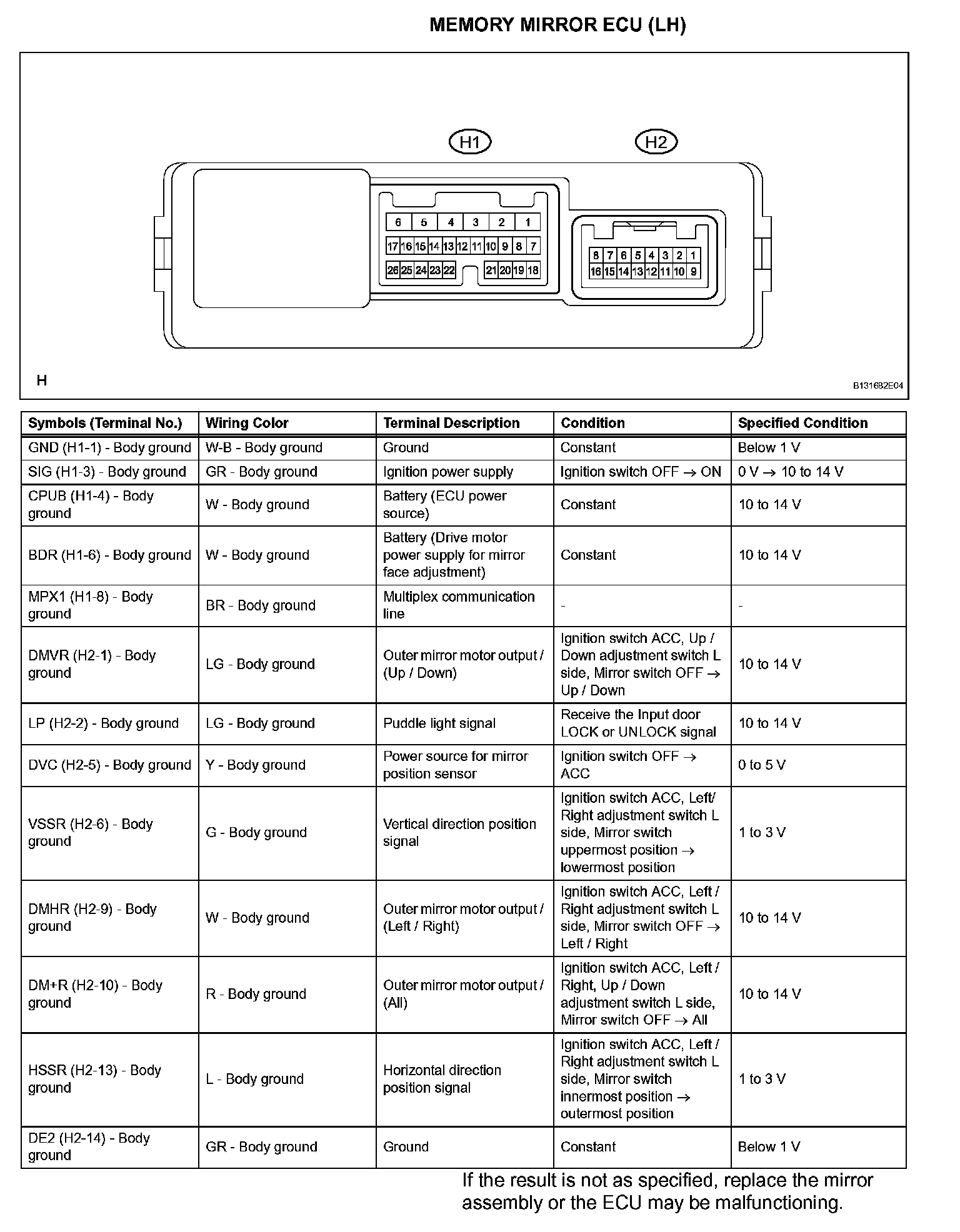

Terminals Of Control Module/Pinouts - Memory Mirror ECU(LH):

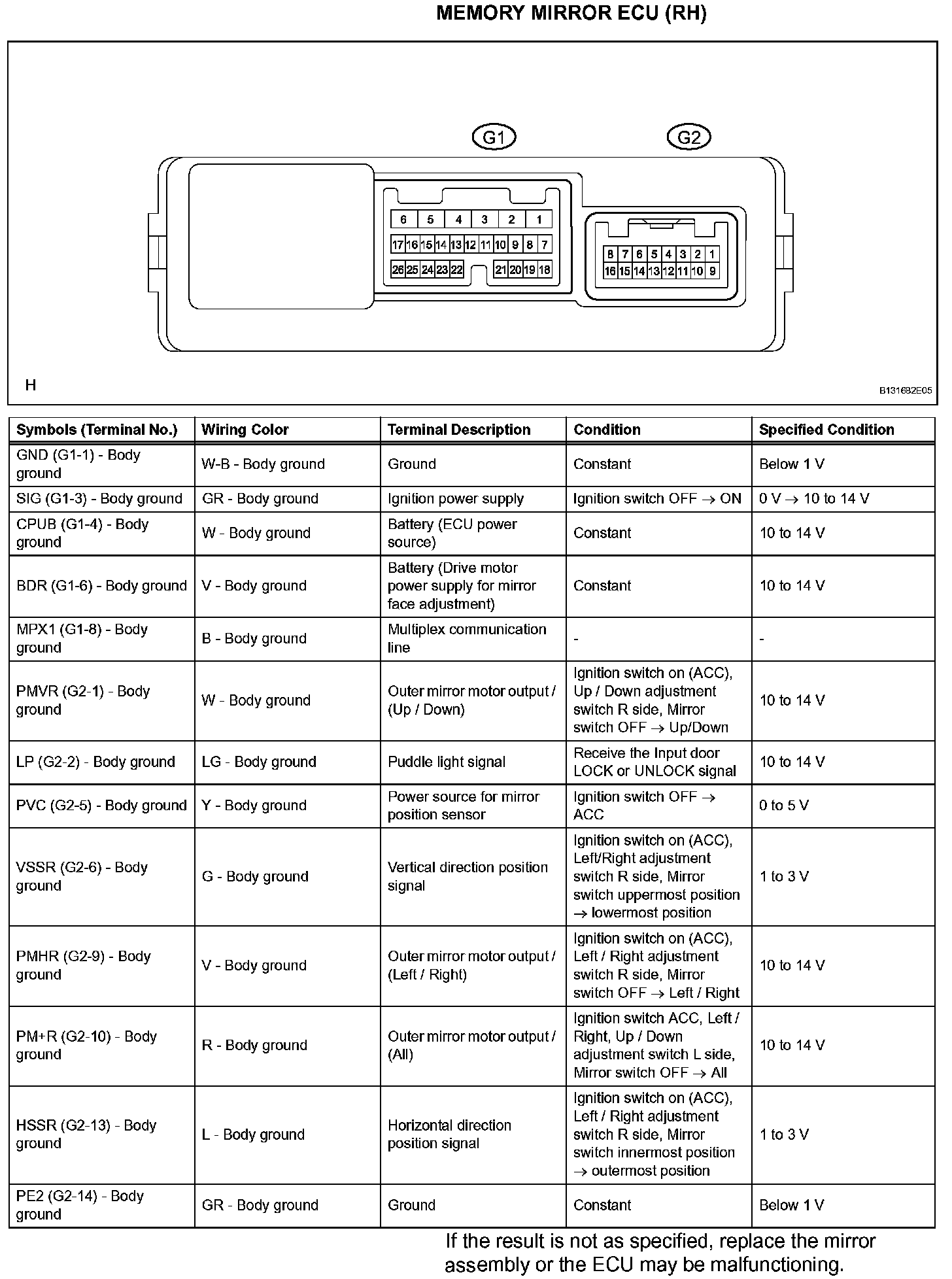

Terminals Of Control Module/Pinouts - Memory Mirror ECU (RH):
