Luggage Compartment Door Courtesy Switch Circuit
Luggage Compartment Door Courtesy Switch CircuitDESCRIPTION
The door courtesy turns on when the door is open and turns off when the door is closed.
The body ECU detects the condition of the door courtesy switch.

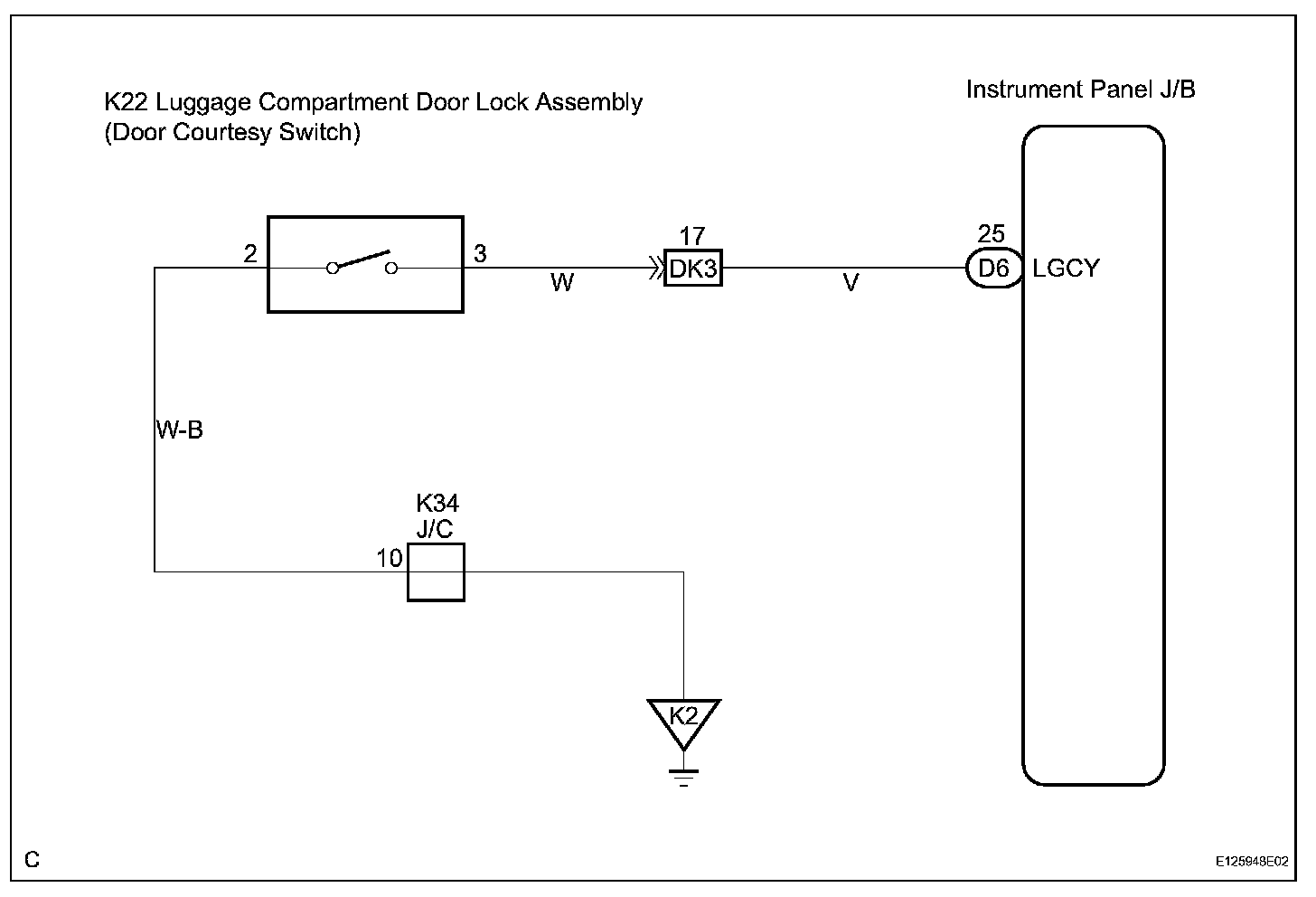

Wiring Diagram:
INSPECTION PROCEDURE

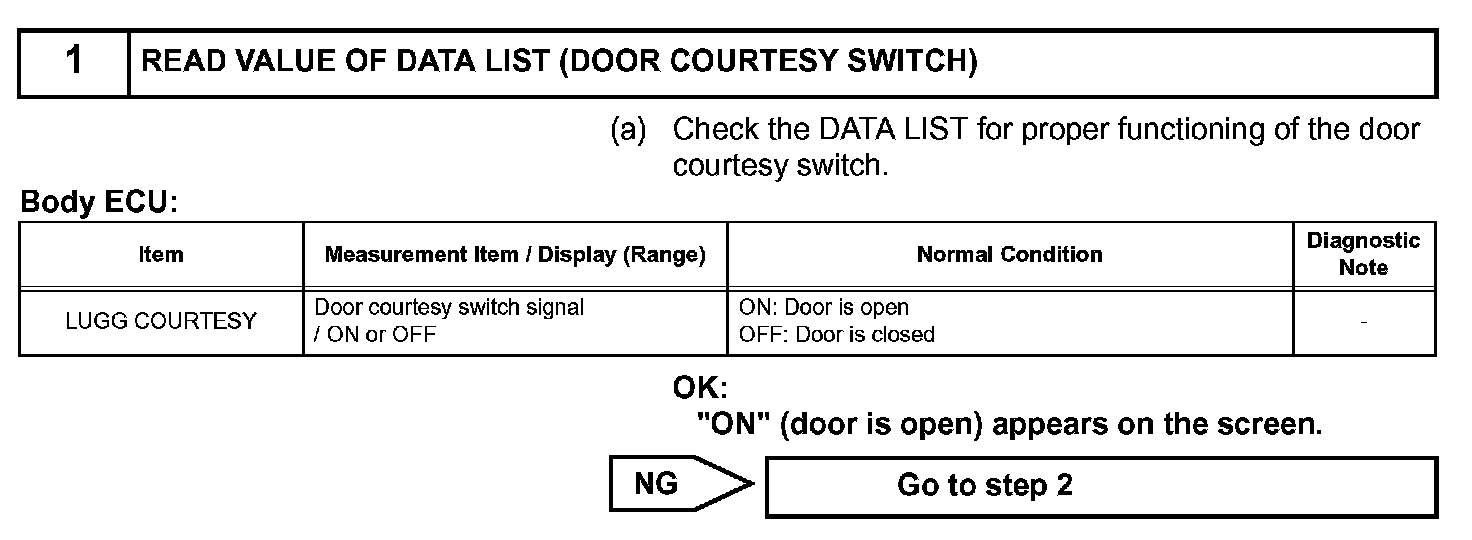

Step 1:

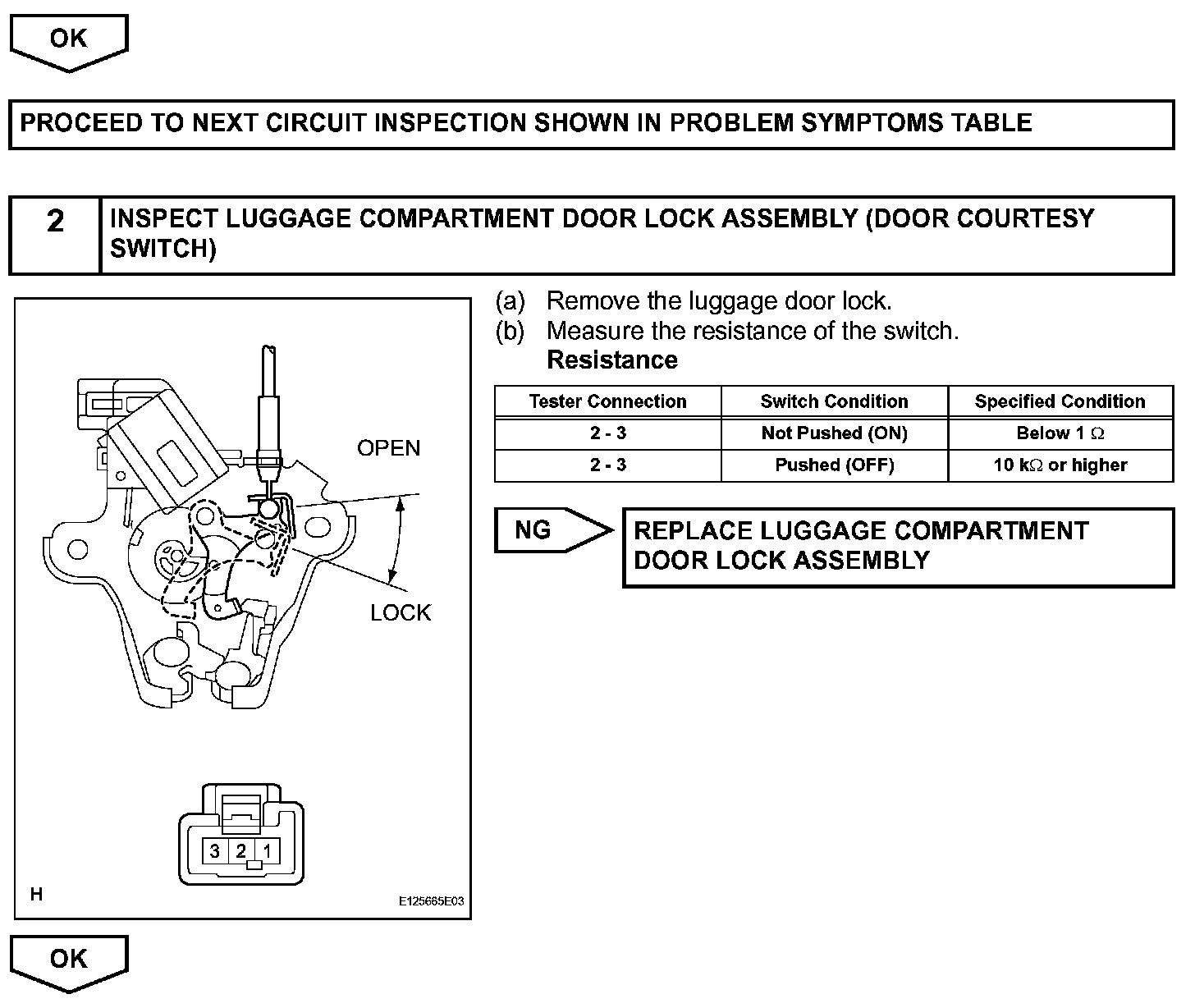

Step 1(Continued)-2:

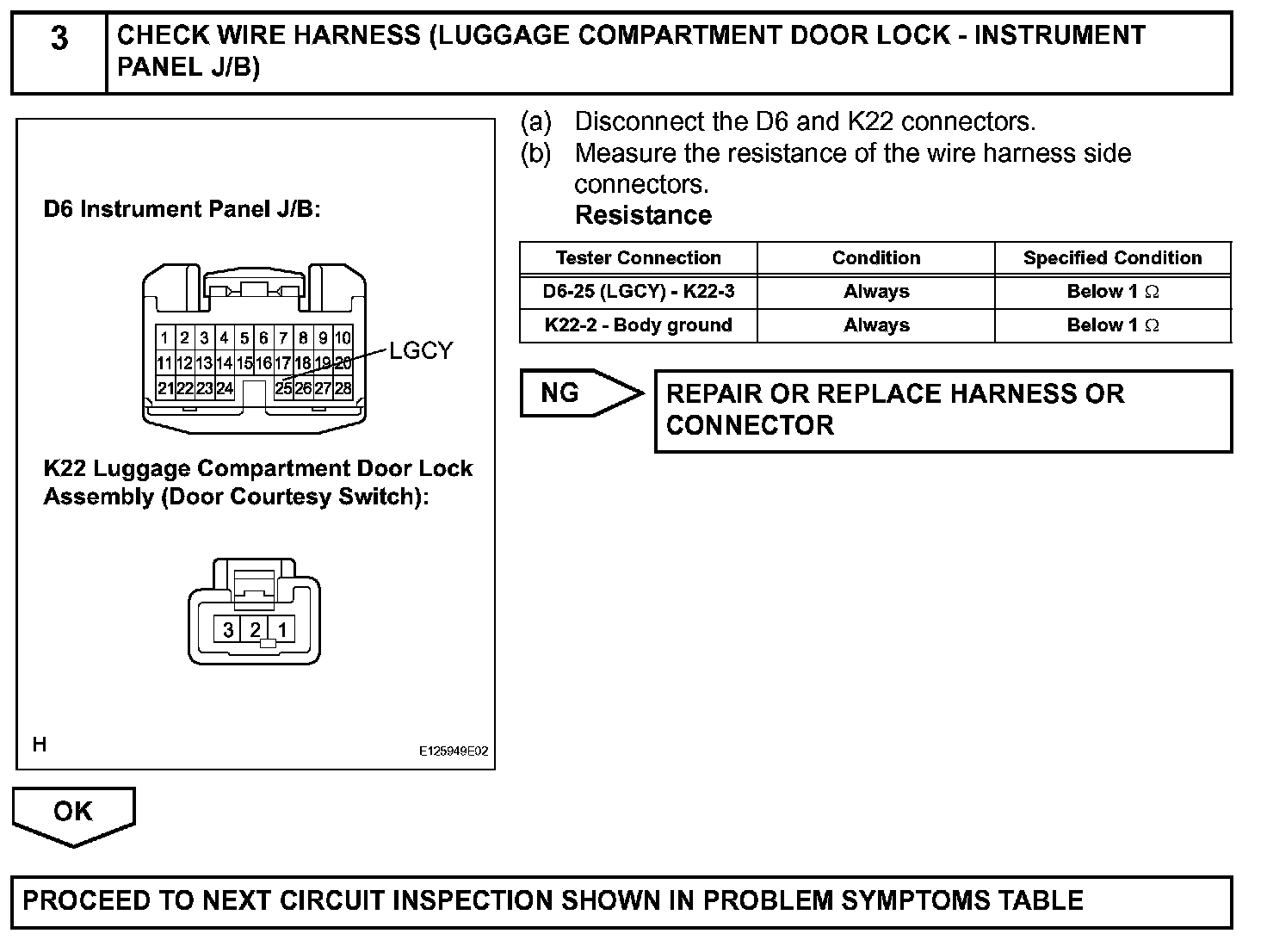

Step 3:
