Luggage Compartment Door Opener Circuit

Luggage Compartment Door Opener Circuit

DESCRIPTION
The multiplex network body ECU operates the luggage compartment door opener motor when a luggage compartment door open (trunk opener) signal from the transmitter is detected.

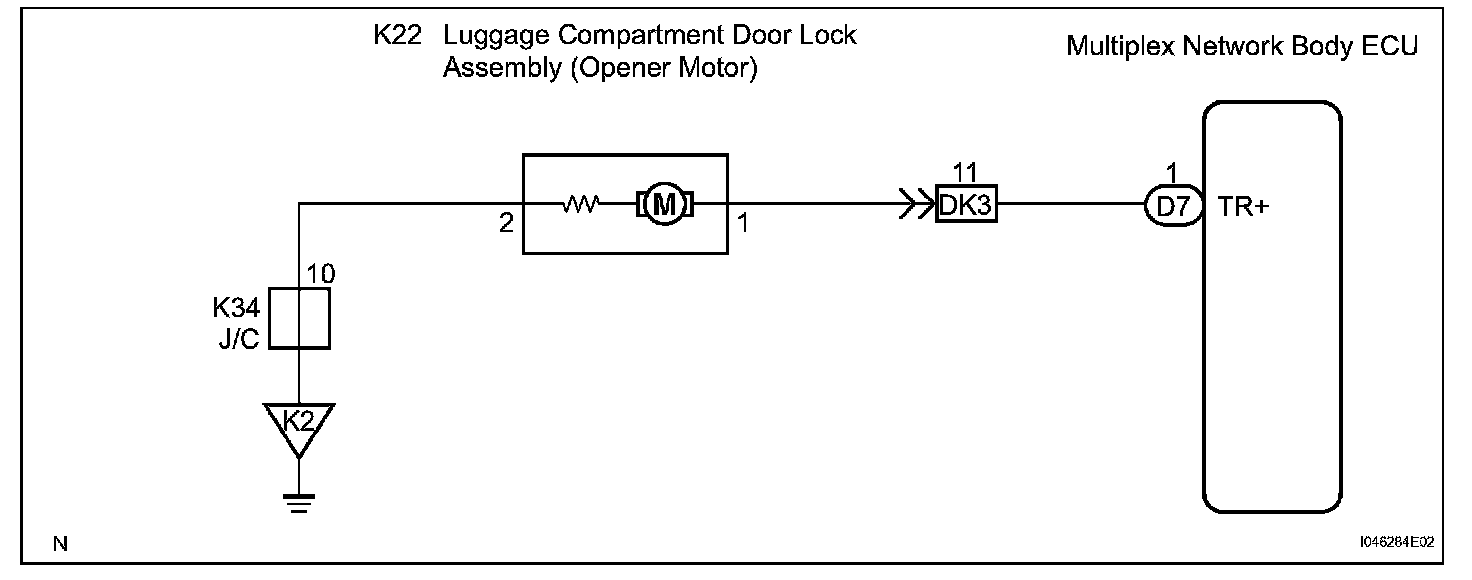

Wiring Diagram:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 when using the intelligent tester and start from step 2 when not using the intelligent tester.

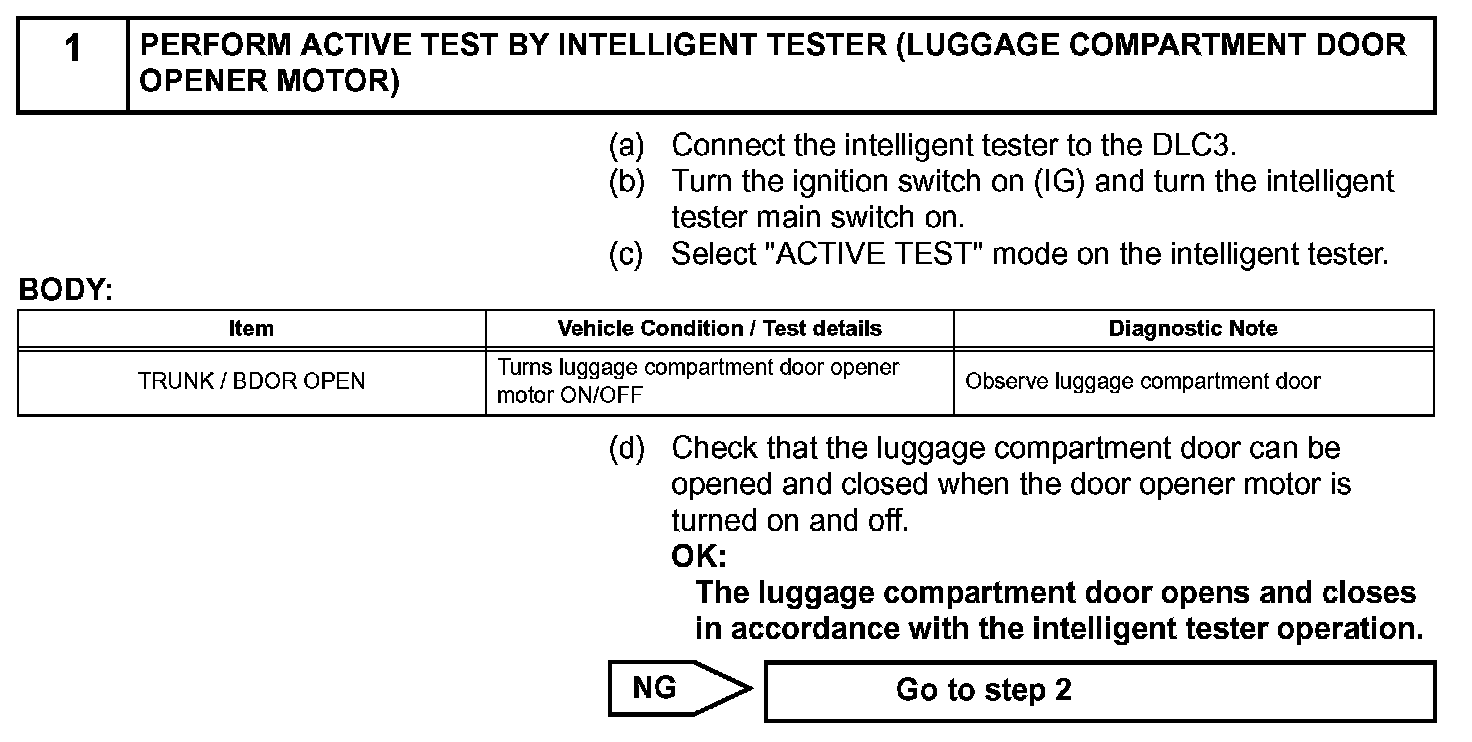

Step 1:

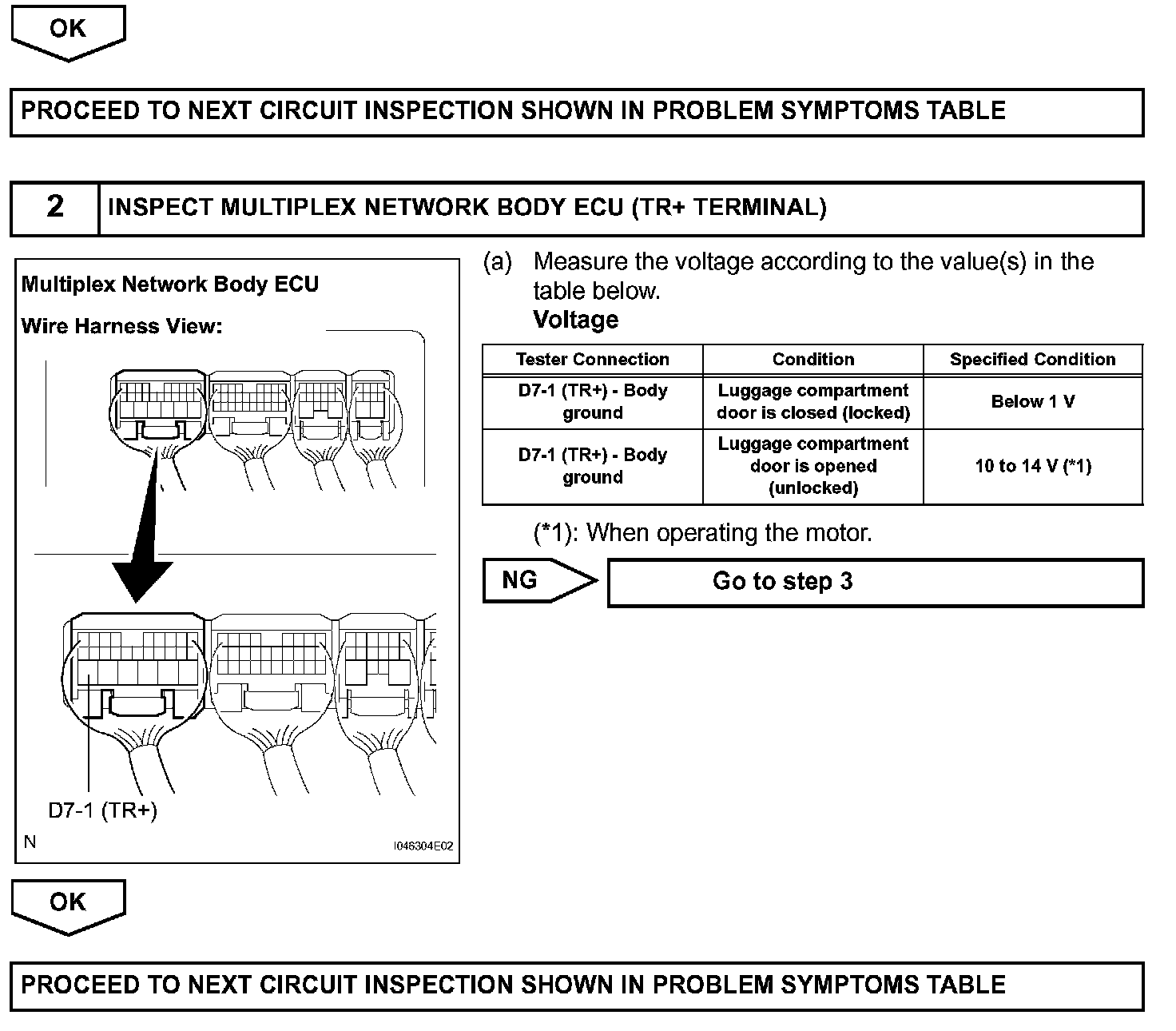

Step 1(Continued)-2:

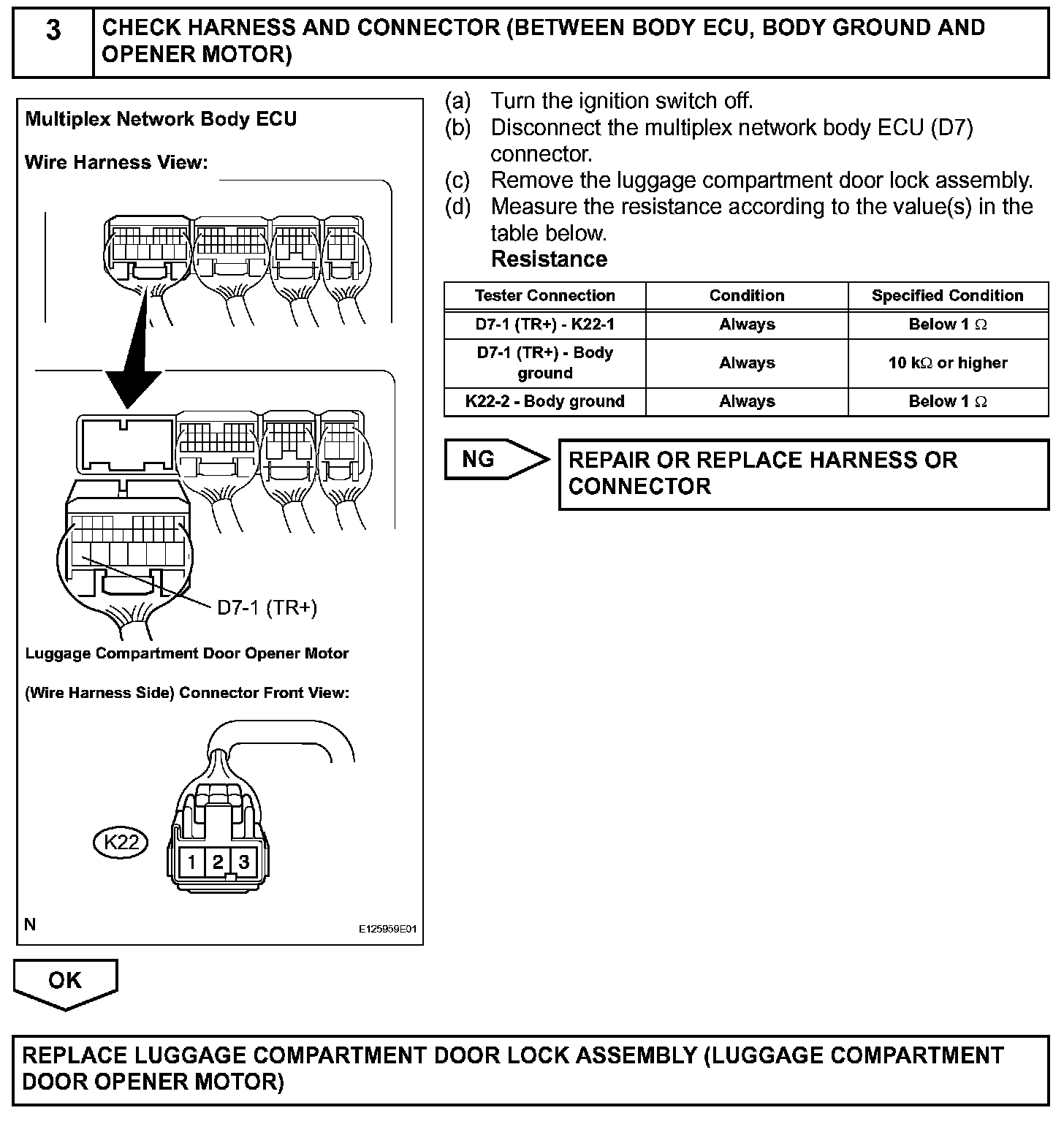

Step 3:
