Luggage Compartment Door Opener Outer Switch
LUGGAGE COMPARTMENT DOOR OPENER OUTER SWITCHINSPECTION

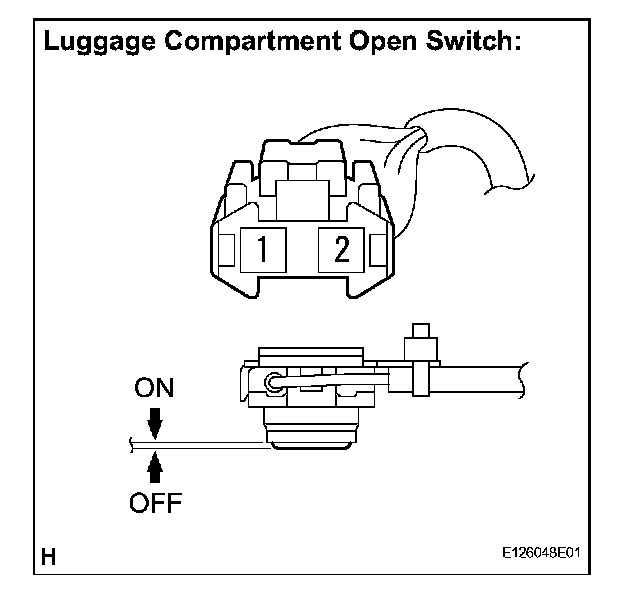

1. INSPECT LUGGAGE COMPARTMENT DOOR OPENER SWITCH ASSEMBLY
a. Remove the luggage compartment door opener switch.

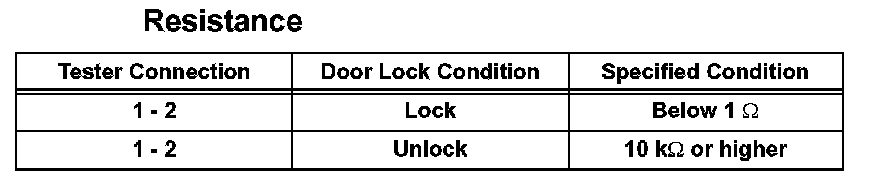

b. Measure the resistance according to the value(s) in the table.
