Symptom Index

PROBLEM SYMPTOMS TABLE

HINT:
- Before performing verification listed in the table, check the fuse and relay.
- Methods used to verify the cause of the problem are listed in order of probability in the suspected area column.

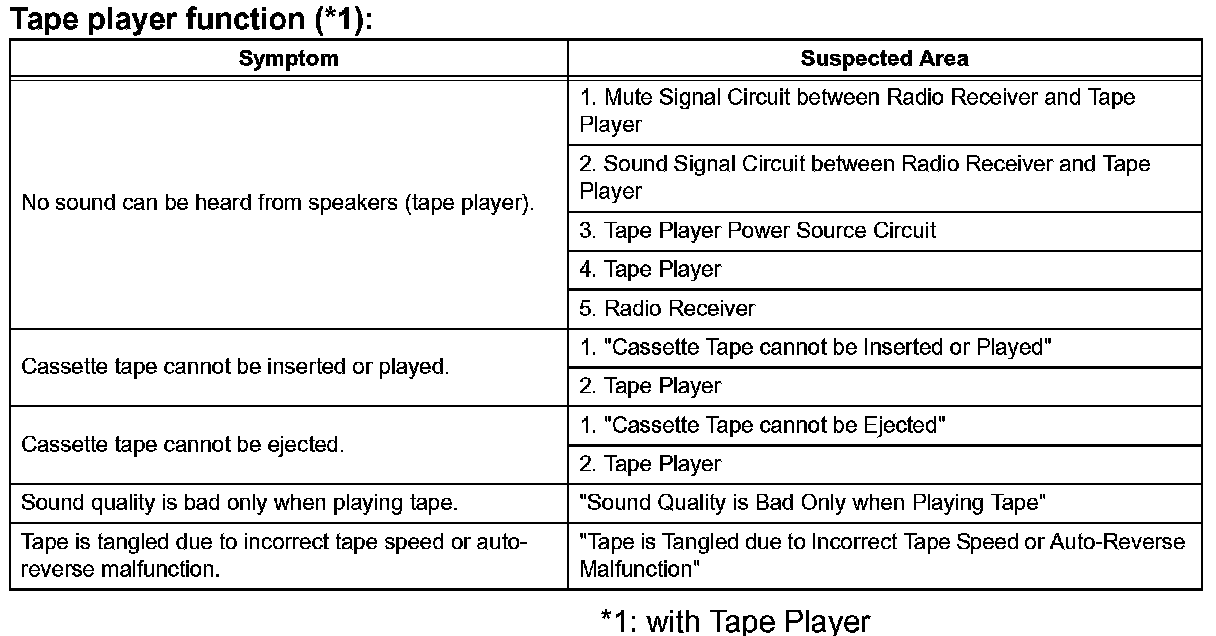

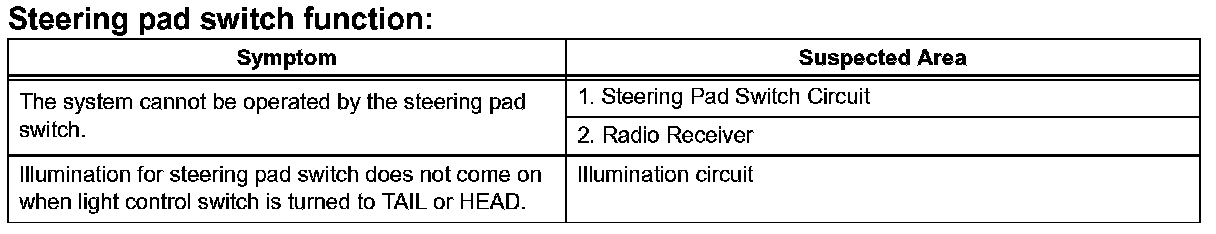

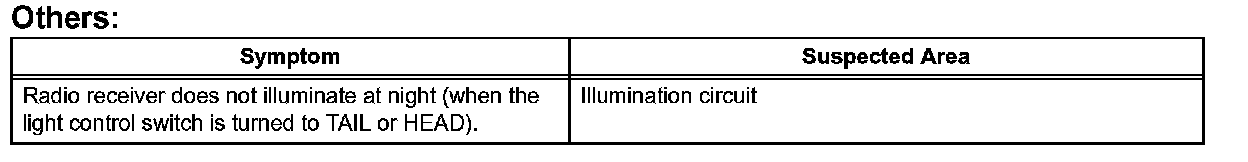

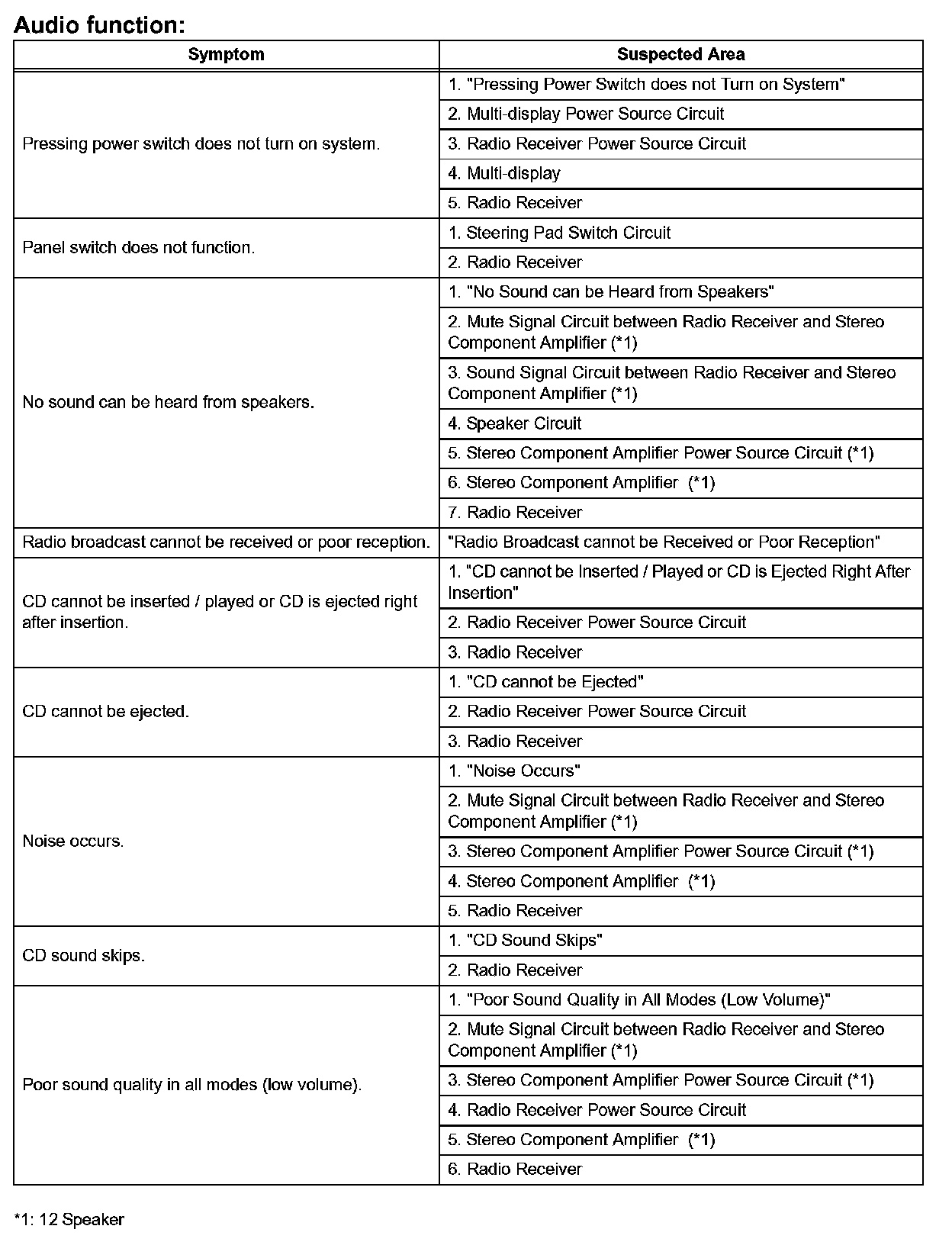

Problem Symptoms Table:

Problem Symptoms Table:

Problem Symptoms Table:

Problem Symptoms Table:
