Tape Player Power Source Circuit

Tape Player Power Source Circuit

DESCRIPTION
This circuit provides power to the tape player.

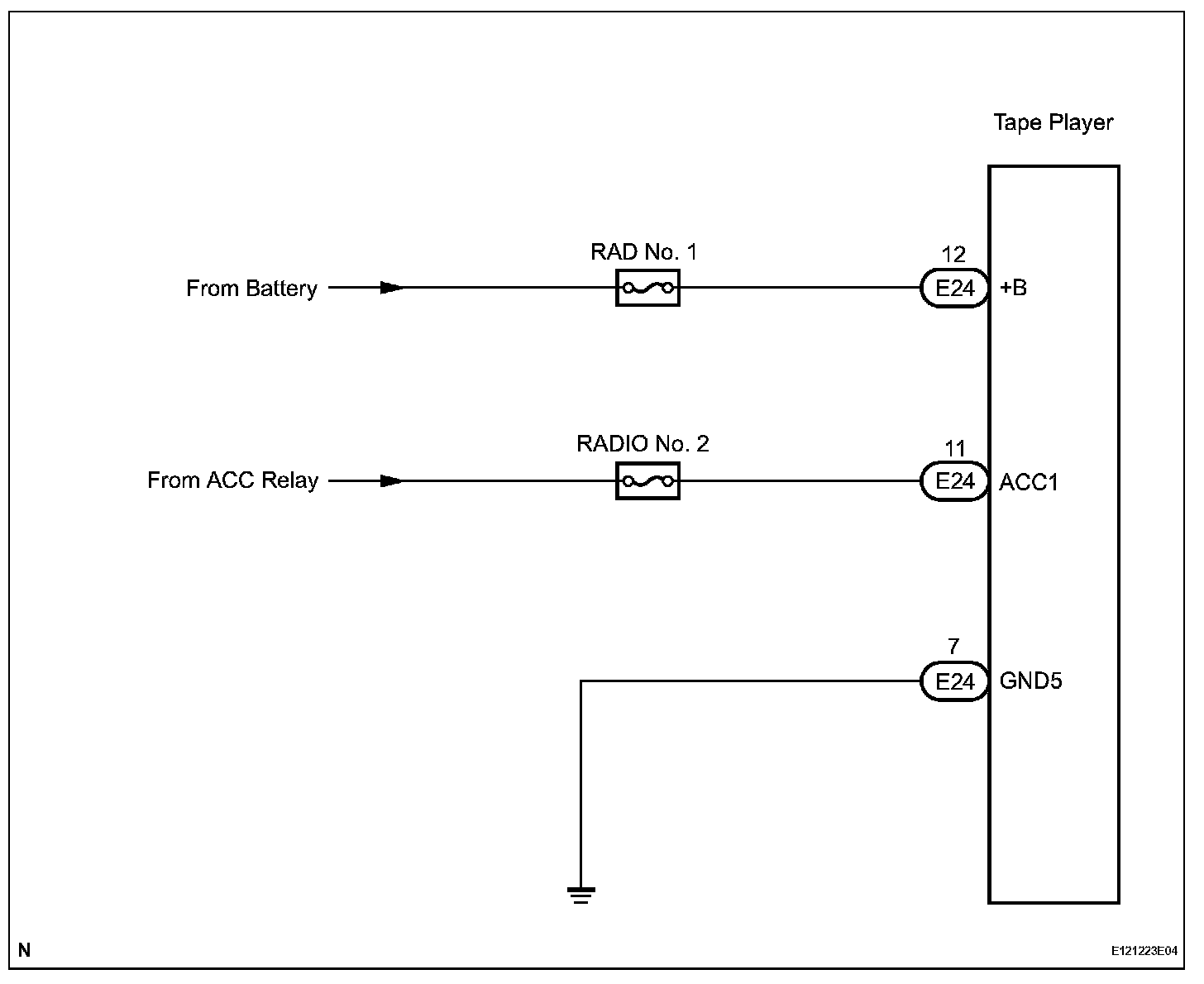

Wiring Diagram:





INSPECTION PROCEDURE

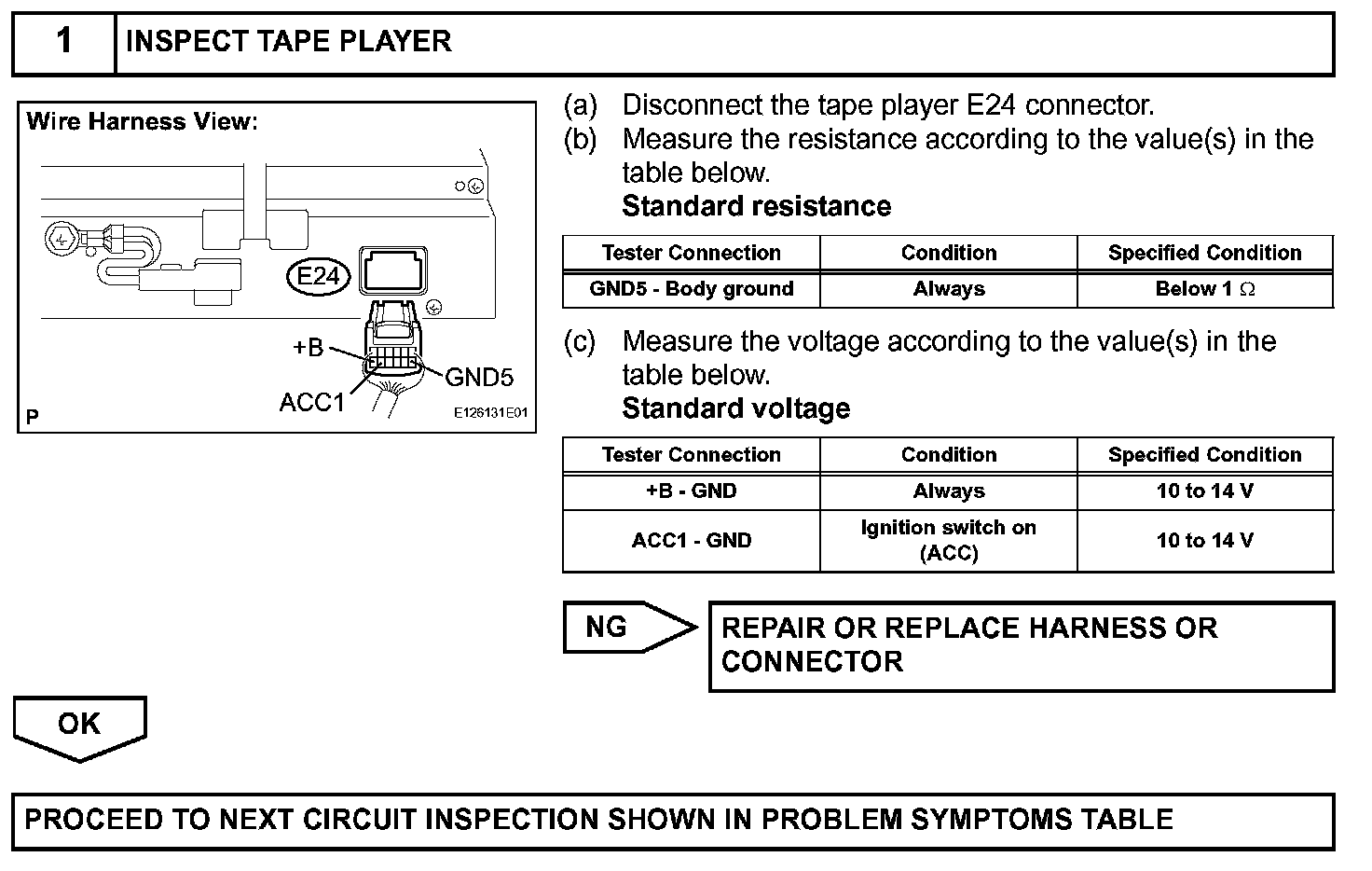

Step 1:
