Tape Player Communication Error

Tape Player Communication Error

INSPECTION PROCEDURE

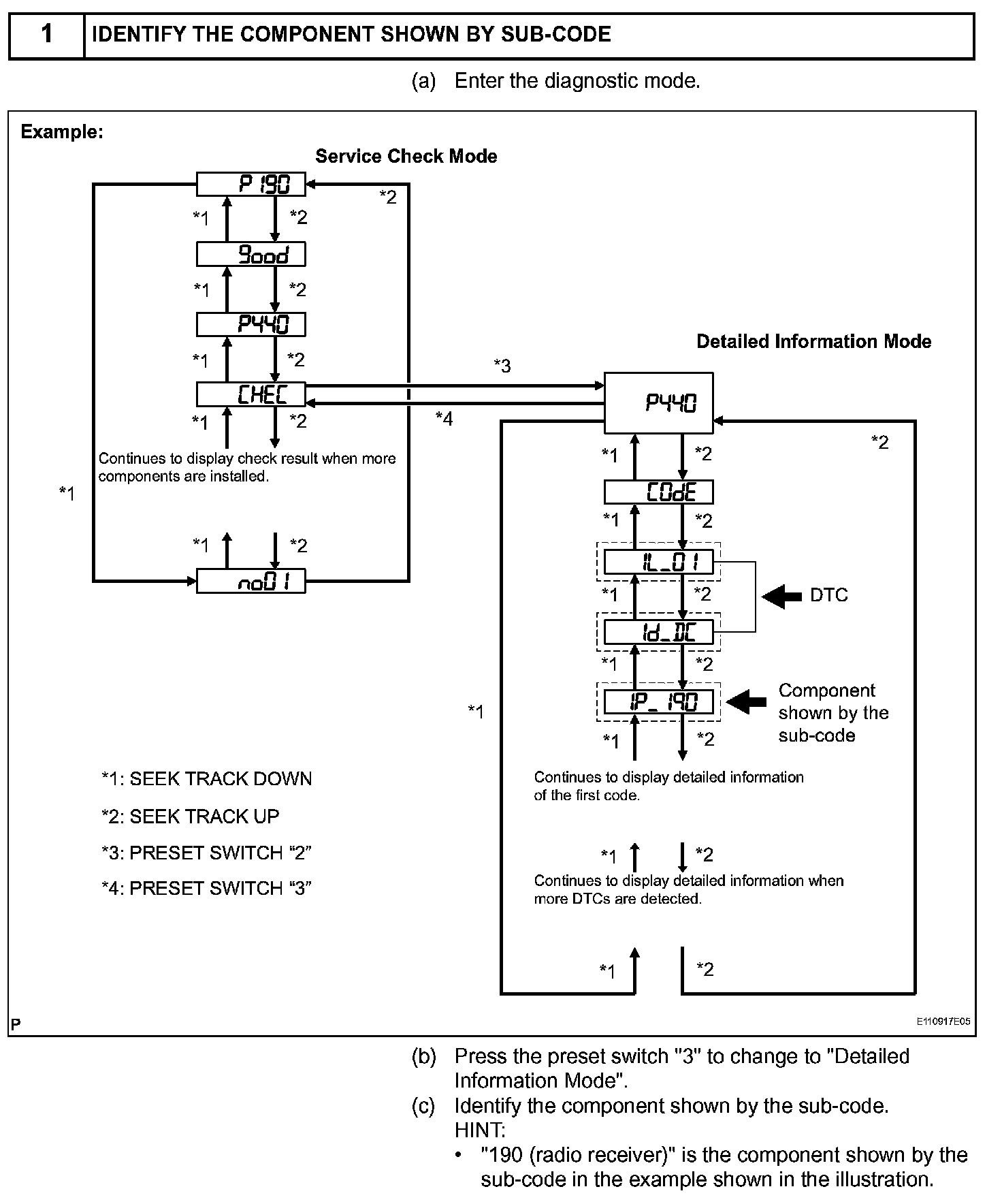

Step 1:

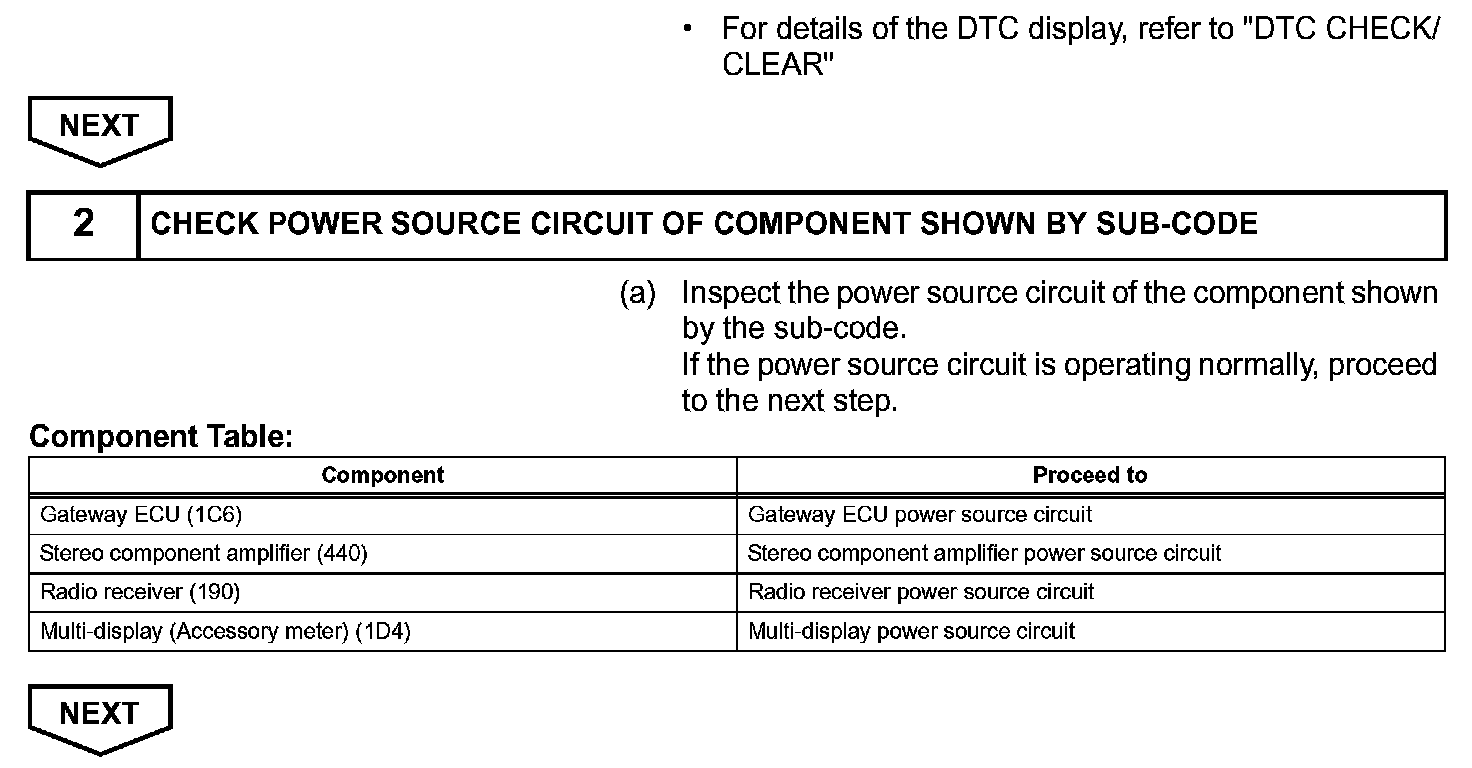

Step 1(Continued)-2:

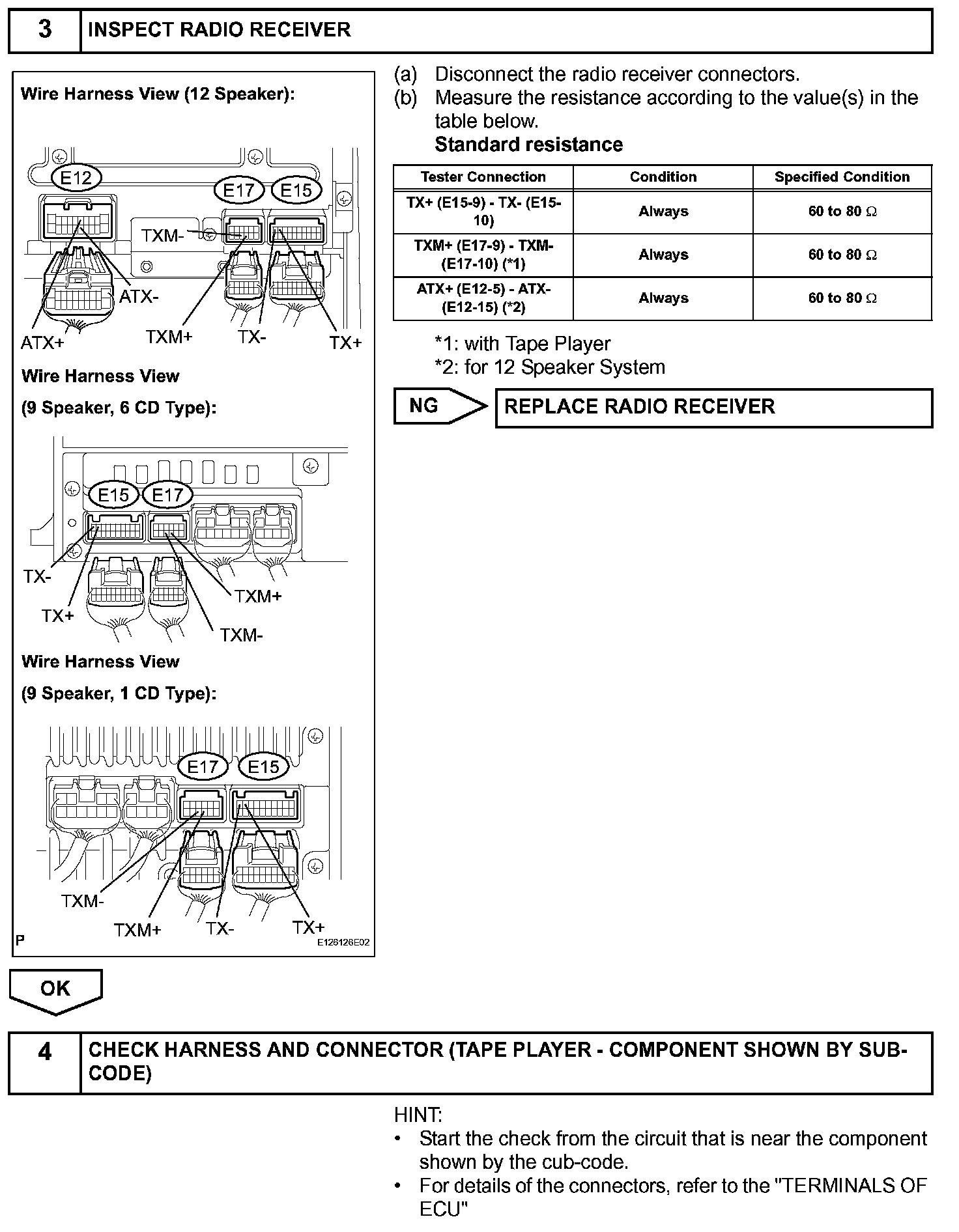

Step 3-4:

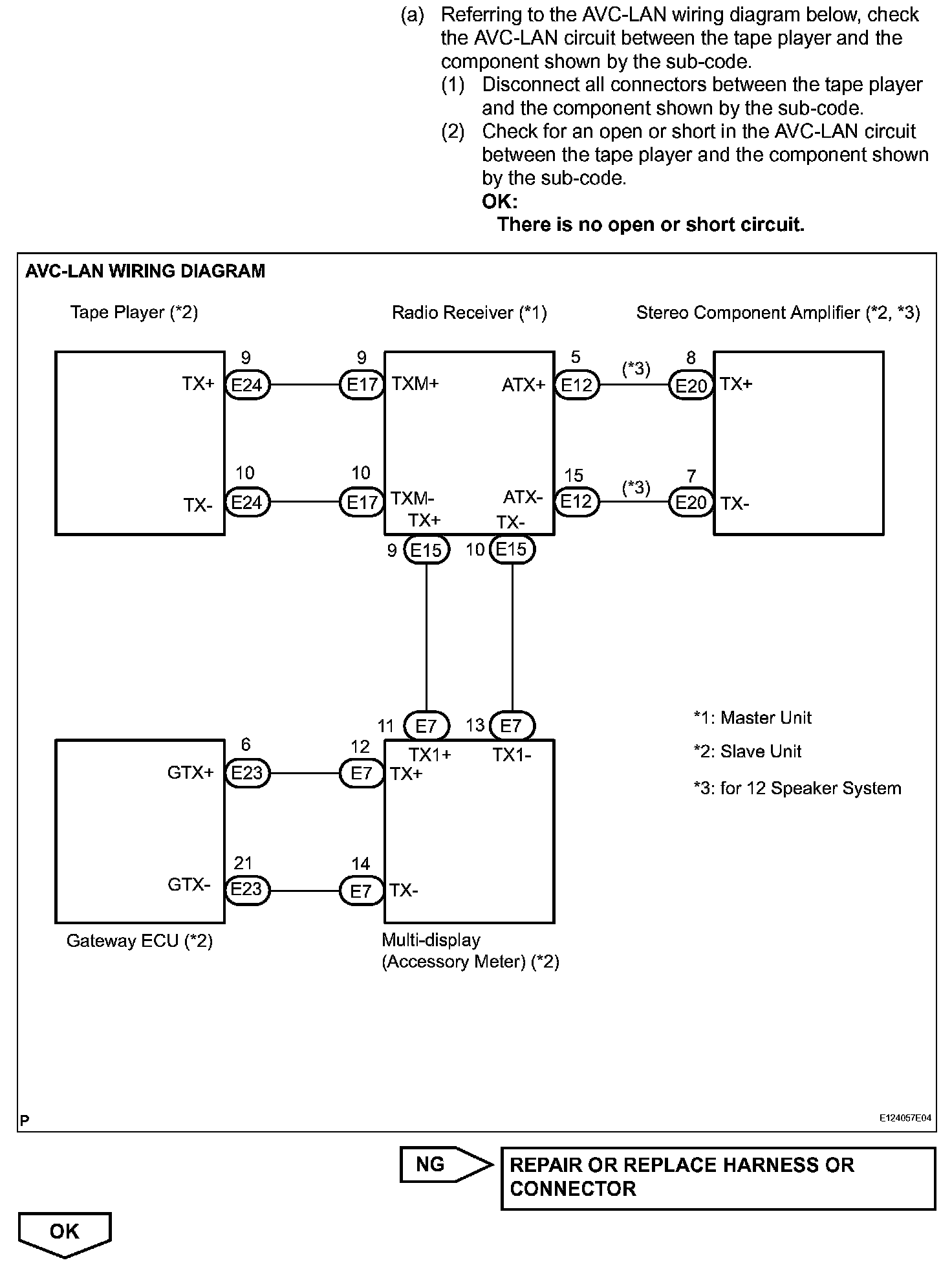

Step 4(Continued):

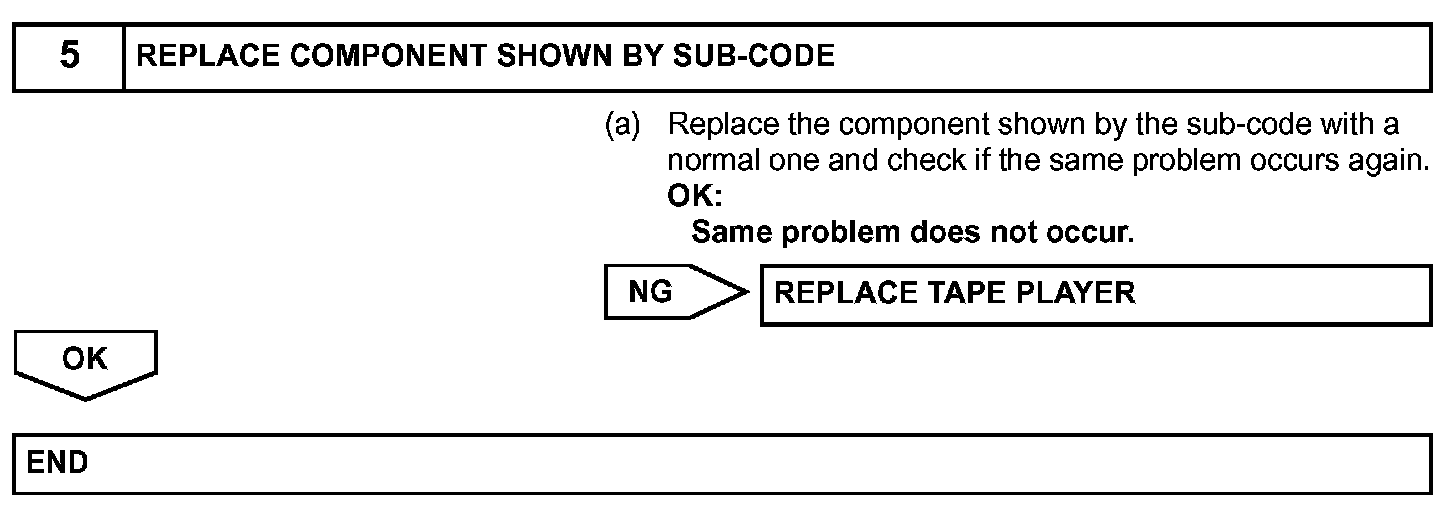

Step 5:
