Tape Player: Service and Repair

Tape Player:

Tape Player:

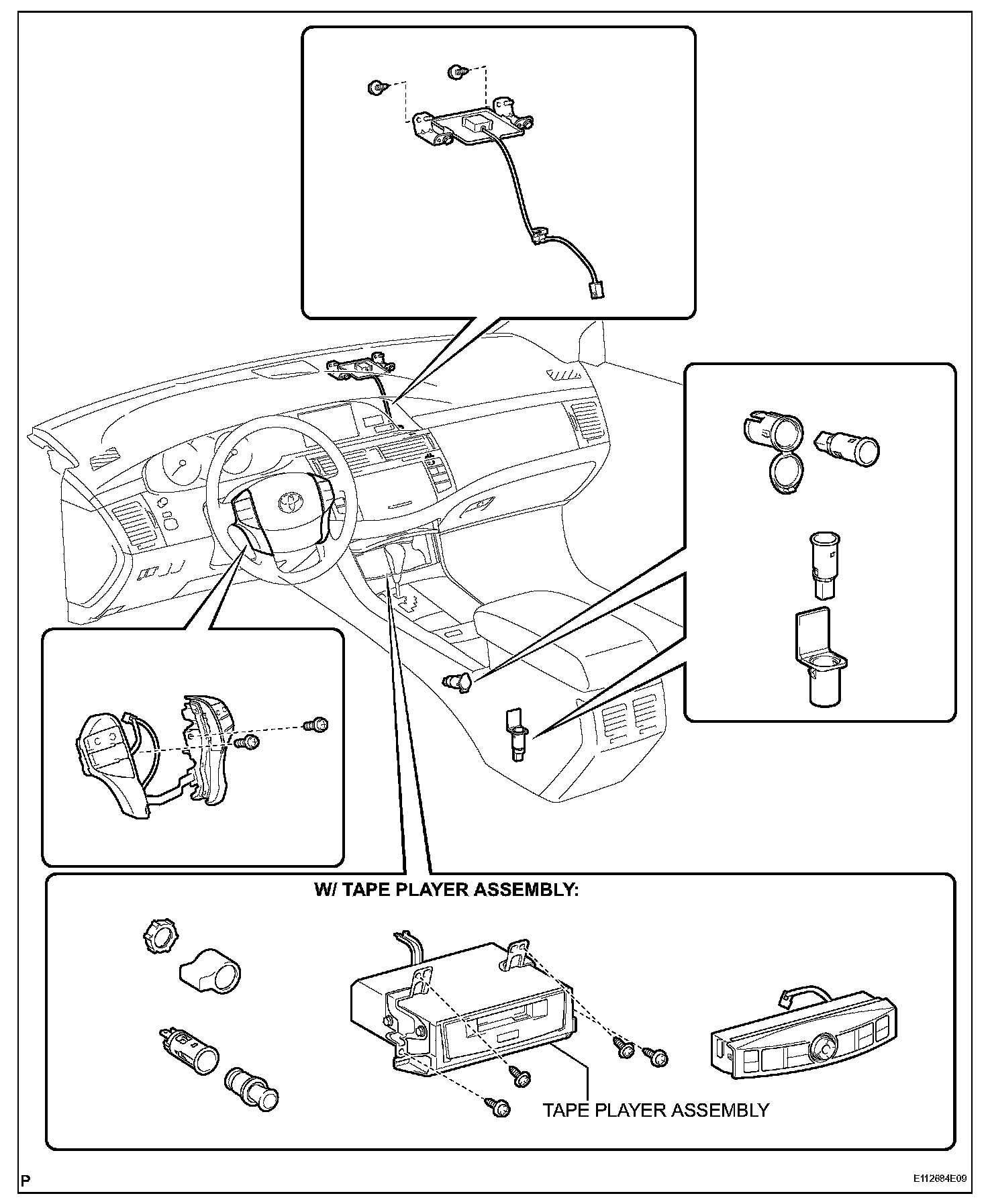

TAPE PLAYER

REMOVAL

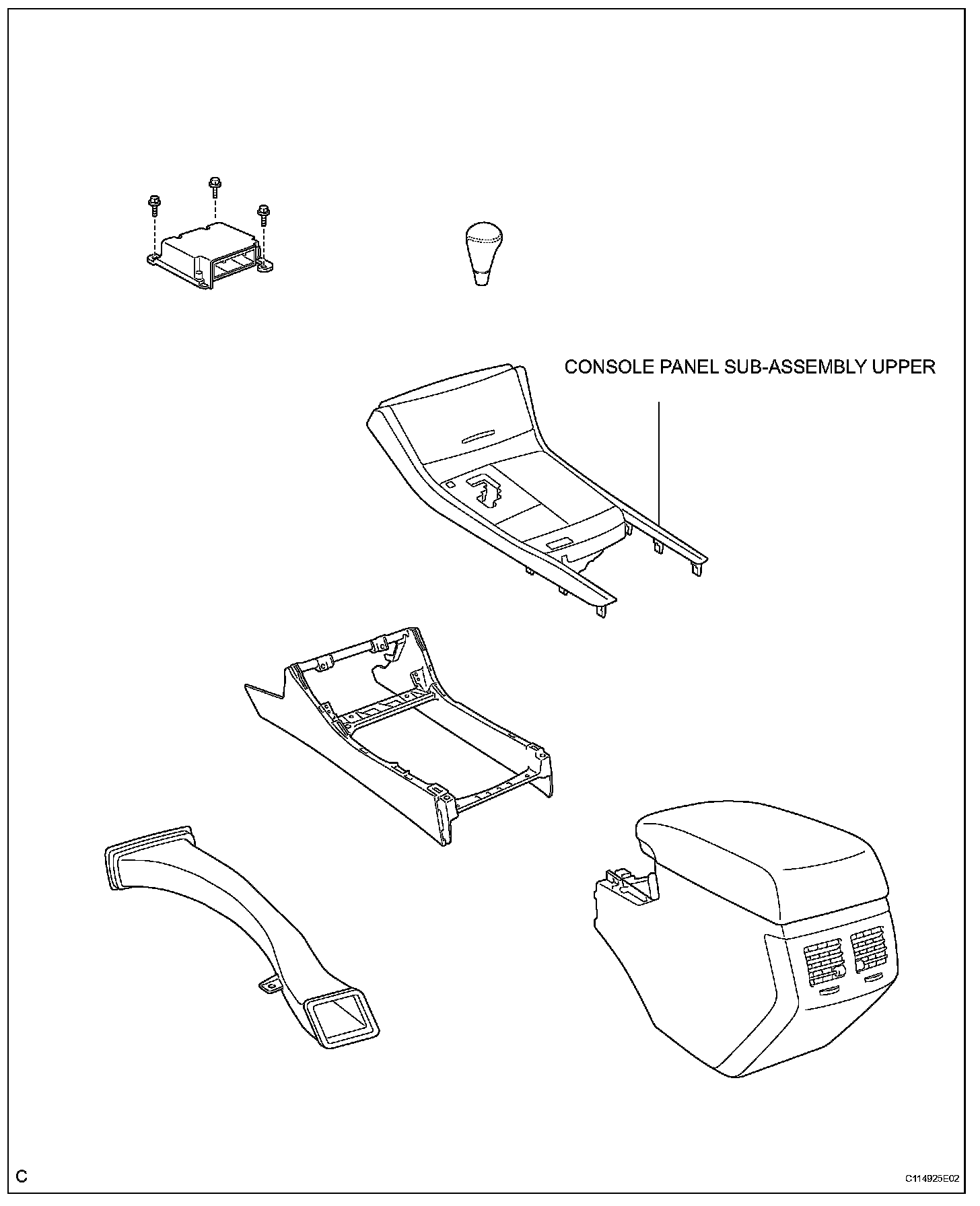

1. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER

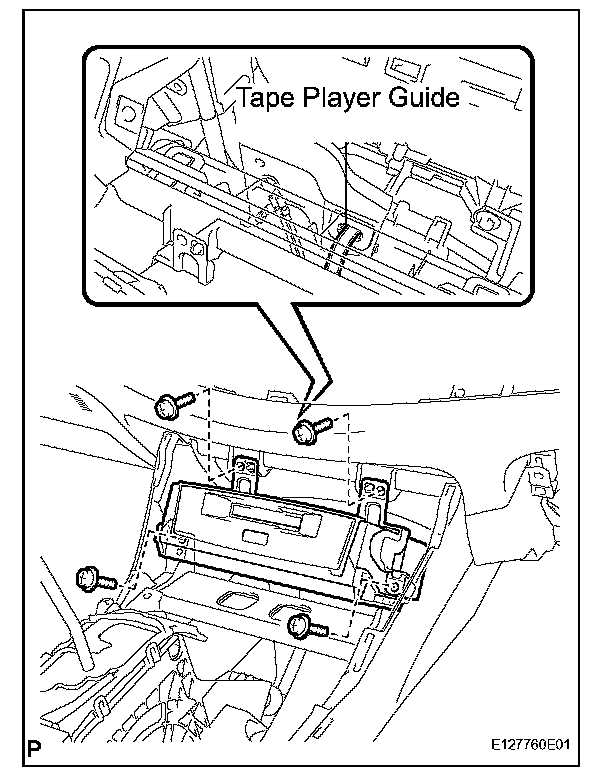

2. REMOVE TAPE PLAYER ASSEMBLY




a. Remove the 4 screws.
b. Pull the tape player assembly toward you and disengage tape player guide.
c. Disconnect all connectors and remove the tape player assembly.

INSTALLATION

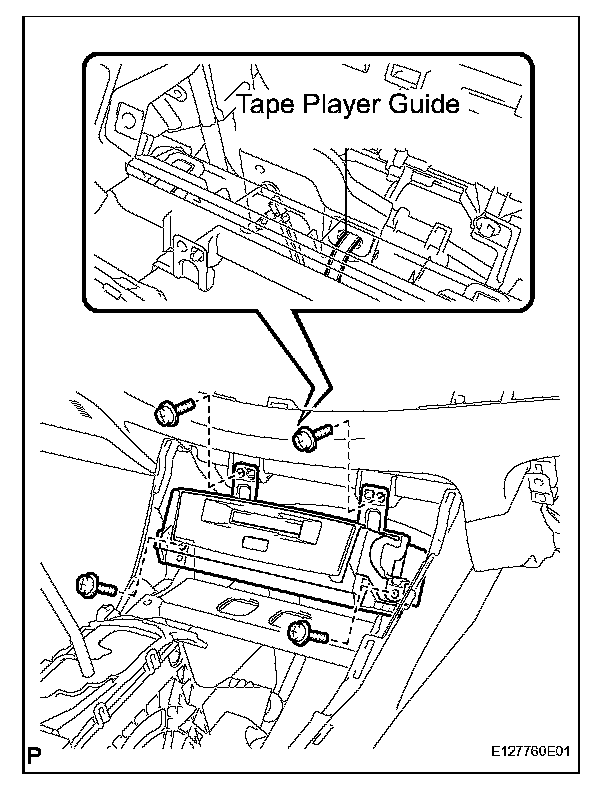

1. INSTALL TAPE PLAYER ASSEMBLY




a. Connect all connectors.
b. Install the tape player assembly with the 4 screws and tape player guide.

2. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER
