Stereo Component Amplifier Communication Error

Stereo Component Amplifier Communication Error

INSPECTION PROCEDURE

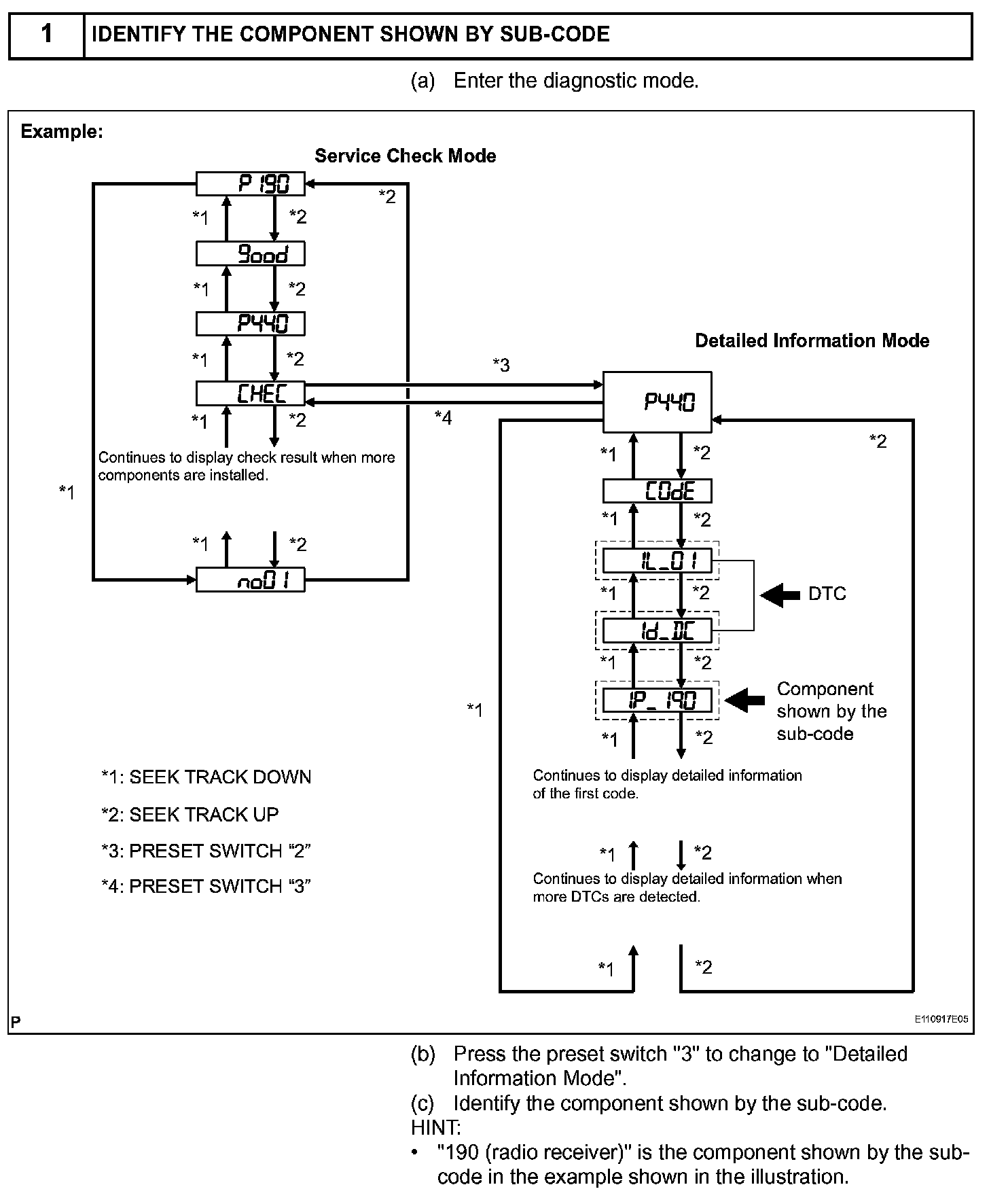

Step 1:

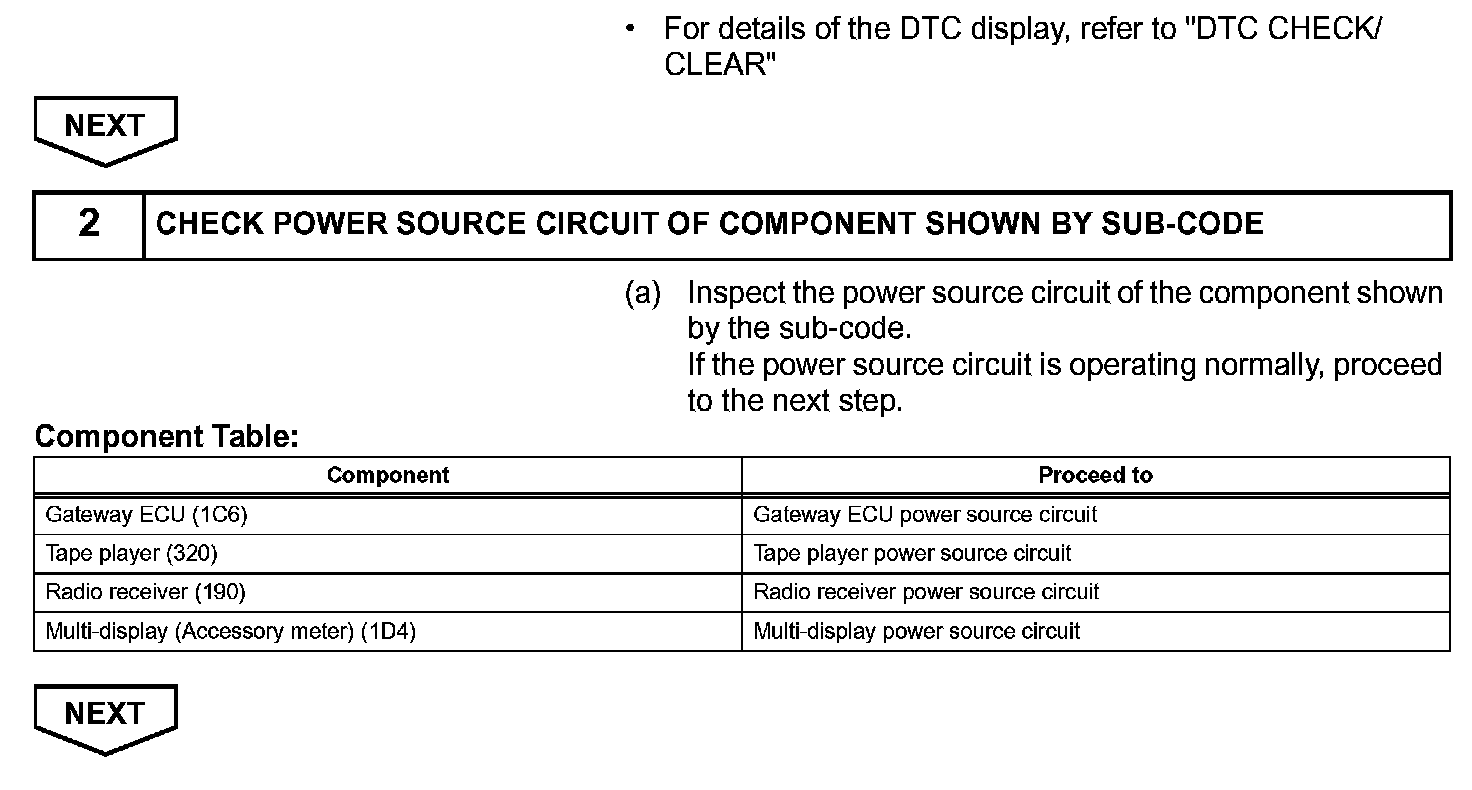

Step 1(continued)-2:

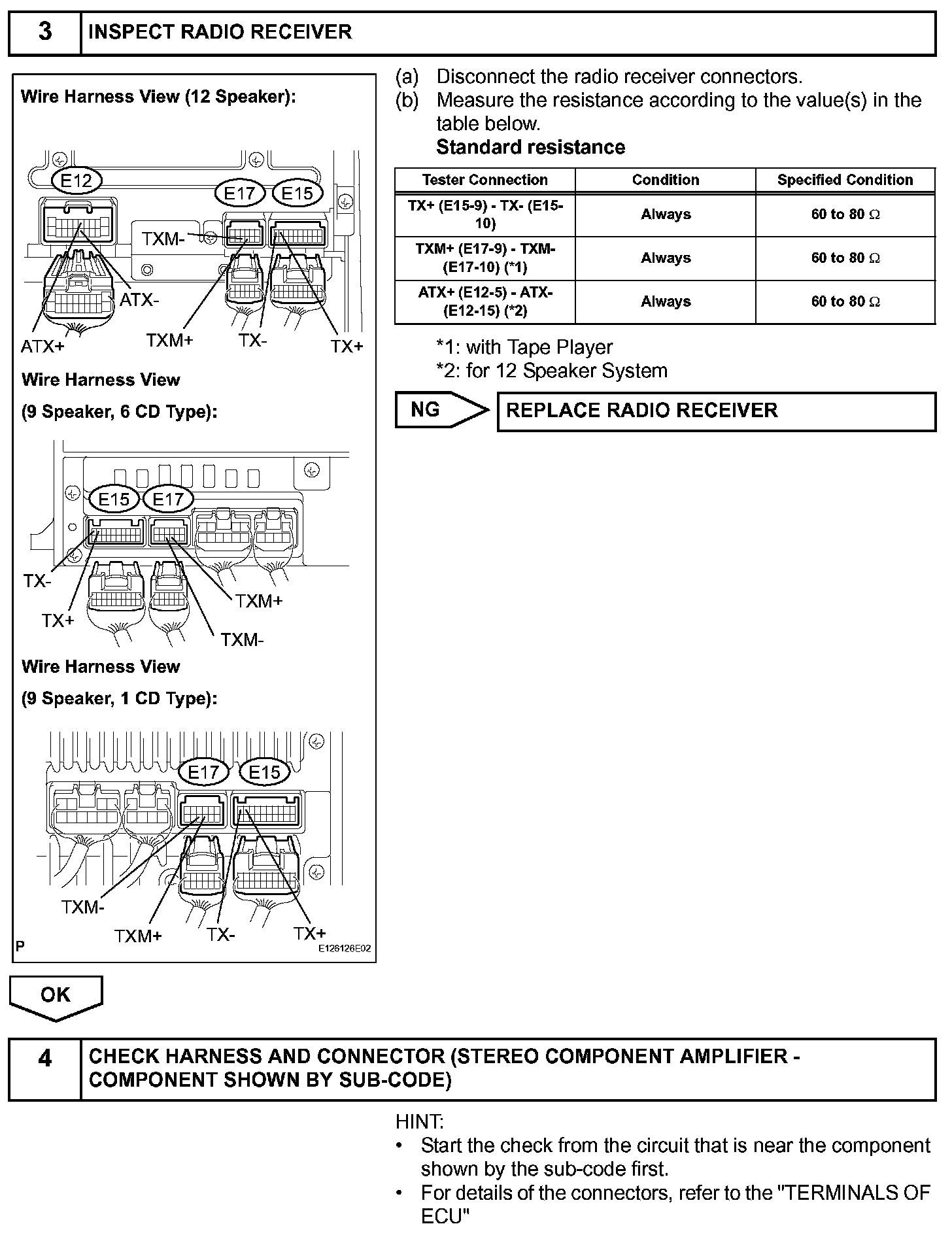

Step 3-4:

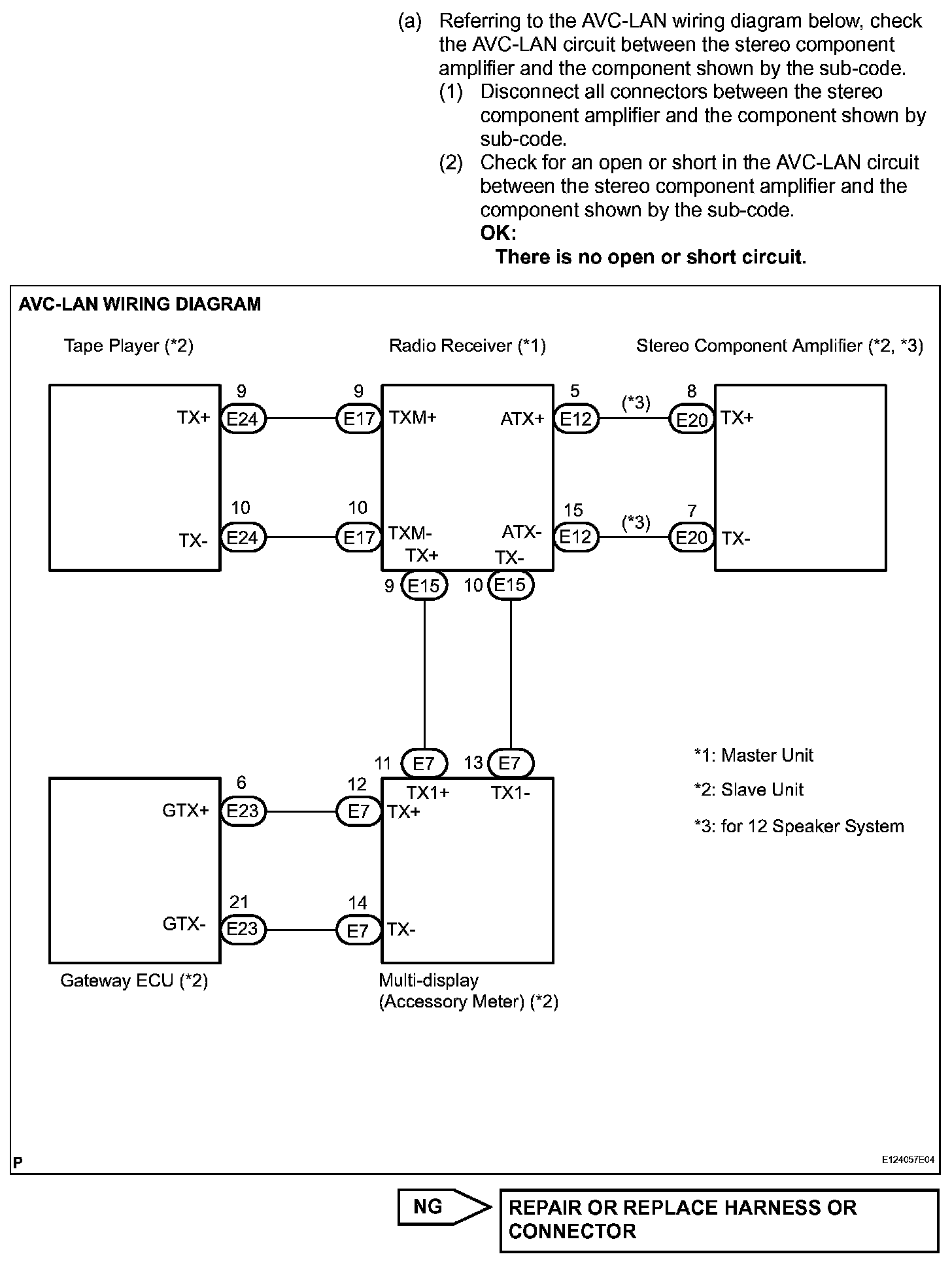

Step 4(Continued):

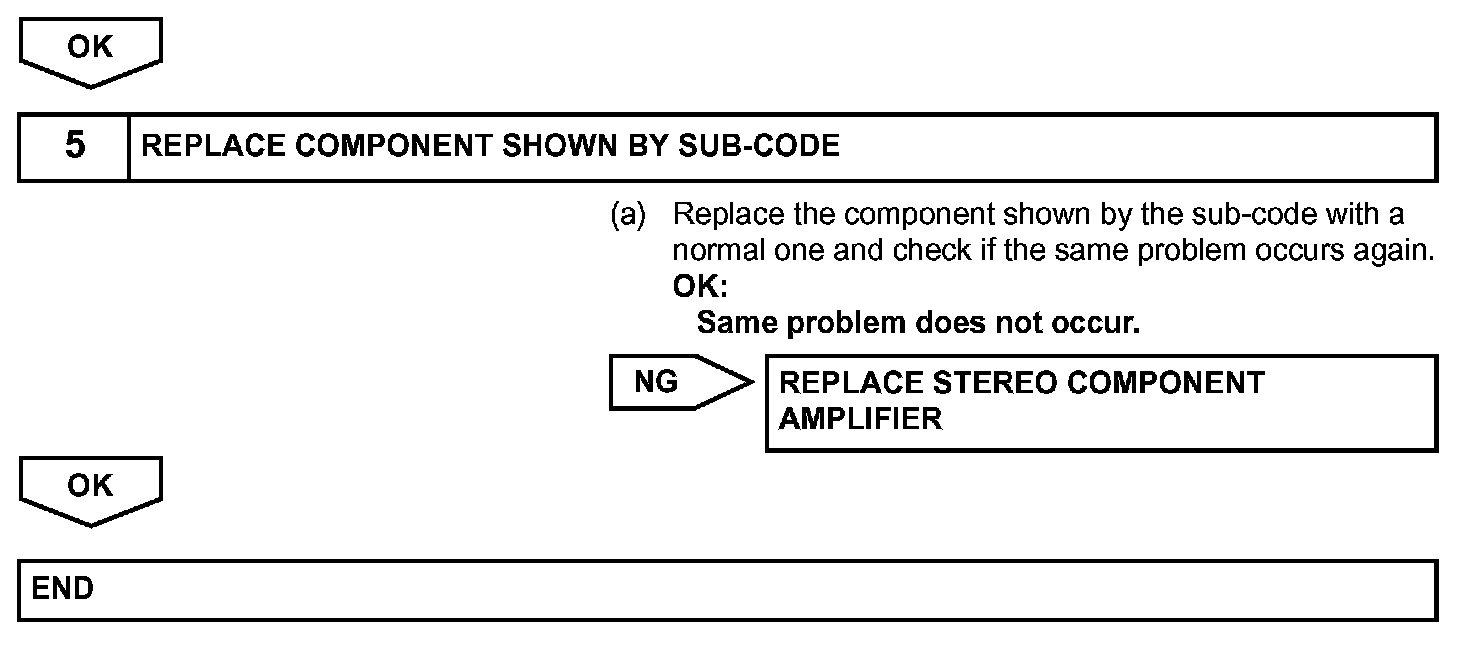

Step 4(Continued)-5:
