Amplifier: Service and Repair

Stereo Component Amplifier:

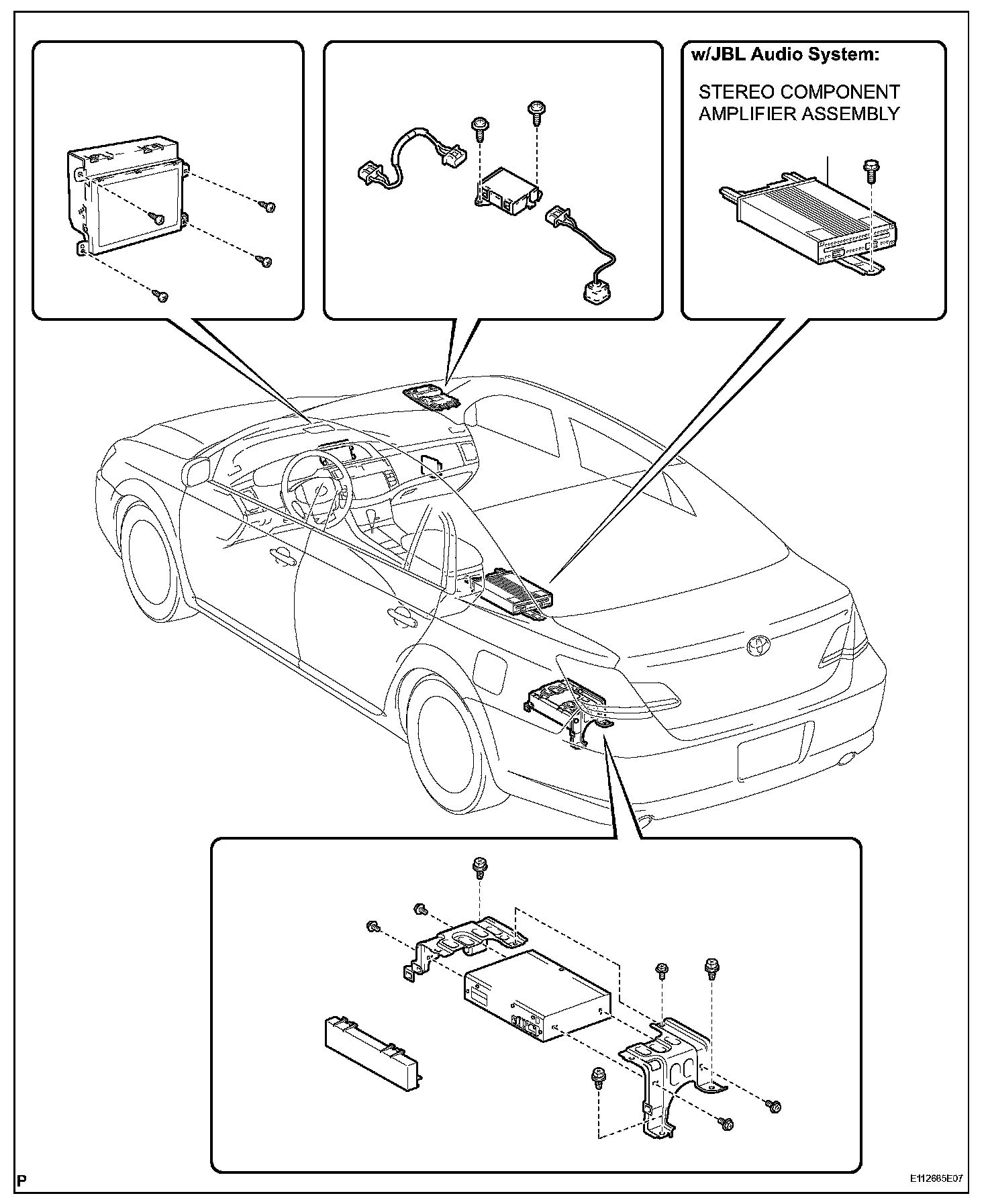

STEREO COMPONENT AMPLIFIER

REMOVAL

1. REMOVE SEAT TRACK BRACKET COVER OUTER FRONT RH
2. REMOVE SEAT TRACK BRACKET COVER INNER FRONT RH
3. REMOVE FRONT SEAT TRACK COVER RH REAR OUTER
4. REMOVE SEAT TRACK BRACKET COVER INNER RH
5. REMOVE FRONT RH SEAT ASSEMBLY

6. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY

a. Disconnect all connectors

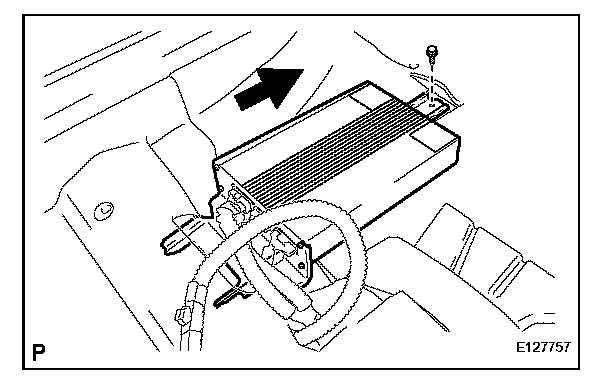

b. Remove the bolt and stereo component amplifier assembly as shown in the illustration.

INSTALLATION

1. INSTALL STEREO COMPONENT AMPLIFIER ASSEMBLY
2. INSTALL FRONT RH SEAT ASSEMBLY
3. CHECK SEAT SLIDE ADJUSTER LOCKS
4. CHECK SEAT HEATER OPERATION (w/ Seat Heater System)
5. INITIALIZE FRONT PASSENGER OCCUPANT CLASSIFICATION SYSTEM
6. INSPECT SRS WARNING LIGHT
