No Image Appears on Multi-display
No Image Appears on Multi-display
No Image Appears on Multi-display

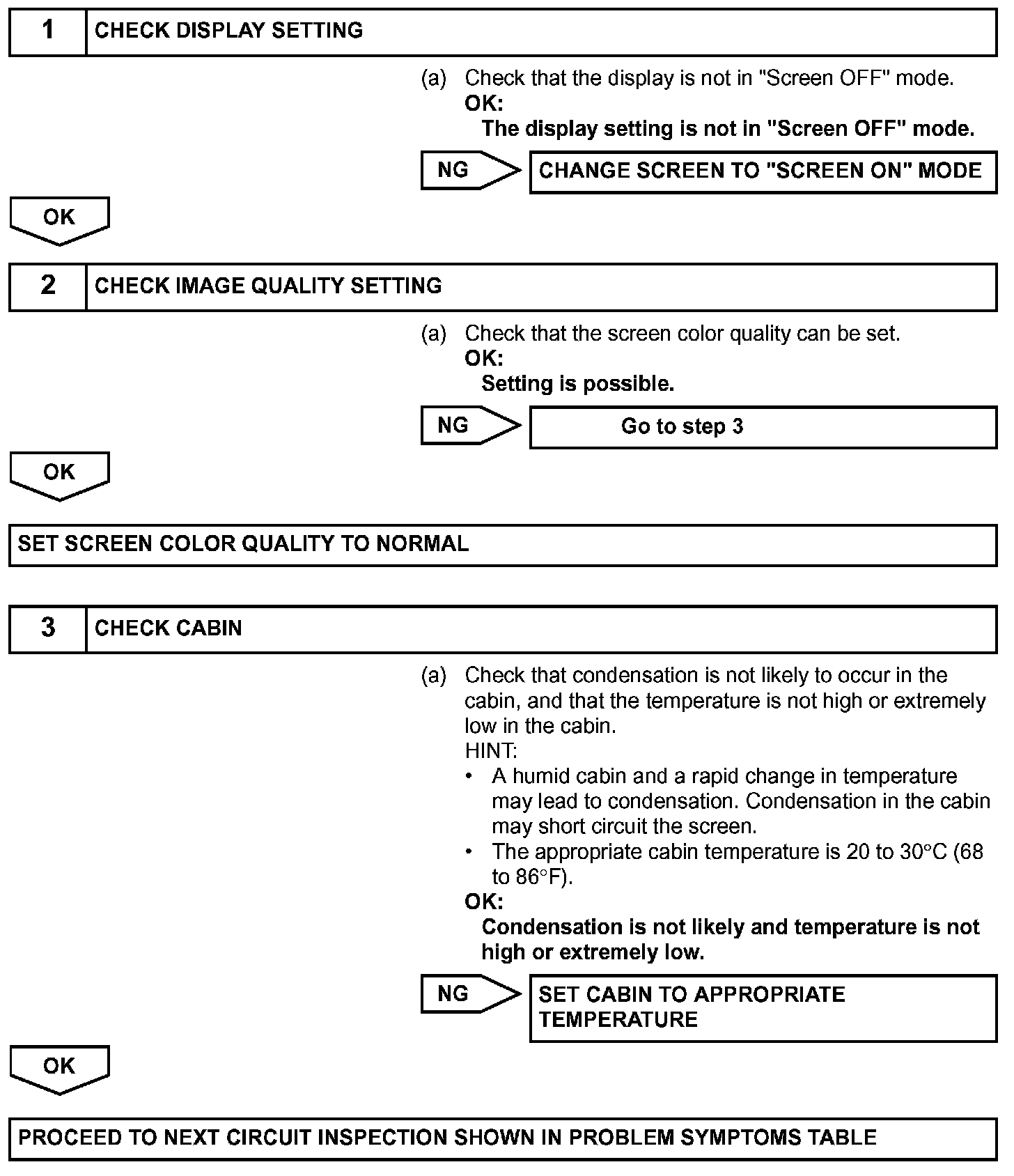

INSPECTION PROCEDURE
Step 1-3:
