Navigation Voice Speaker Circuit
Navigation Voice Speaker CircuitDESCRIPTION
This circuit is used when the voice guidance in the navigation system is on.

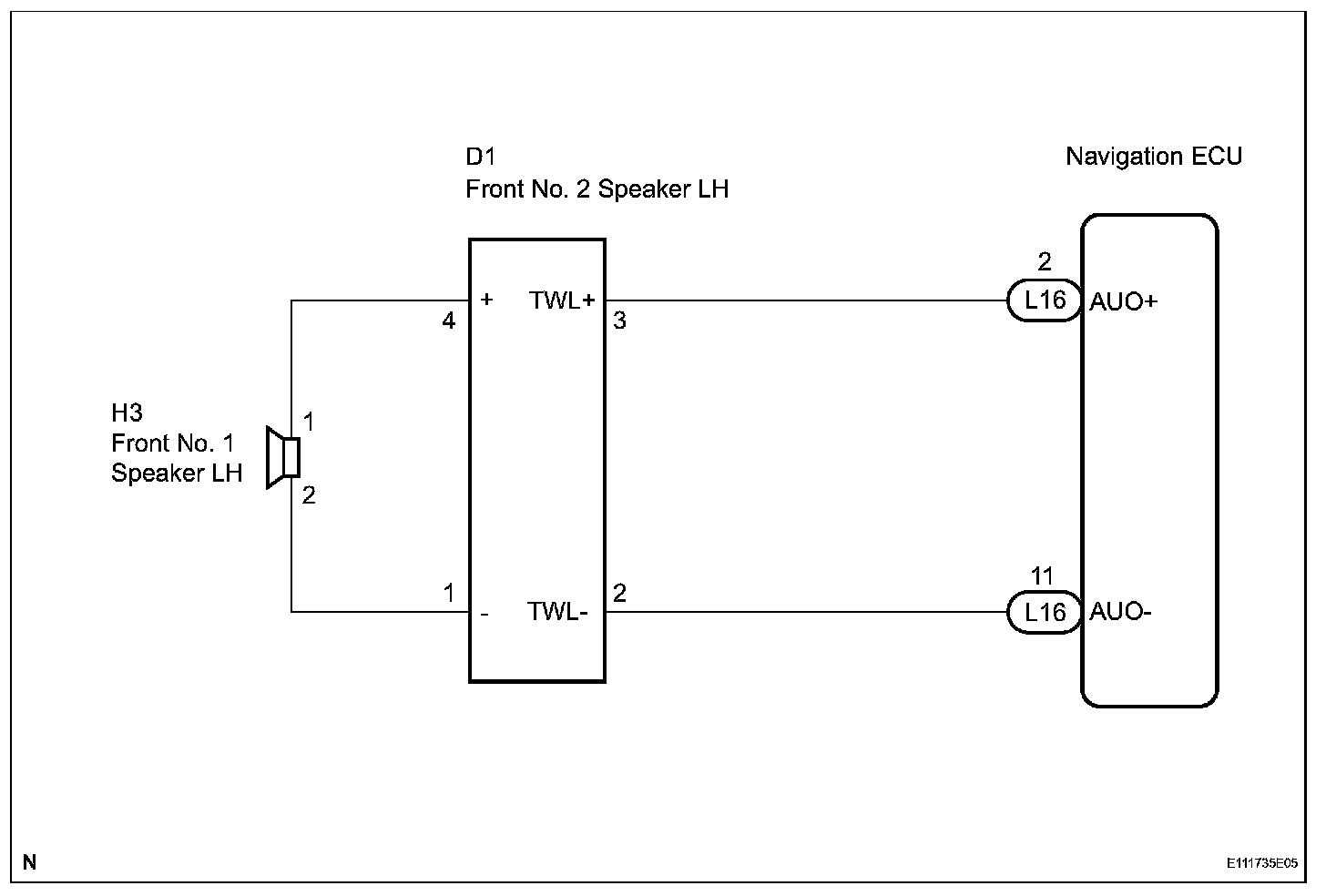

Wiring Diagram:
INSPECTION PROCEDURE

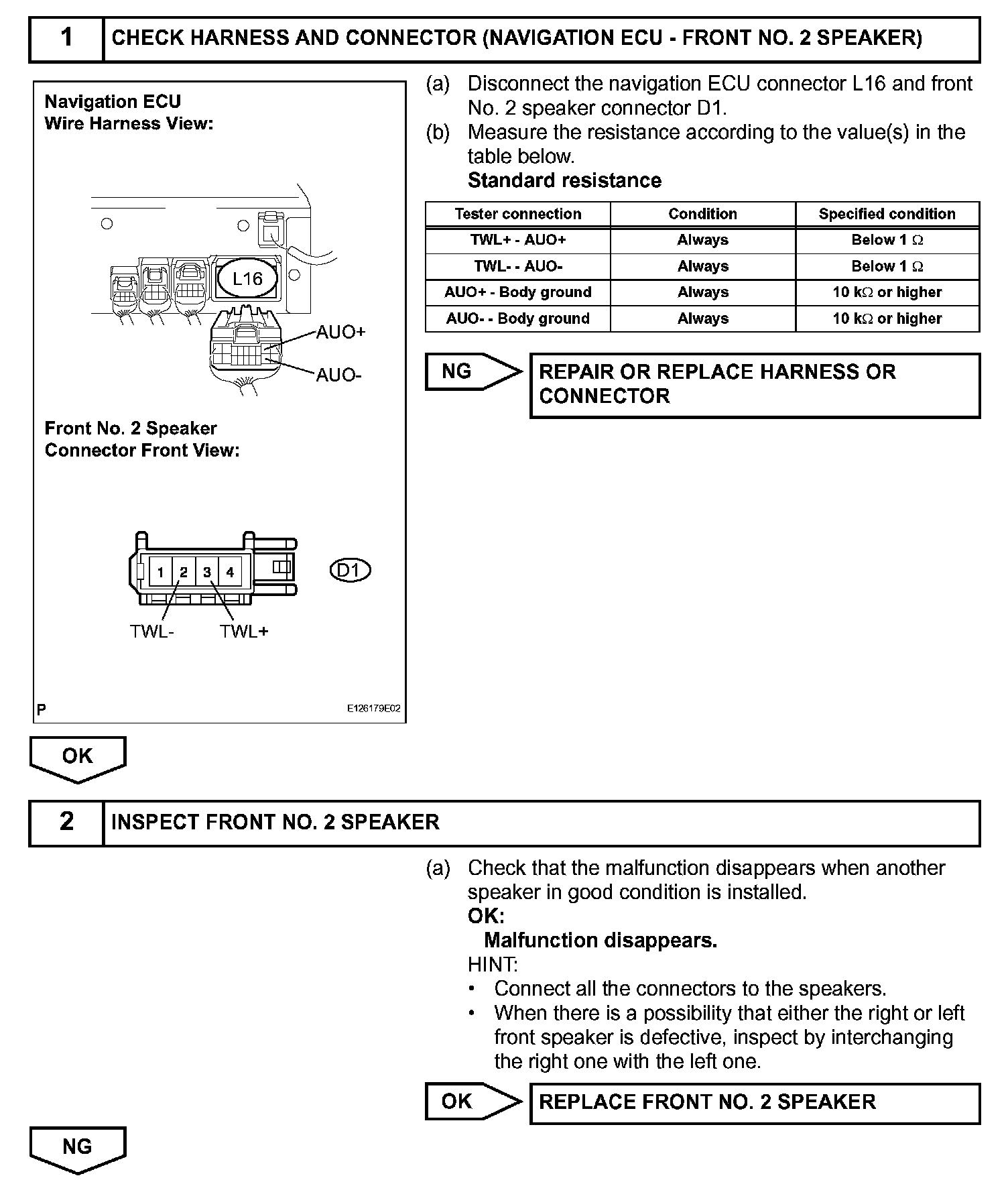

Step 1-2:

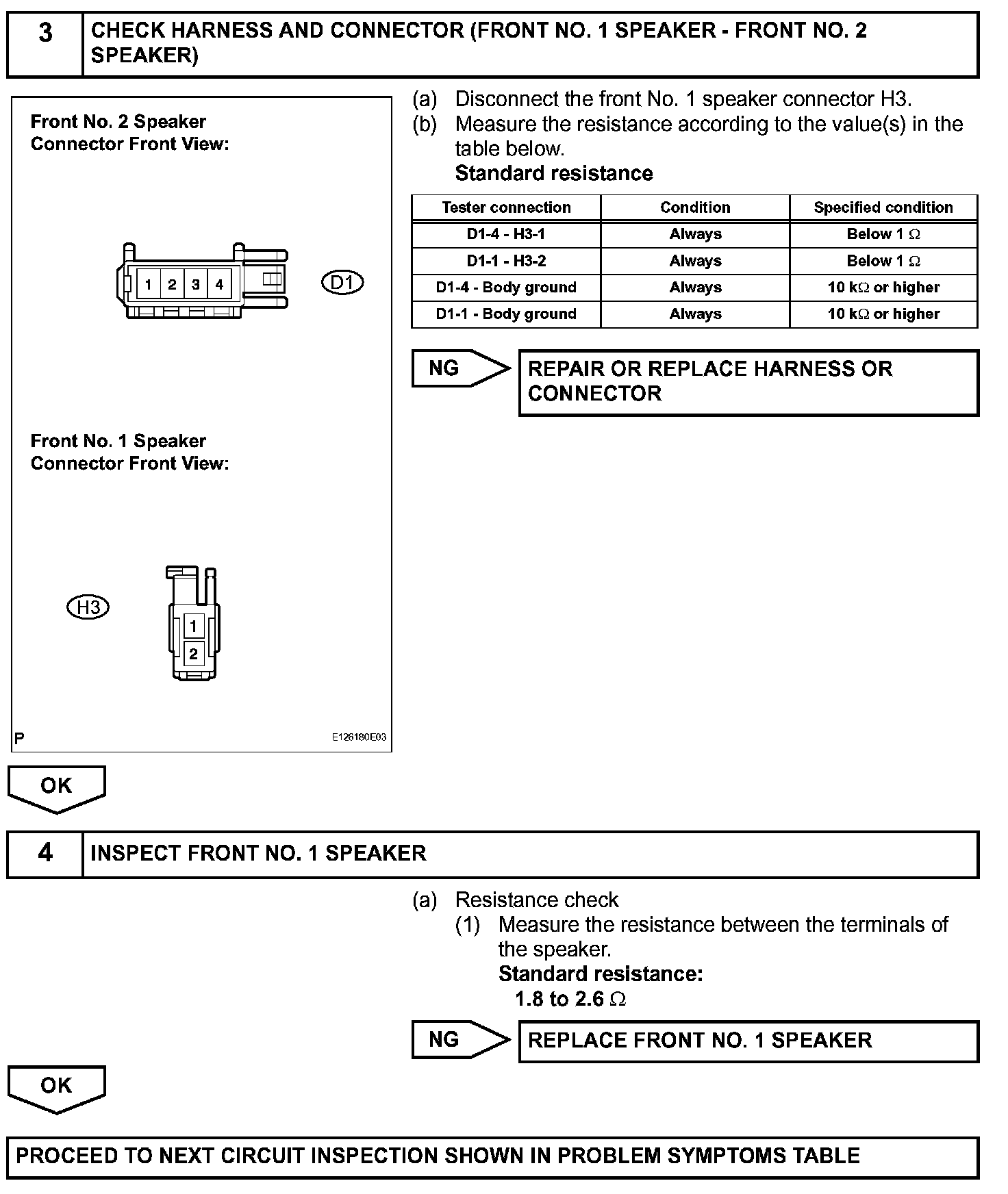

Step 3-4:
DESCRIPTION
This circuit is used when the voice guidance in the navigation system is on.
INSPECTION PROCEDURE
