Navigation Controller Power Source Circuit
Navigation Controller Power Source CircuitDESCRIPTION
This circuit provides power to the navigation controller.

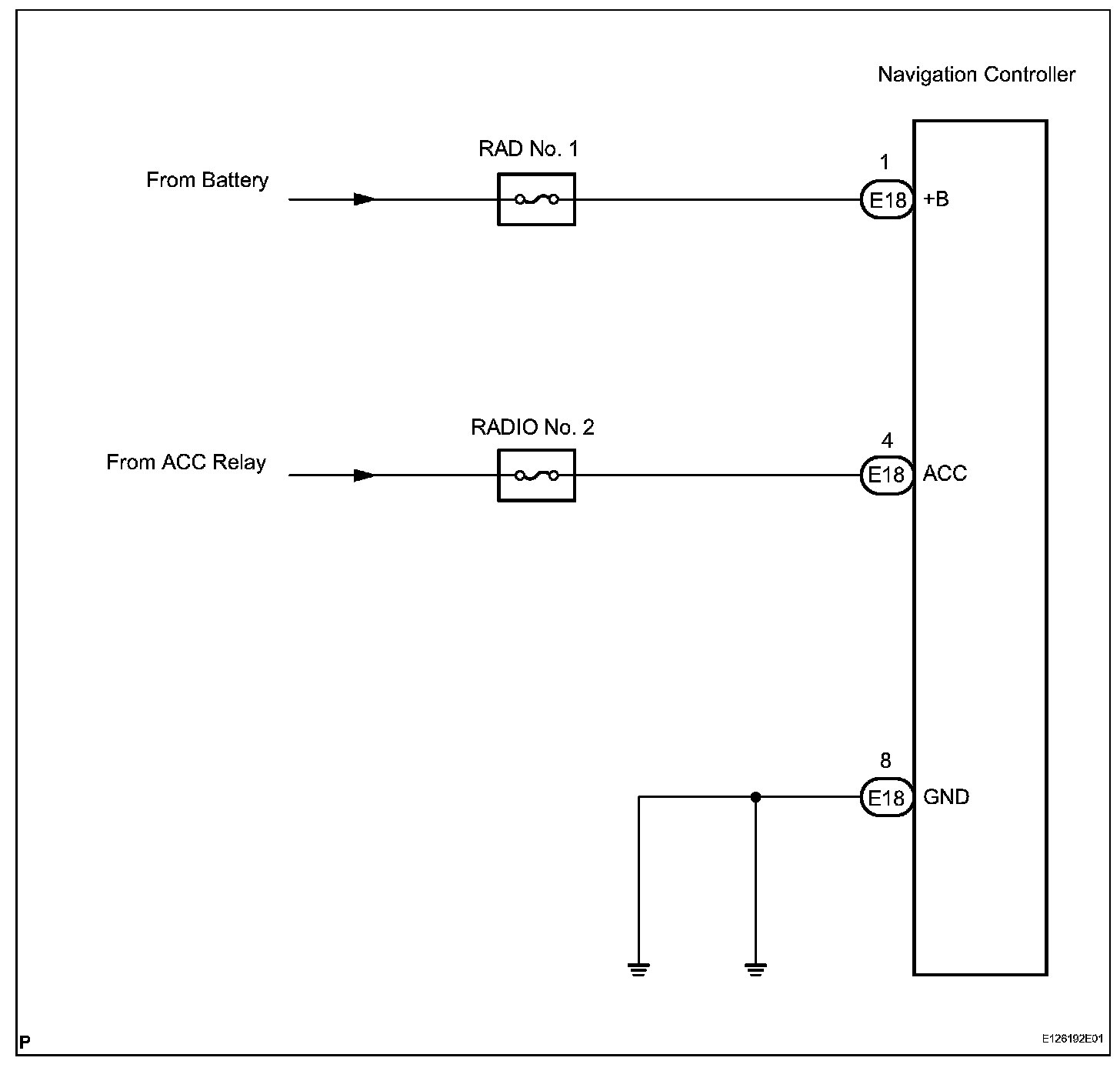

Wiring Diagram:
INSPECTION PROCEDURE

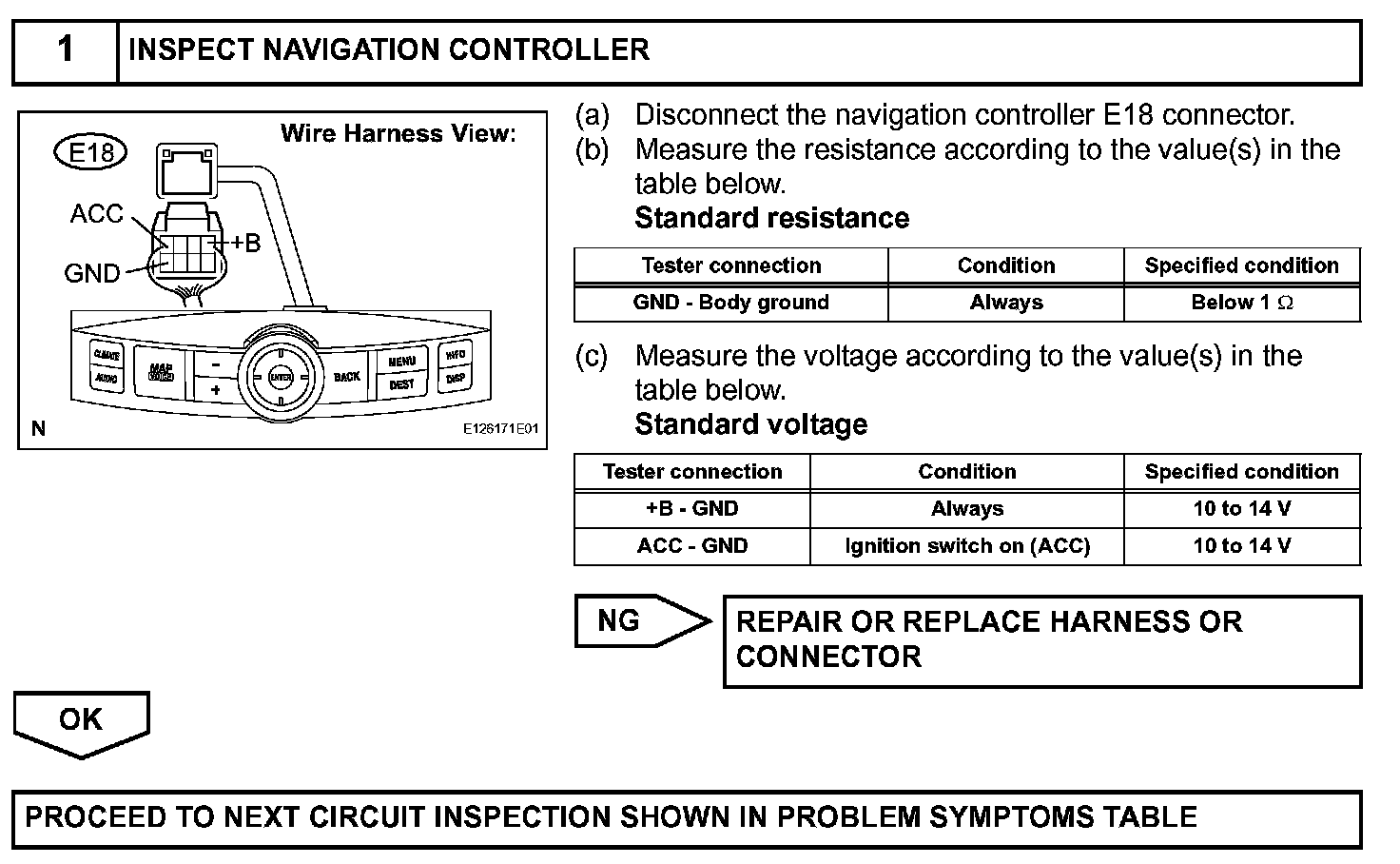

Step 1:
DESCRIPTION
This circuit provides power to the navigation controller.
INSPECTION PROCEDURE
