Illumination Circuit
Illumination CircuitDESCRIPTION
Power is supplied to the multi-display and navigation controller illumination when the light control switch is in the TAIL or HEAD position.

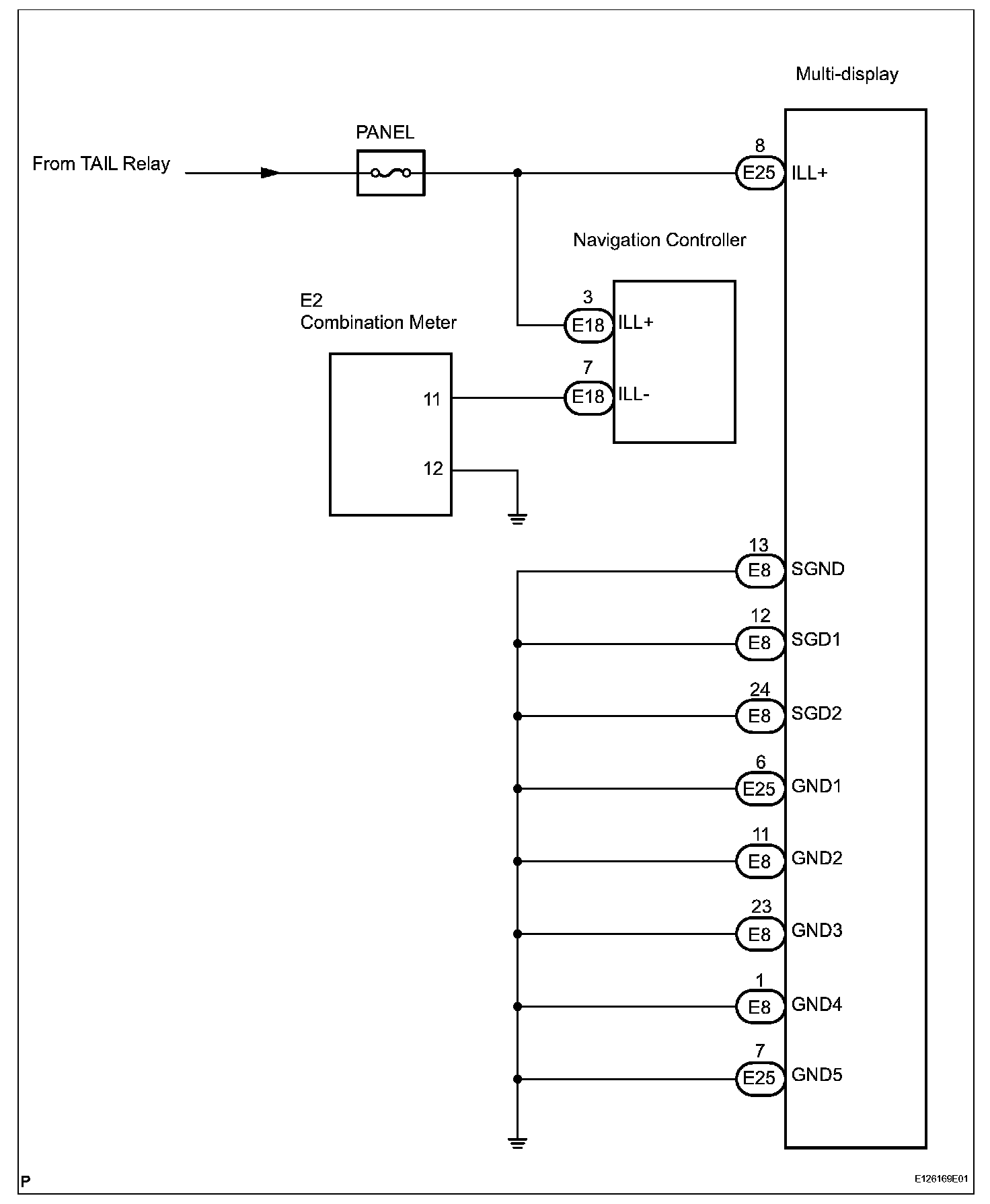

Wiring Diagram:
INSPECTION PROCEDURE

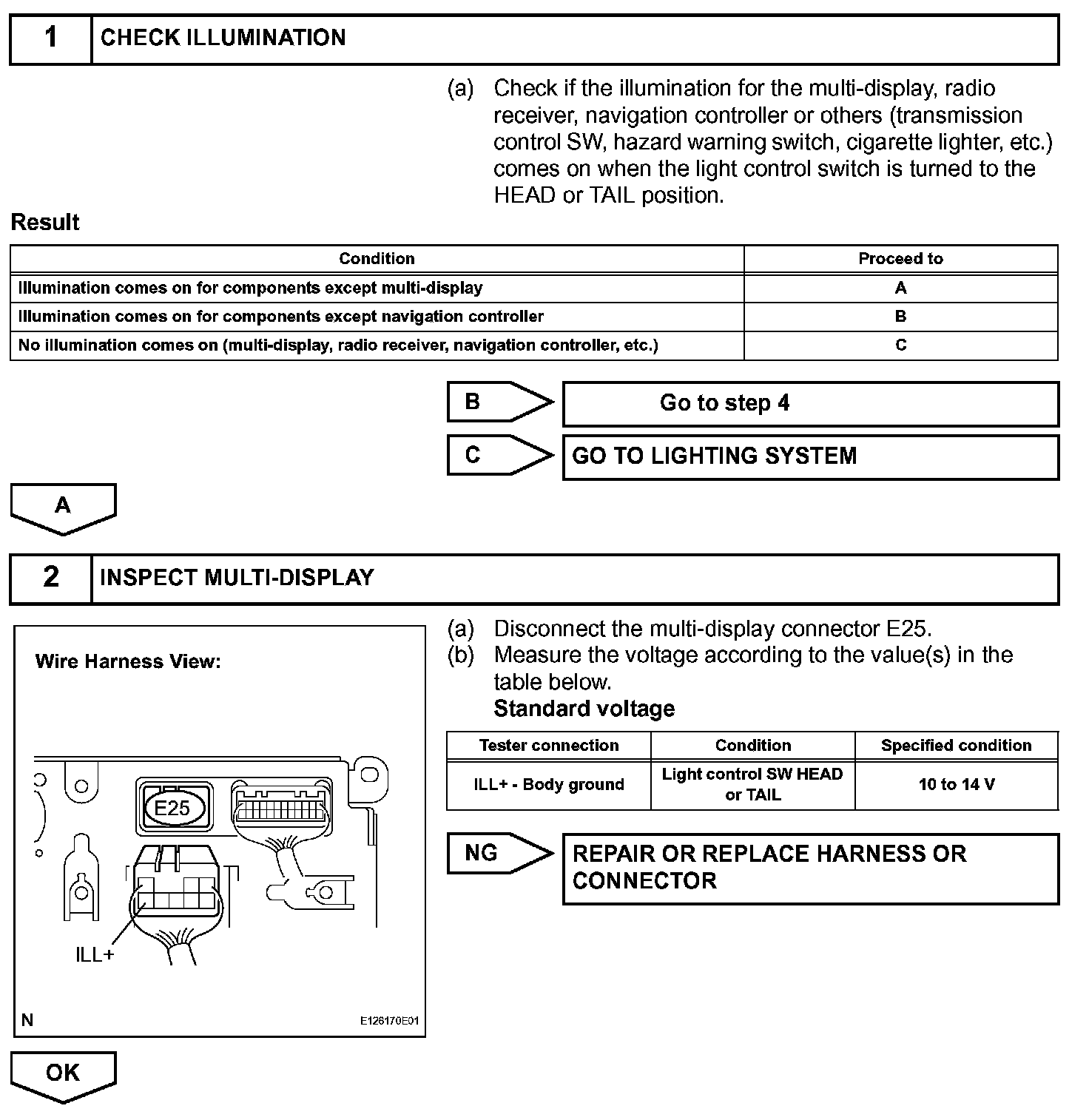

Step 1-2:

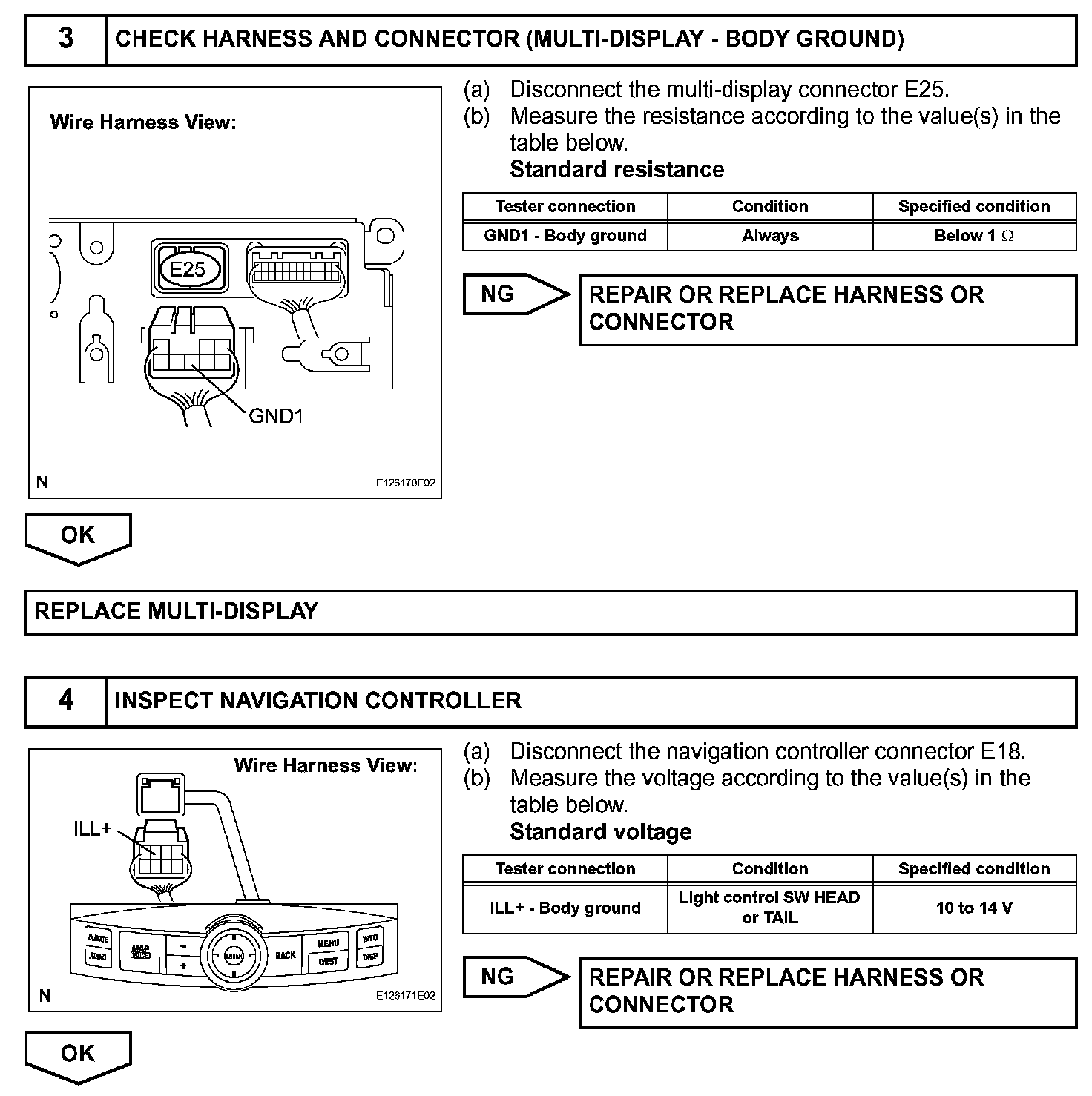

Step 3-4:

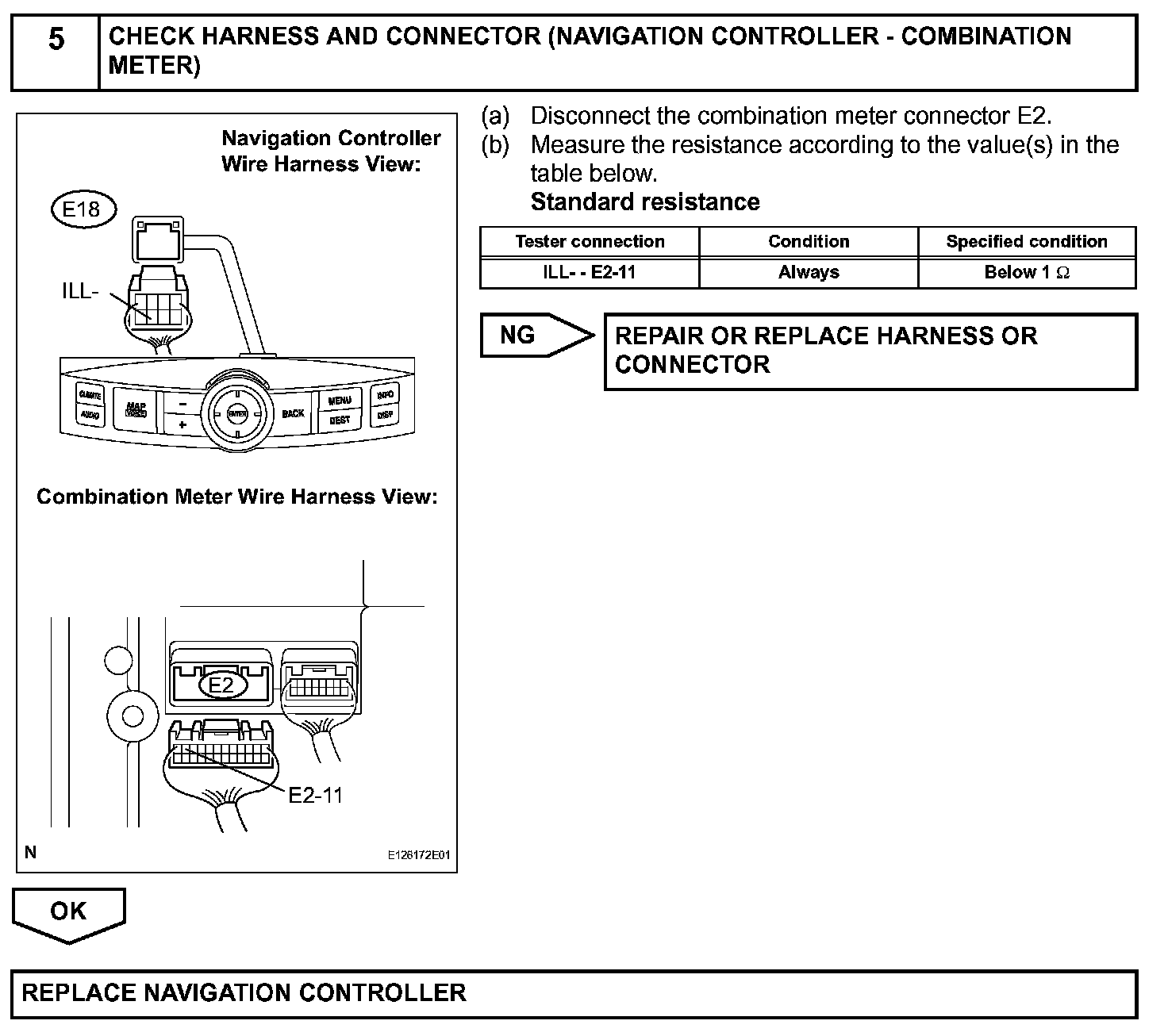

Step 5:
