Gateway ECU Power Source Circuit

Gateway ECU Power Source Circuit

DESCRIPTION

This is the power source circuit to operate the gateway ECU.

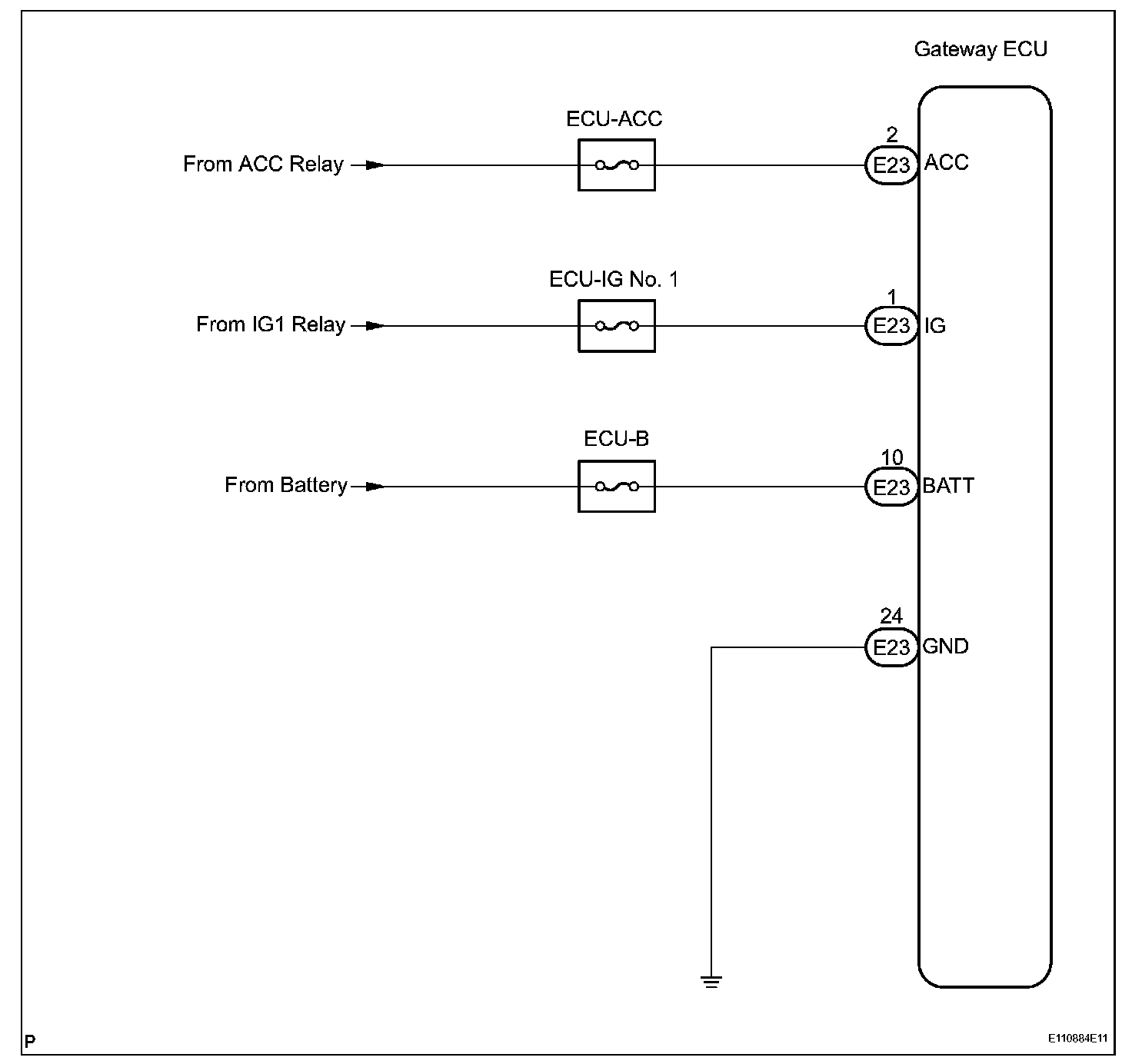

Wiring Diagram:





INSPECTION PROCEDURE

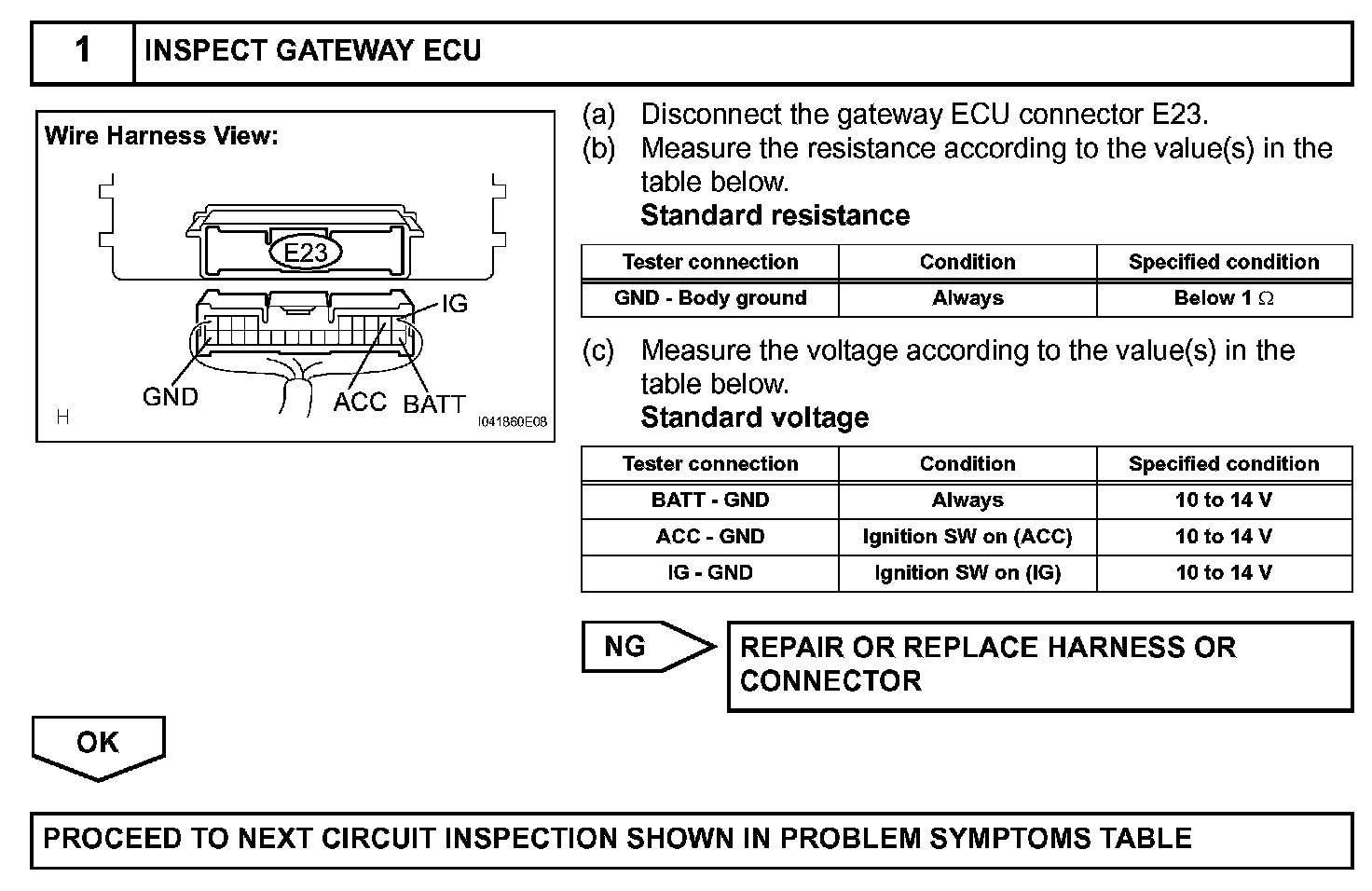

Step 1:
