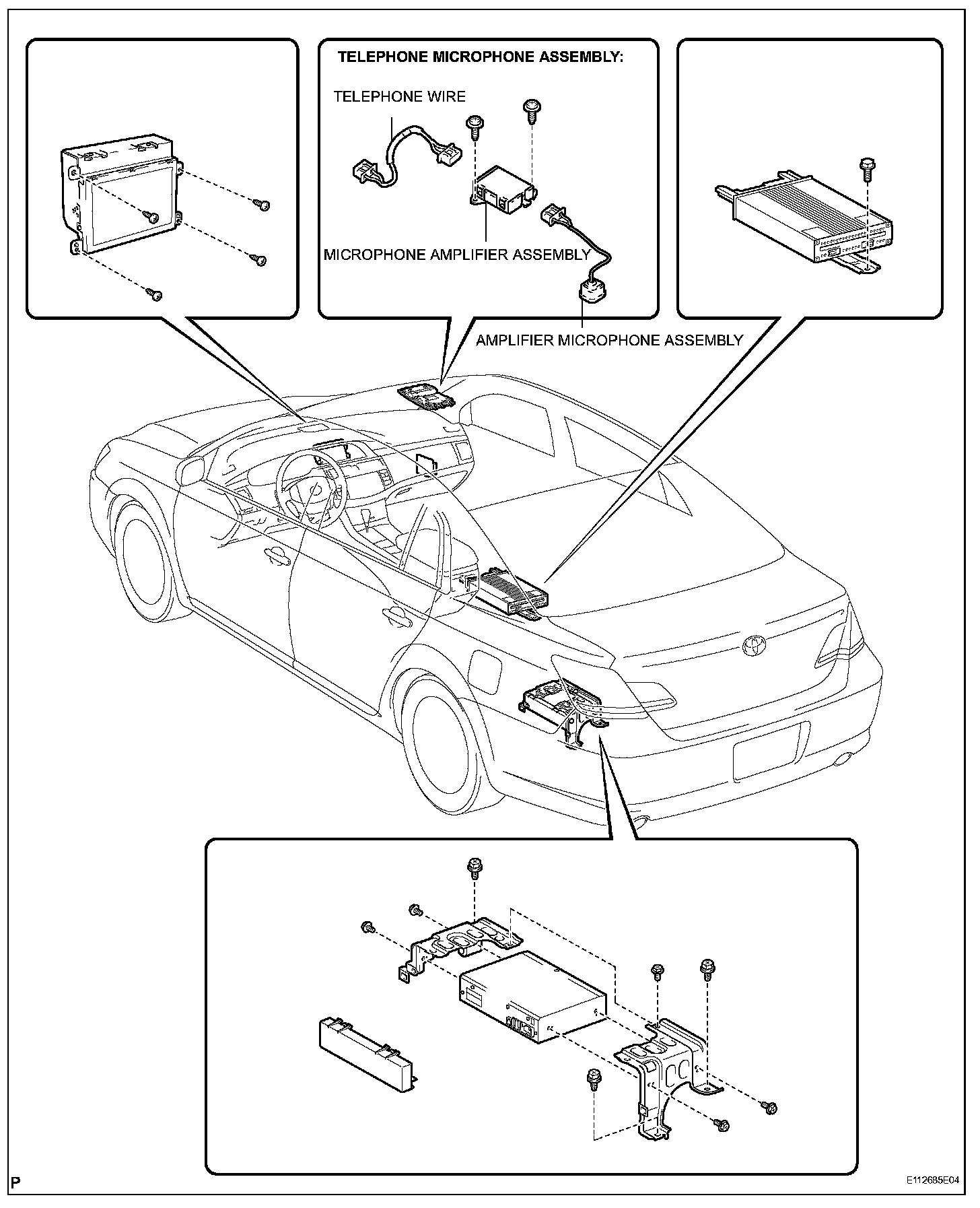

MICROPHONE AMPLIFIER

REMOVAL

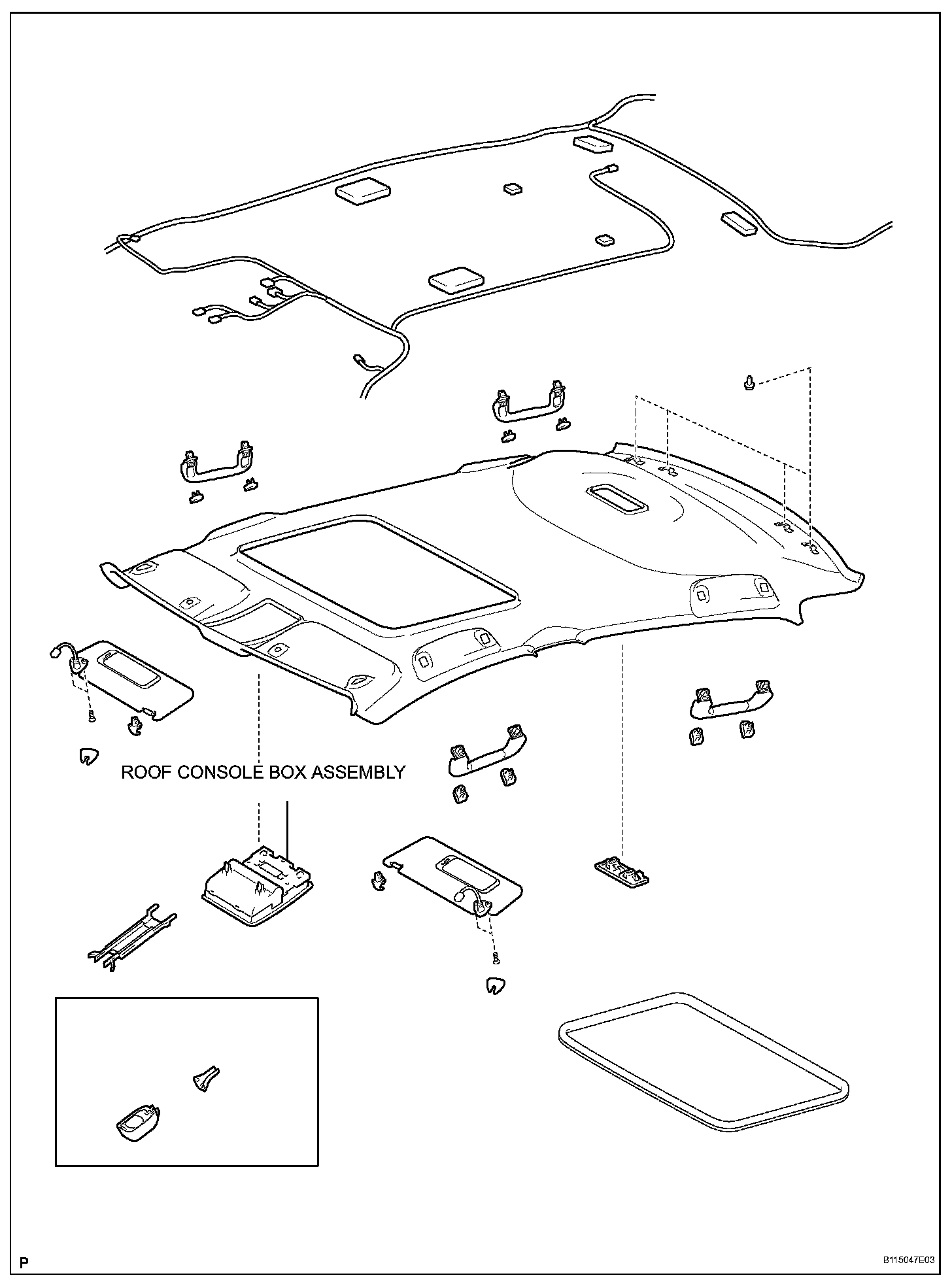

1. REMOVE ROOF CONSOLE BOX ASSEMBLY

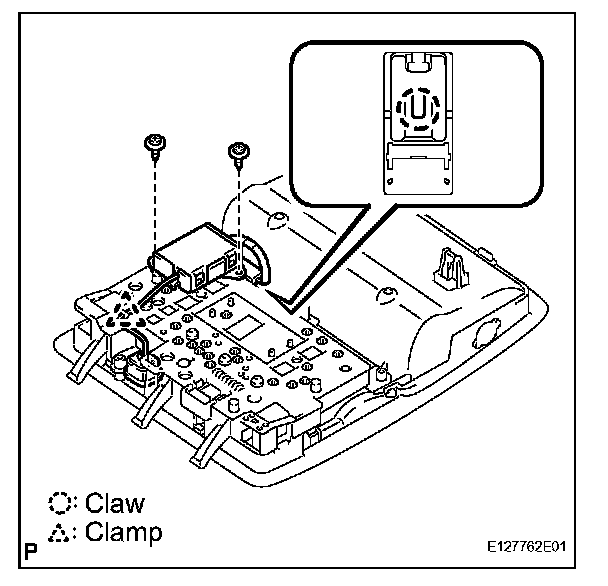

2. REMOVE TELEPHONE MICROPHONE ASSEMBLY




a. Disengage the claw and remove the clamp.
b. Remove the 2 screws and remove the telephone microphone assembly.

3. REMOVE AMPLIFIER MICROPHONE ASSEMBLY
4. REMOVE TELEPHONE WIRE




a. Disconnect the connector and remove the telephone wire.

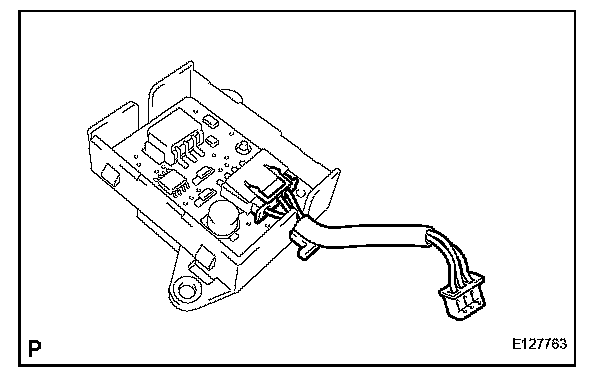

5. REMOVE MICROPHONE AMPLIFIER ASSEMBLY

INSTALLATION

1. INSTALL MICROPHONE AMPLIFIER ASSEMBLY
2. INSTALL TELEPHONE WIRE
3. INSTALL AMPLIFIER MICROPHONE ASSEMBLY
4. INSTALL TELEPHONE MICROPHONE ASSEMBLY
5. INSTALL ROOF CONSOLE BOX ASSEMBLY
