Microphone

Microphone:

Microphone:

MICROPHONE

REMOVAL

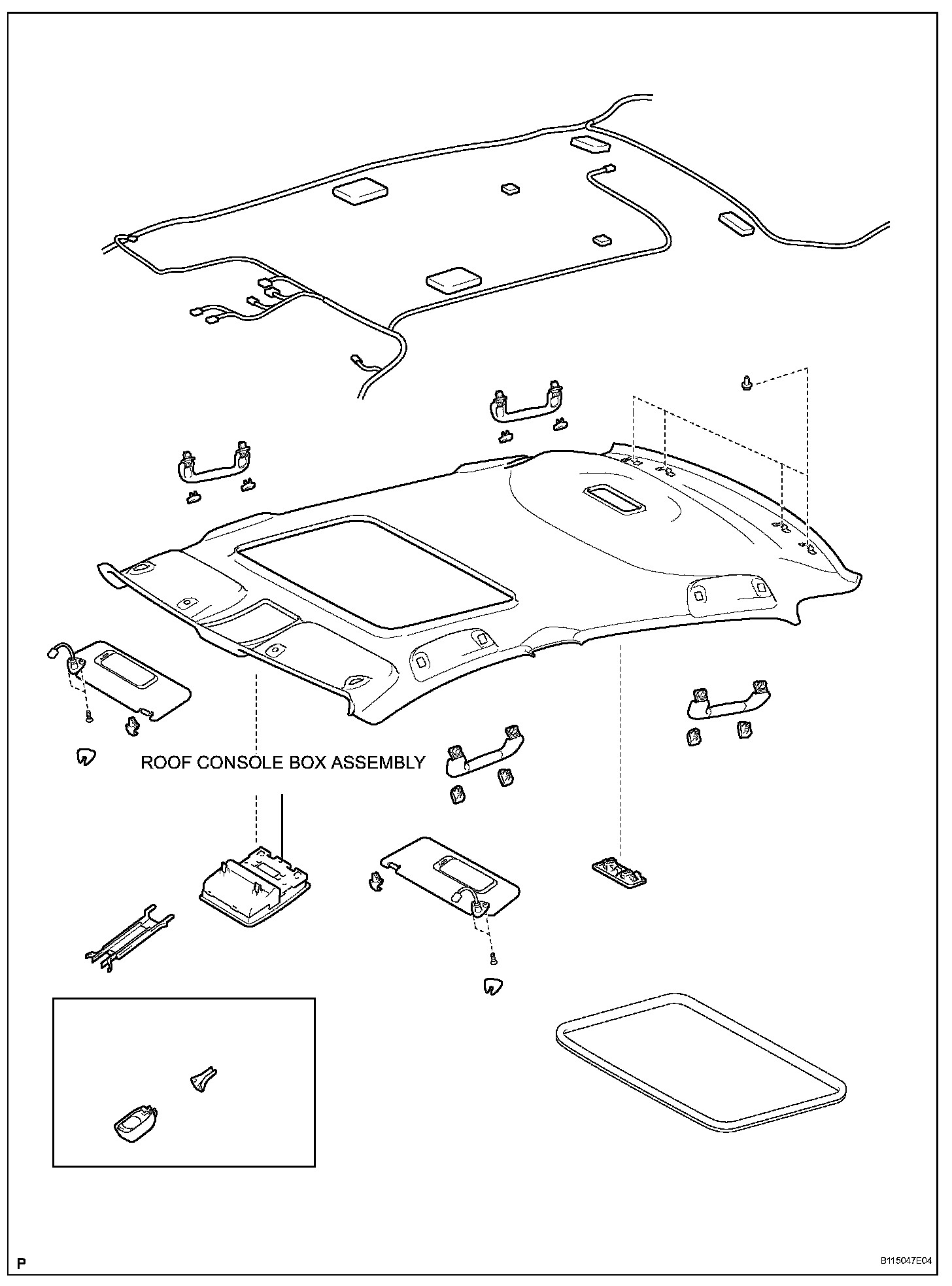

1. REMOVE ROOF CONSOLE BOX ASSEMBLY

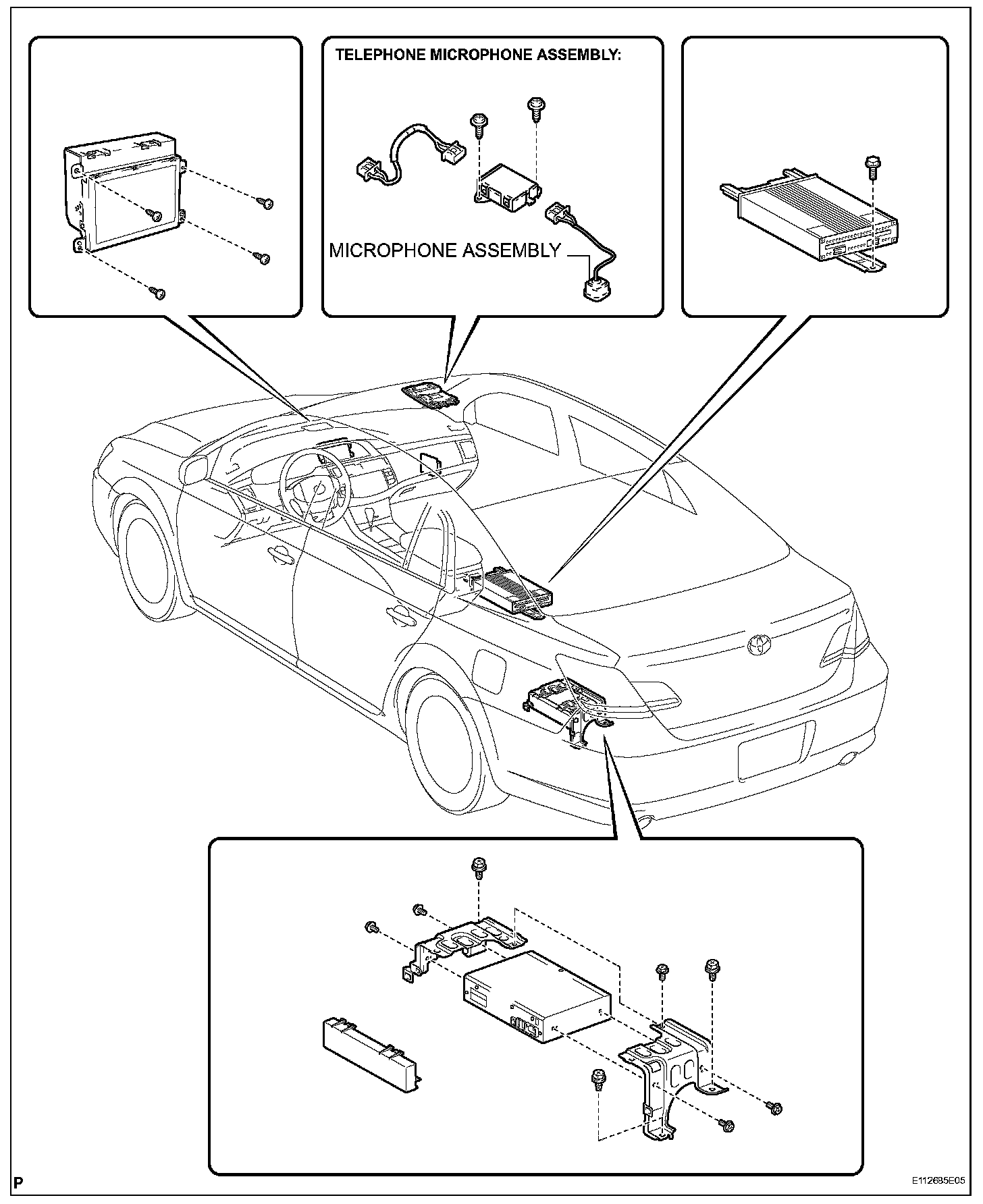

2. REMOVE TELEPHONE MICROPHONE ASSEMBLY

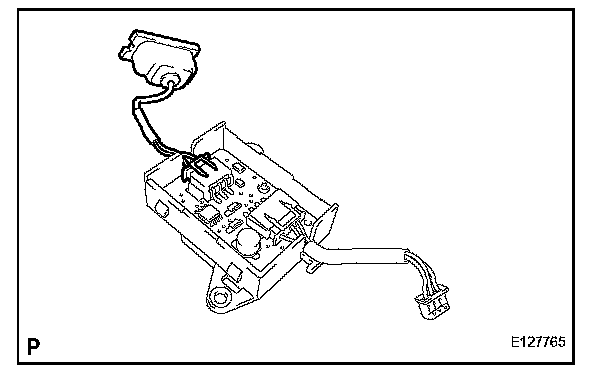

3. REMOVE AMPLIFIER MICROPHONE ASSEMBLY

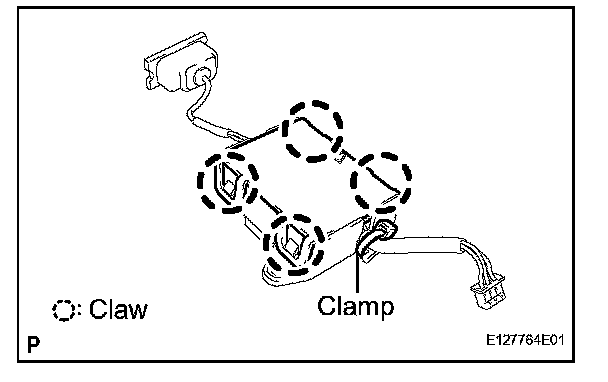

a. Remove the clamp.
b. Disengage the 4 claws and remove the microphone retainer.




c. Disconnect the connector and remove the amplifier microphone.

INSTALLATION

1. INSTALL AMPLIFIER MICROPHONE ASSEMBLY

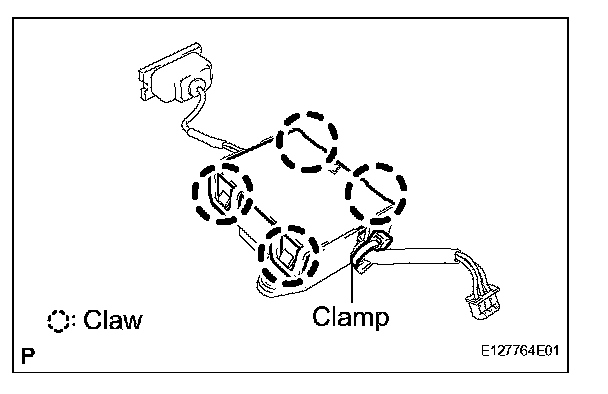

a. Install the amplifier microphone with the 4 claws and the new clamp.

2. INSTALL TELEPHONE MICROPHONE ASSEMBLY
3. INSTALL ROOF CONSOLE BOX ASSEMBLY
