Theft Deterrent System
Theft Deterrent System

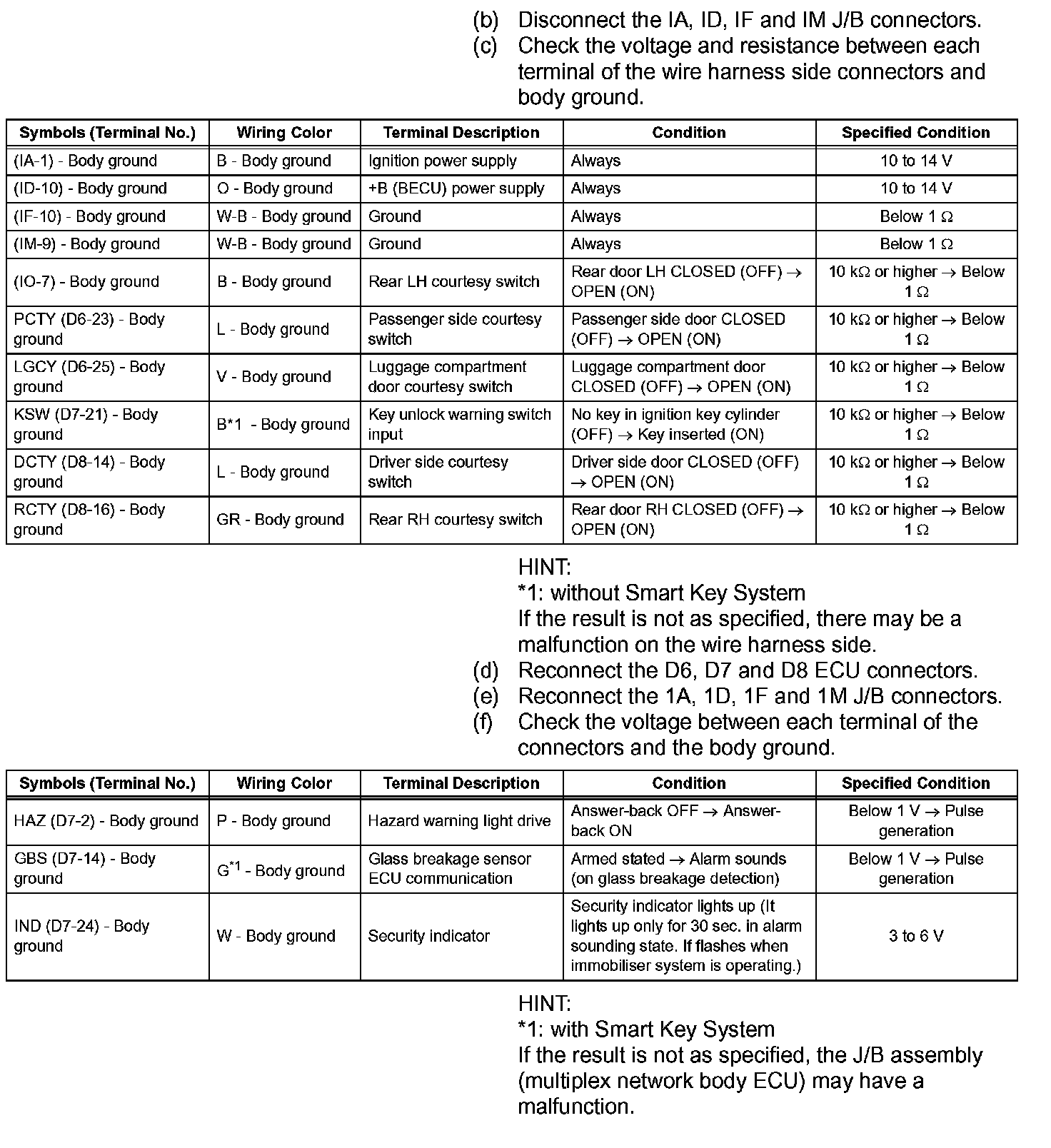

Terminals of Control Module/Pinouts (Part 1):
Terminals of Control Module/Pinouts (Part 2):

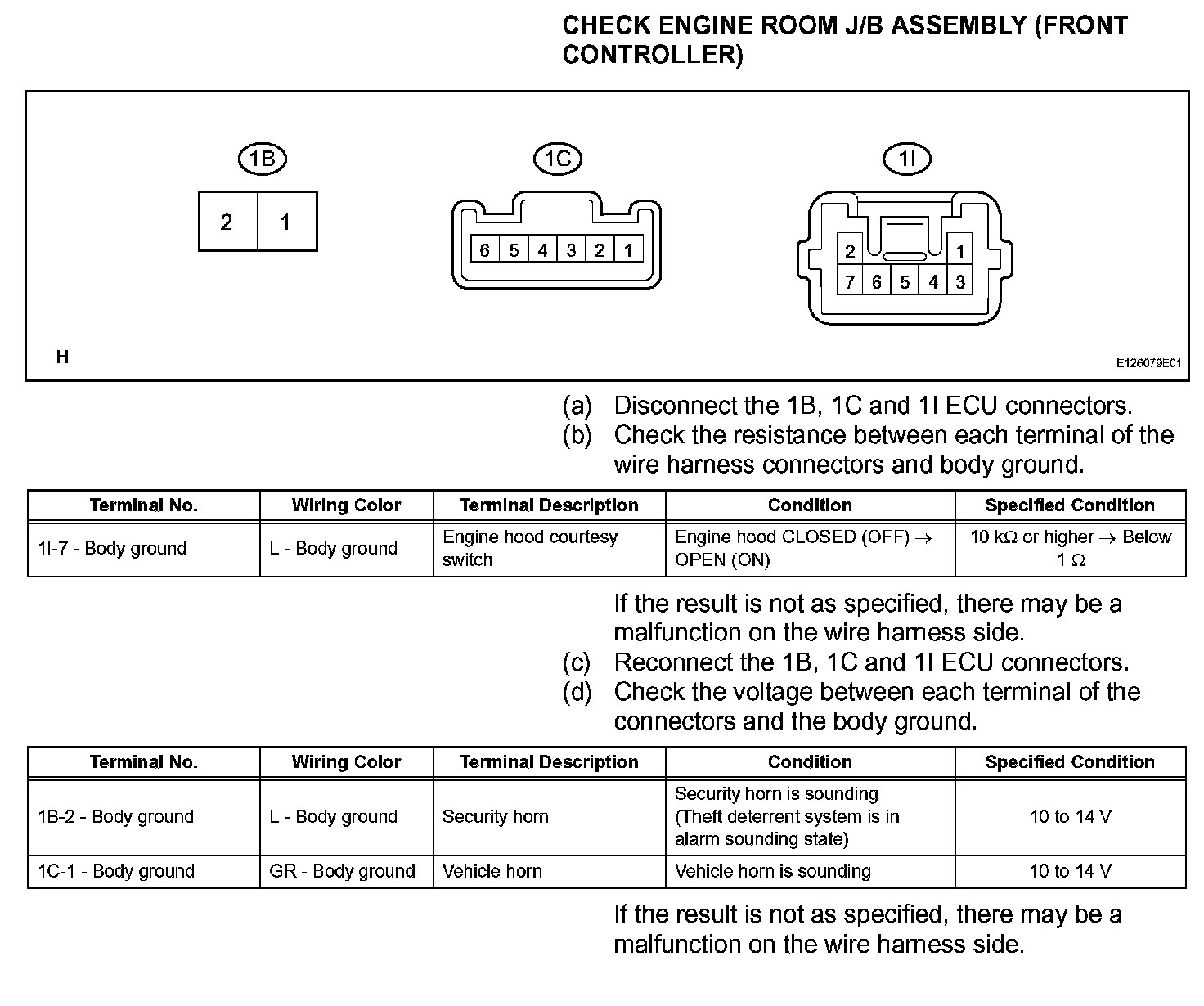

Terminals of Control Module/Pinouts:
