Engine Immobiliser System

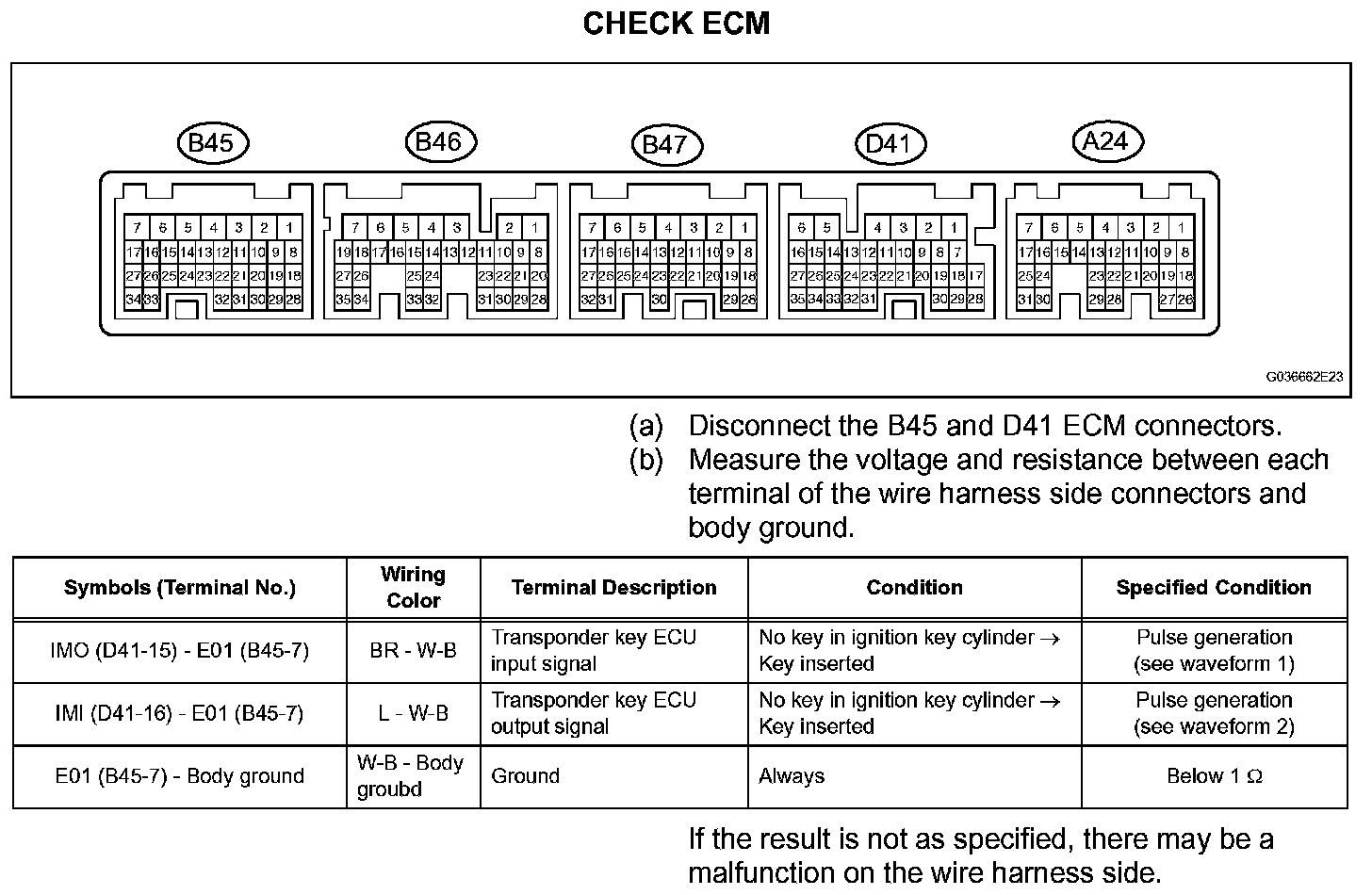

Terminals Of Control Module/Pinouts:

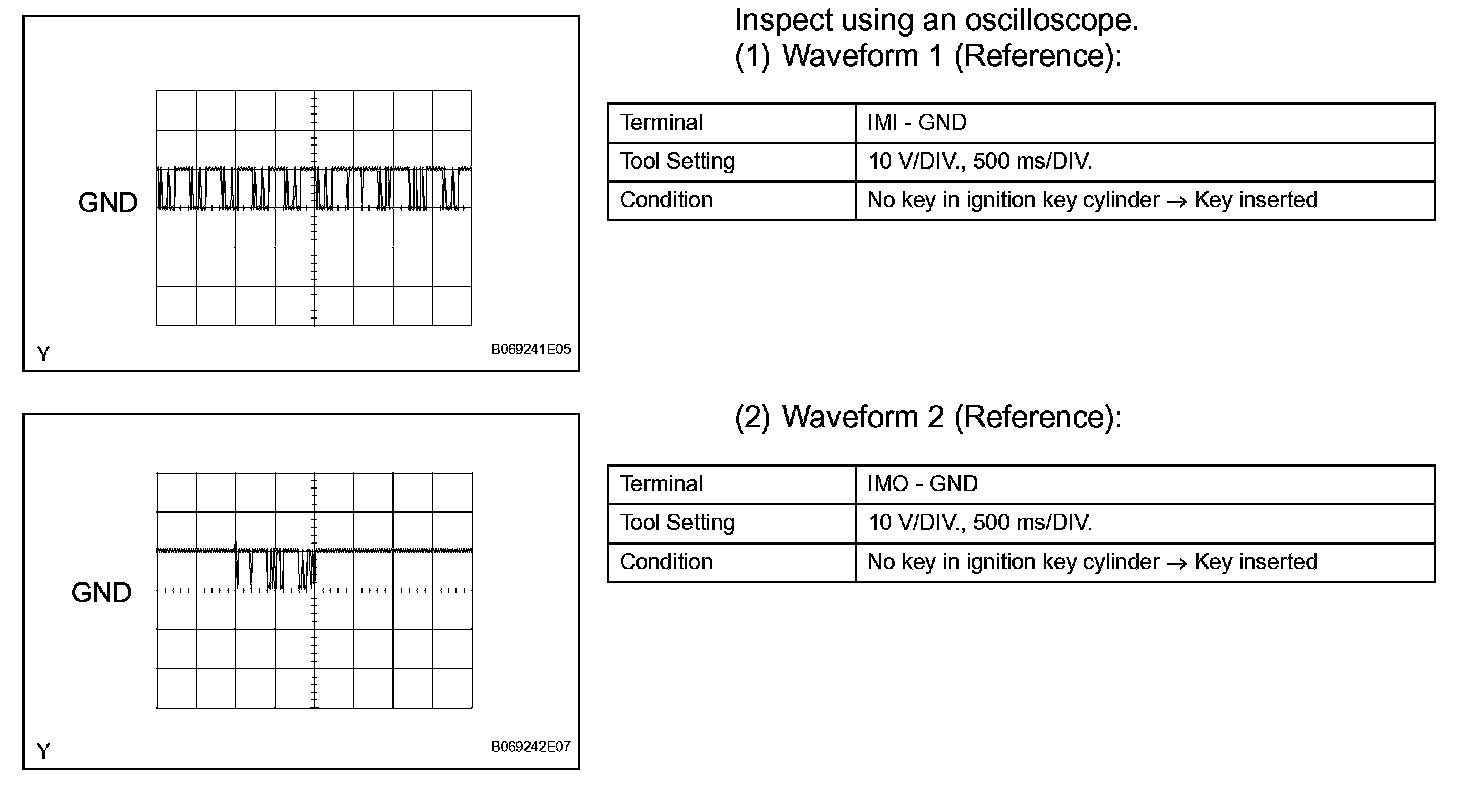

Oscilloscope Waveform:



Oscilloscope Waveform:

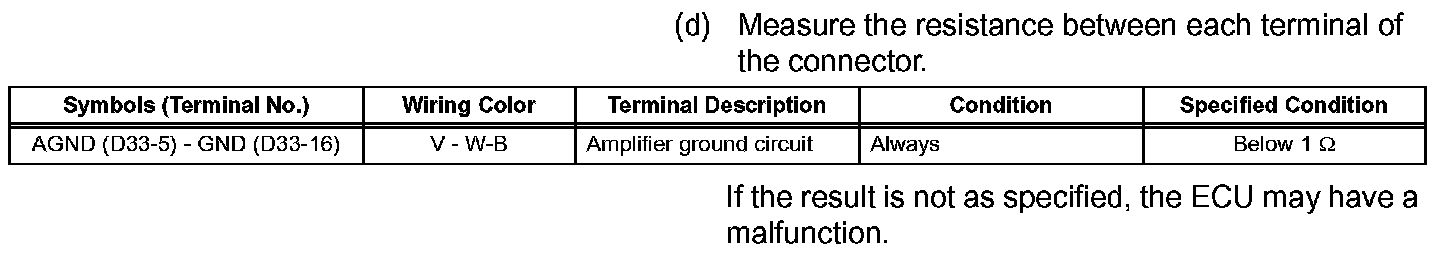

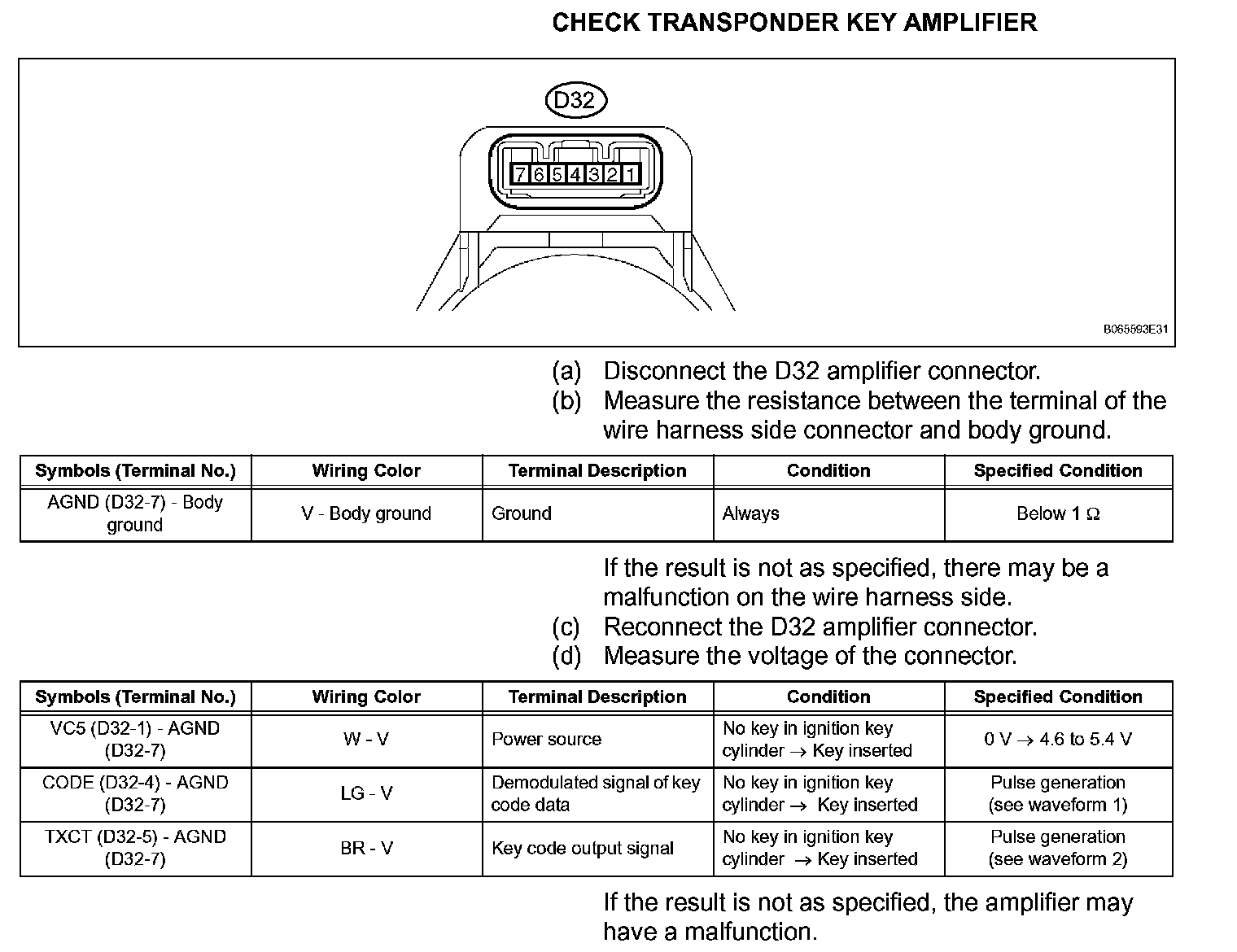

Terminals Of Control Module/Pinouts:

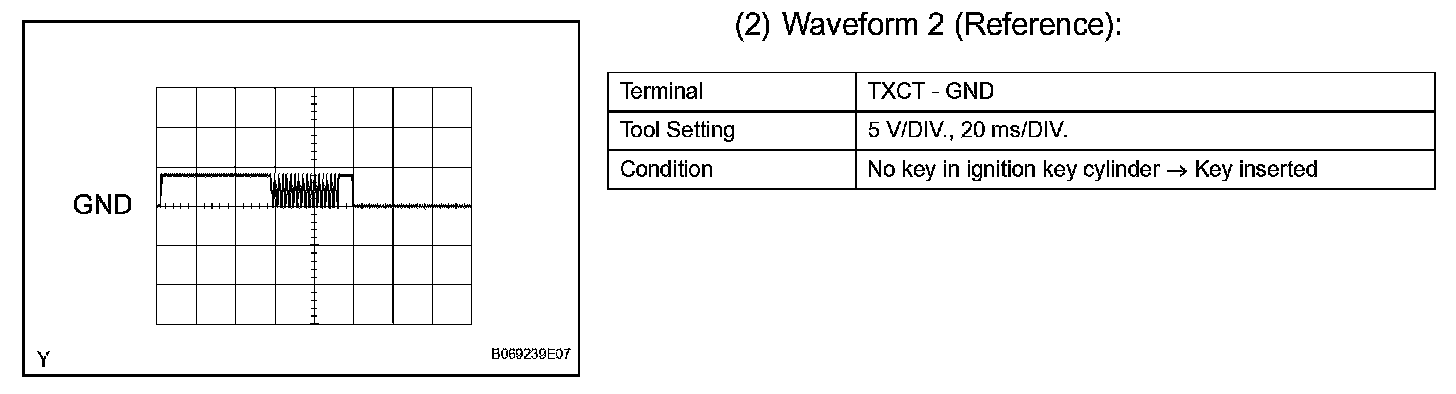

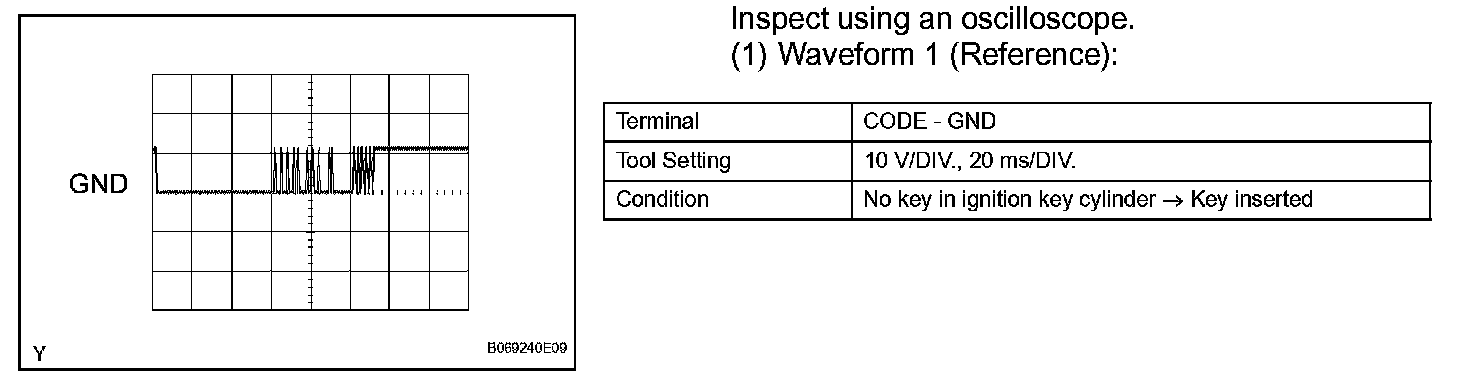

Oscilloscope Waveform:

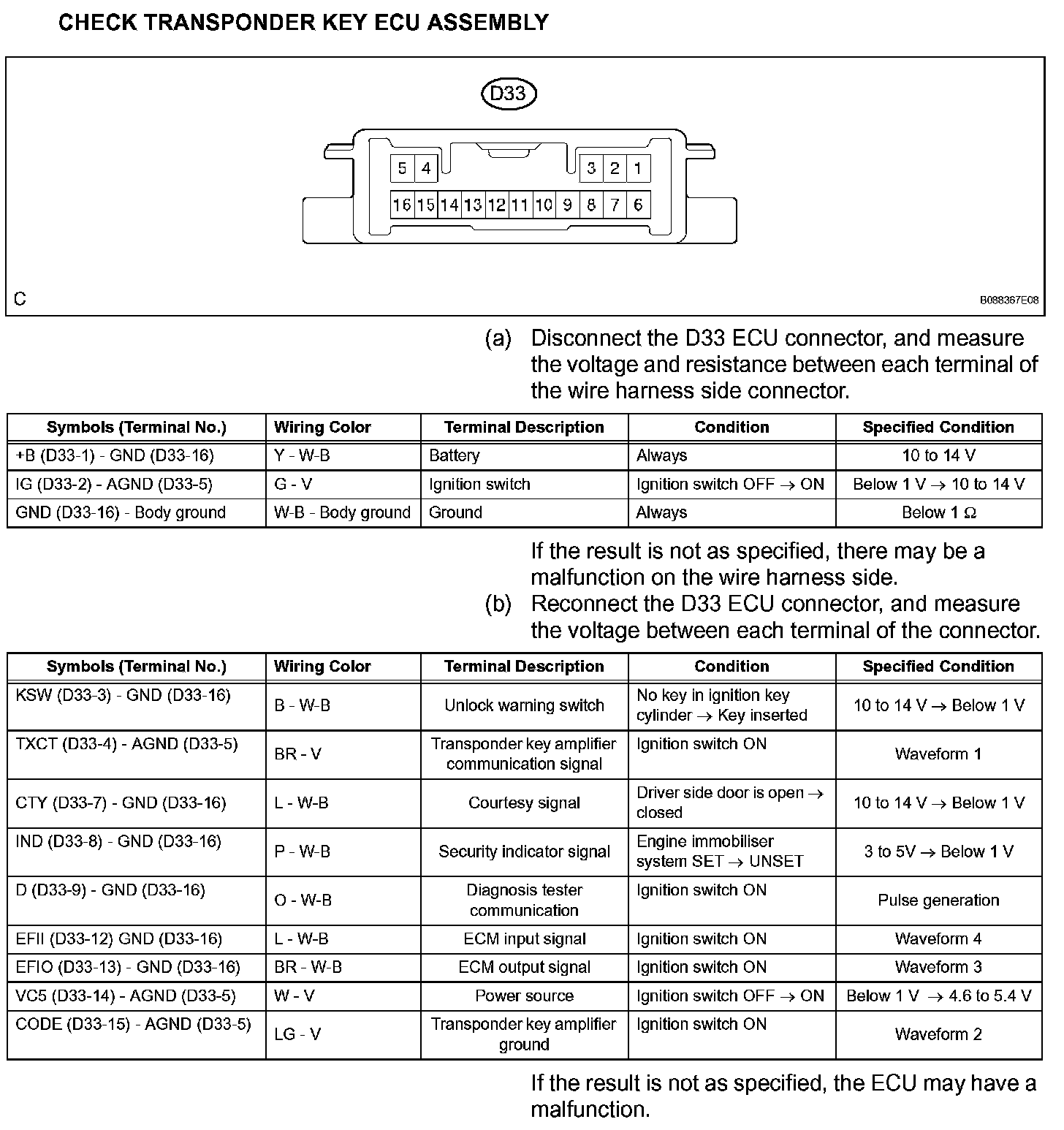

Terminals Of Control Module/Pinouts:



Terminals Of Controle Module/Pinouts:

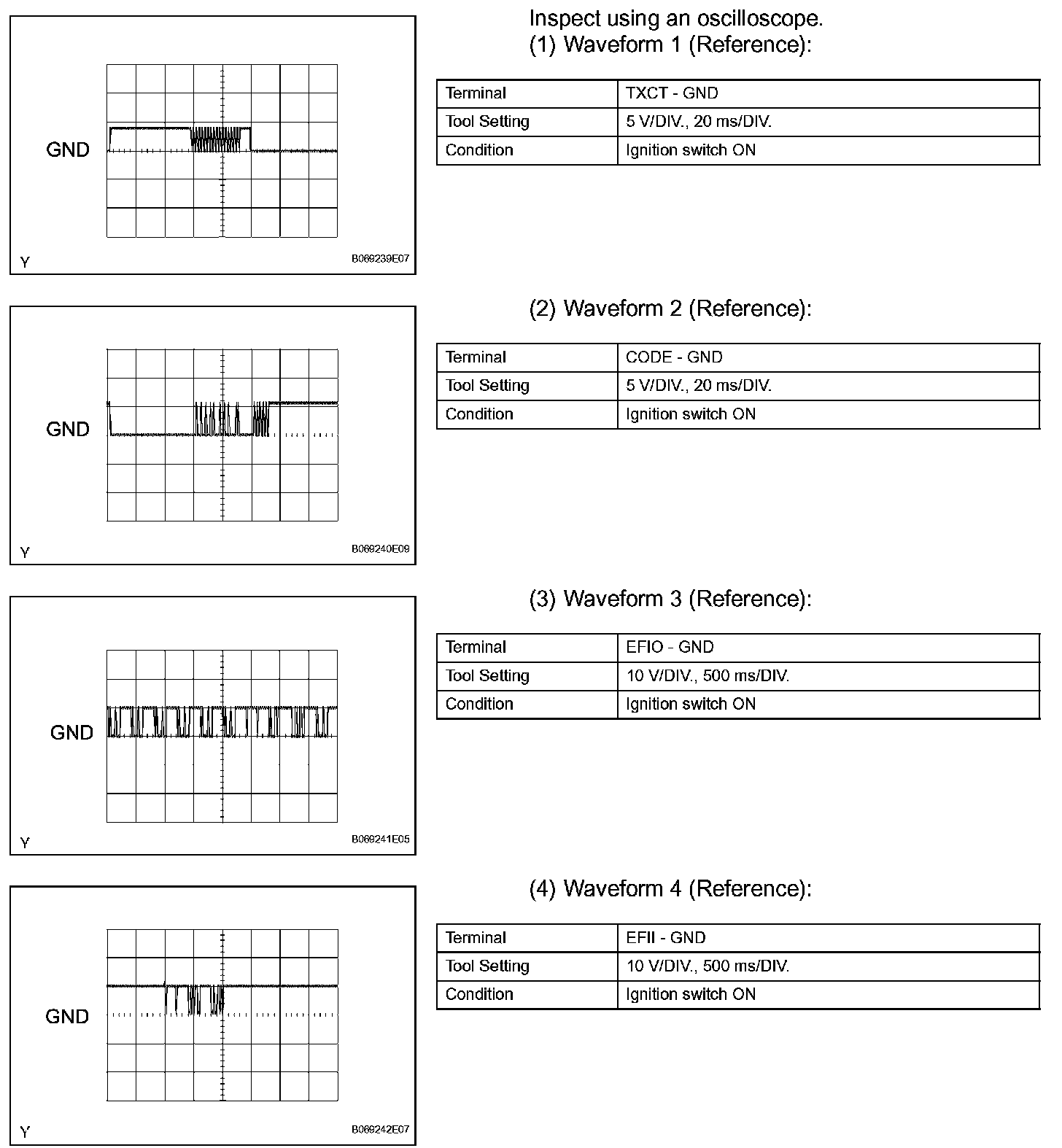

Oscilloscope Waveform:
