Theft Deterrent System

Ignition Switch Circuit

DESCRIPTION
When the ignition switch is on (IG) position, battery positive voltage is applied to terminal IG of the multiplex network body ECU.

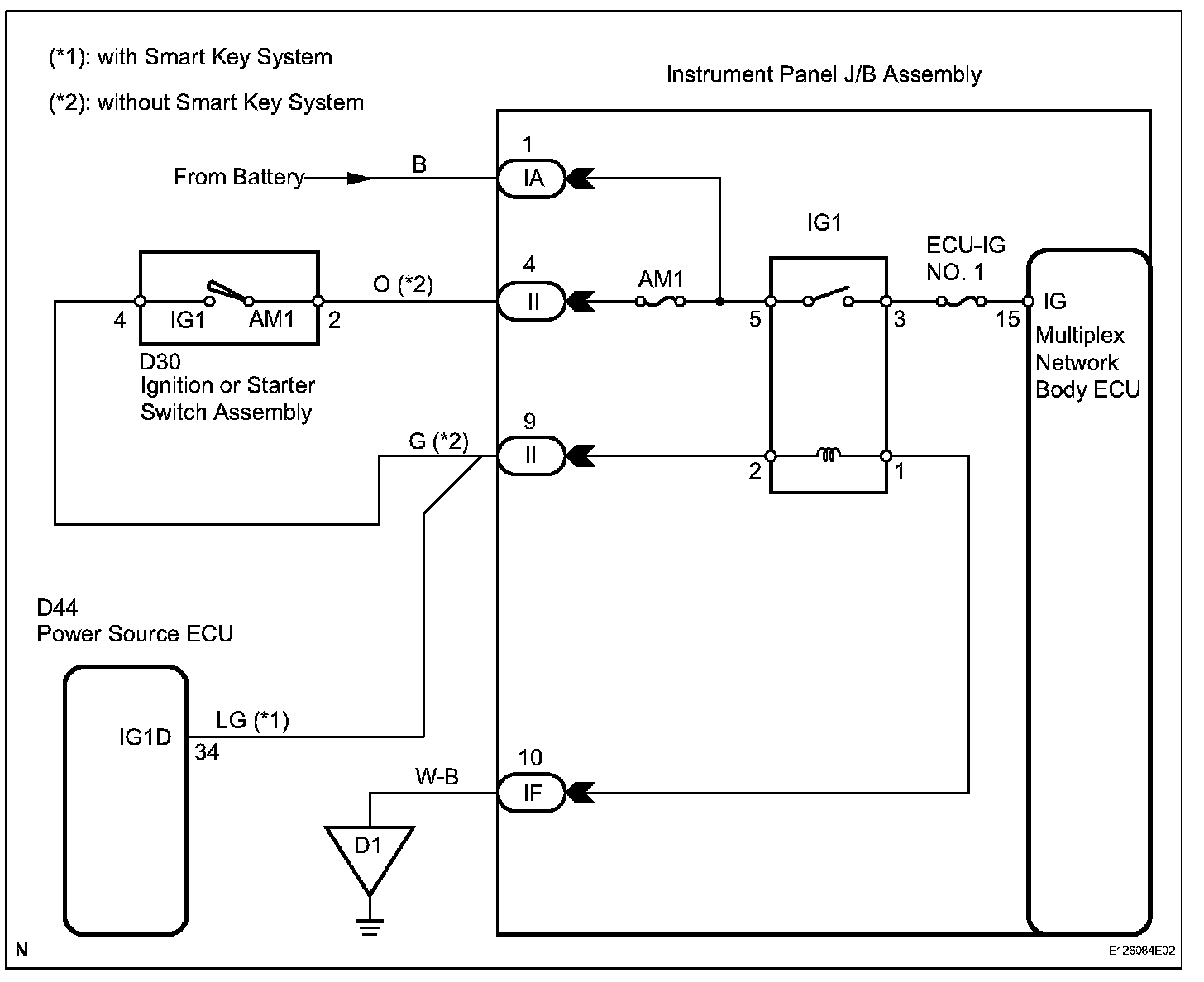

Wiring Diagram:

INSPECTION PROCEDURE

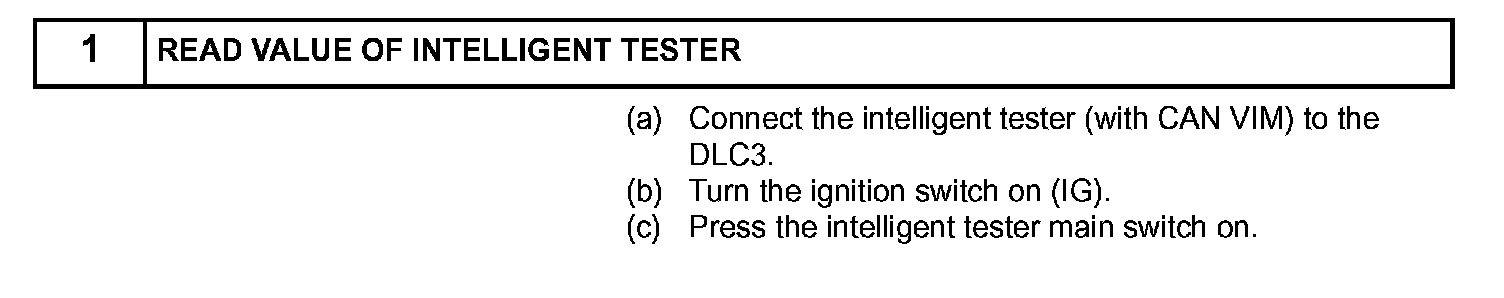

Step 1:

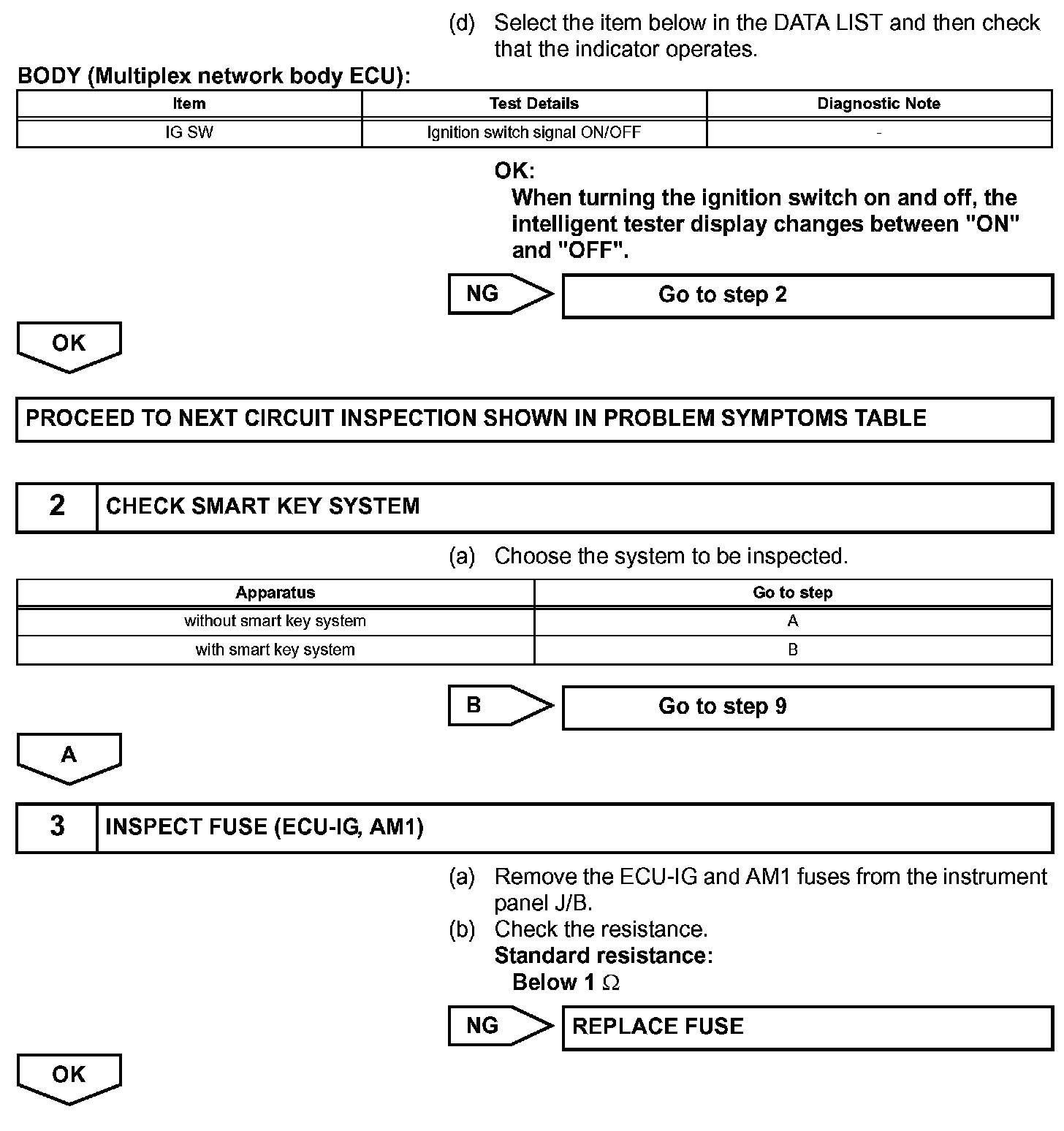

Step 1 (Continued)-3:

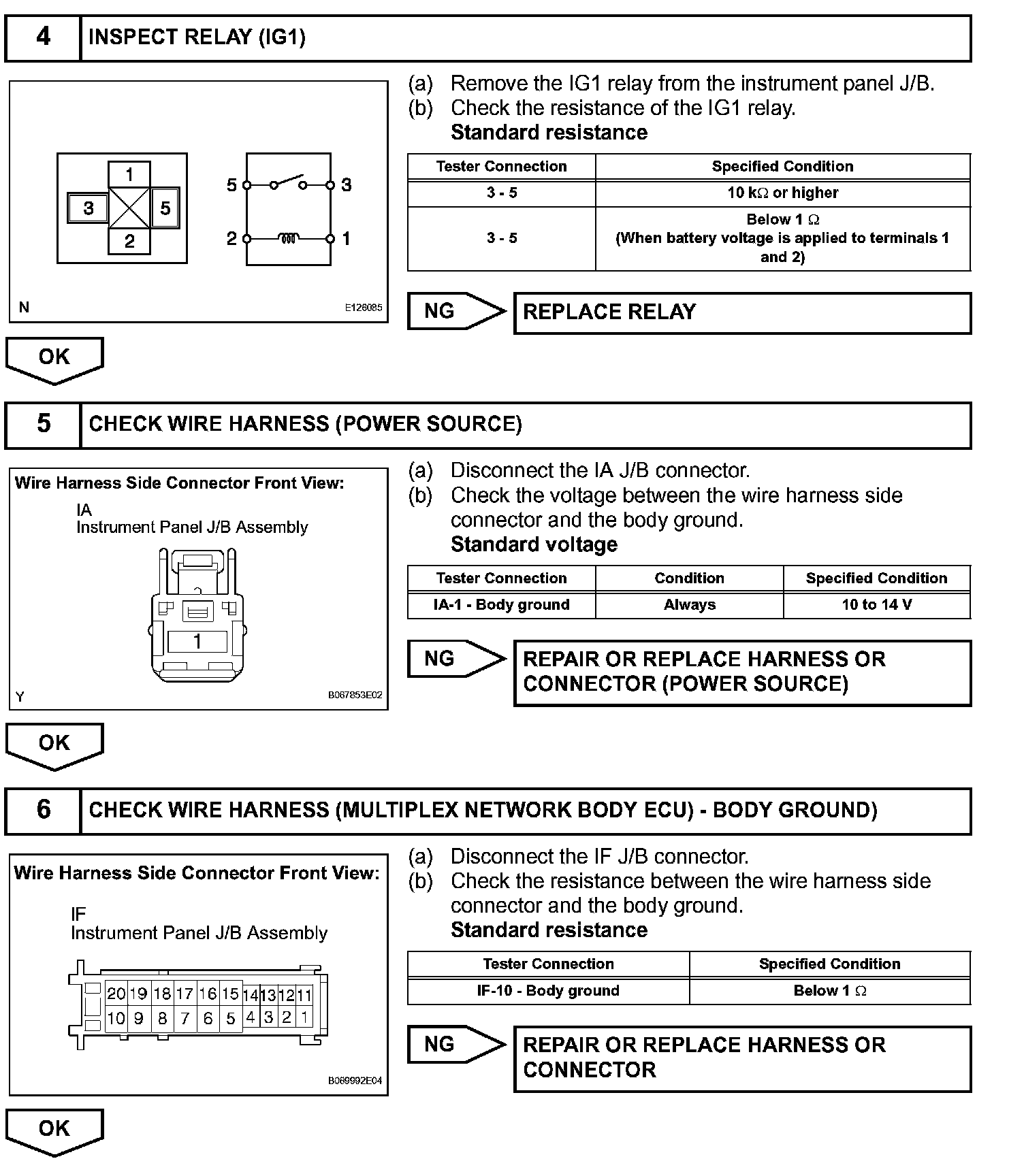

Step 4-6:

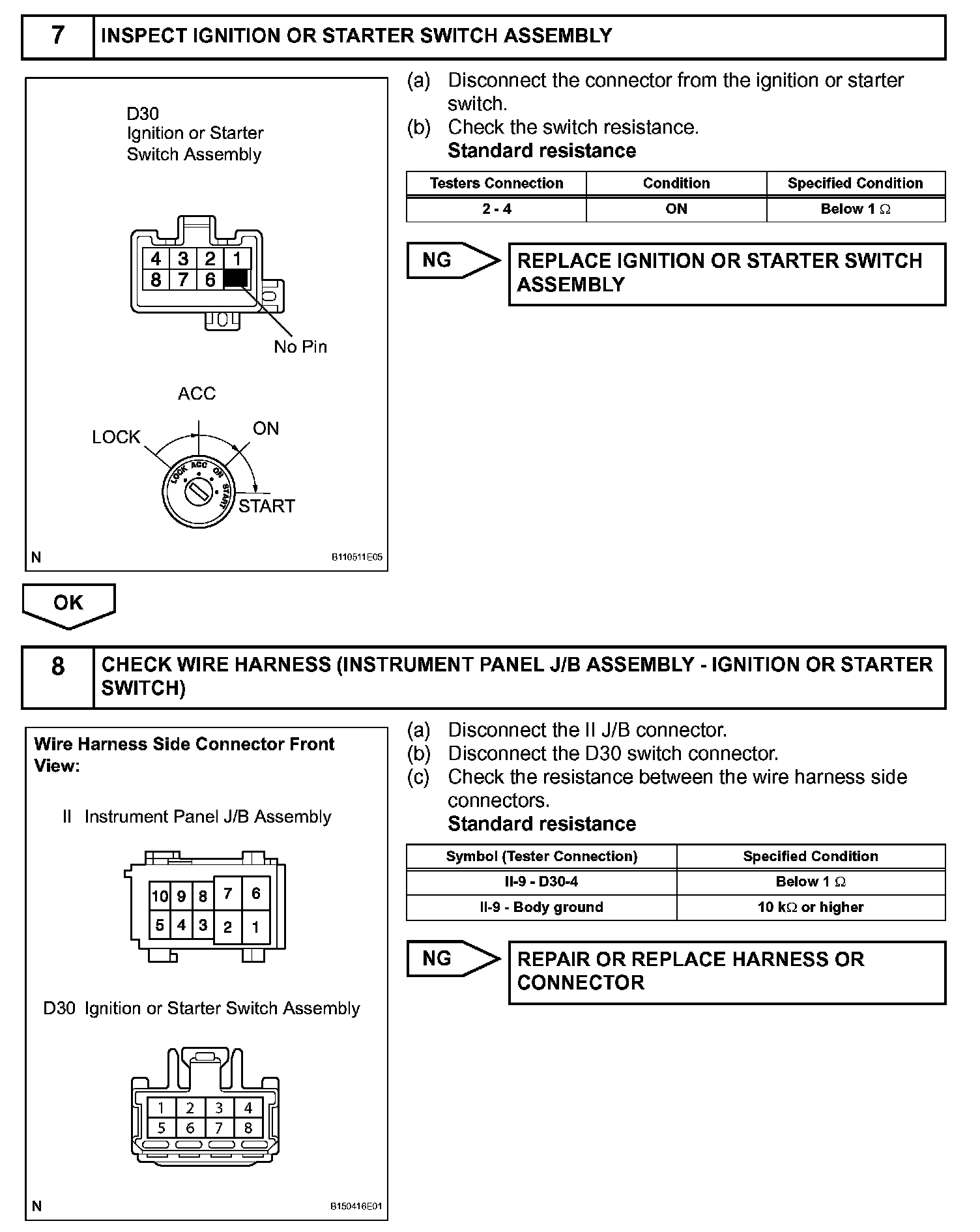

Step 7-8:

Step 8 (Continued)-11:

Step 12-13:

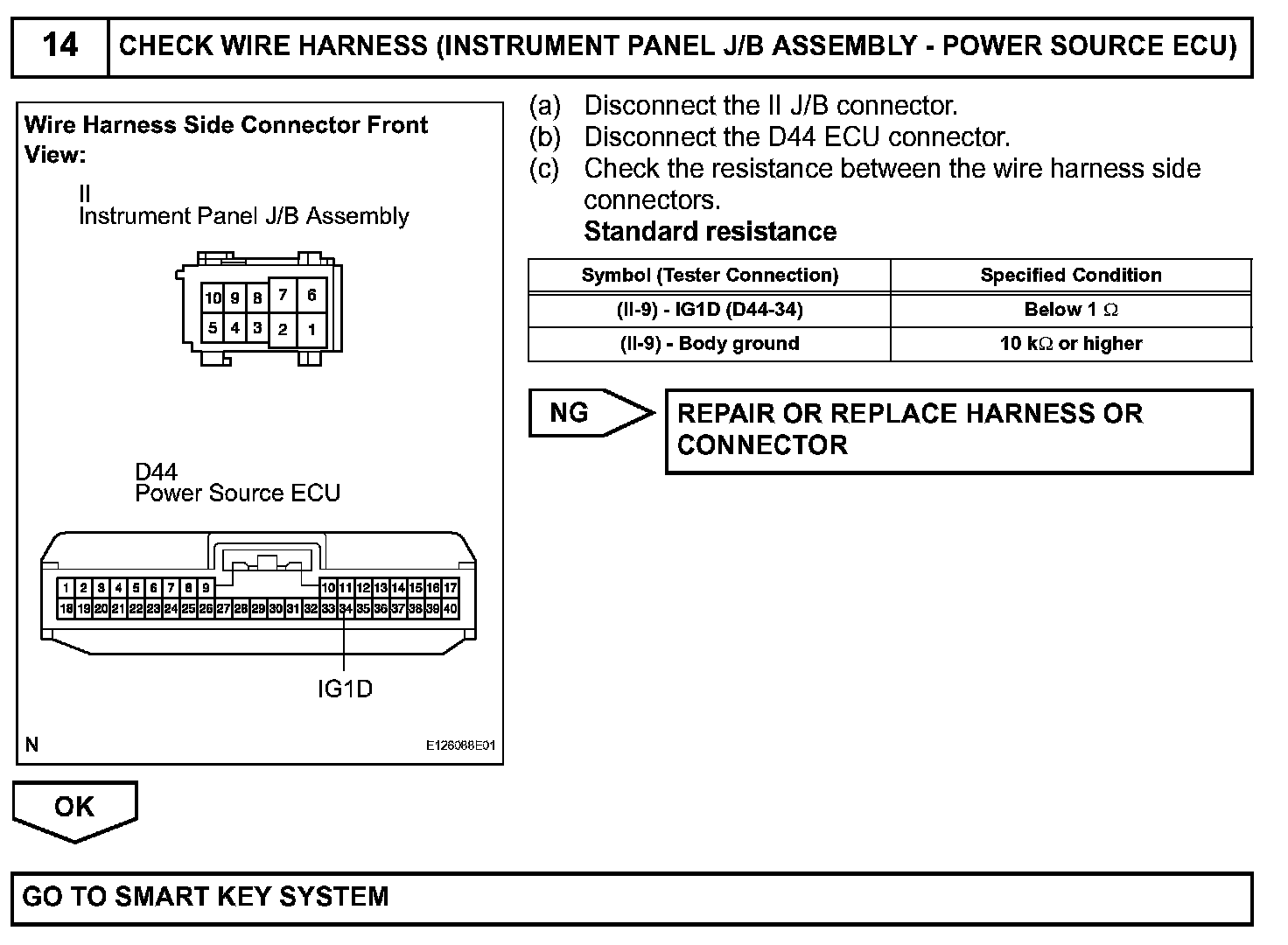

Step 14:
