Wireless Door Lock Buzzer Circuit
Wireless Door Lock Buzzer CircuitDESCRIPTION
The multiplex network body ECU activates the wireless door lock buzzer when detecting a lock/unlock signal from the door control transmitter.

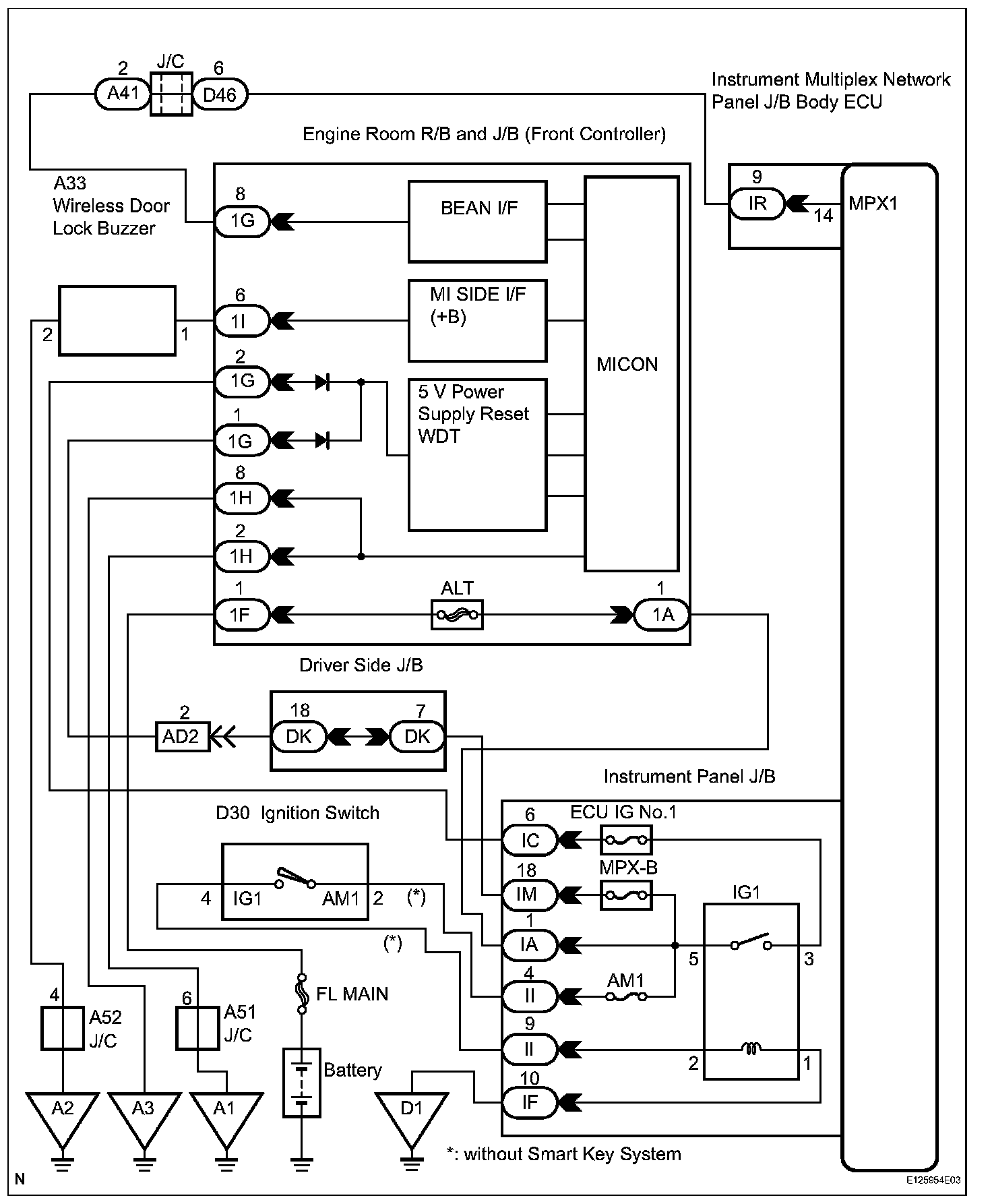

Wiring Diagram:
INSPECTION PROCEDURE
HINT: The wireless door lock buzzer circuit uses BEAN for communication. If there are malfunctions in this circuit, check for DTCs in the multiplex communication system.

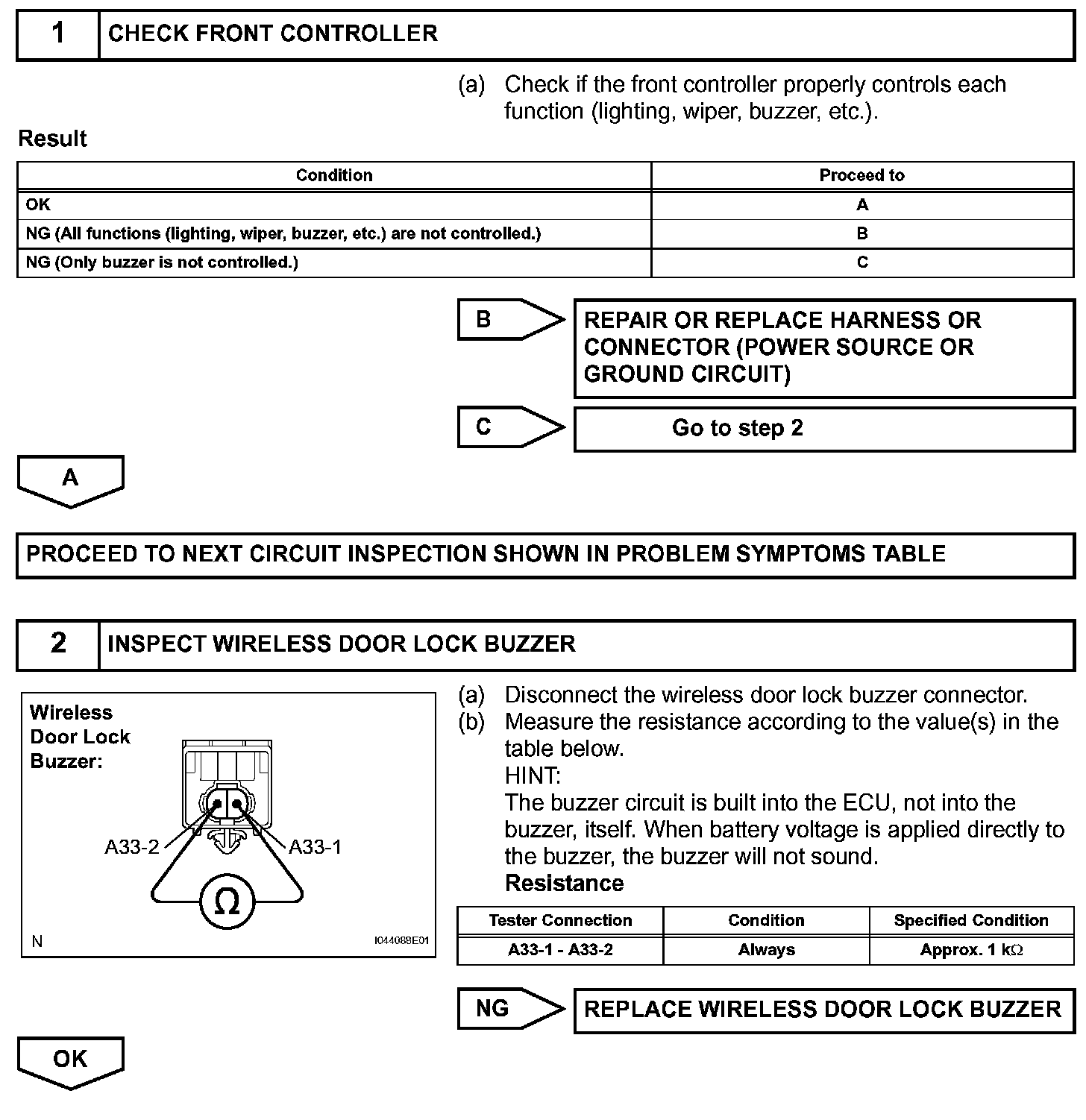

Step 1-2:

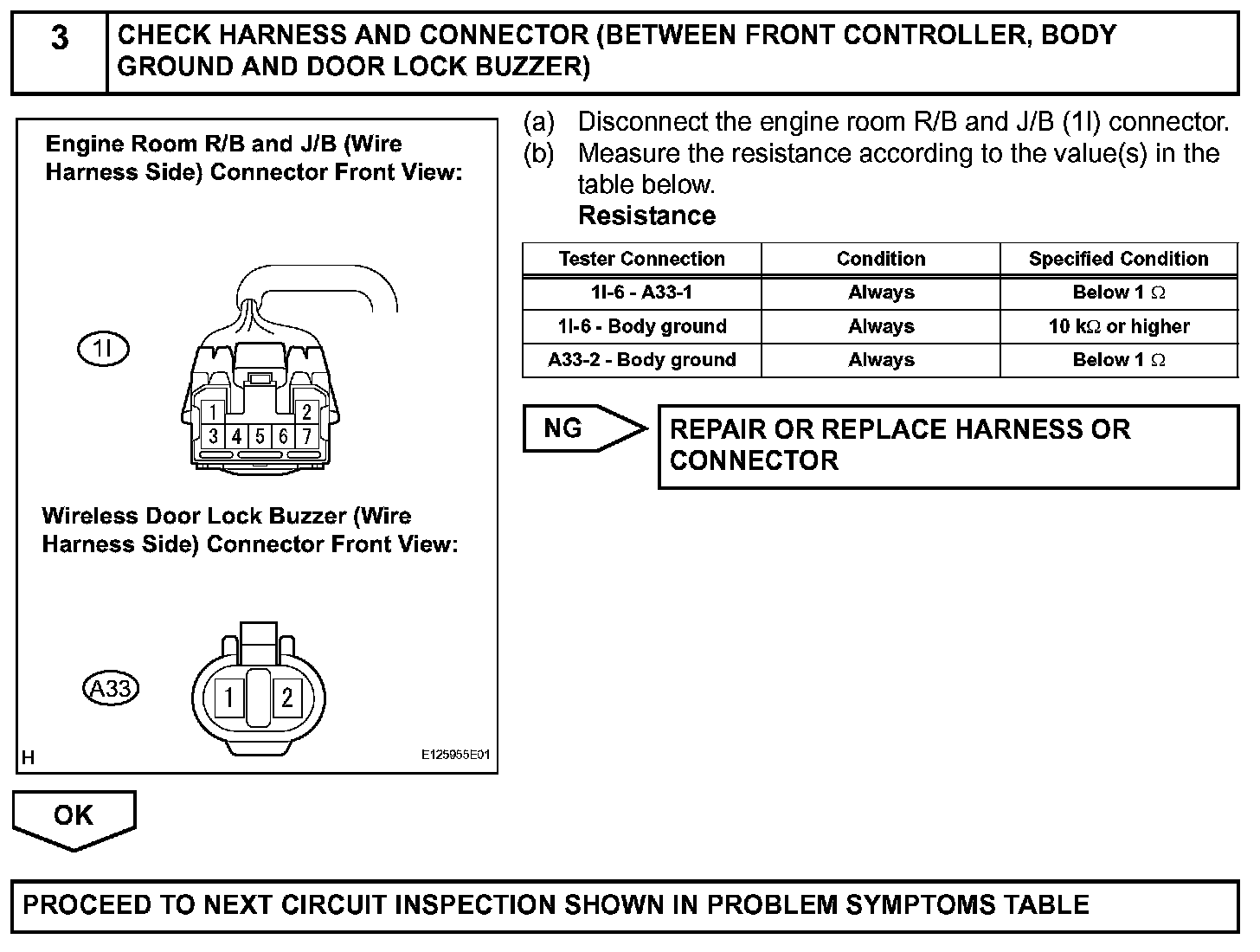

Step 3:
