Multi-Display Power Source Circuit
Multi-Display Power Source CircuitDESCRIPTION
This is the power source circuit to operate the multi-display (accessory meter).
Wiring Diagram:

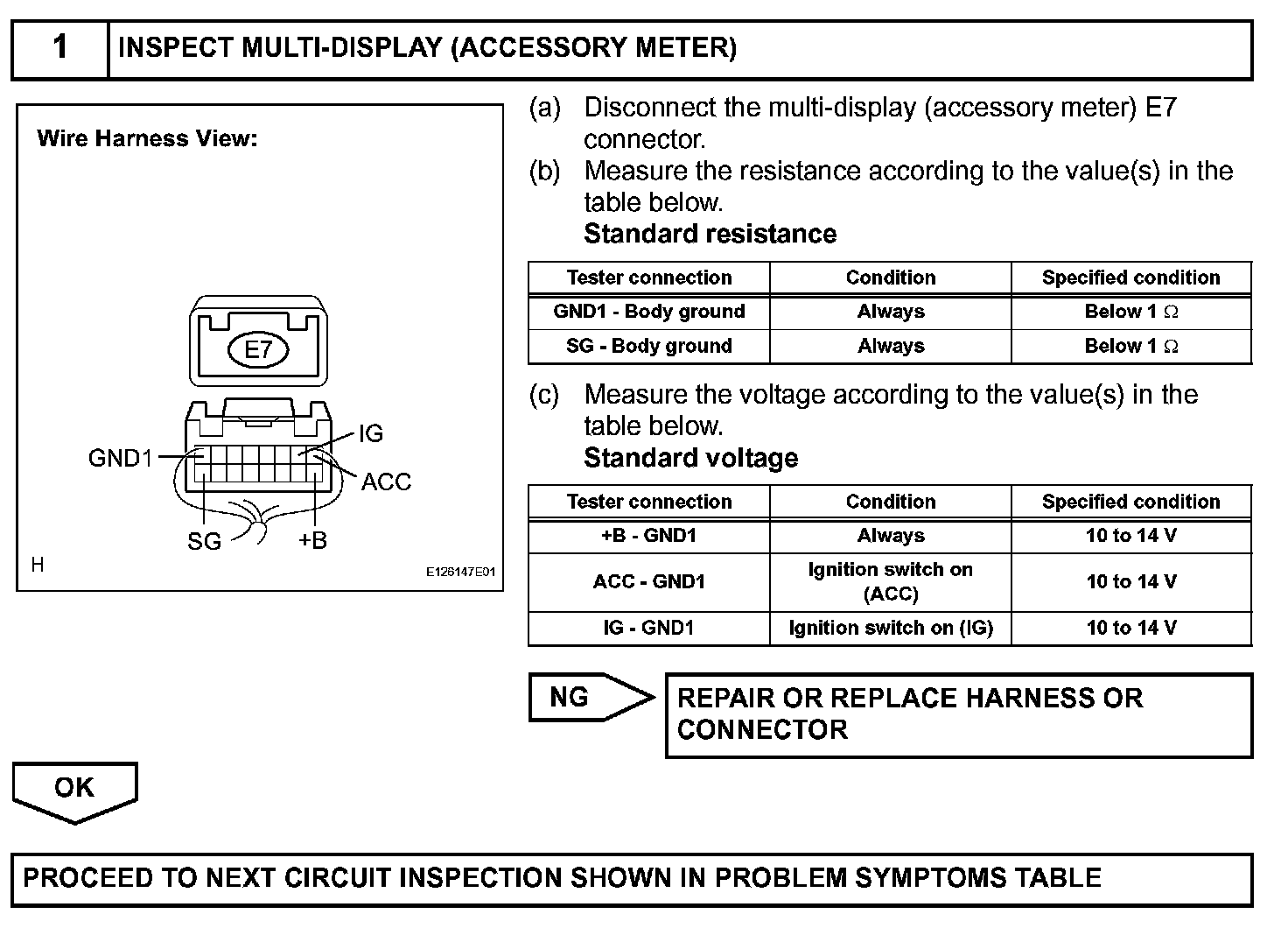

INSPECTION PROCEDURE
Step 1:
DESCRIPTION
This is the power source circuit to operate the multi-display (accessory meter).
INSPECTION PROCEDURE
