Multi-Display Communication Error

Multi-display Communication Error

INSPECTION PROCEDURE

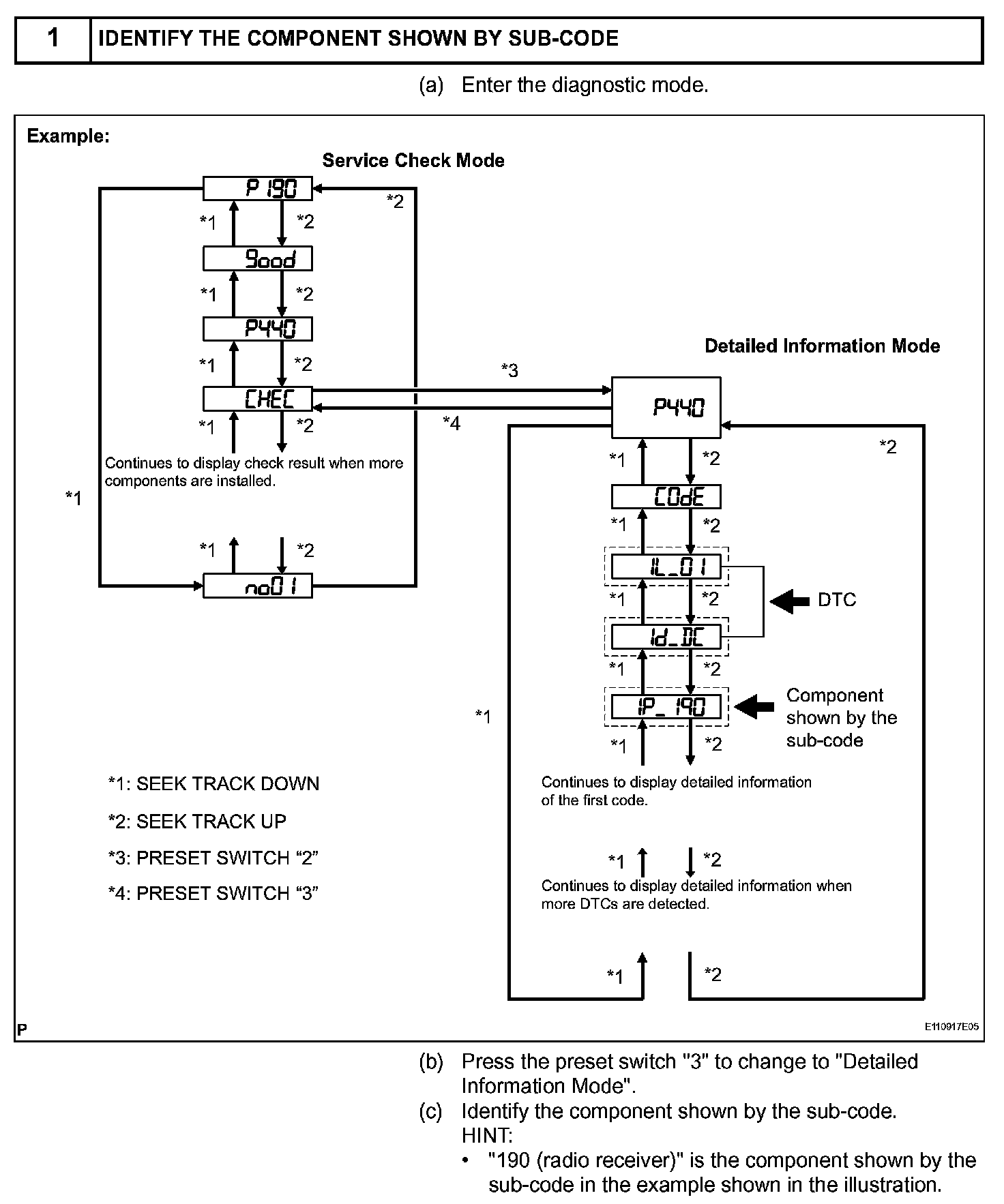

Step 1:

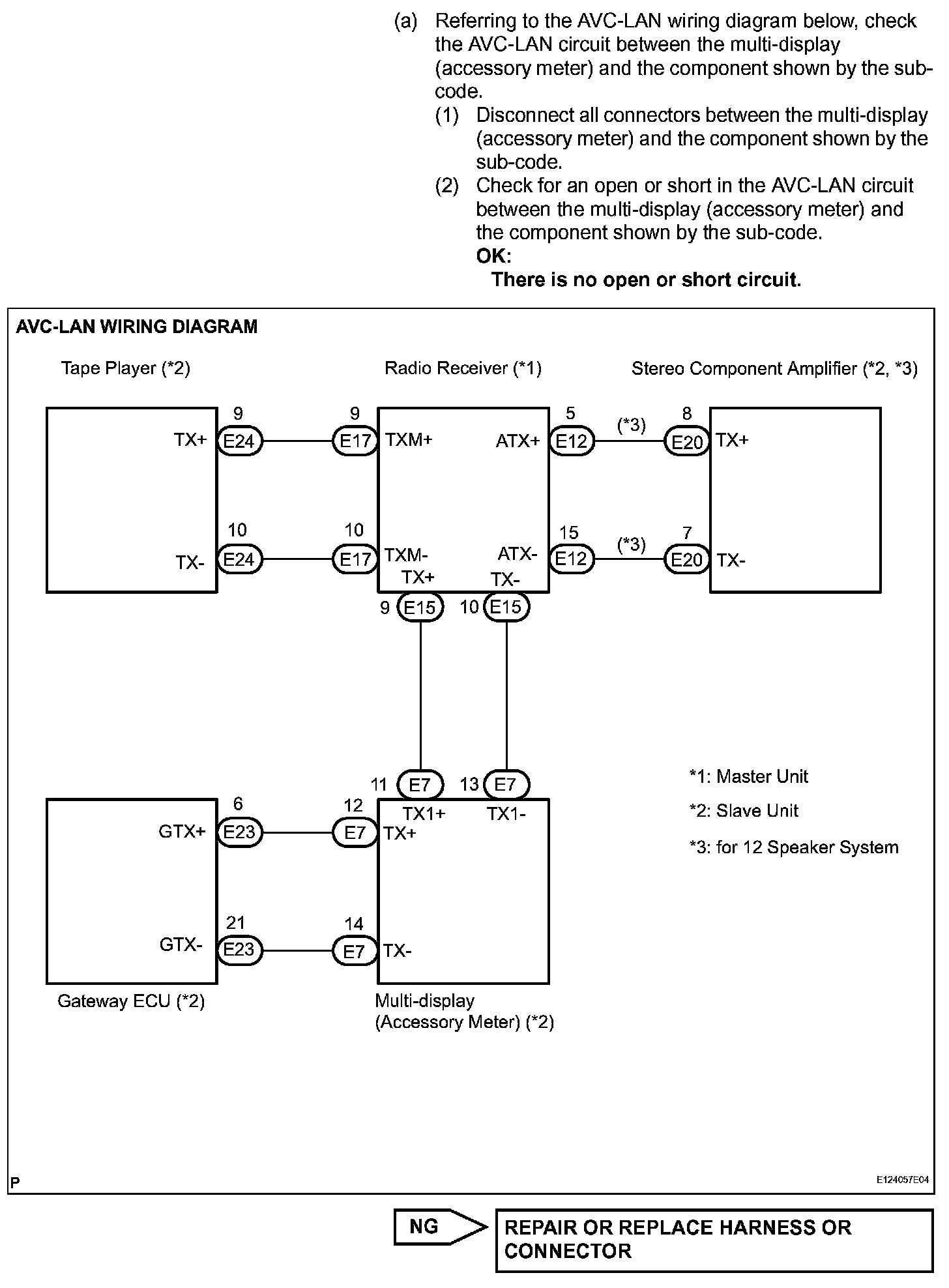

Step 1(Continued)-2:

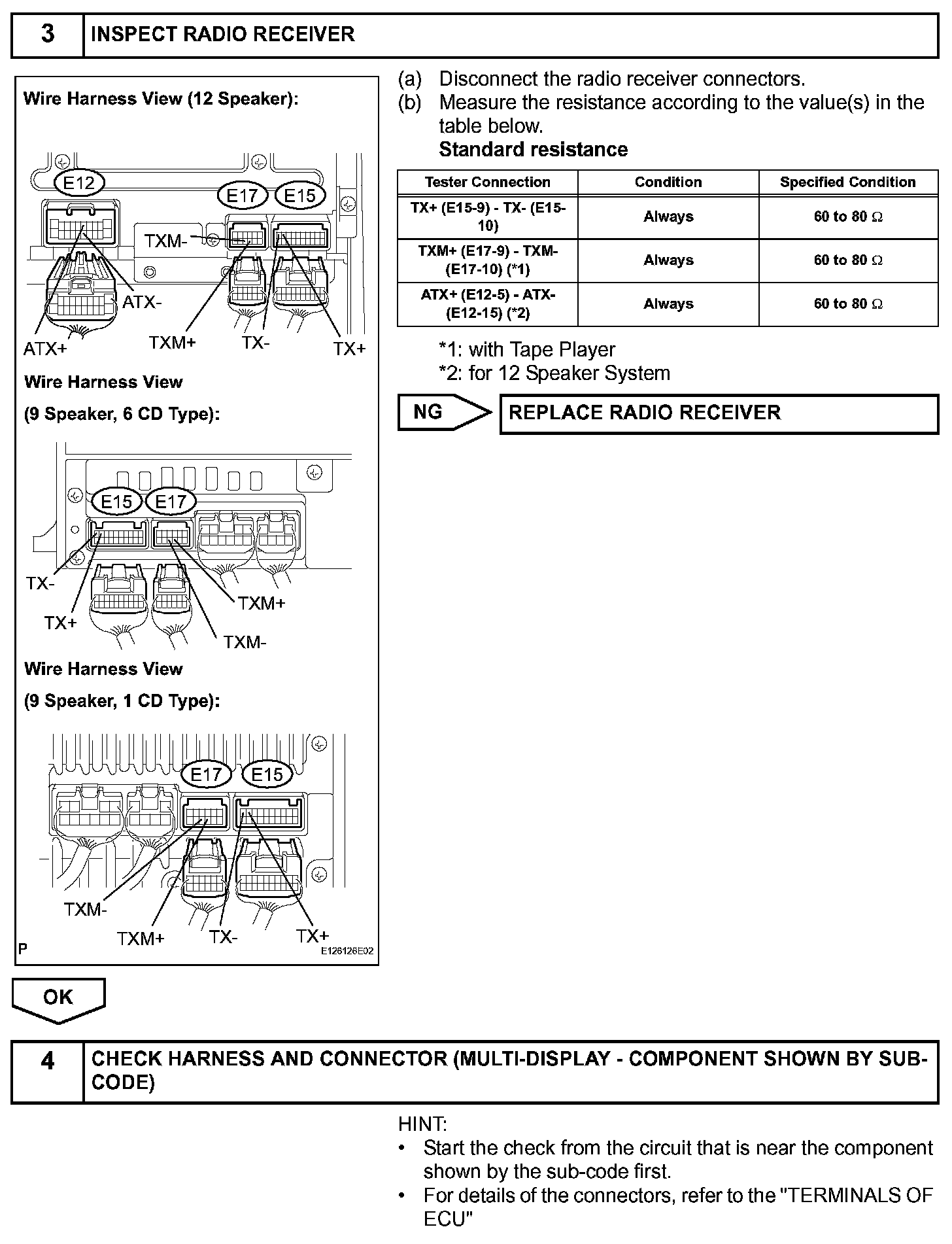

Step 3-4:




Step 4(Continued):

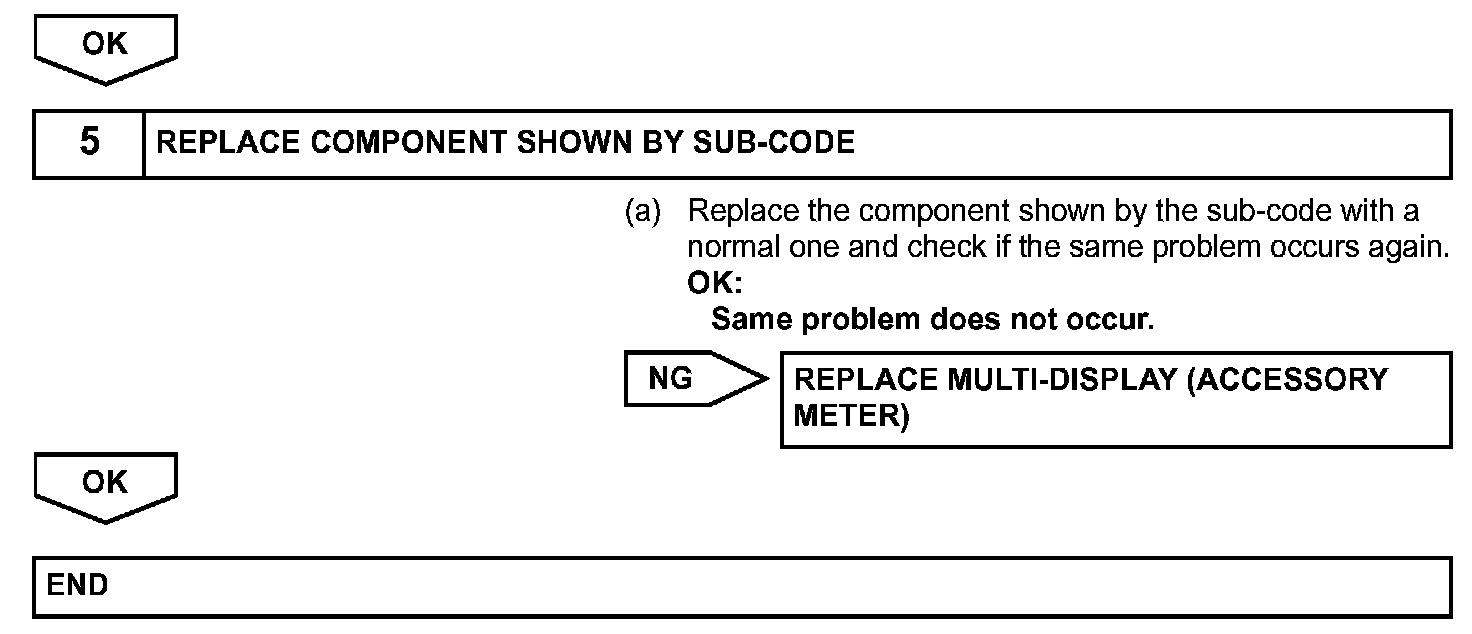

Step 4(Continued)-5:
