Home
>>
Toyota
>>
2005
>>
Matrix 2WD L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Condenser HVAC

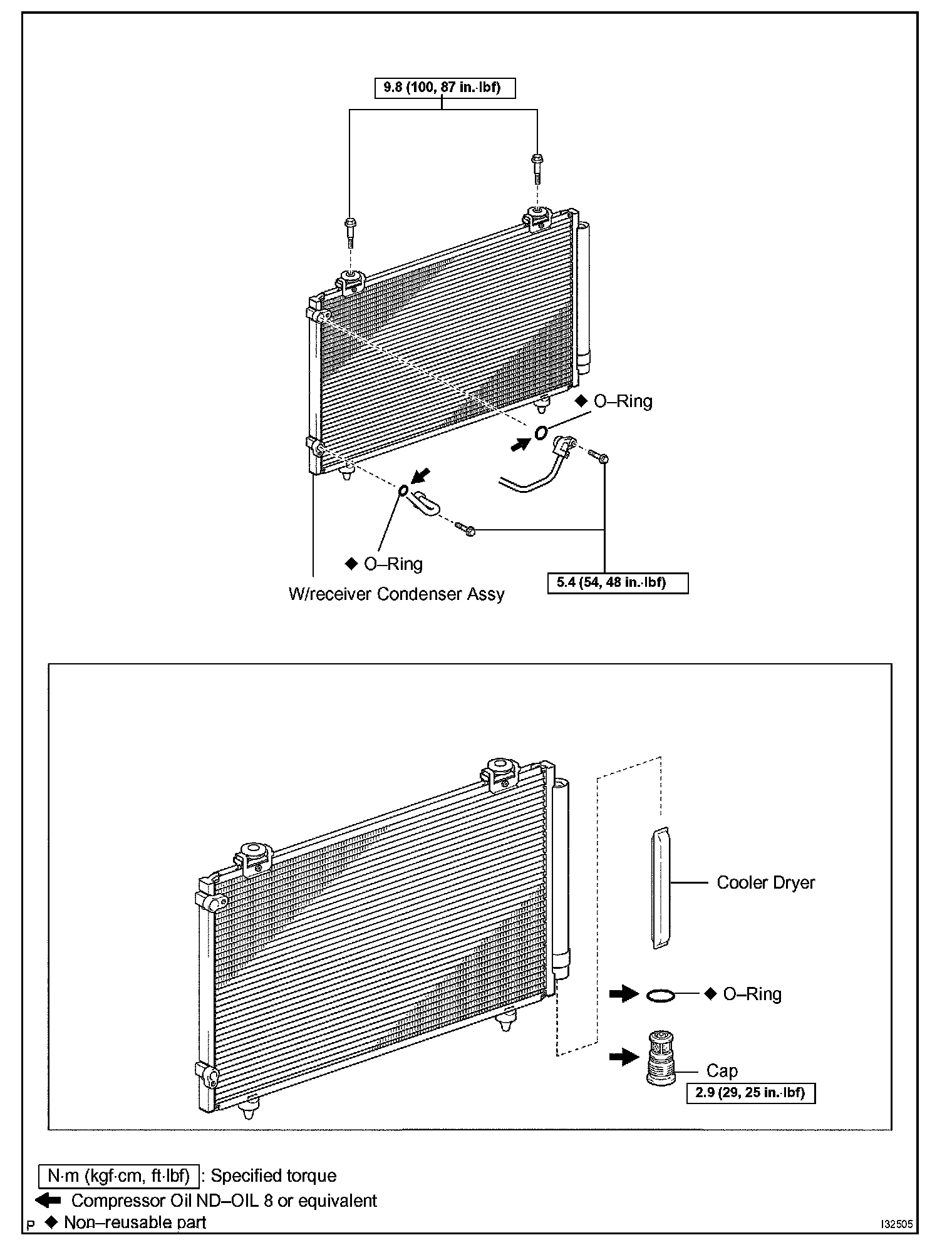

Condenser HVAC
Condenser Assy W/Receiver:
