Camshaft Bearing

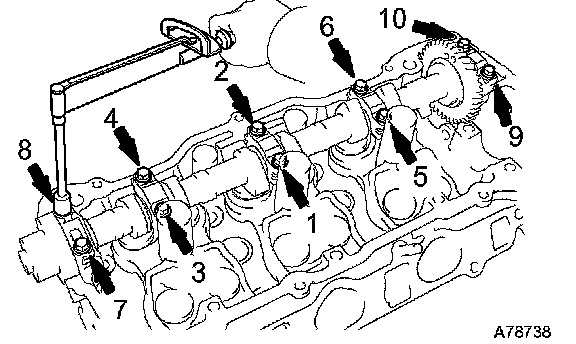

Uniformly tighten the 10 bearing cap bolts in the sequence shown in the illustration.
Torque 16 Nm (163 kgf-cm, 12 ft. lbs.)
