Inspection

INSPECTION

INSPECT THROTTLE BODY ASSY

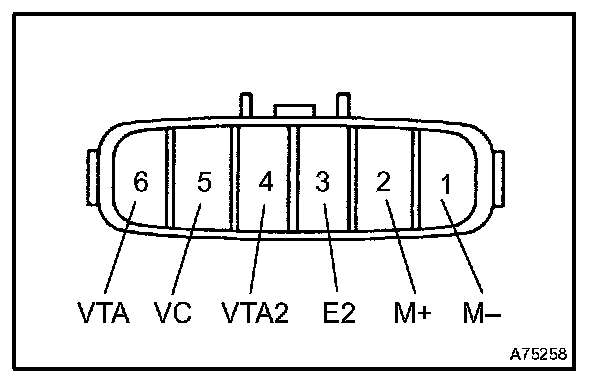

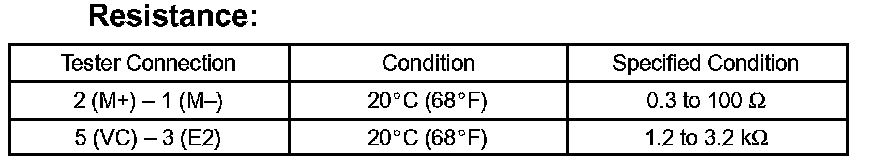

Measure the resistance between the terminals.

If the result is not as specified, replace the throttle body assy.
