Solara V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Fuel Injector
Fuel Injector
Fuel Injector ASSY:

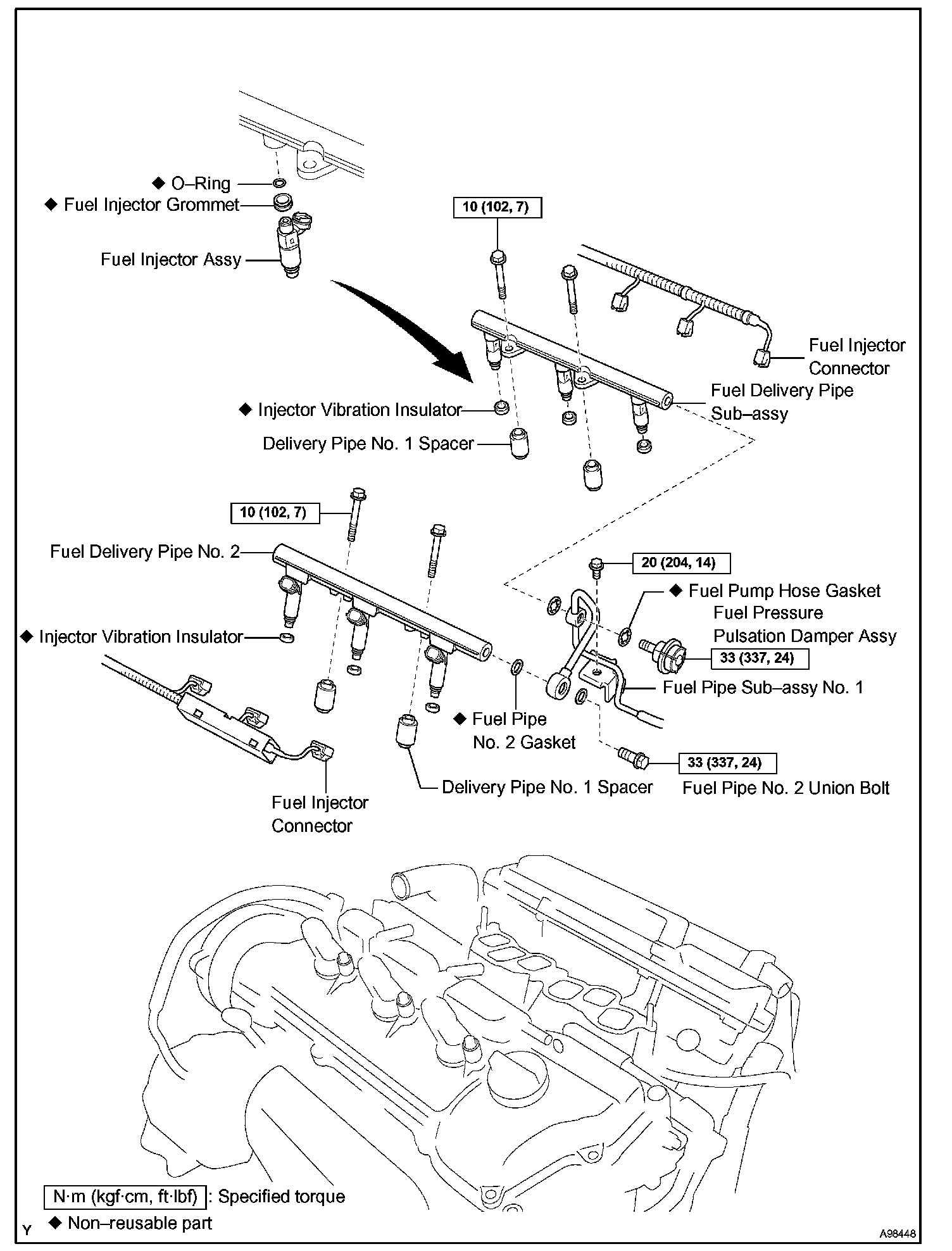

Fuel Injector ASSY:
Fuel Injector ASSY:
