Convertible Top Switch: Testing and Inspection

INSPECTION

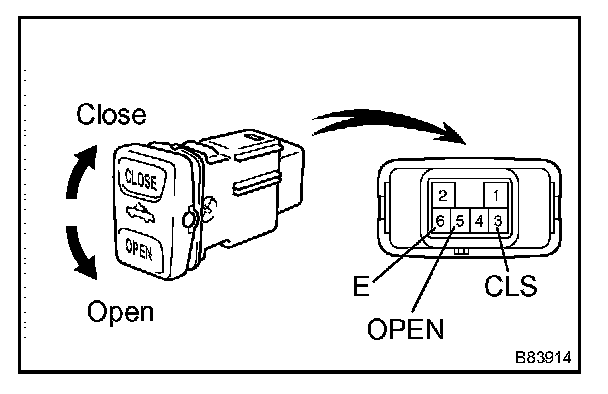

INSPECT CONVERTIBLE ROOF CONTROL SWITCH




Measure the resistance of the convertible roof control switch.

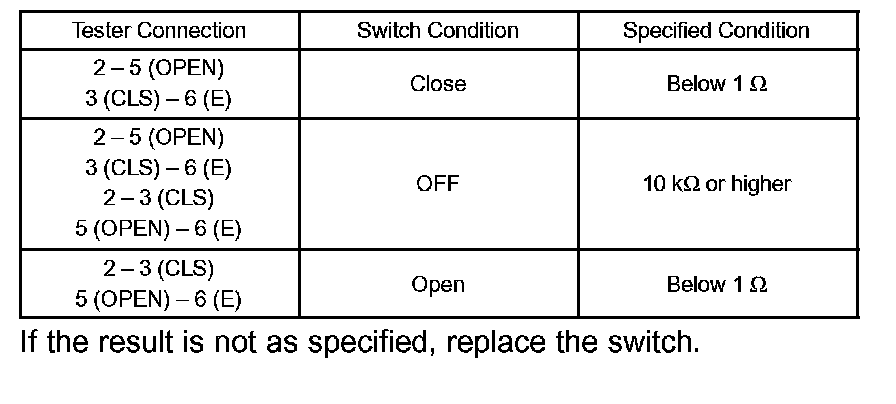

Standard:
