Ignition Switch Circuit

IGNITION SWITCH CIRCUIT

CIRCUIT DESCRIPTION

This circuit detects the state of the ignition switch and sends it to the multiplex network body ECU.

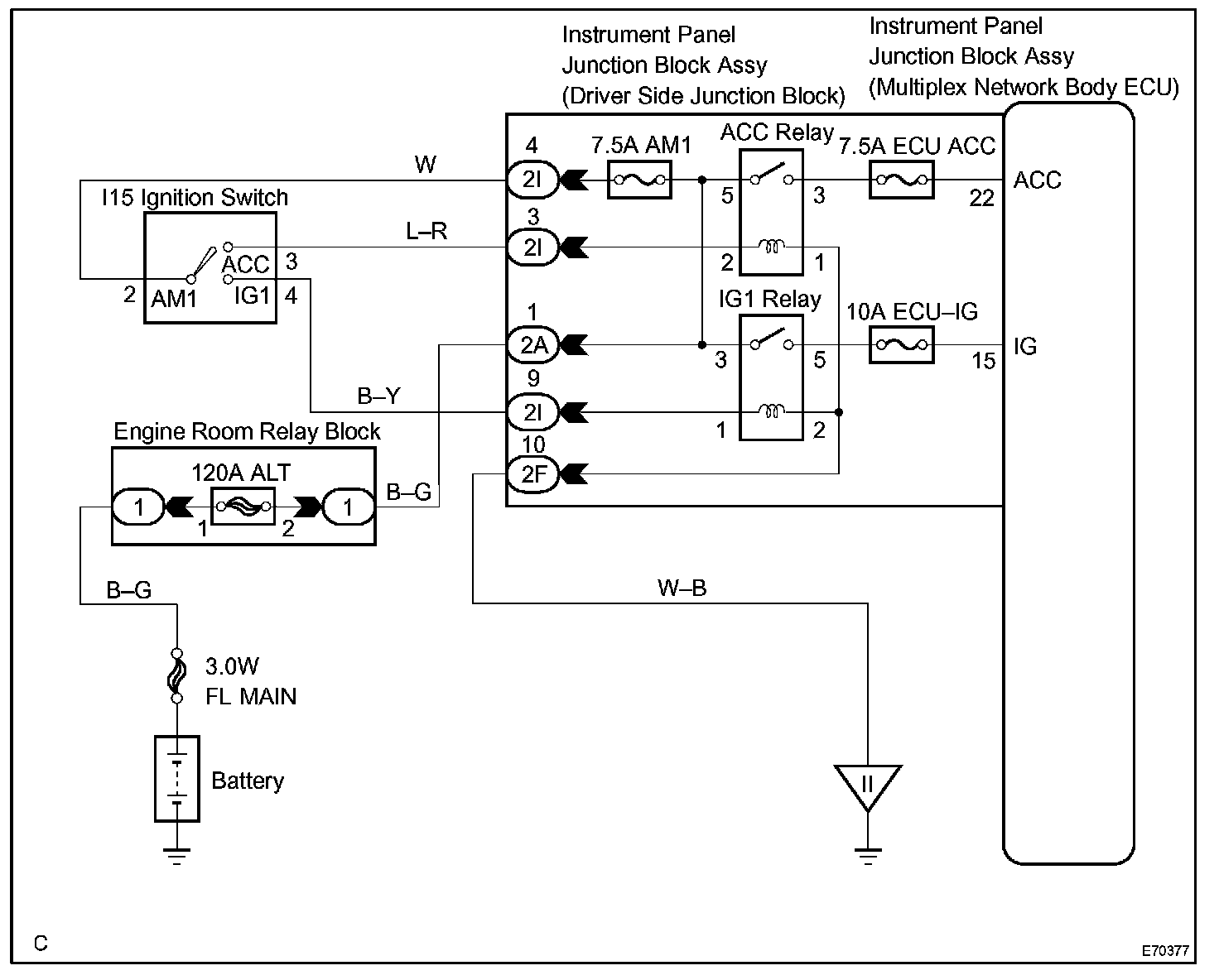

Wiring Diagram:

Step 1 - 2:

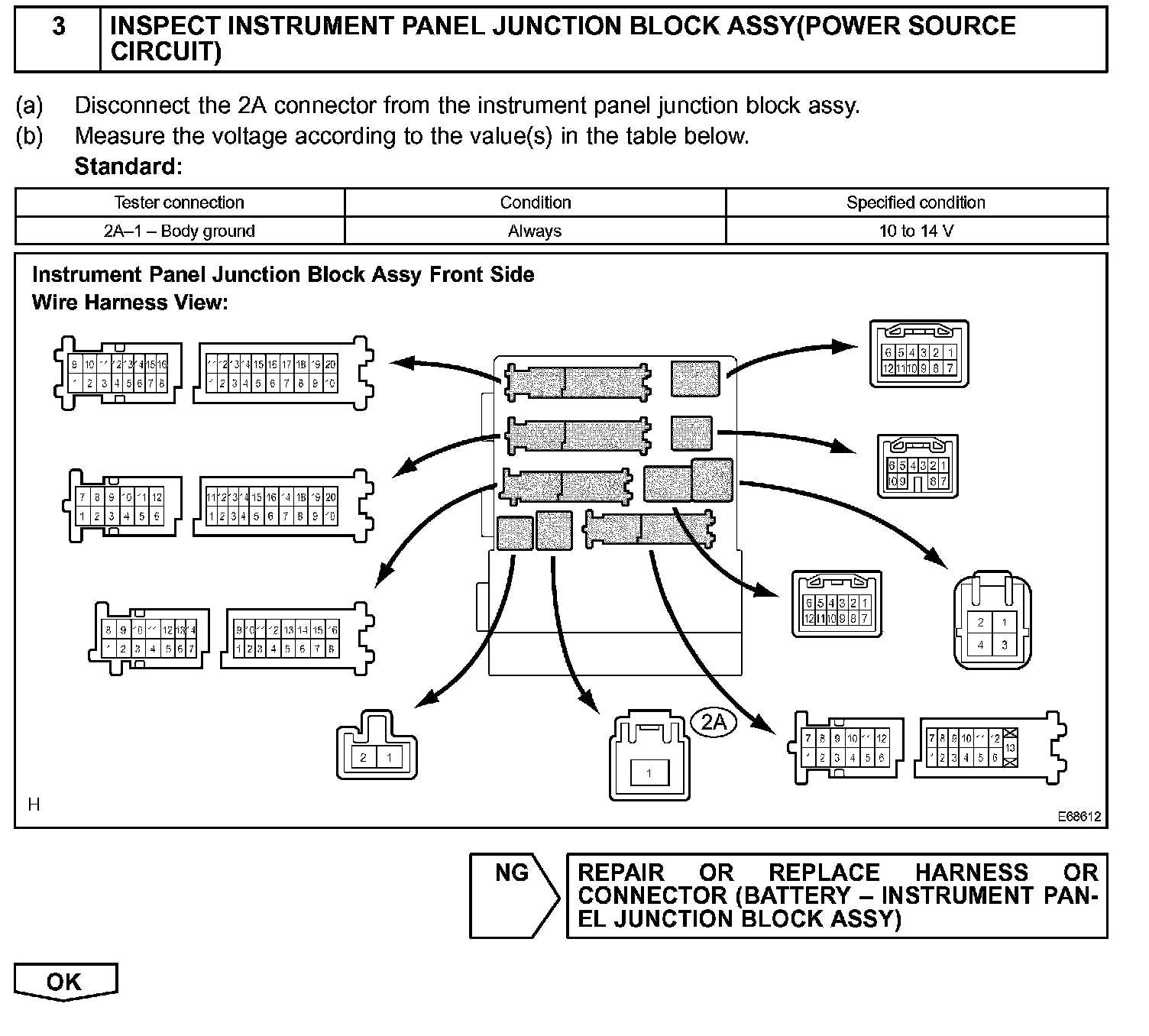

Step 3:

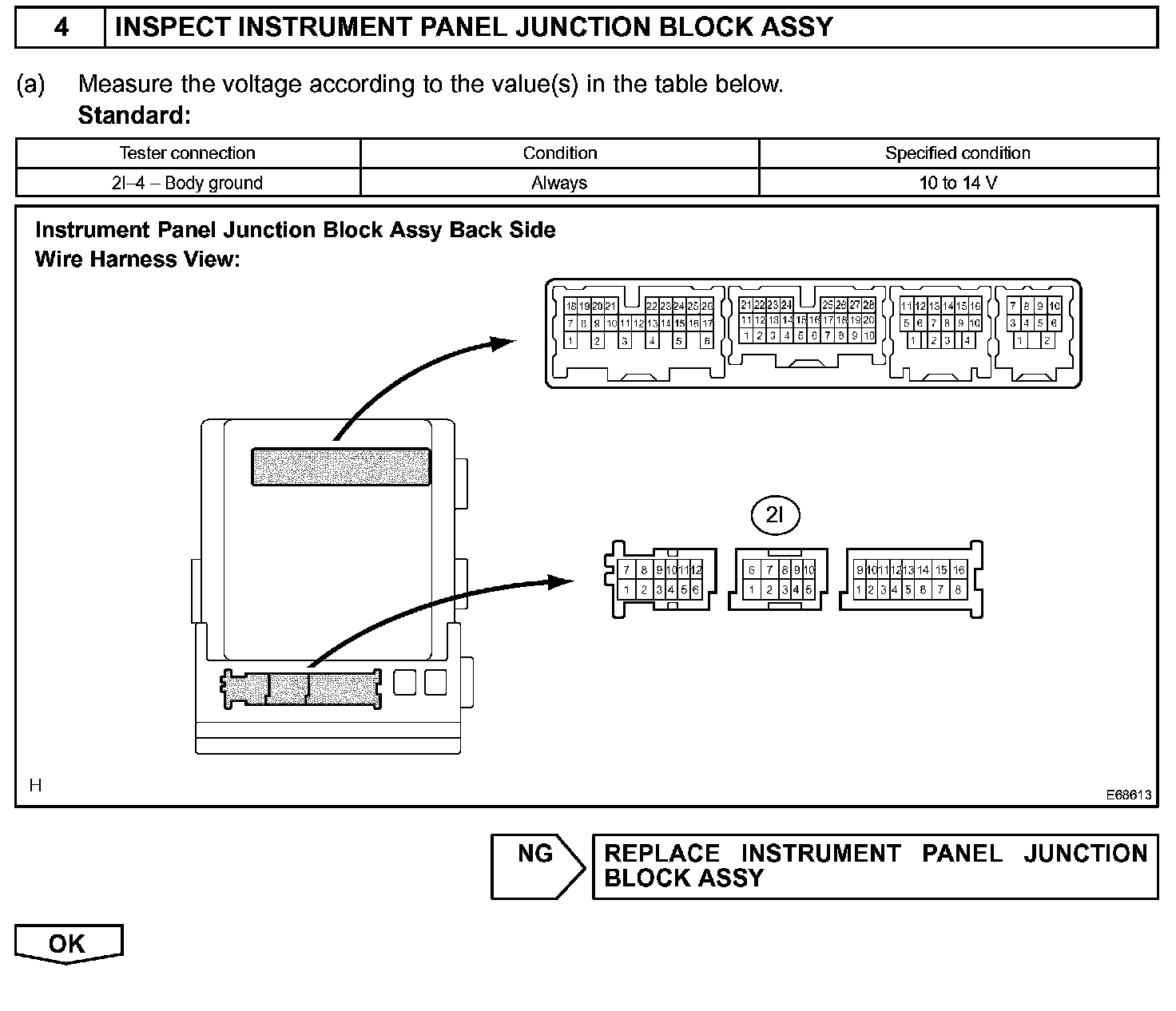

Step 4:

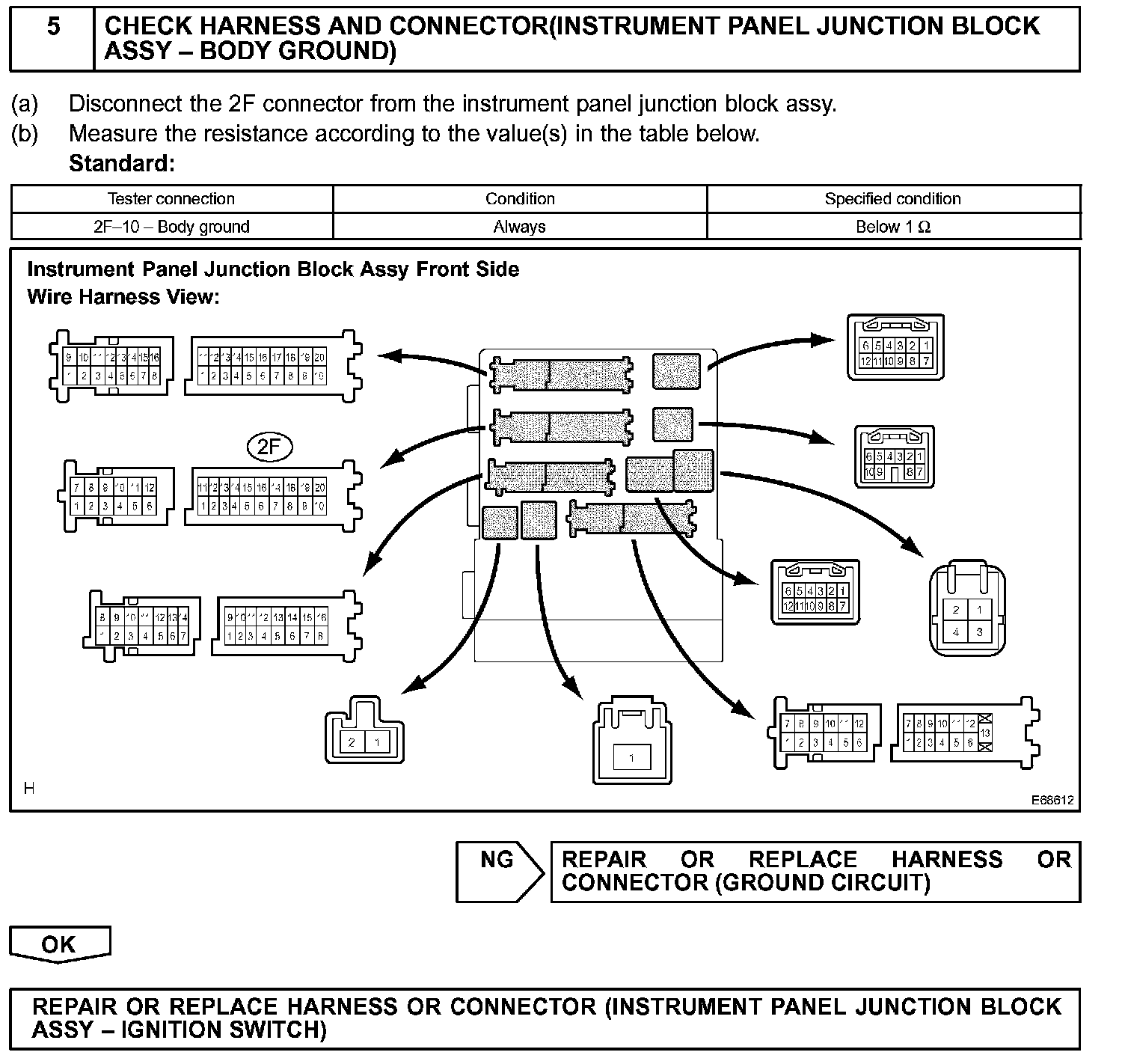

Step 5:

INSPECTION PROCEDURE
