Toyota
>>
2004
>>
Solara L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>

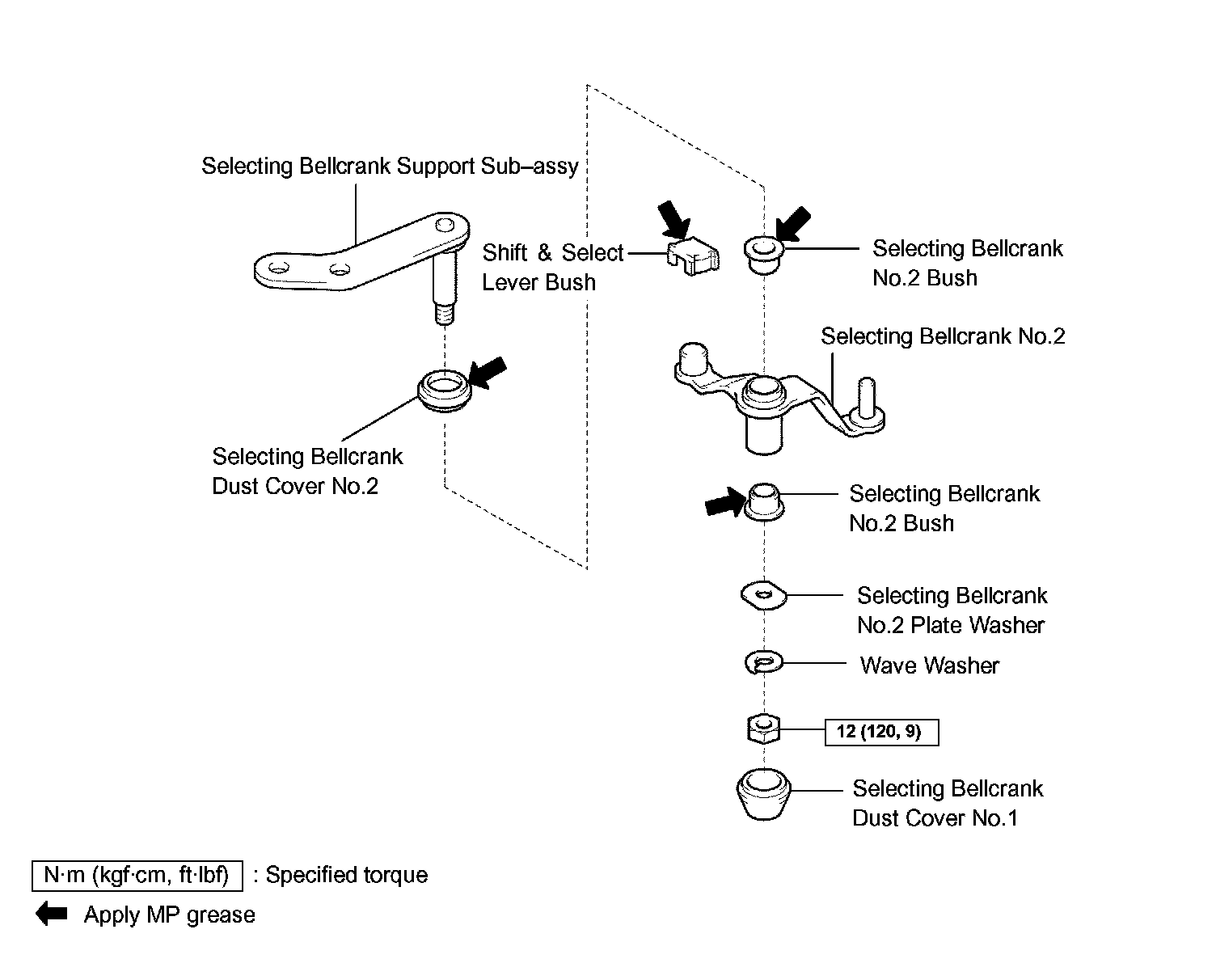

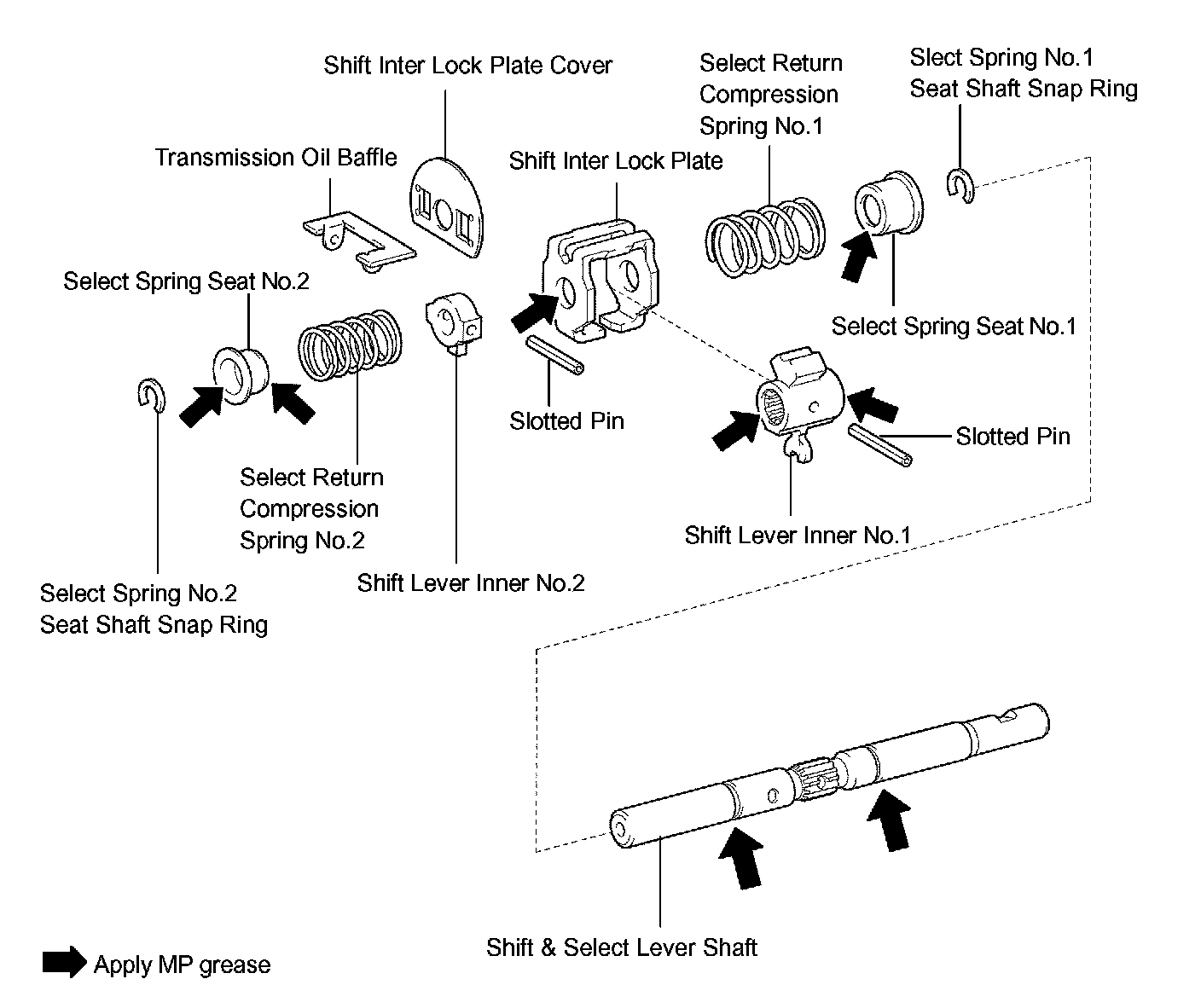

Shift & Select Lever Shaft ASSY
Shift & Select Lever Shaft ASSY
