Power Source Circuit (Radio Receiver Assy)

POWER SOURCE CIRCUIT (RADIO RECEIVER ASSY)

CIRCUIT DESCRIPTION
This circuit provides power to the radio receiver assy.

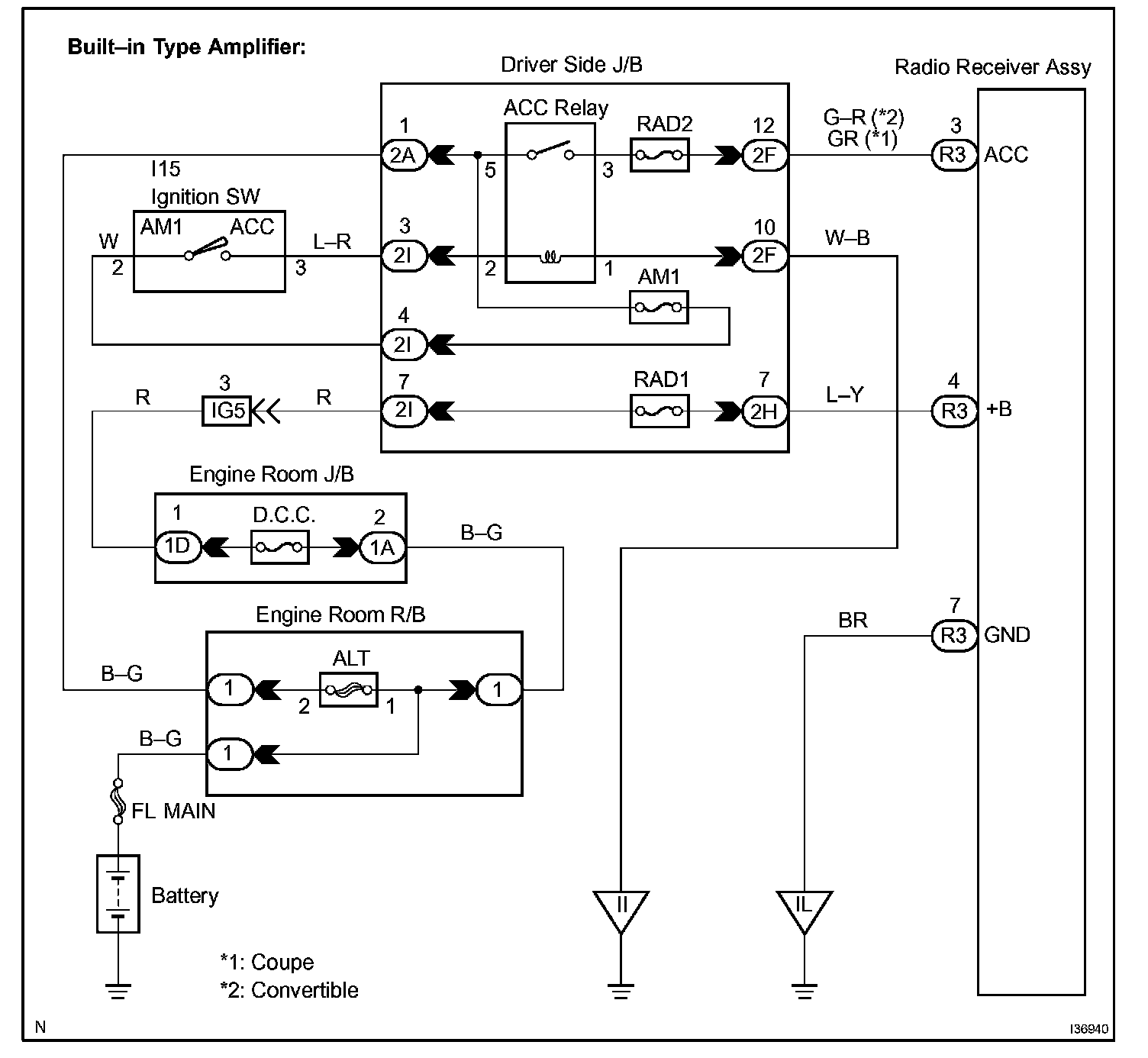

Wiring Diagram Part 1:

Wiring Diagram Part 2:

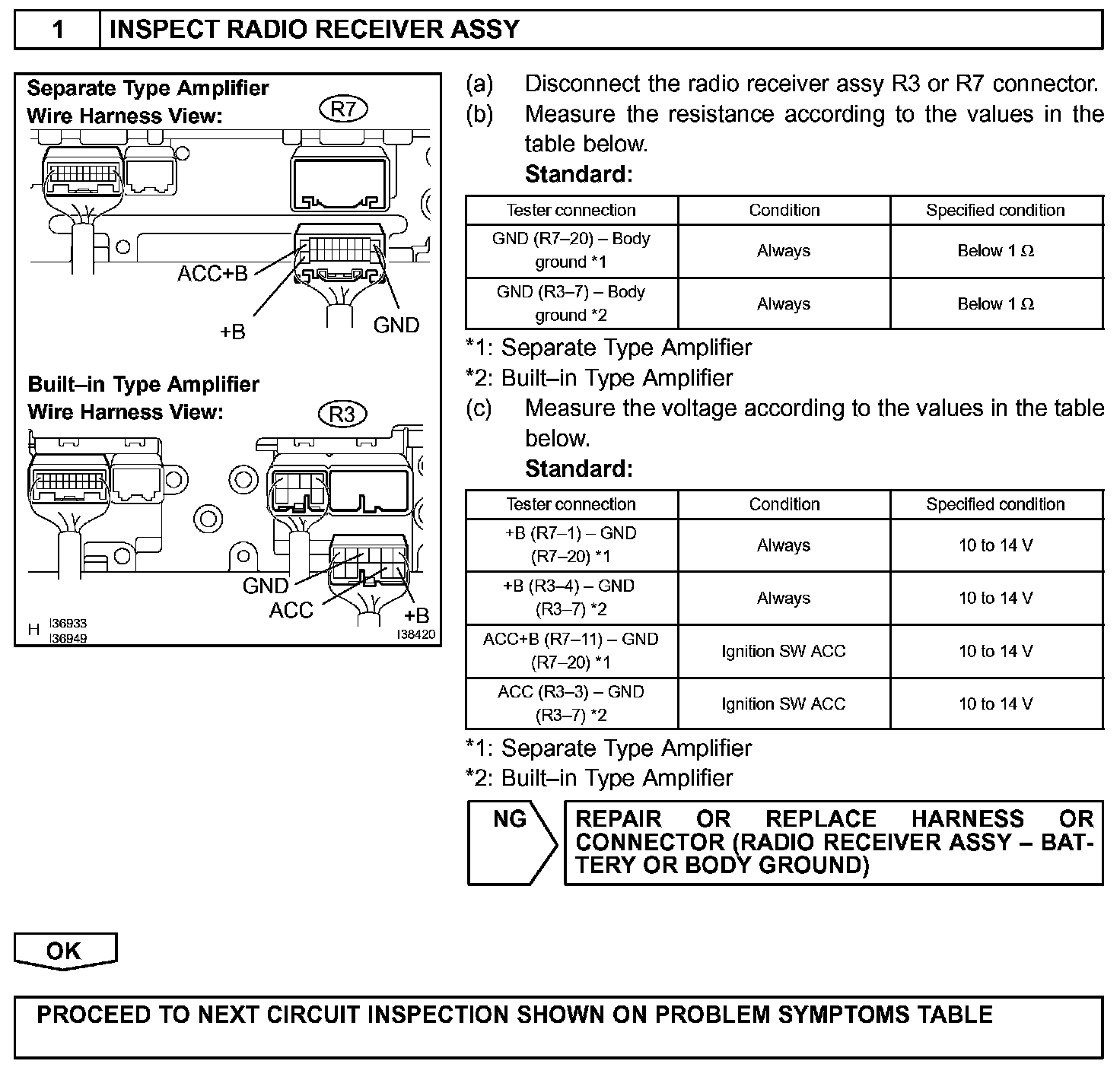

Step 1:

INSPECTION PROCEDURE
