Lighting System

DTC 44 LIGHT SENSOR CIRCUIT MALFUNCTION

CIRCUIT DESCRIPTION

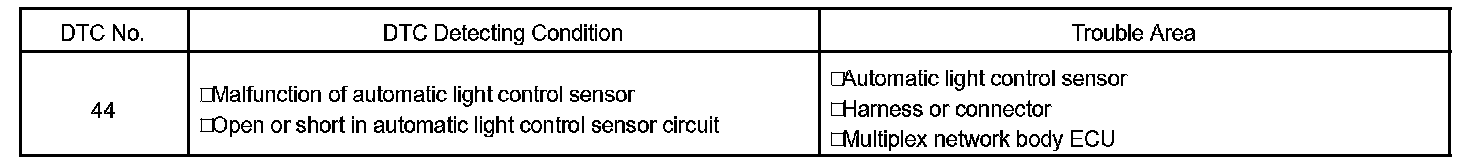

DTC Detecting Condition:

This DTC is output when a failure in the light sensor circuit is detected.

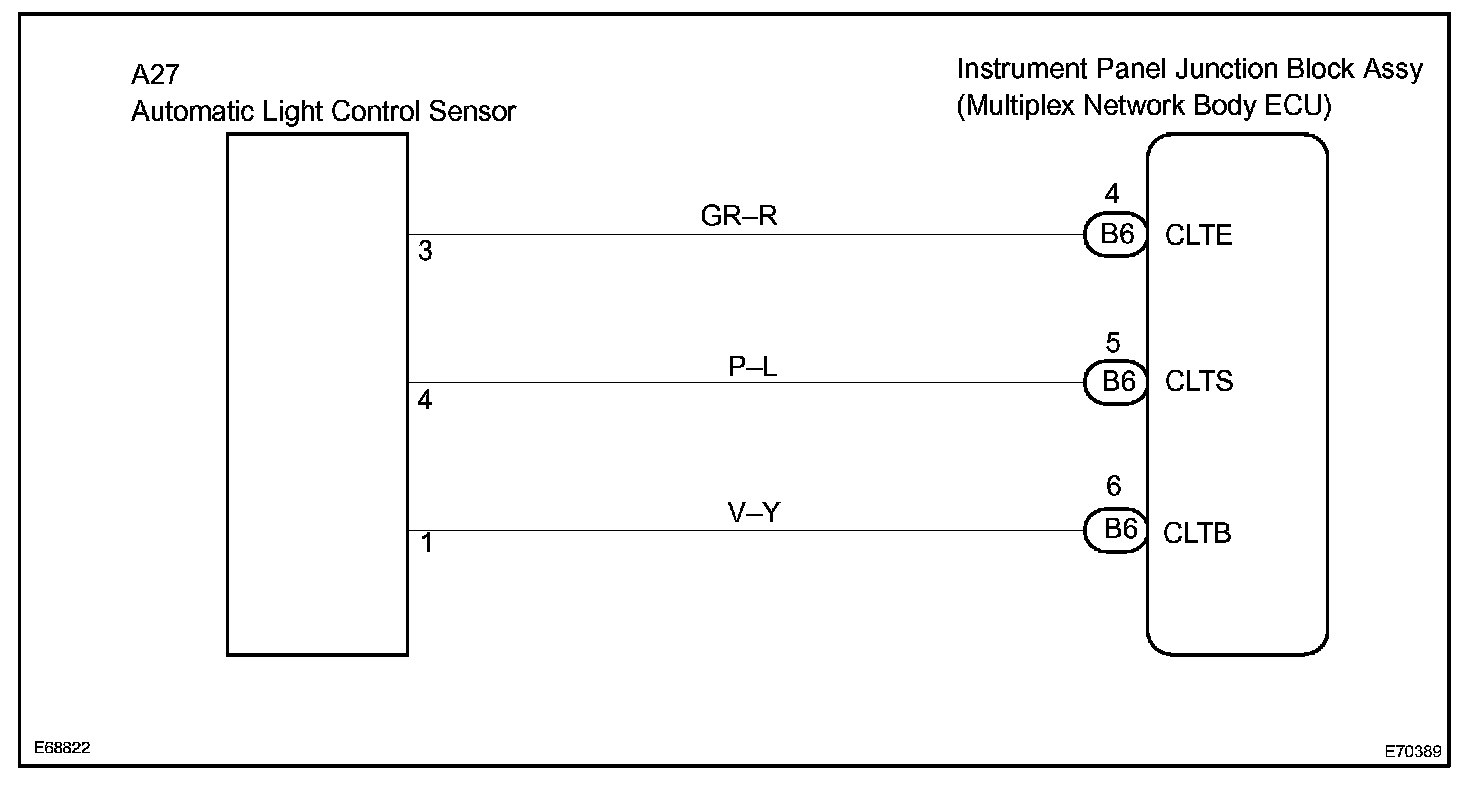

Wiring Diagram:

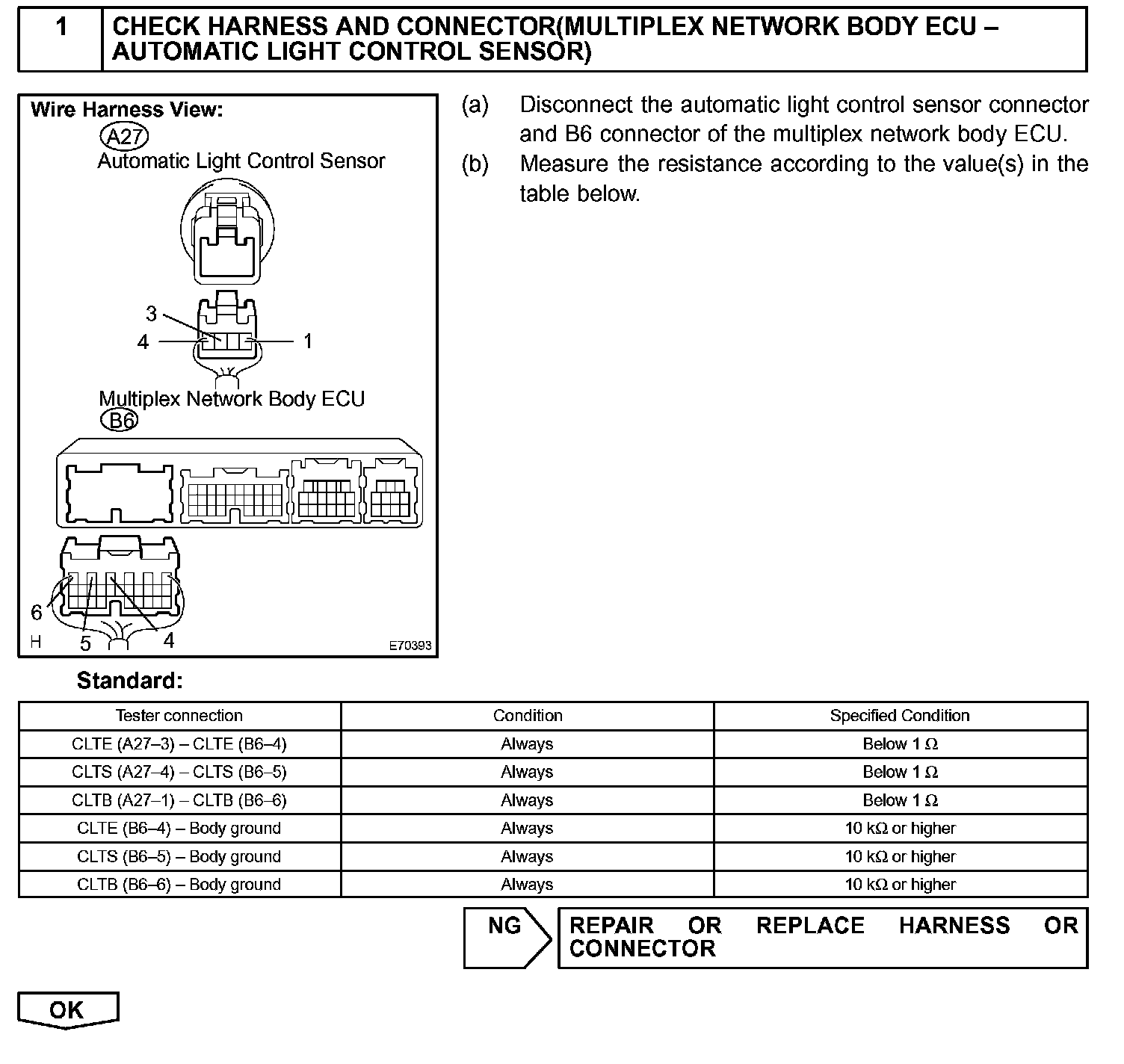

Step 1:

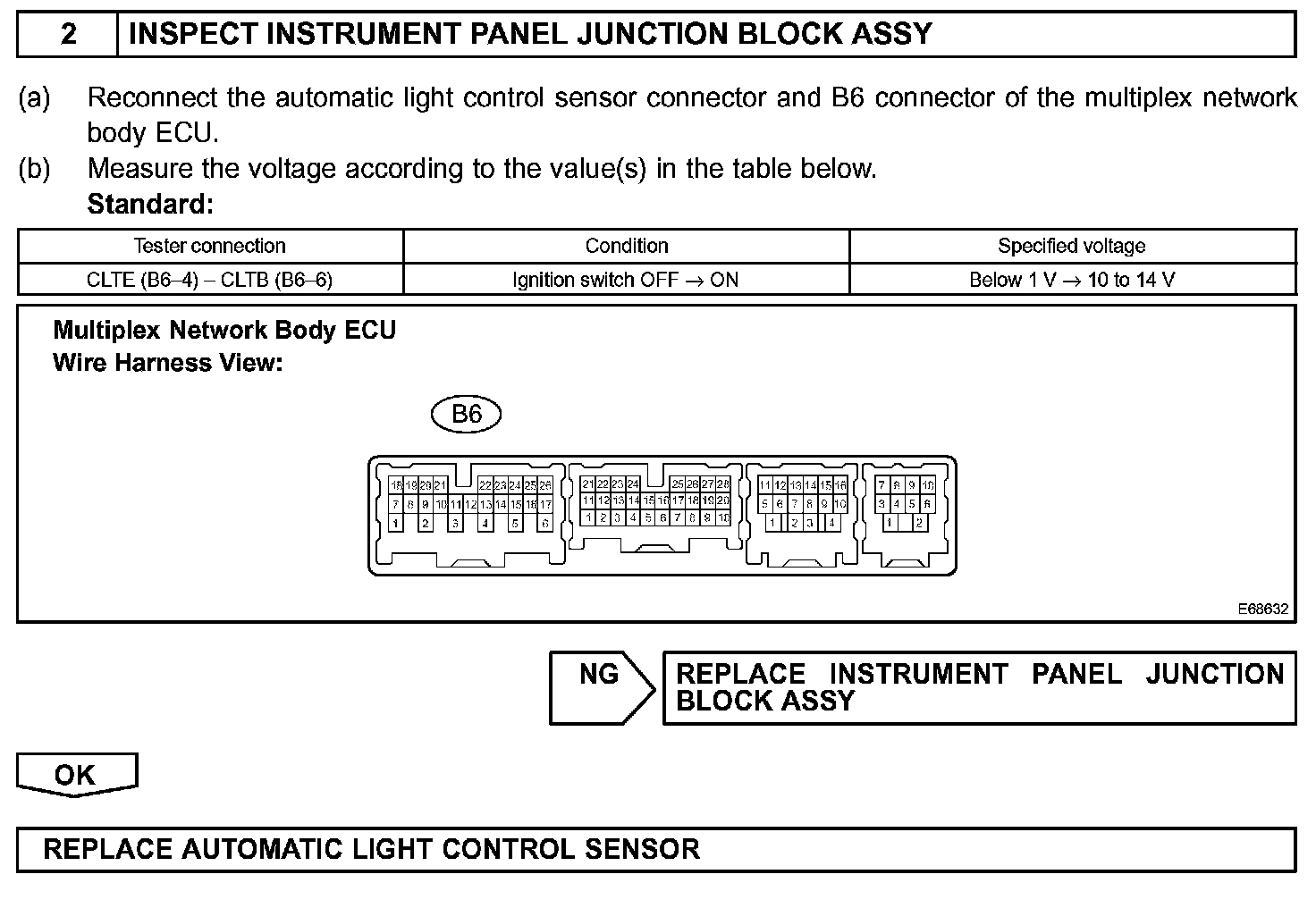

Step 2:

INSPECTION PROCEDURE
