SRS Warning Light Check

SRS WARNING LIGHT CHECK

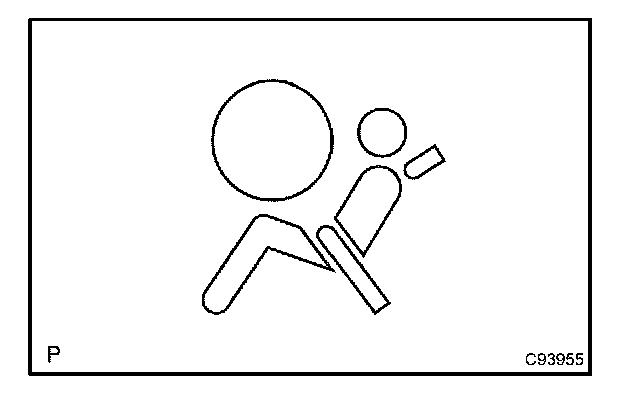

a. Turn the power switch on (IG) and check that the SRS warning light comes on for approximately 6 seconds (primary check).
b. Check that the SRS warning light goes off approximately 6 seconds after the power switch is turned on (IG) (constant check).

HINT: When any of the following symptoms occur, refer to the "Problem Symptoms Table":
- The SRS warning light comes on occasionally even after the primary check period has elapsed, there may be an open or short in the SRS warning light circuit.
- The SRS warning light comes on even when a DTC or normal system code is not output.
- The SRS warning light does not come on when the power switch is turned from off to on (IG).
