Home >> Toyota >> 2004 >> Prius L4-1.5L (1NZ-FXE) Hybrid >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Seat Occupant Sensor >> Locations

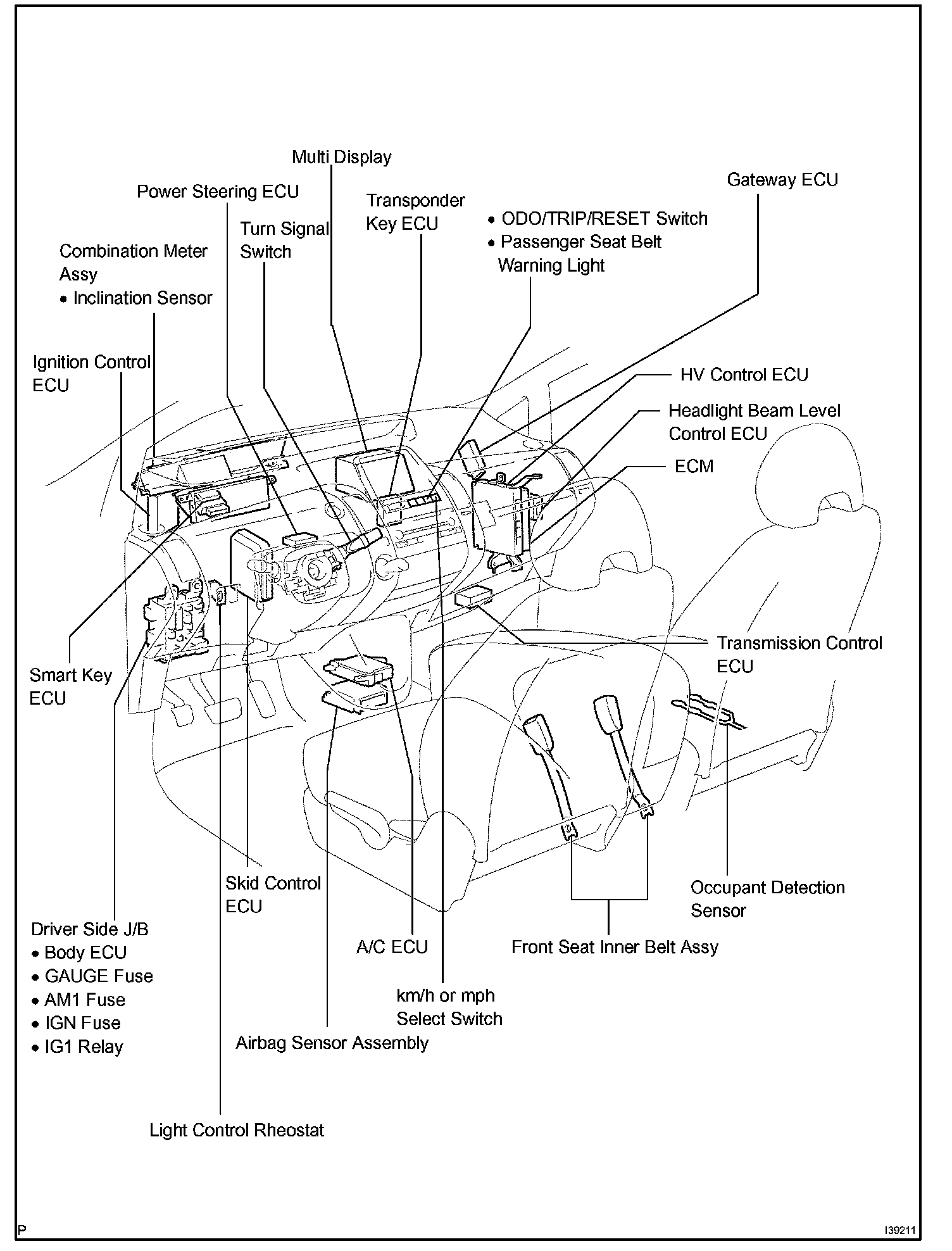

Seat Occupant Sensor: Locations

Combination Meter:



Seat Belt Warning System:



Se - Vs:
