Headlamp Relay: Testing and Inspection

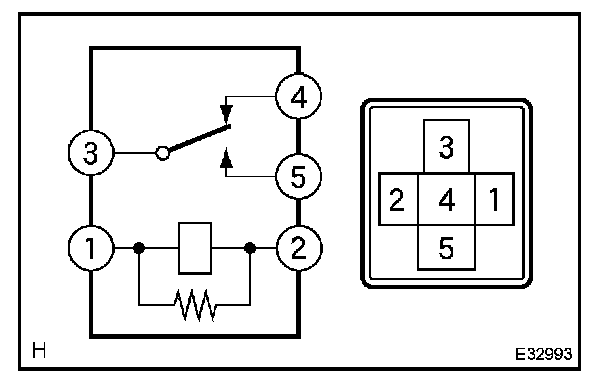

HEADLAMP RELAY

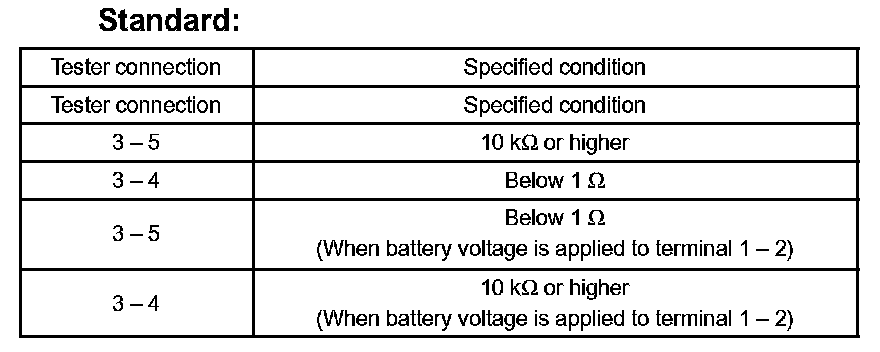

a. Measure the resistance according to the value(s) in the table.




HEADLAMP RELAY NO.2
a. Inspect DIM relay continuity.

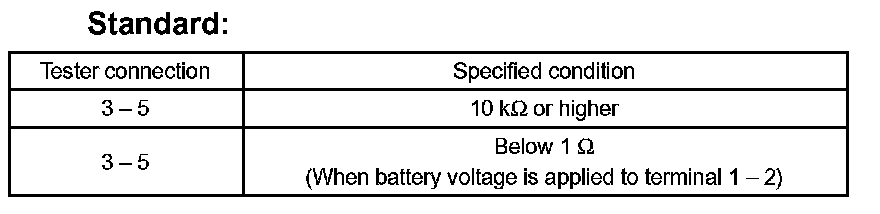

1. Measure the resistance according to the value(s) in the table.
