Fog/Driving Lamp Relay: Testing and Inspection

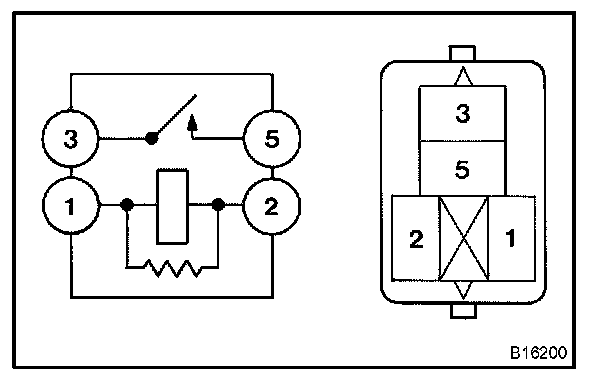

FOG LAMP RELAY (W/ FOG LAMP)

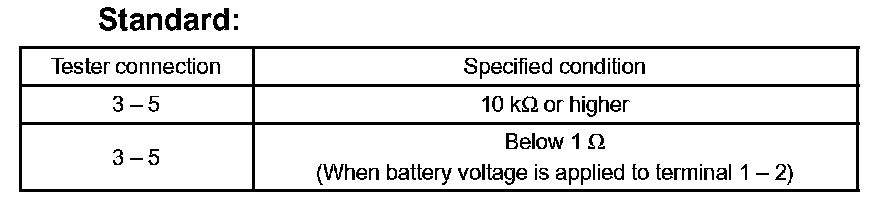

a. Measure the resistance according to the value(s) in the table.
