Heated Mirror Relay: Testing and Inspection

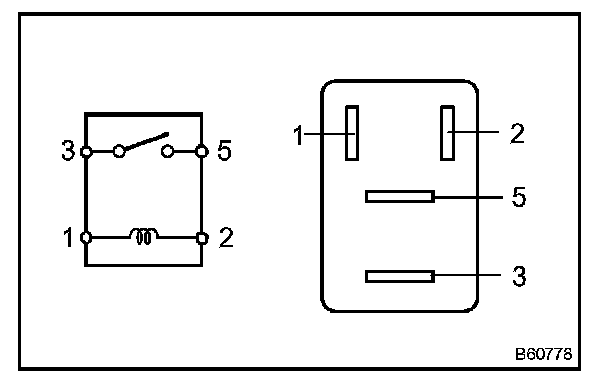

INSPECT MIRROR HEATER RELAY




a. Remove the mirror heater relay.

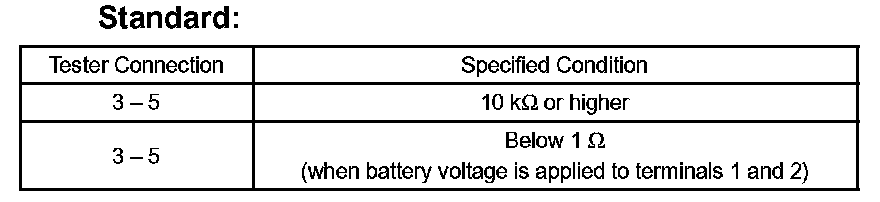

b. Measure the resistance.
If the result is not as specified, replace the relay.

INSPECT DEF RELAY




a. Remove the instrument panel sub-assy lower.




b. Measure the voltage.
If the result is not as specified, replace the instrument panel J/B assy.
