Fail Safe Chart

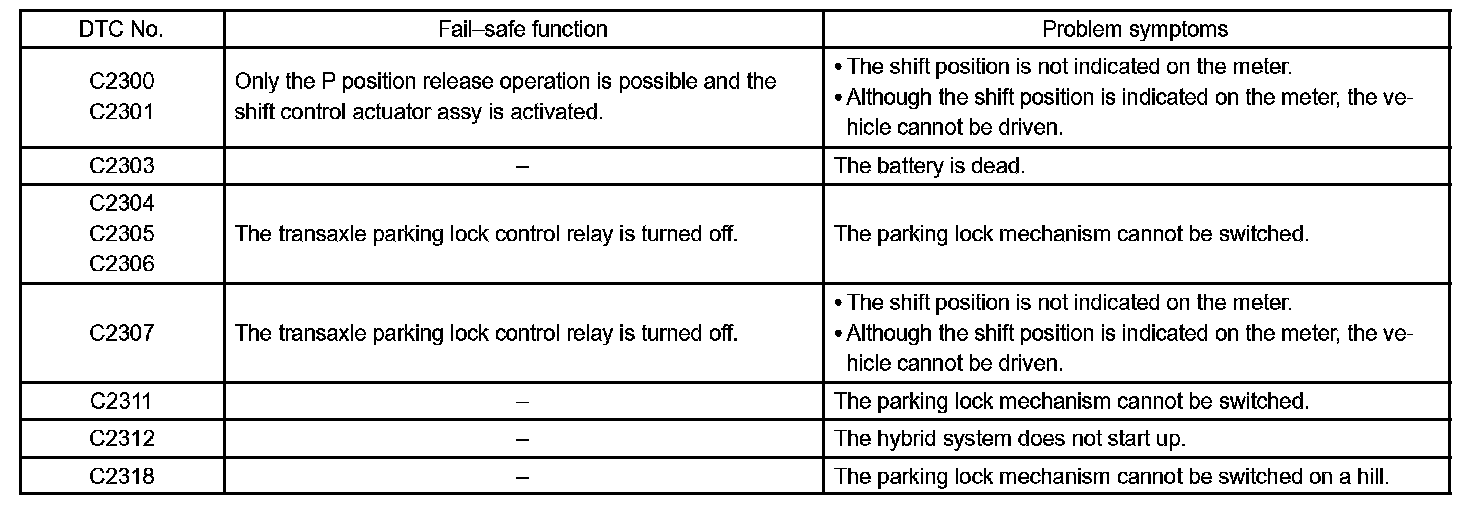

FAIL SAFE CHART

Fail-Safe Function:




If the transmission control ECU assembly detects a malfunction, the fail safe functions shown in the table
