Information Bus: Locations

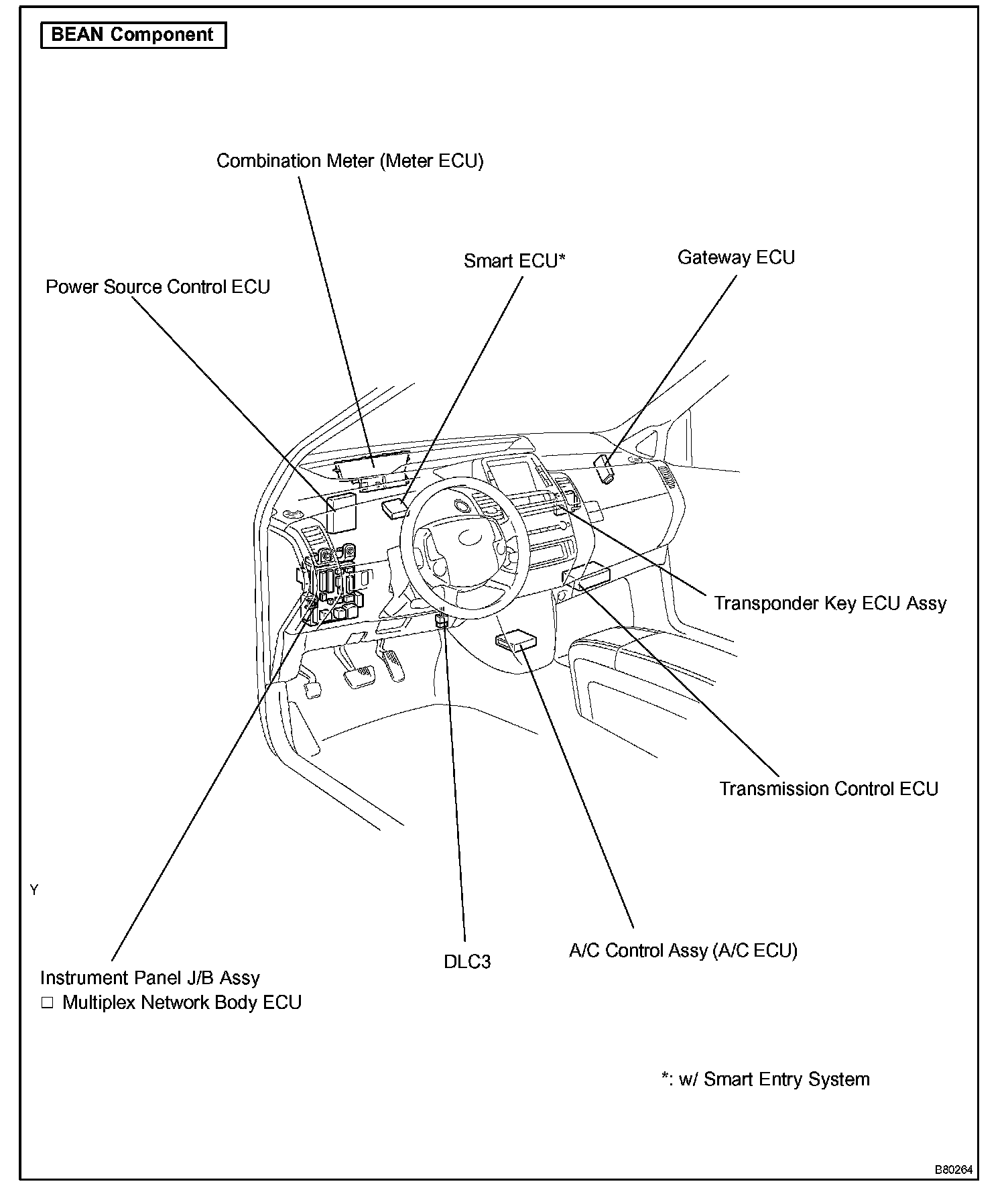

Multiplex Communication System:

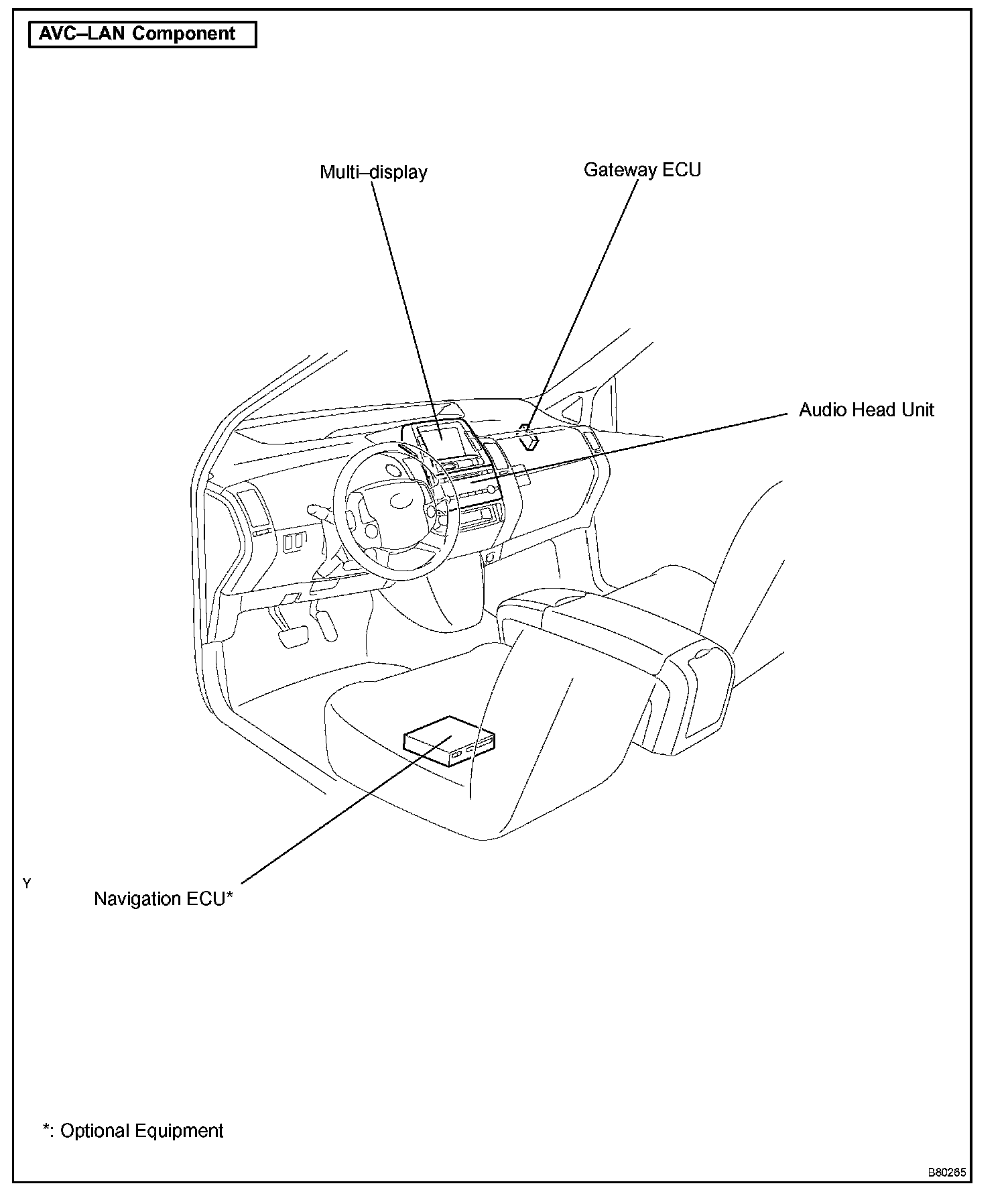

Multiplex Communication System:

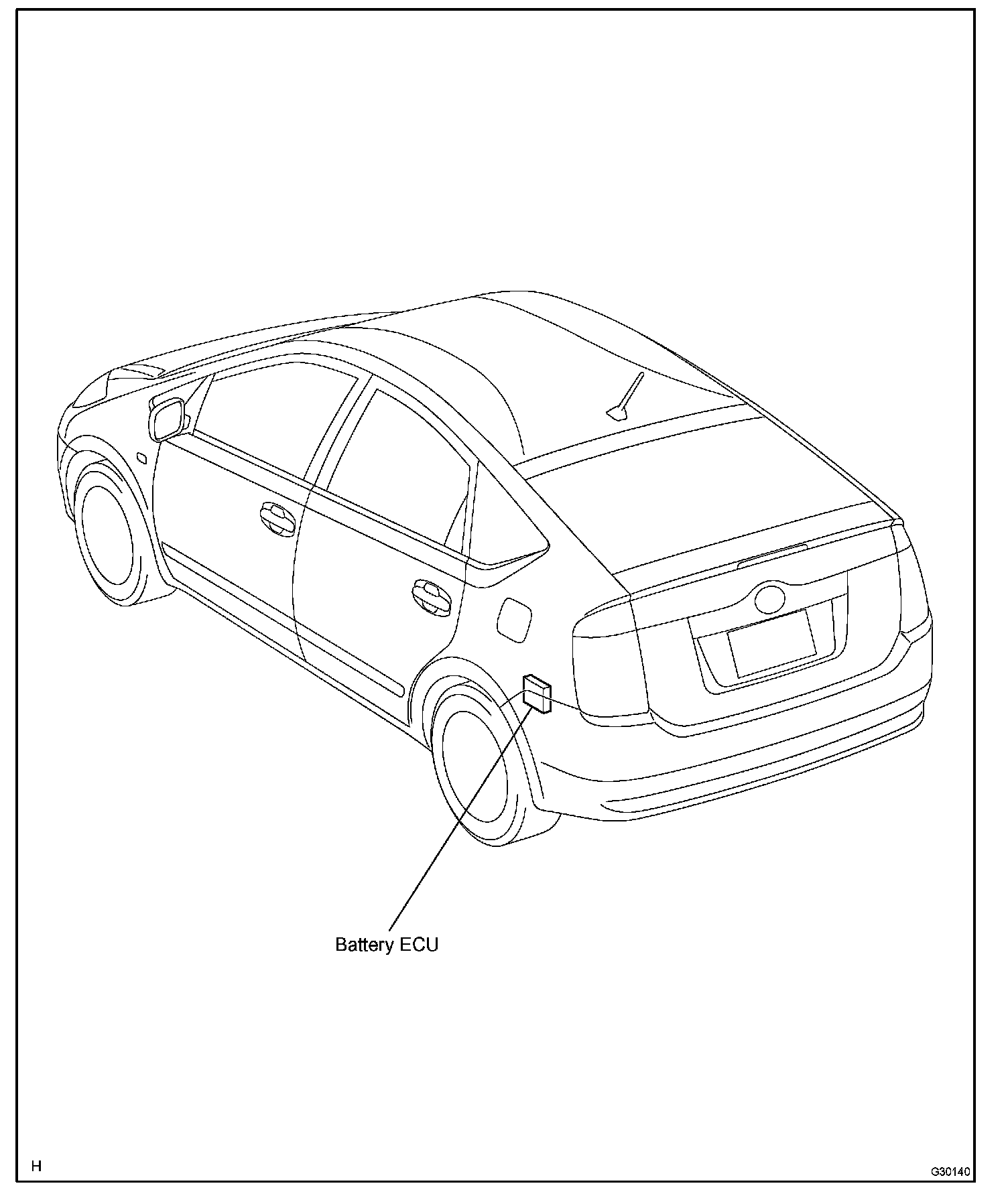

CAN Communication System:

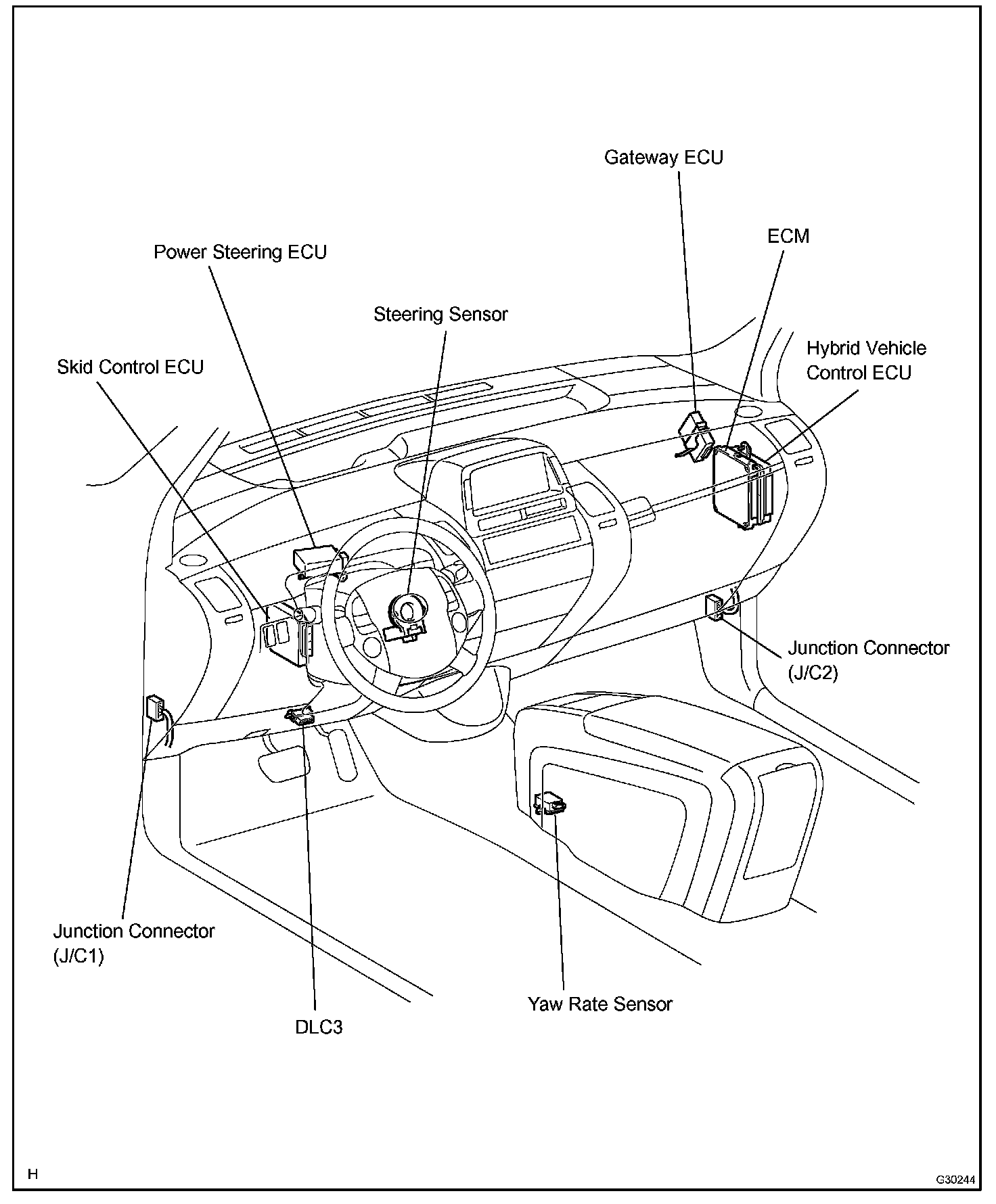

CAN Communication System:
