Electrical Diagrams

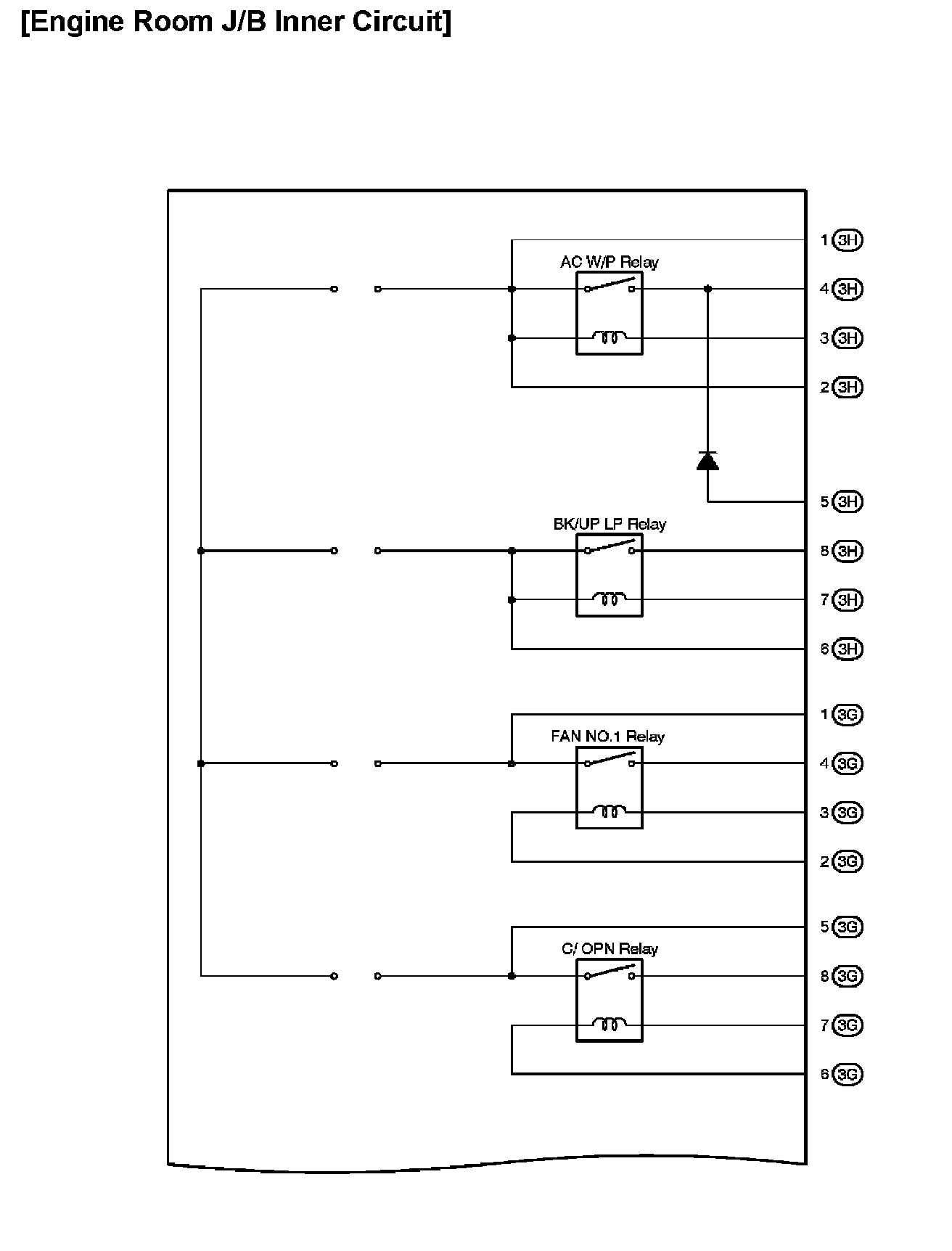

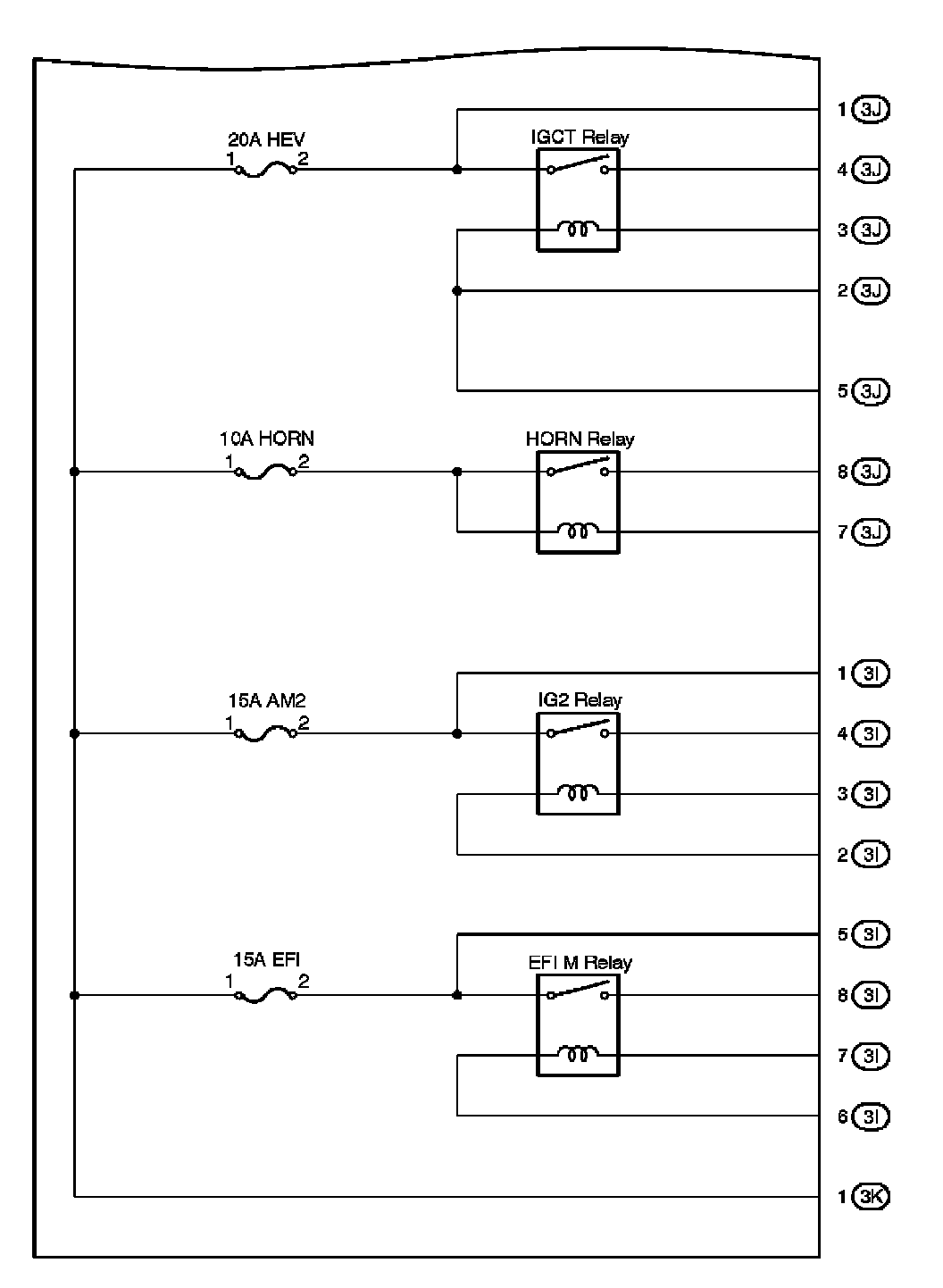

Engine Room J/B Inner Circuit:

Engine Room J/B Inner Circuit:

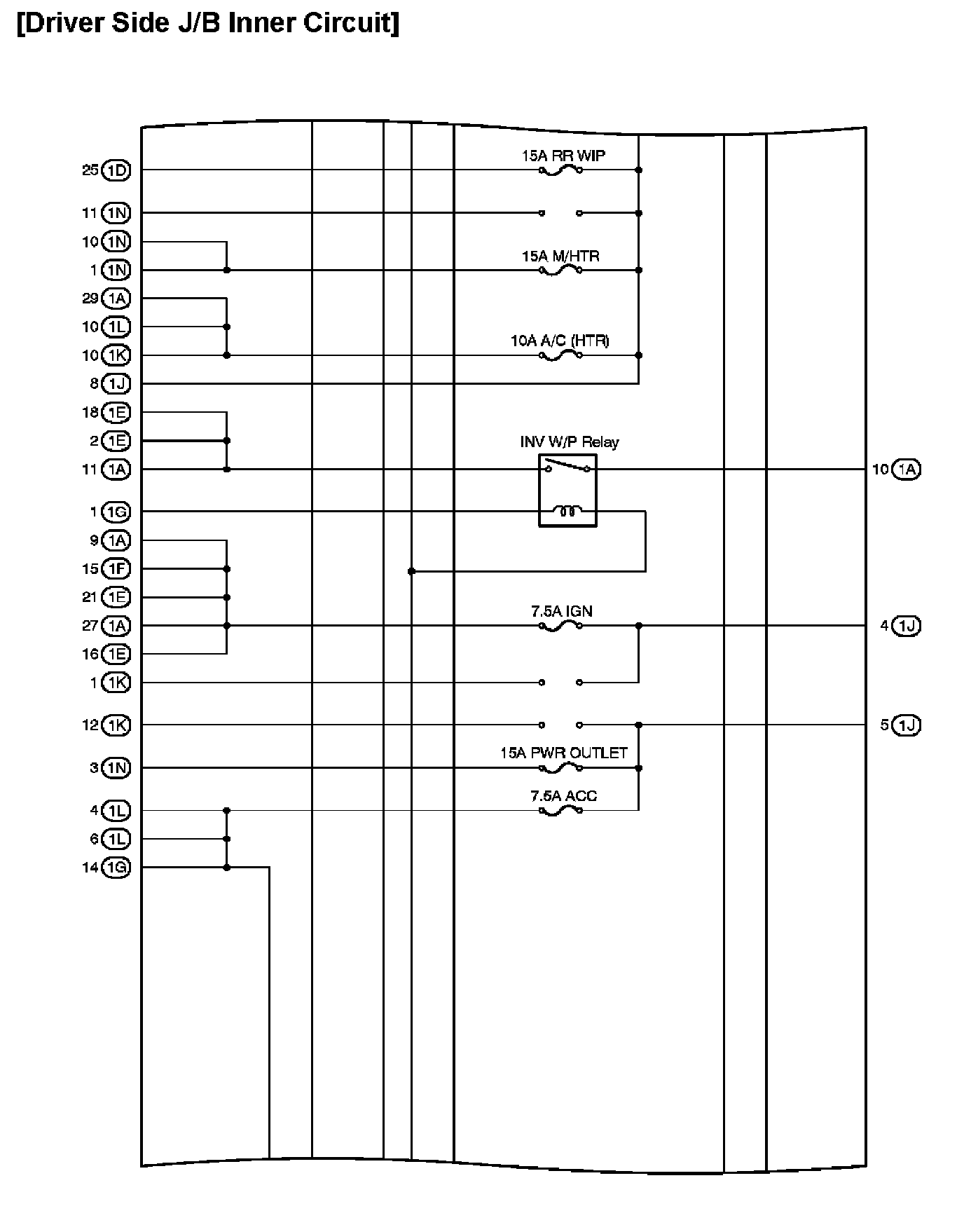

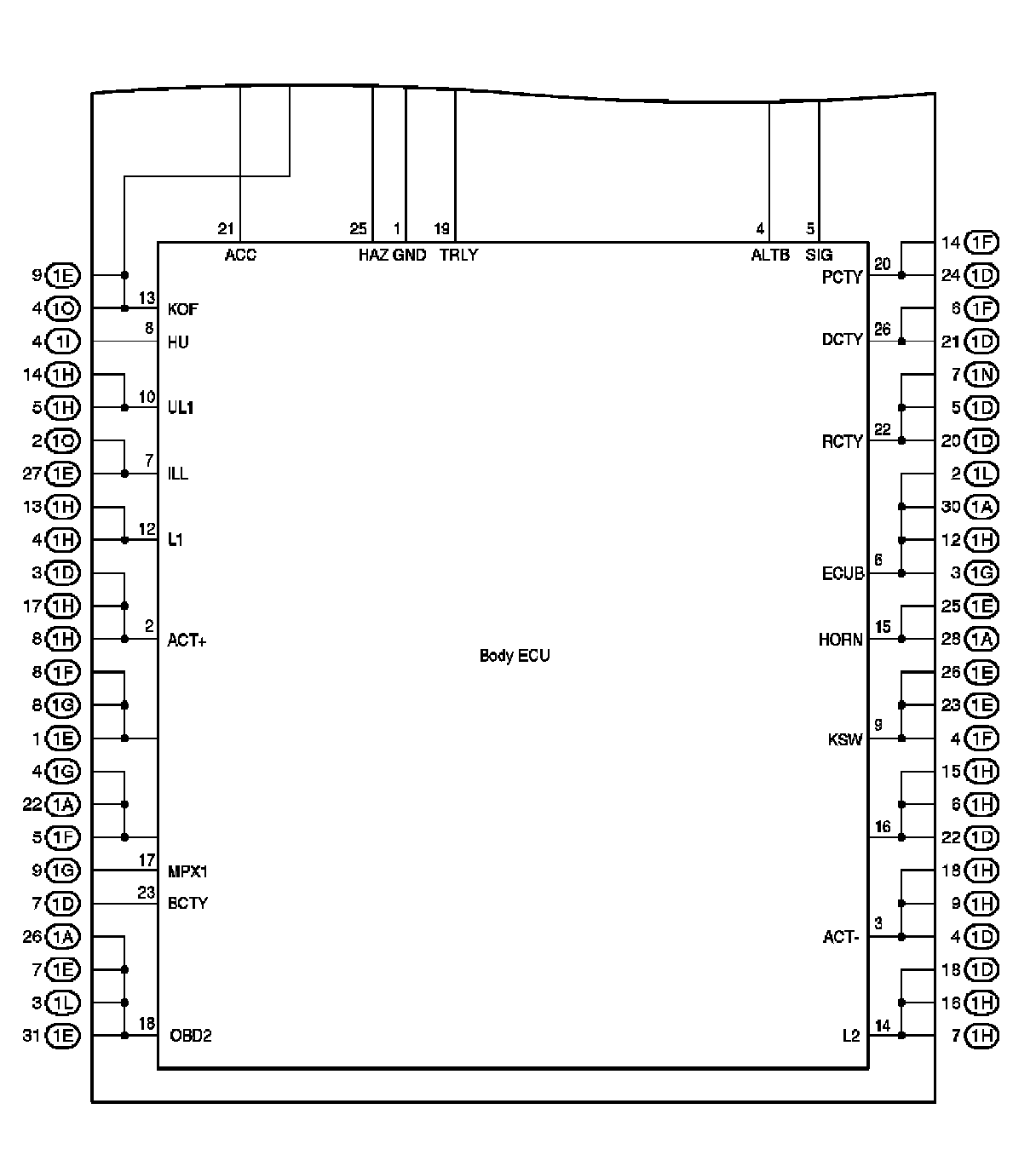

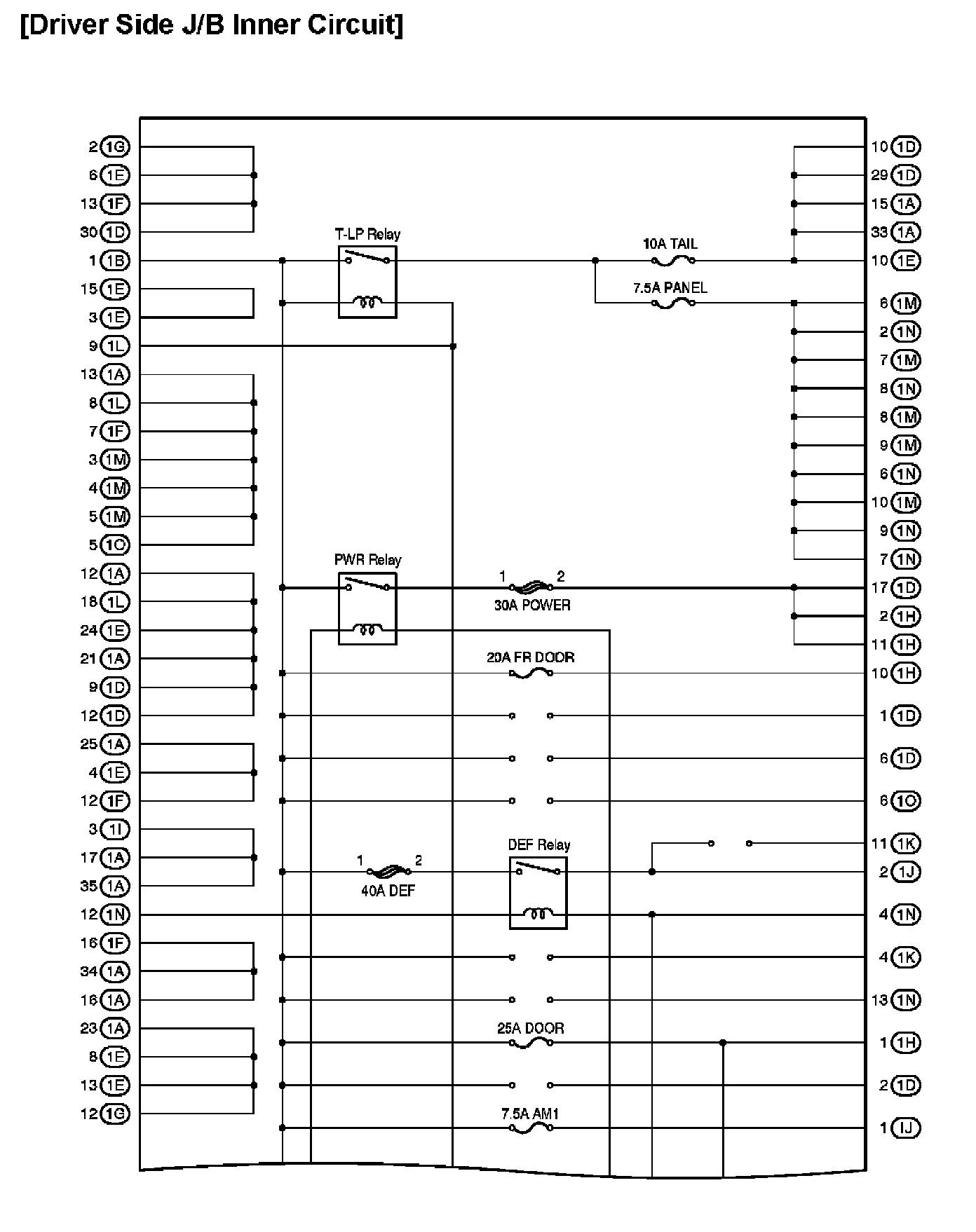

Driver Side J/B Inner Circuit:

Driver Side J/B Inner Circuit:

Driver Side J/B Inner Circuit:

Driver Side J/B Inner Circuit:

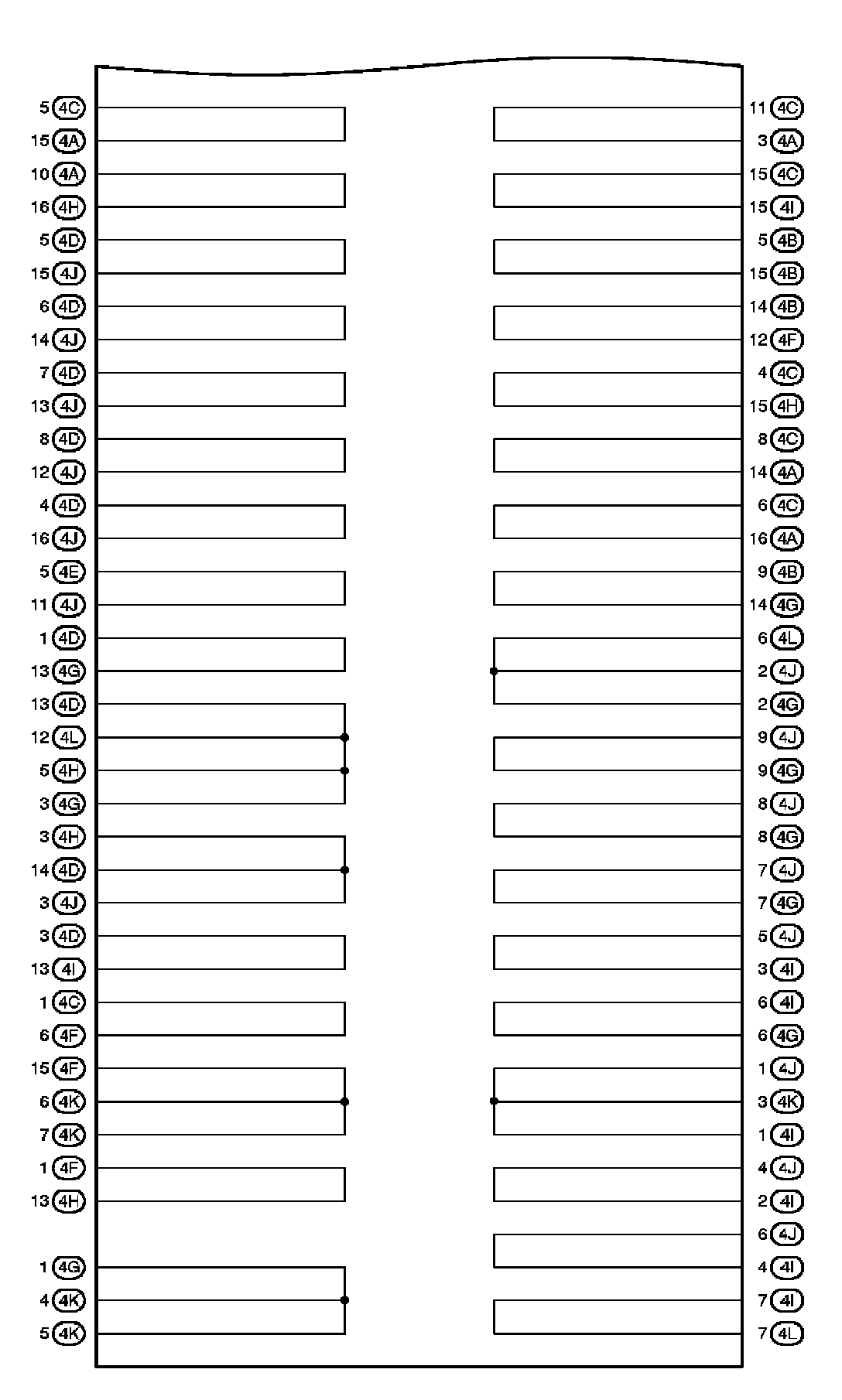

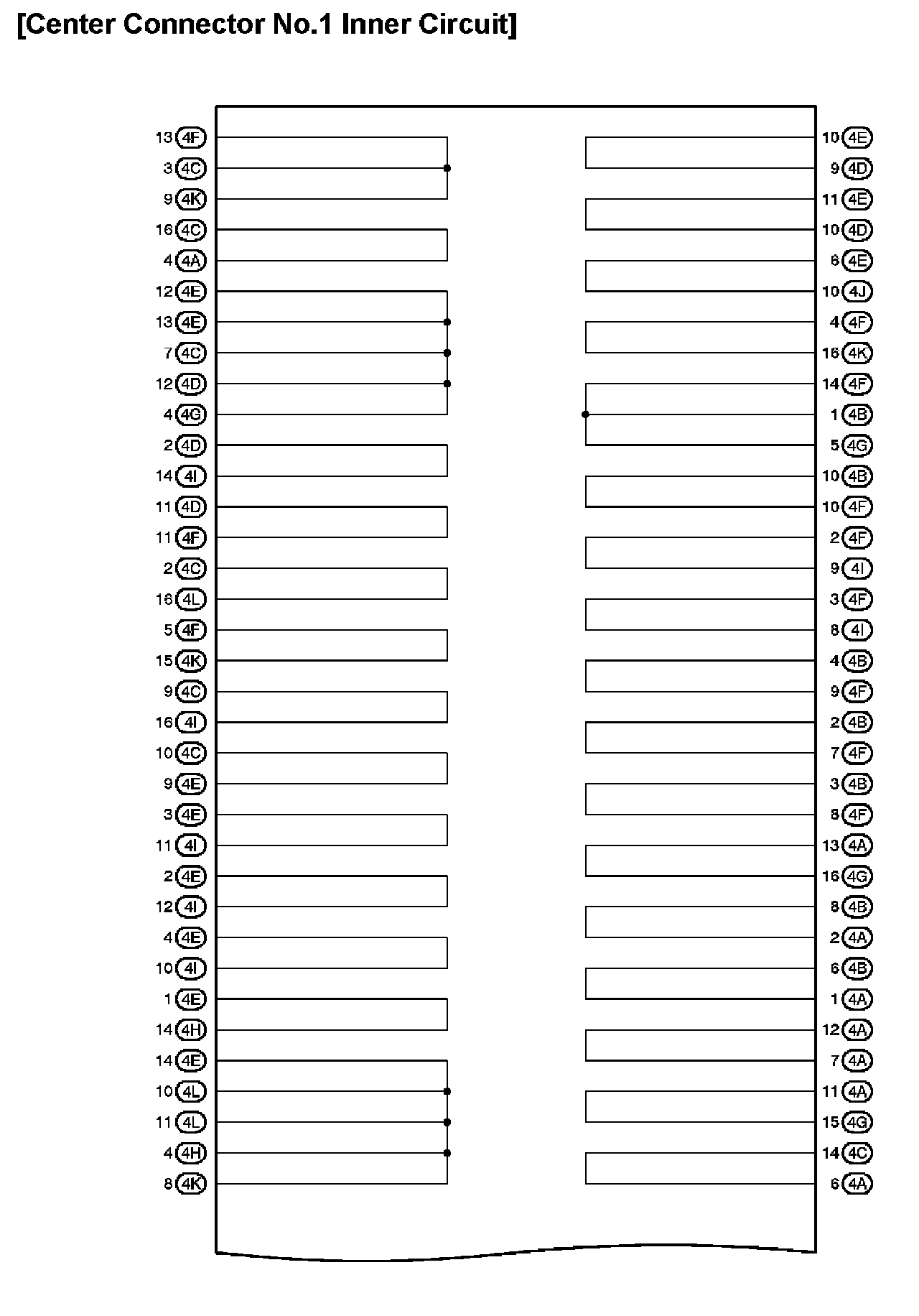

Center Connector No.1 Inner Circuit:

Center Connector No.1 Inner Circuit:

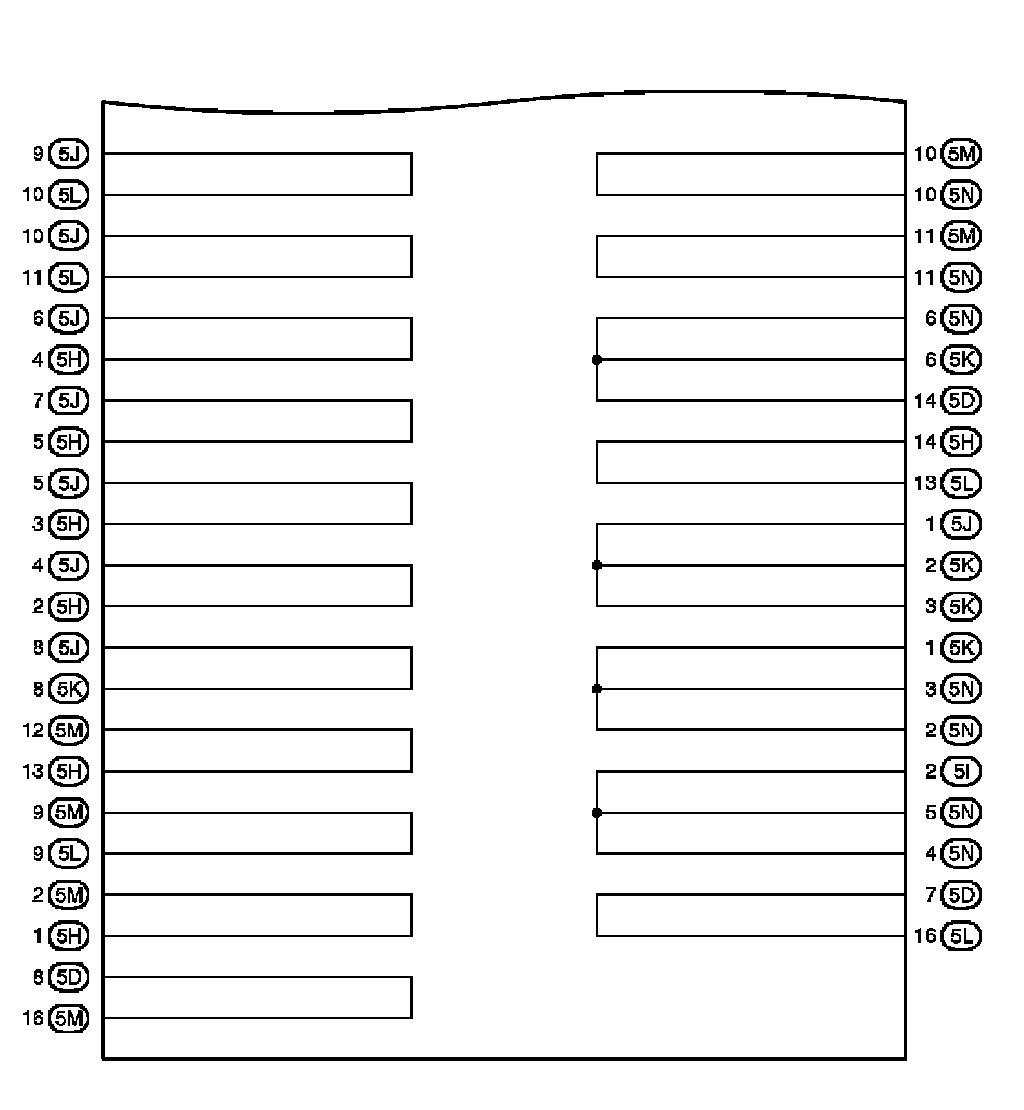

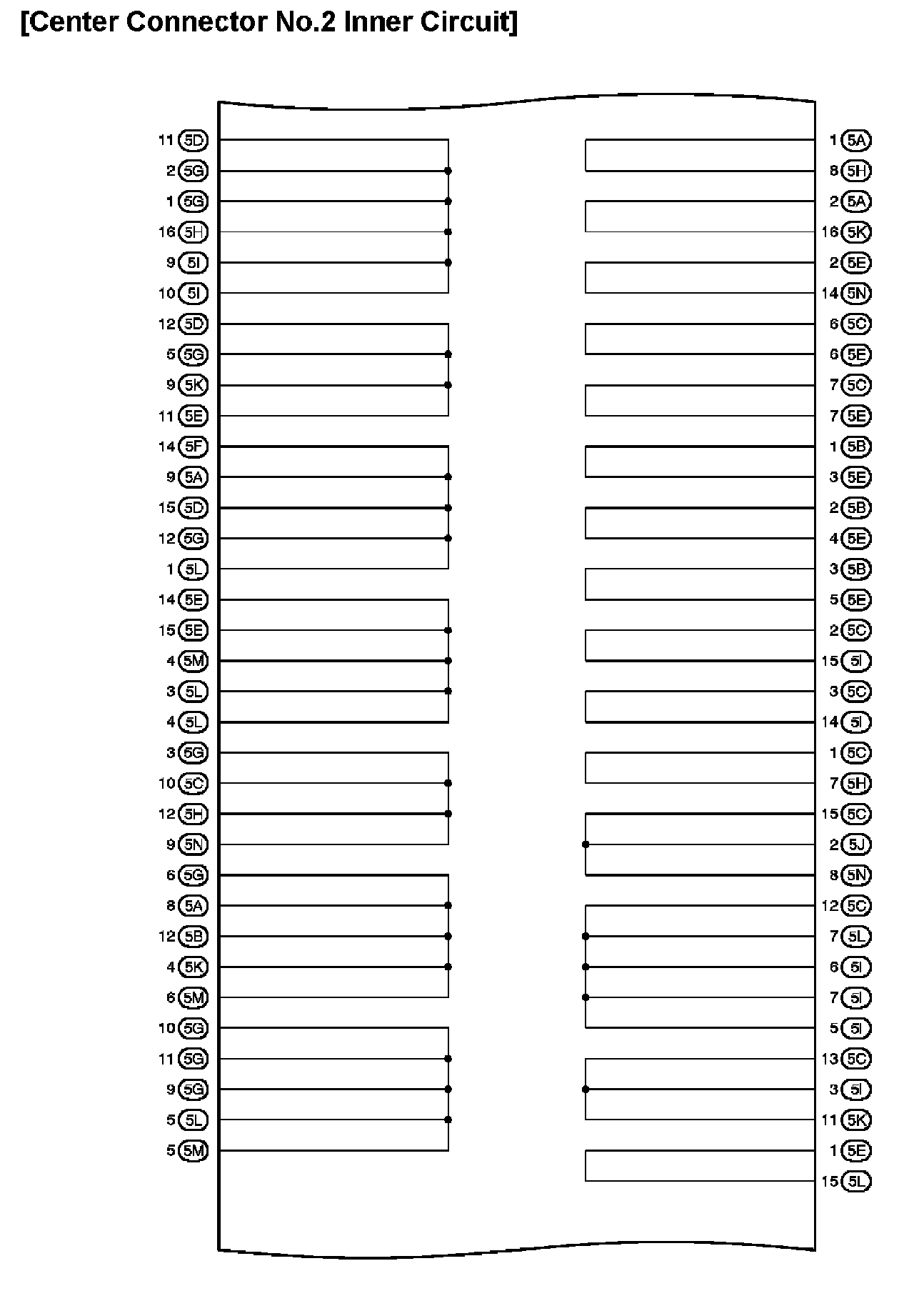

Center Connector No.2 Inner Circuit:

Center Connector No.2 Inner Circuit:

Center Connector No.2 Inner Circuit:
