Turn Signal Flasher: Testing and Inspection

INSPECT TURN SIGNAL FLASHER OPERATION
a. Power source circuit and ground circuit inspection.
1. Remove the turn signal flasher relay from the instrument panel junction block assy.

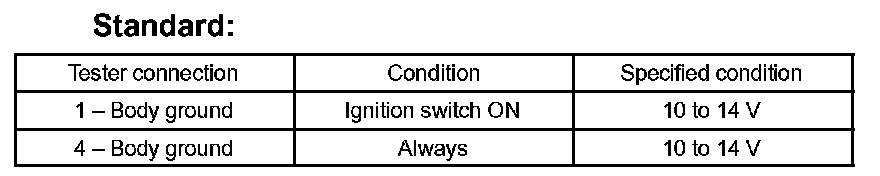

2. Measure the voltage according to the value(s) in the table.

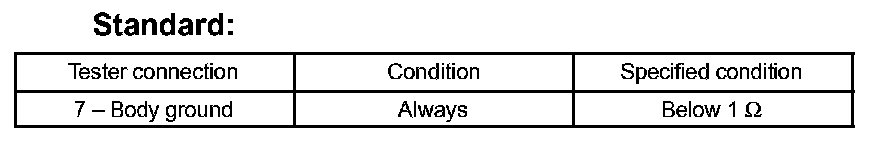

3. Measure the resistance according to the value(s) in the table.

b. Output operation signal inspection.
1. Install the turn signal flasher relay to the instrument panel junction block assy.

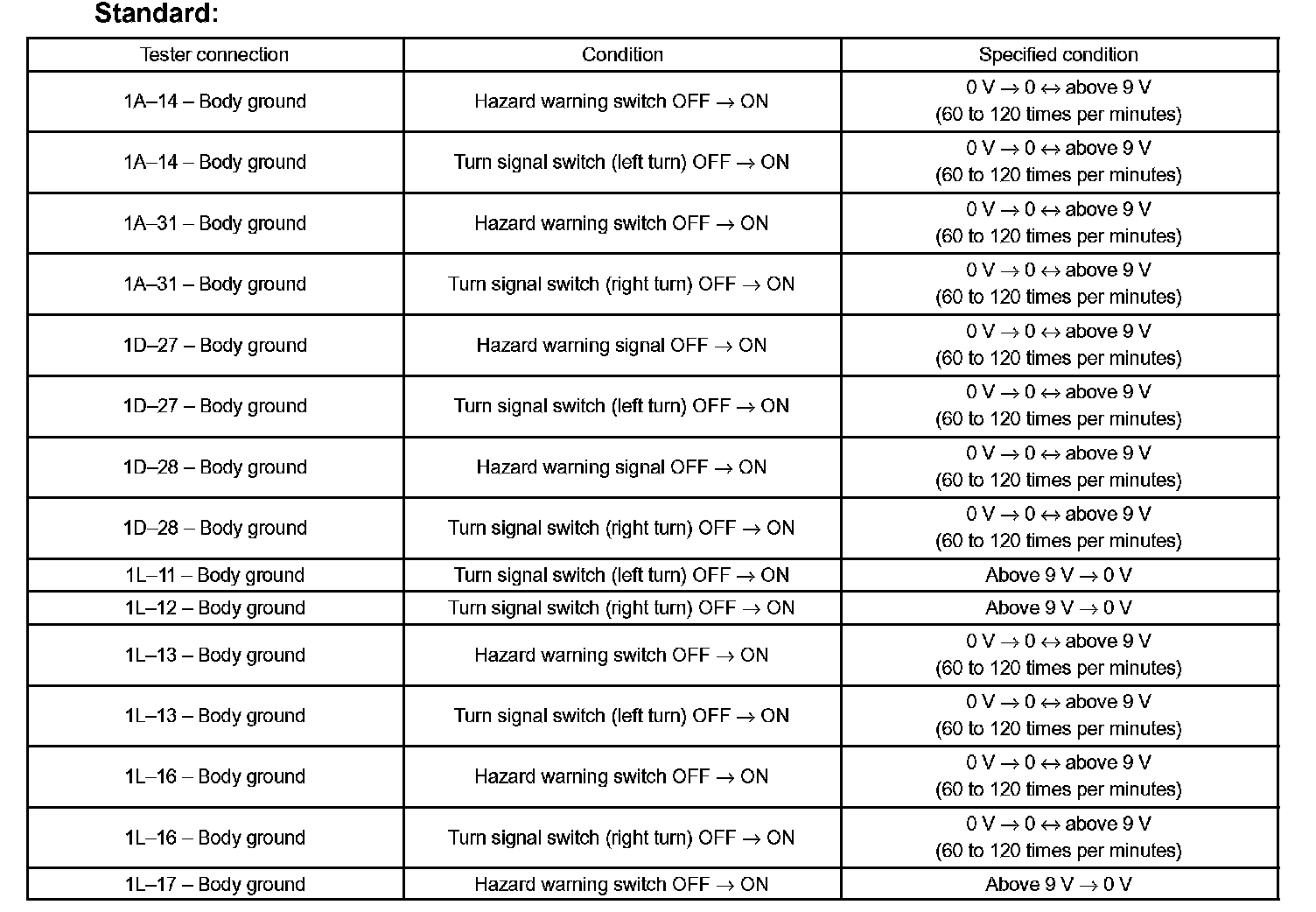

2. Measure the voltage according to the value(s) in the table.
