Power Source Circuit

POWER SOURCE CIRCUIT

CIRCUIT DESCRIPTION

This circuit detects the state of the power switch and sends it to the multiplex network body ECU.

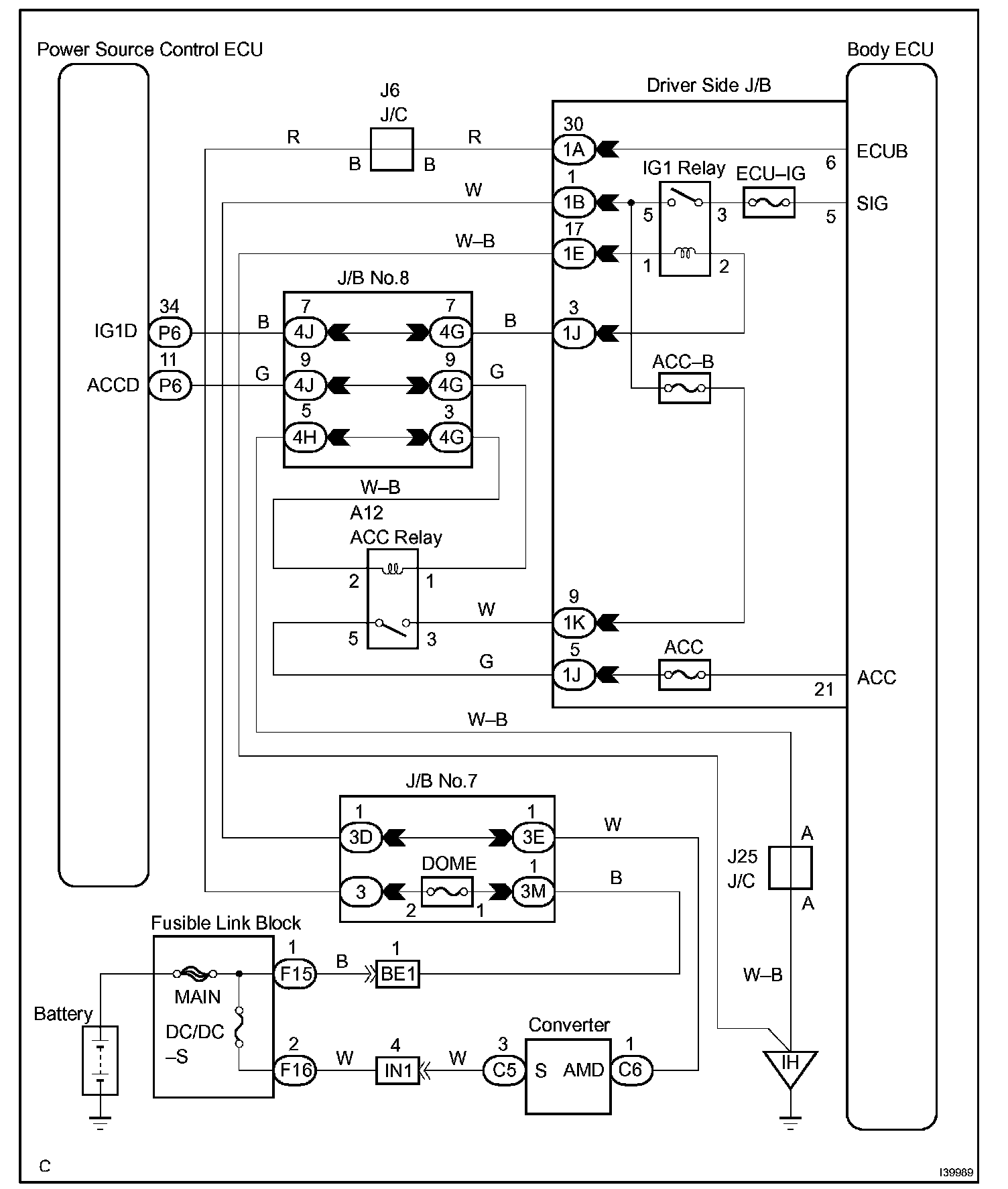

Wiring Diagram:

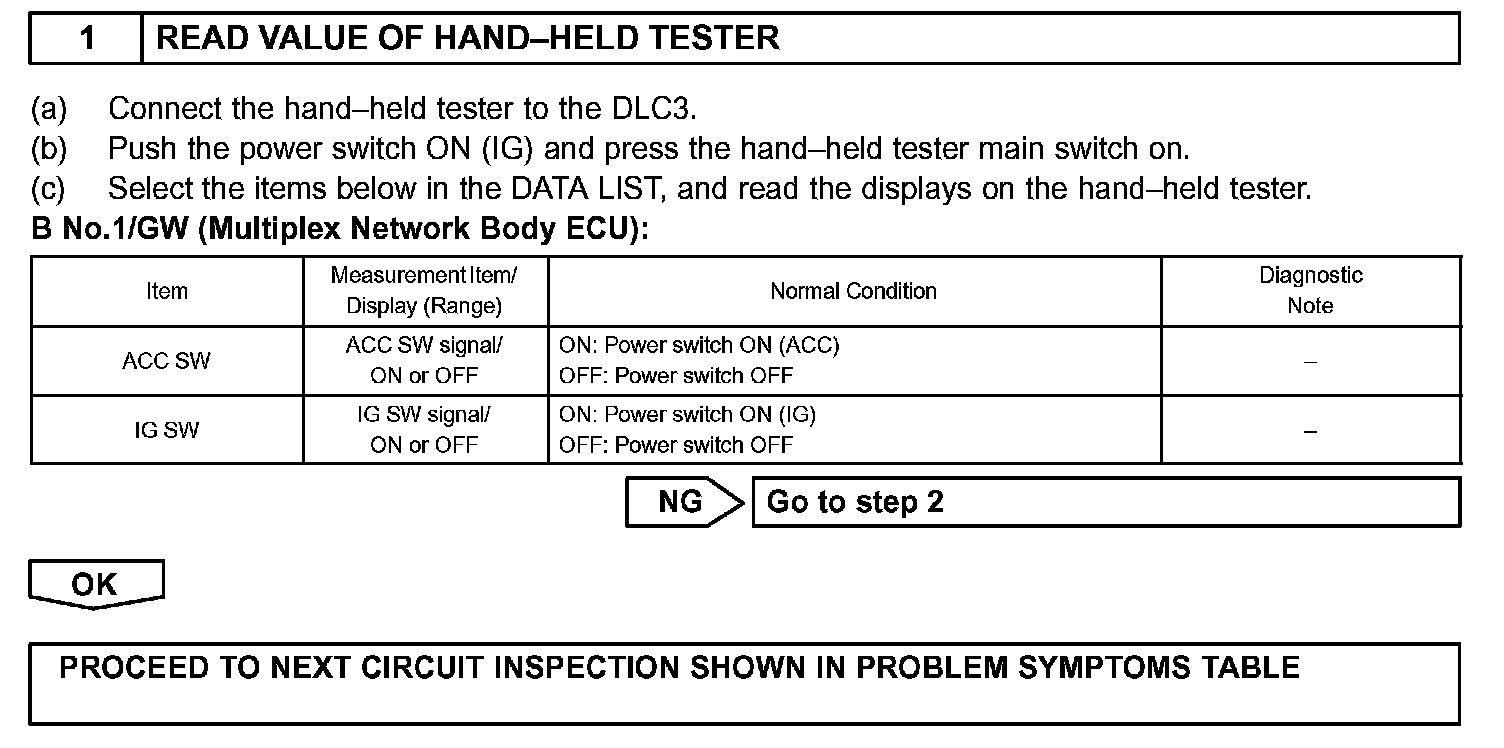

Step 1:

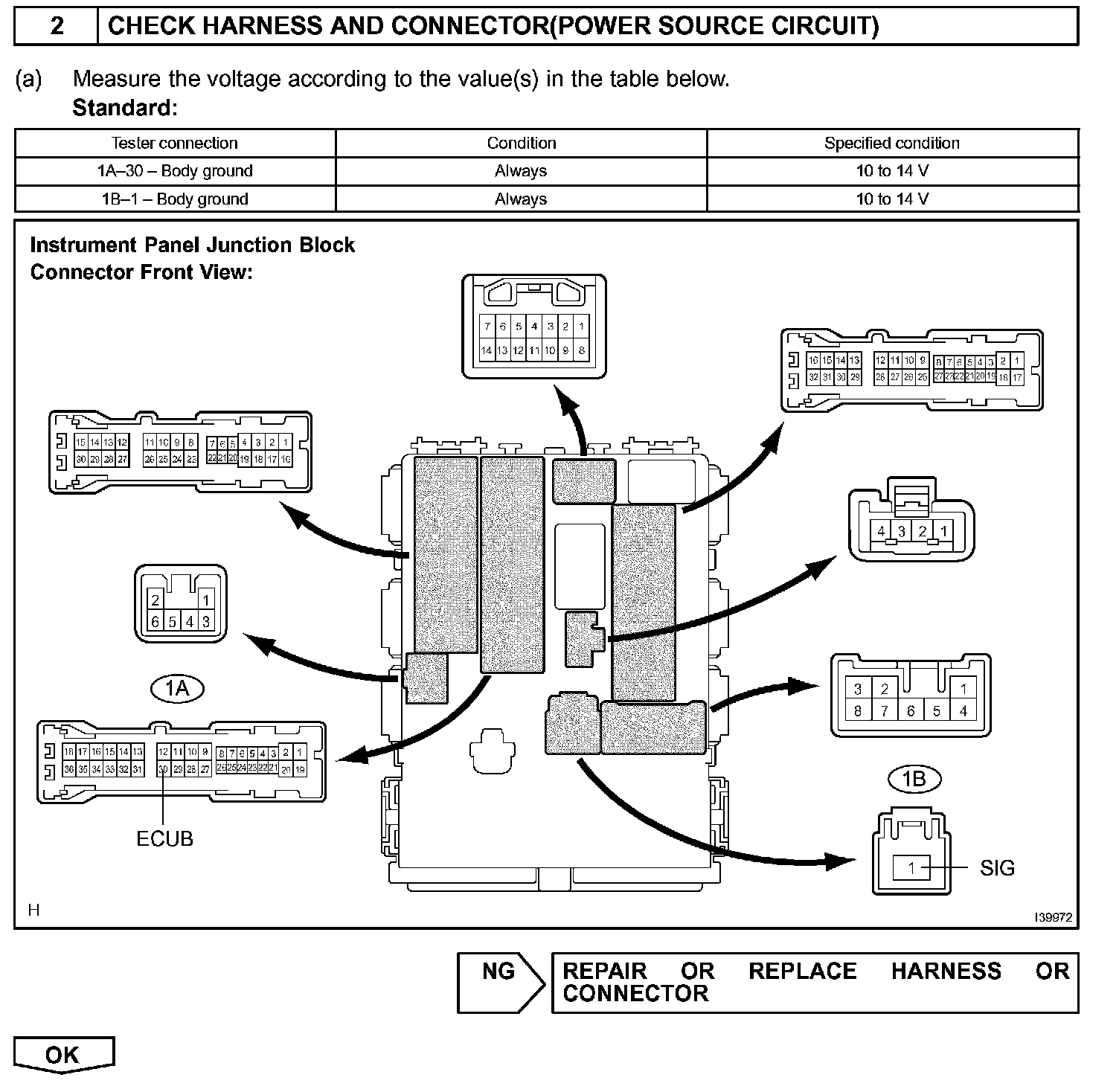

Step 2:

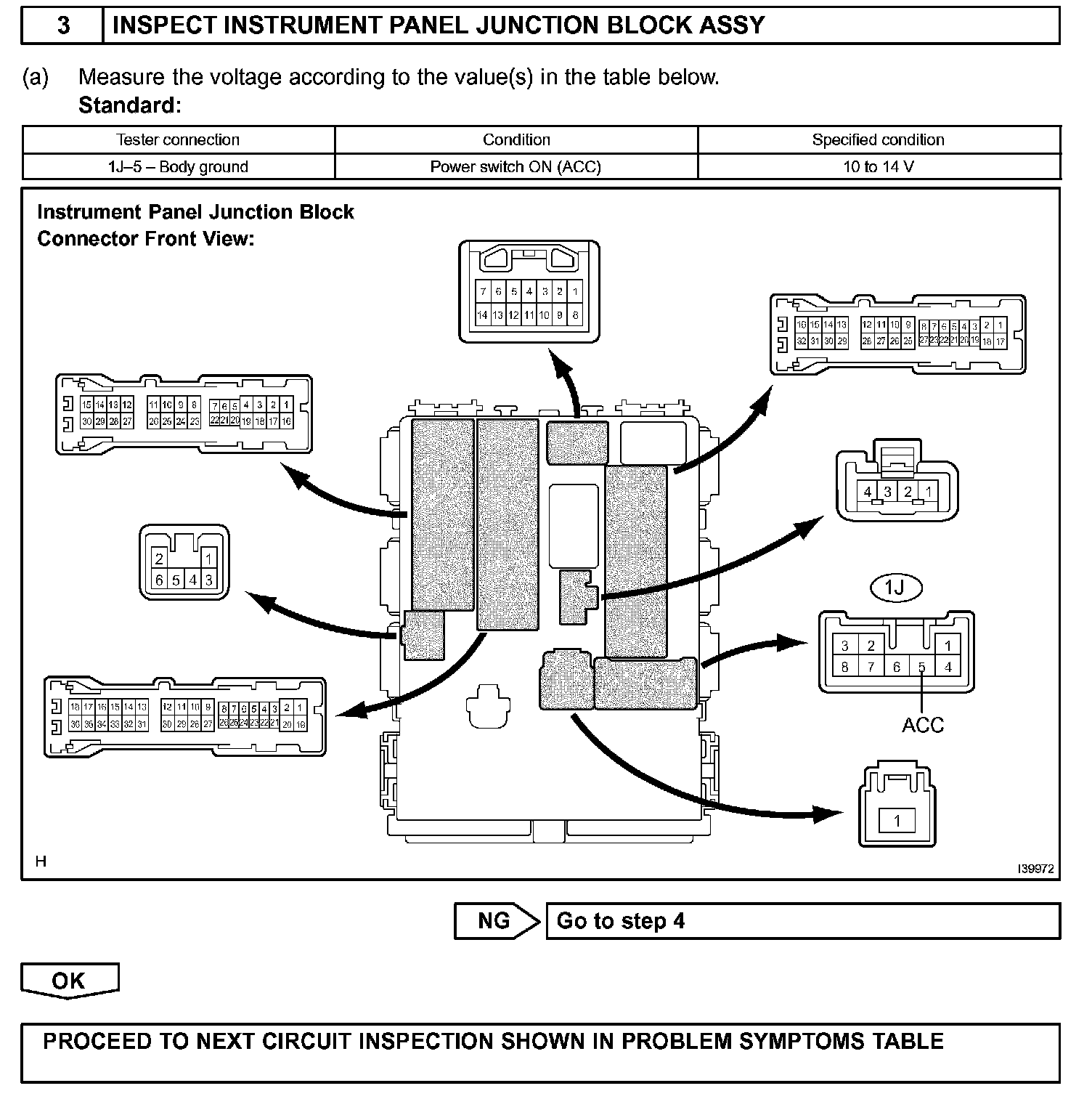

Step 3:

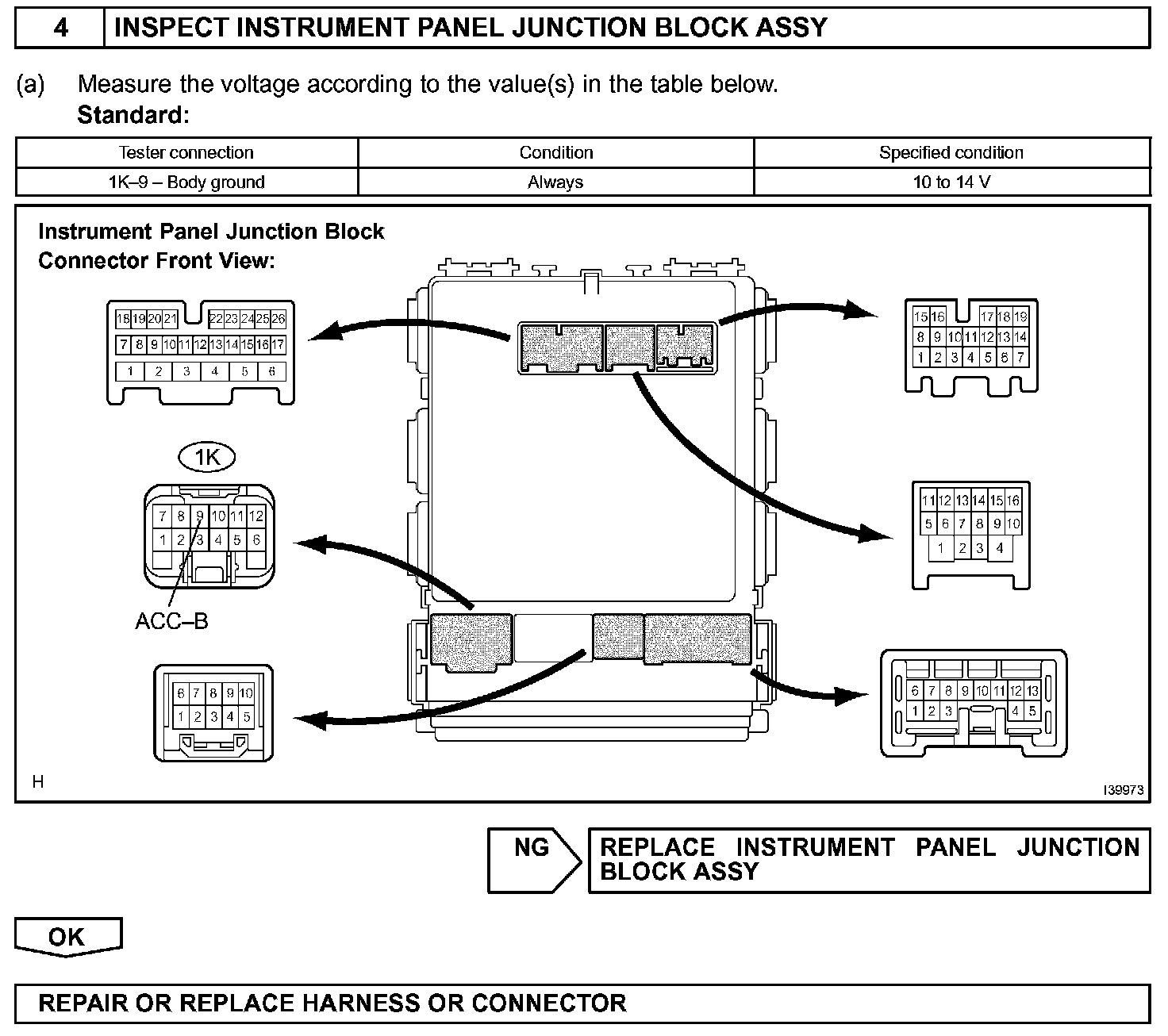

Step 4:

INSPECTION PROCEDURE

HINT: Check if the ignition control ECU operation is normal before performing the following procedure.
