Headlight Relay Circuit

HEADLIGHT RELAY CIRCUIT

CIRCUIT DESCRIPTION

The multiplex network body ECU controls the HEAD relay when signals are received from the headlamp dimmer switch assy.

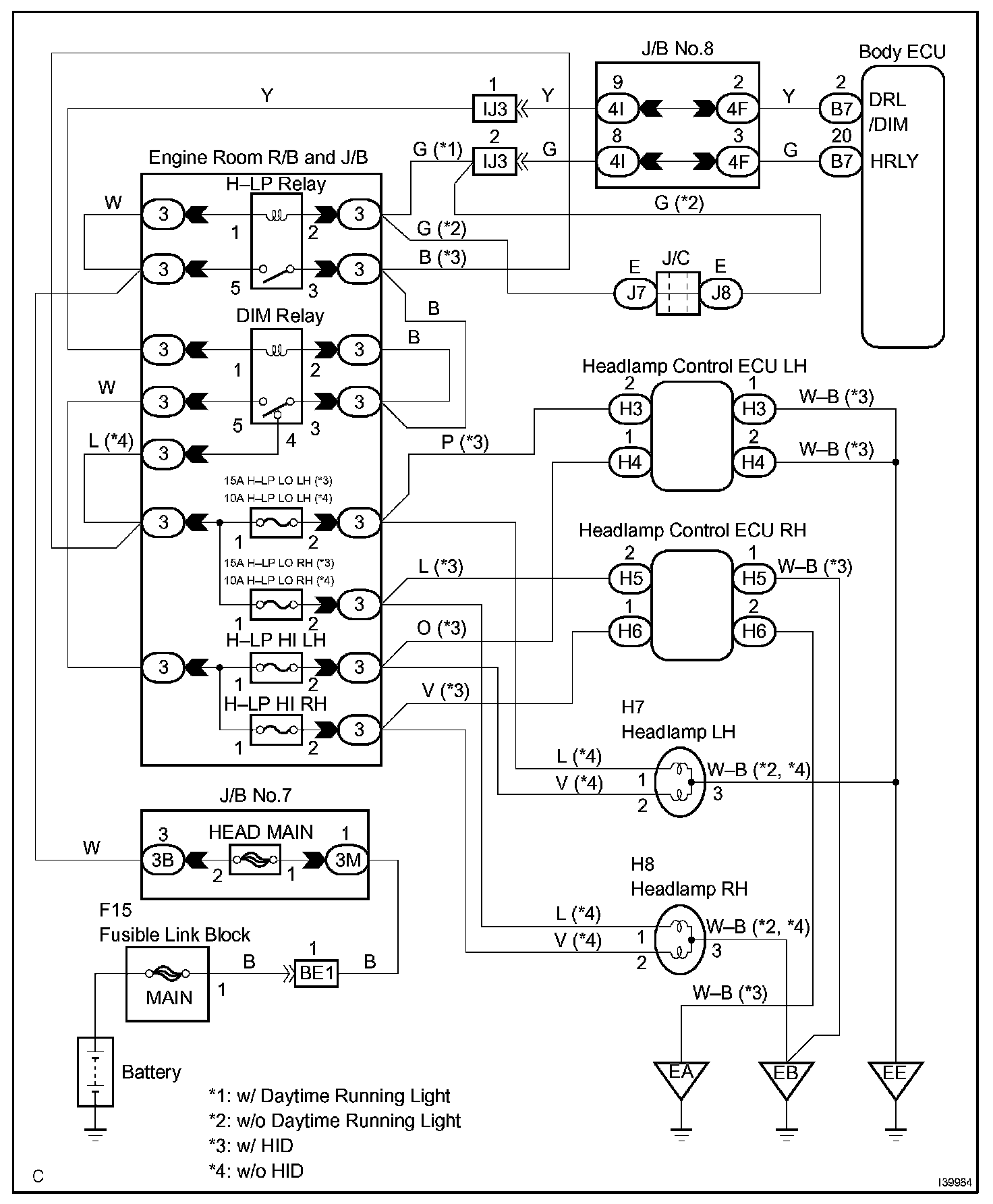

Wiring Diagram:

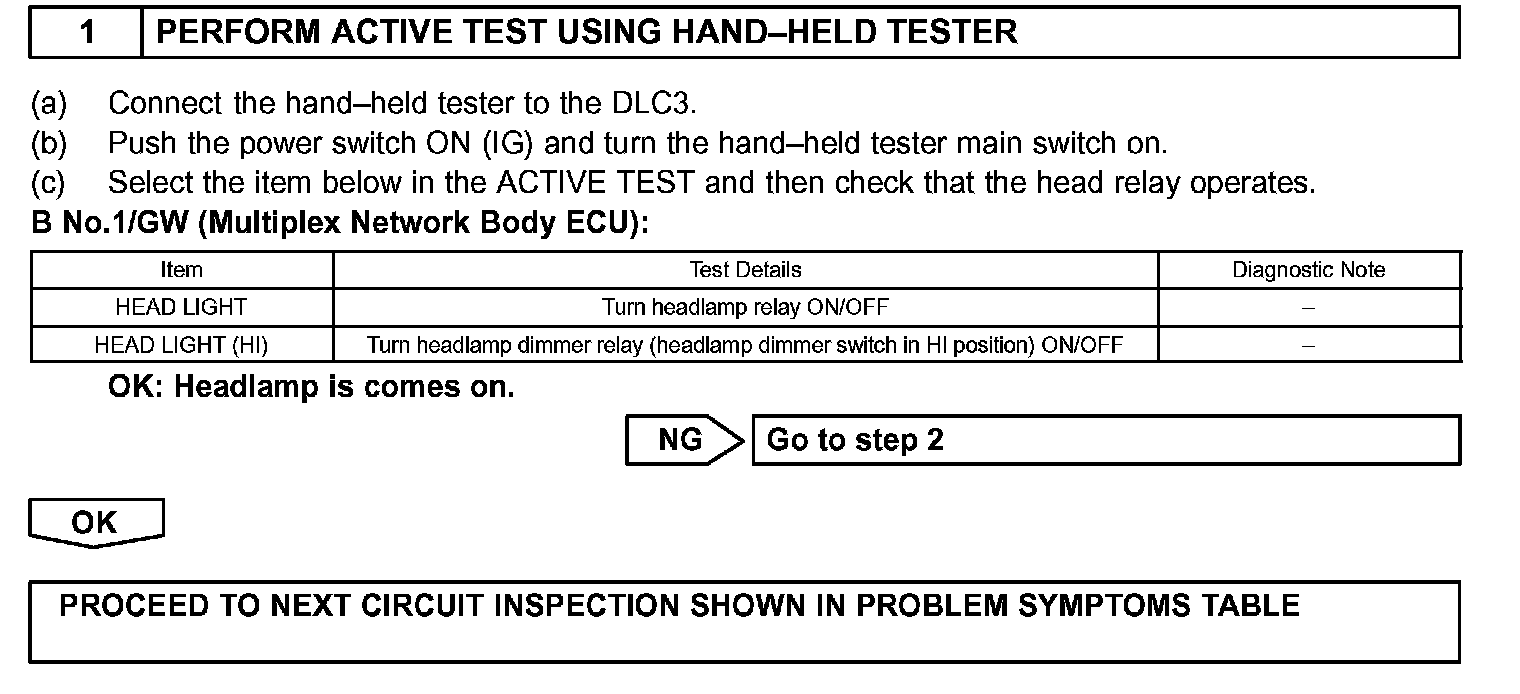

Step 1:

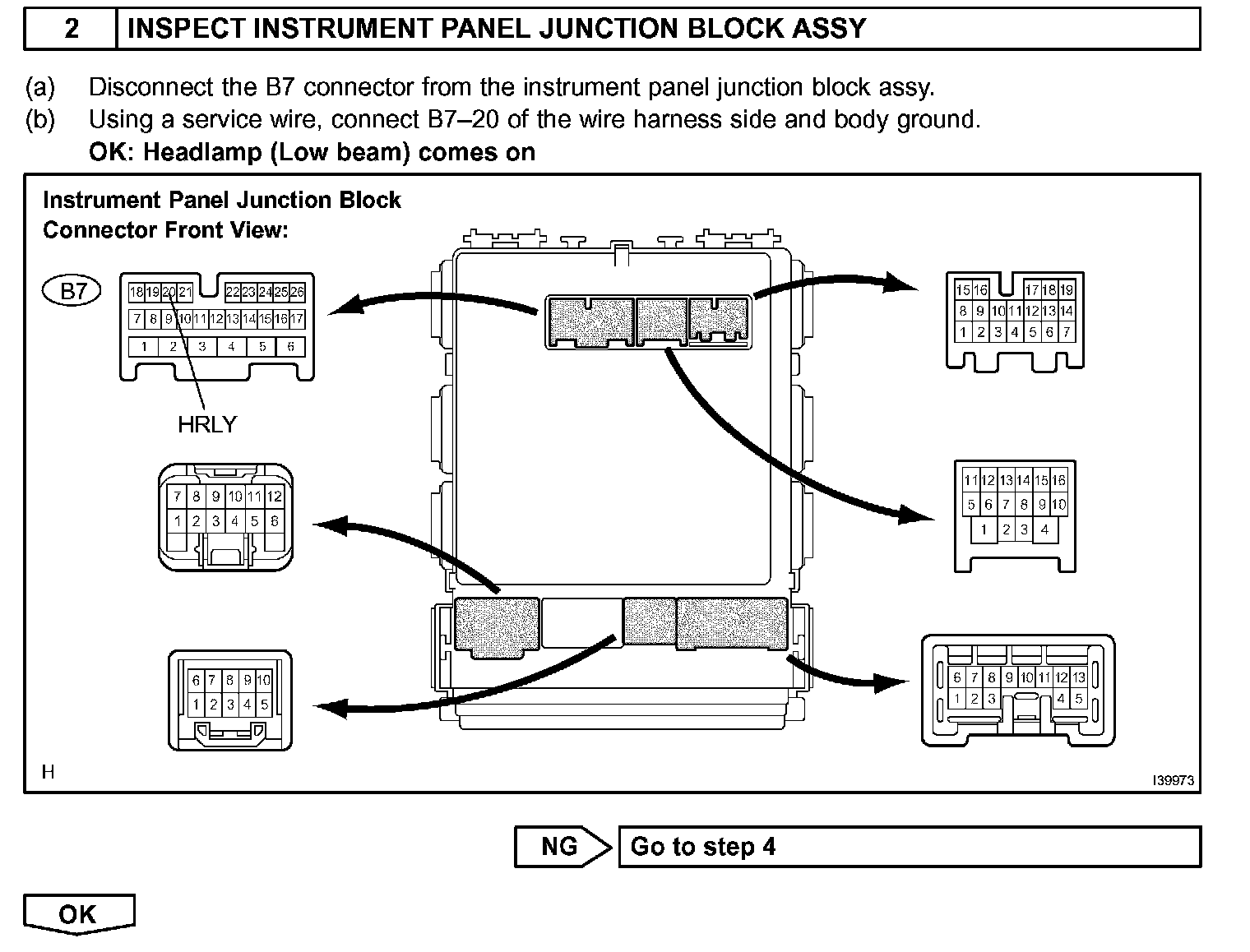

Step 2:

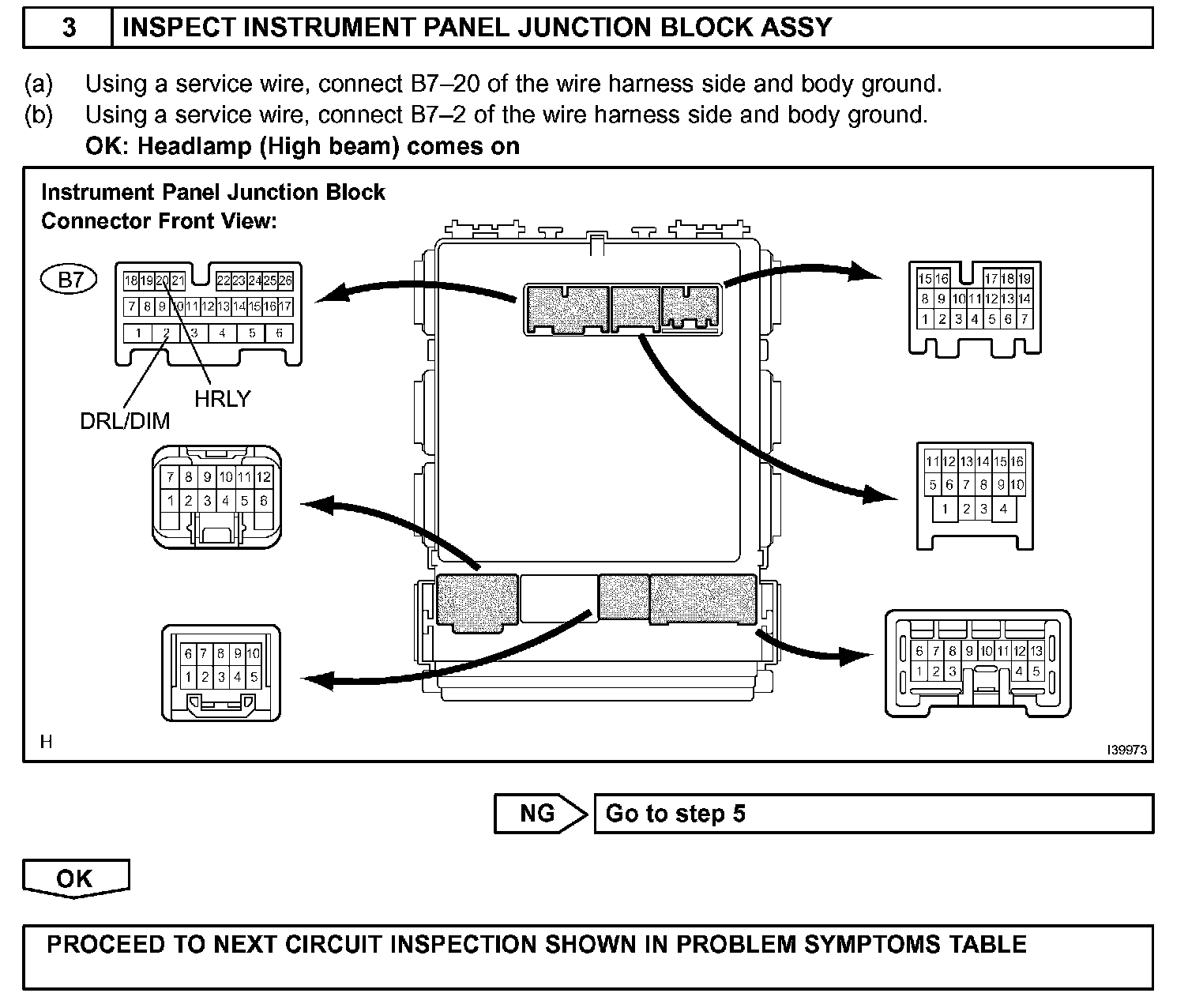

Step 3:

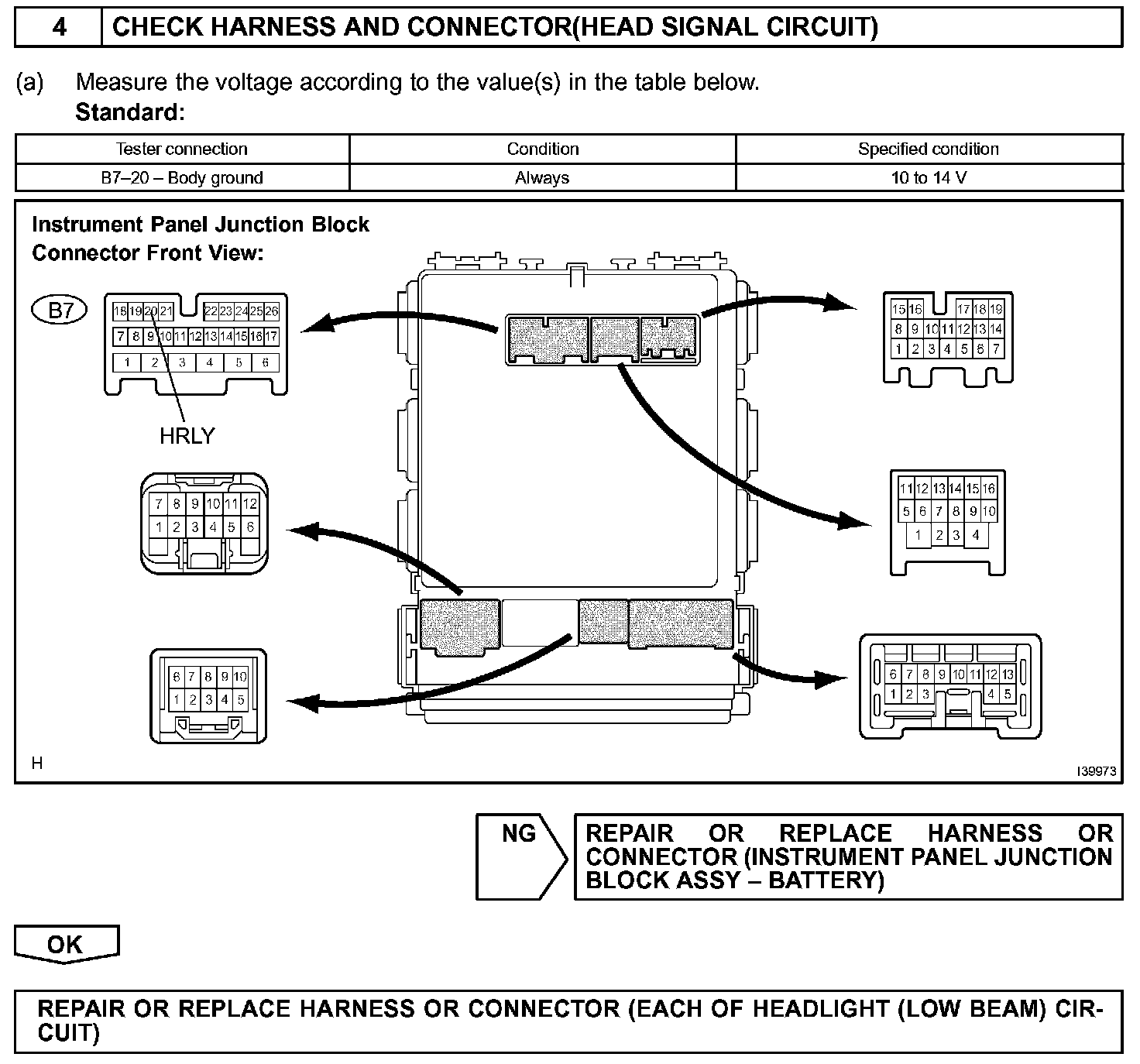

Step 4:

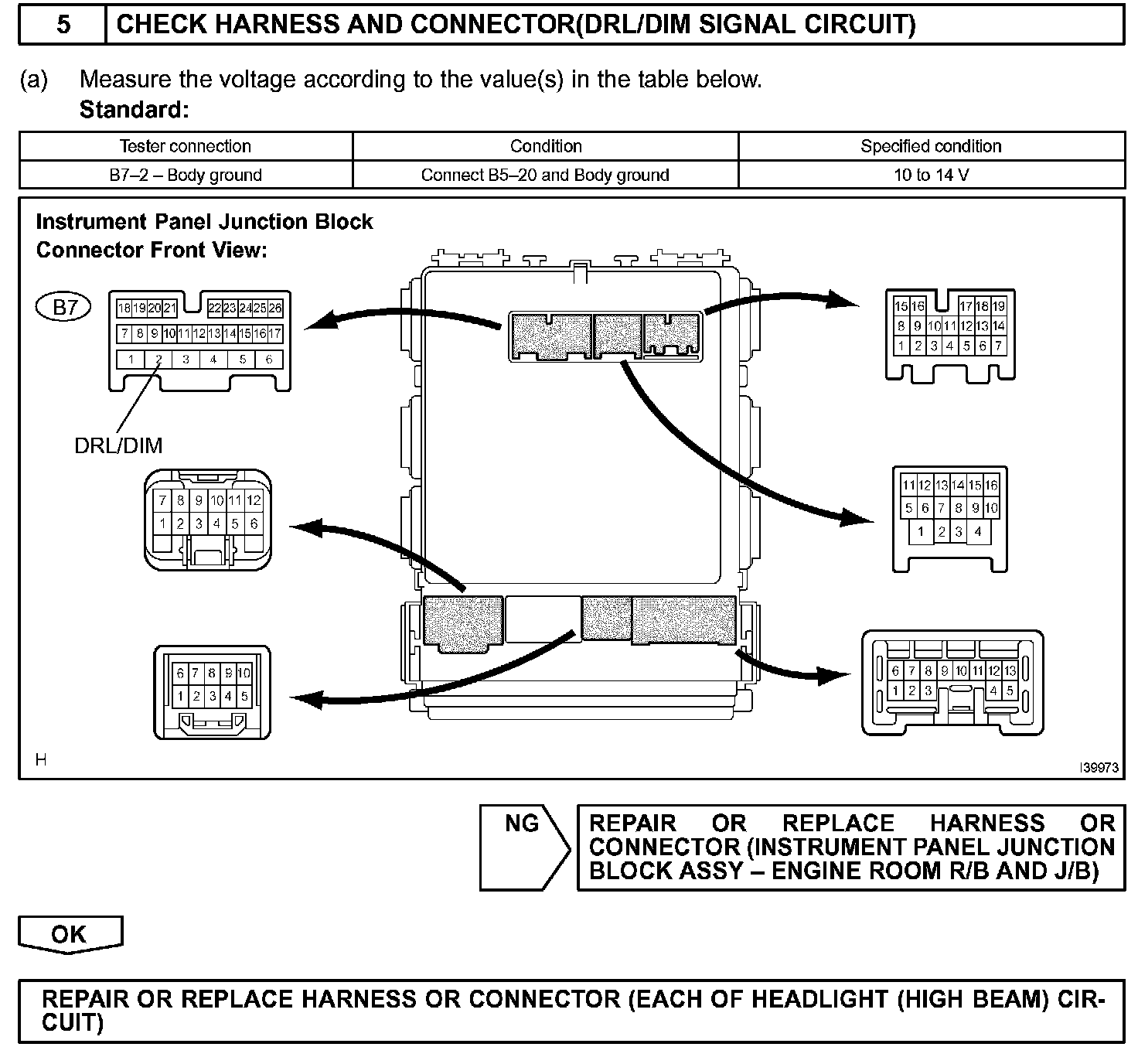

Step 5:

INSPECTION PROCEDURE
