Home >> Toyota >> 2004 >> Prius L4-1.5L (1NZ-FXE) Hybrid >> Repair and Diagnosis >> Lighting and Horns >> Interior Lighting Relay >> Testing and Inspection

Interior Lighting Relay: Testing and Inspection

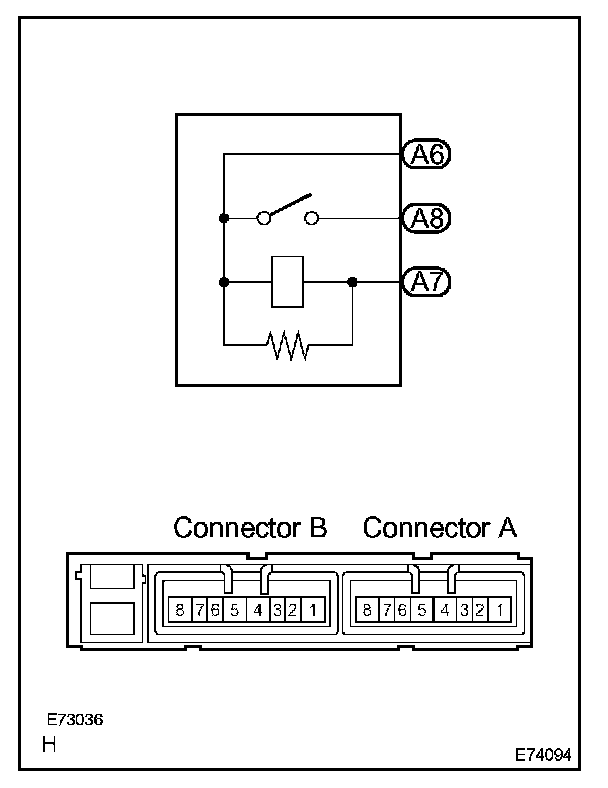

INTEGRATION RELAY

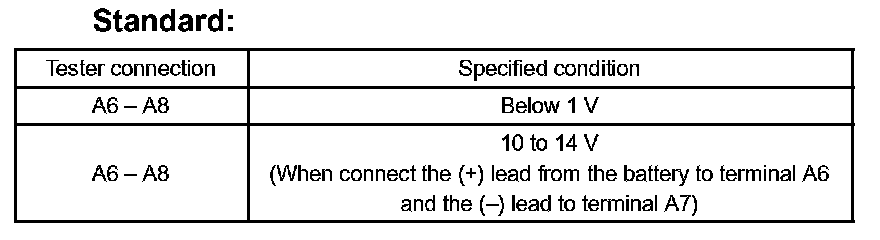

a. Measure the voltage according to the value(s) in the table.
