Hybrid Vehicle Control System

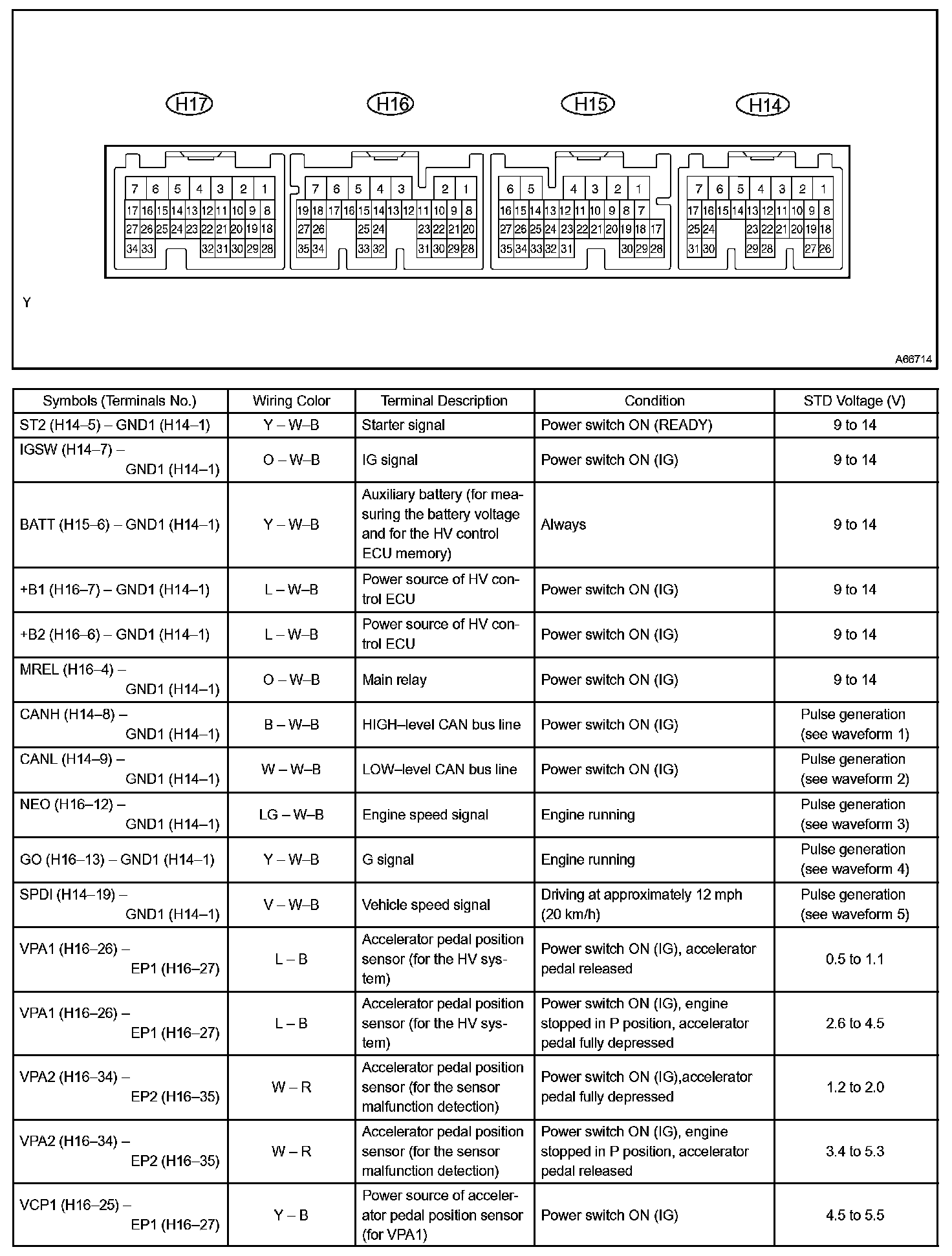

Terminals Of ECU/Pinouts Part 1:

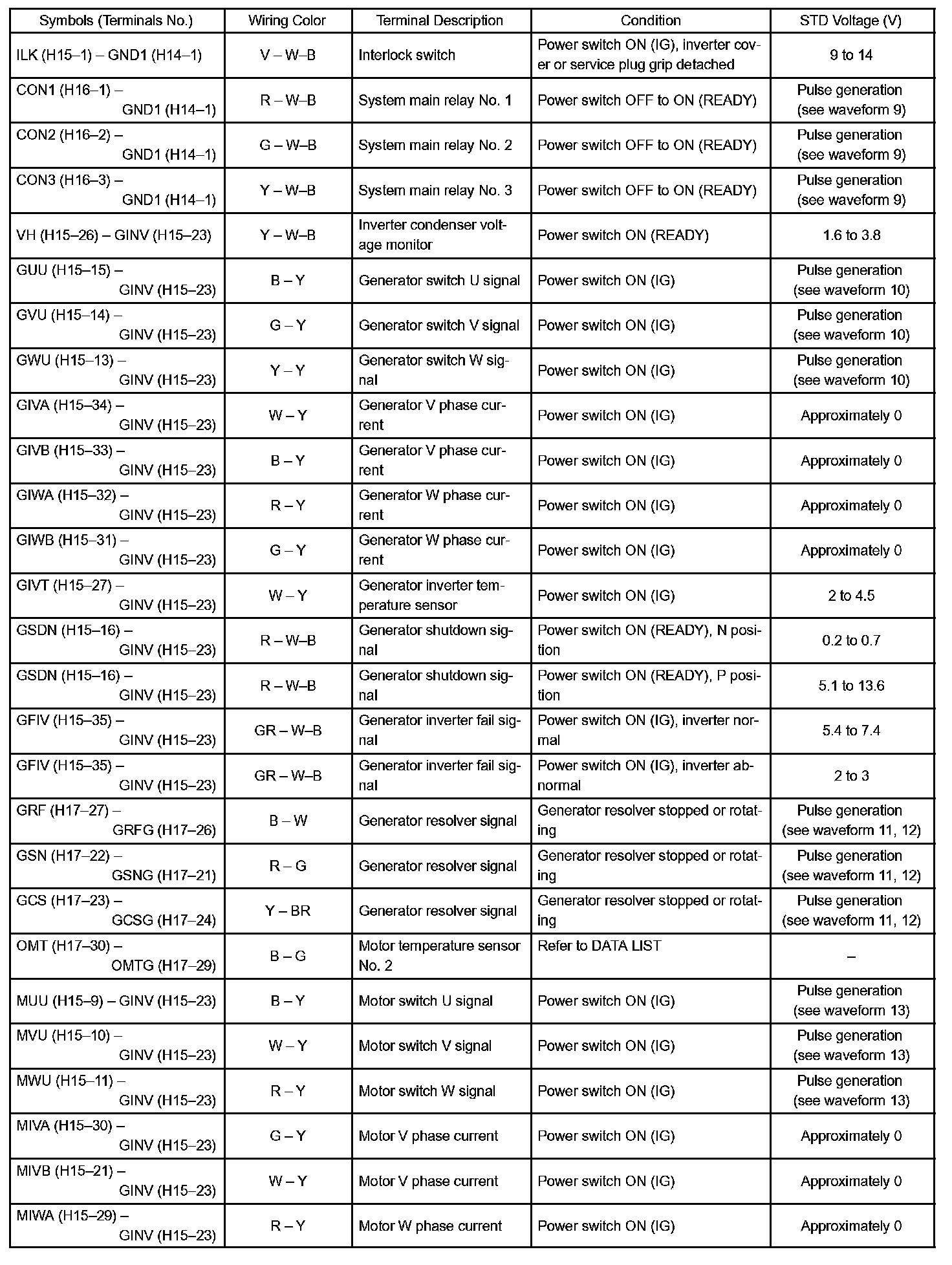

Terminals Of ECU/Pinouts Part 2:

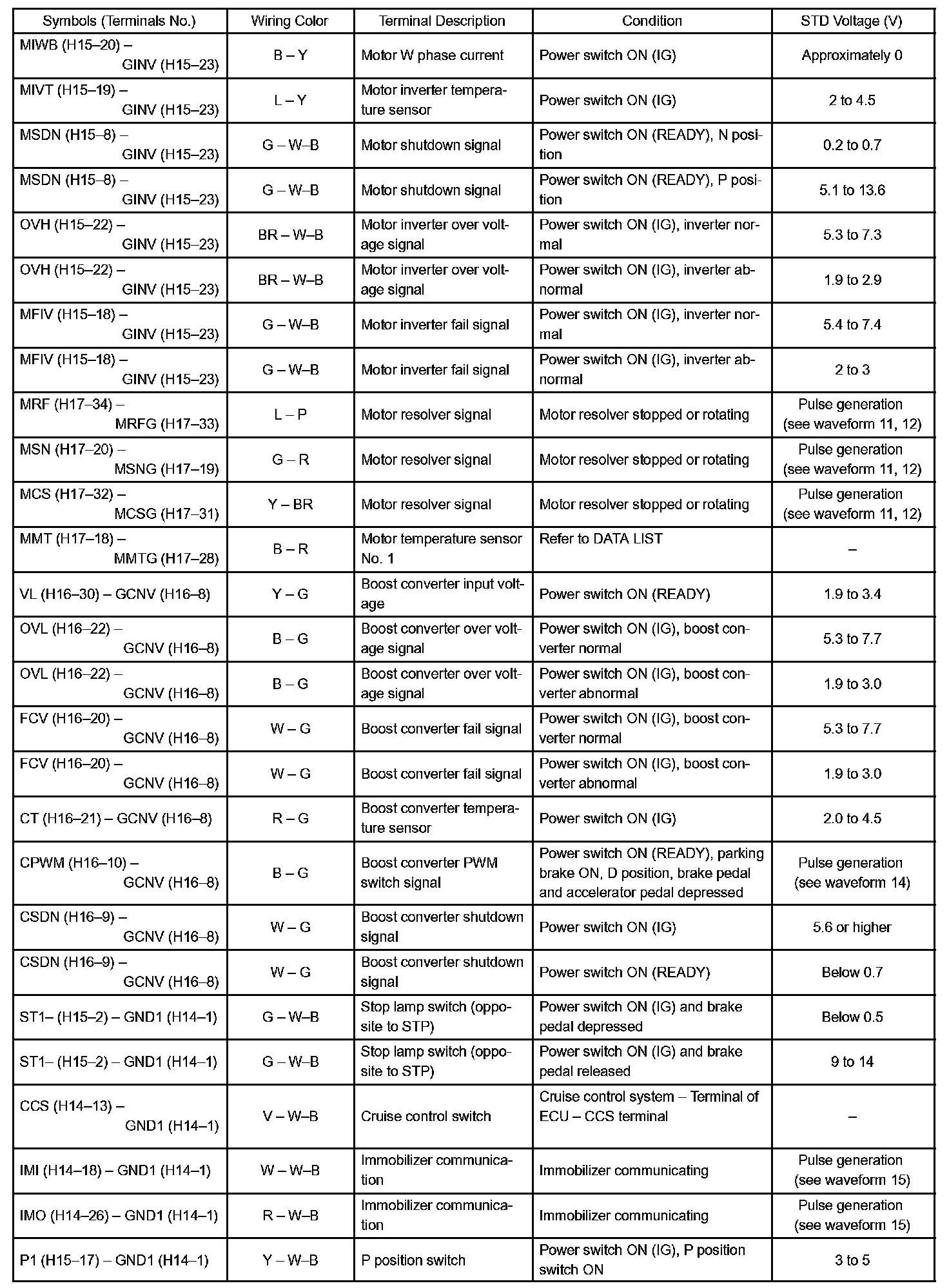

Terminals Of ECU/Pinouts Part 3:

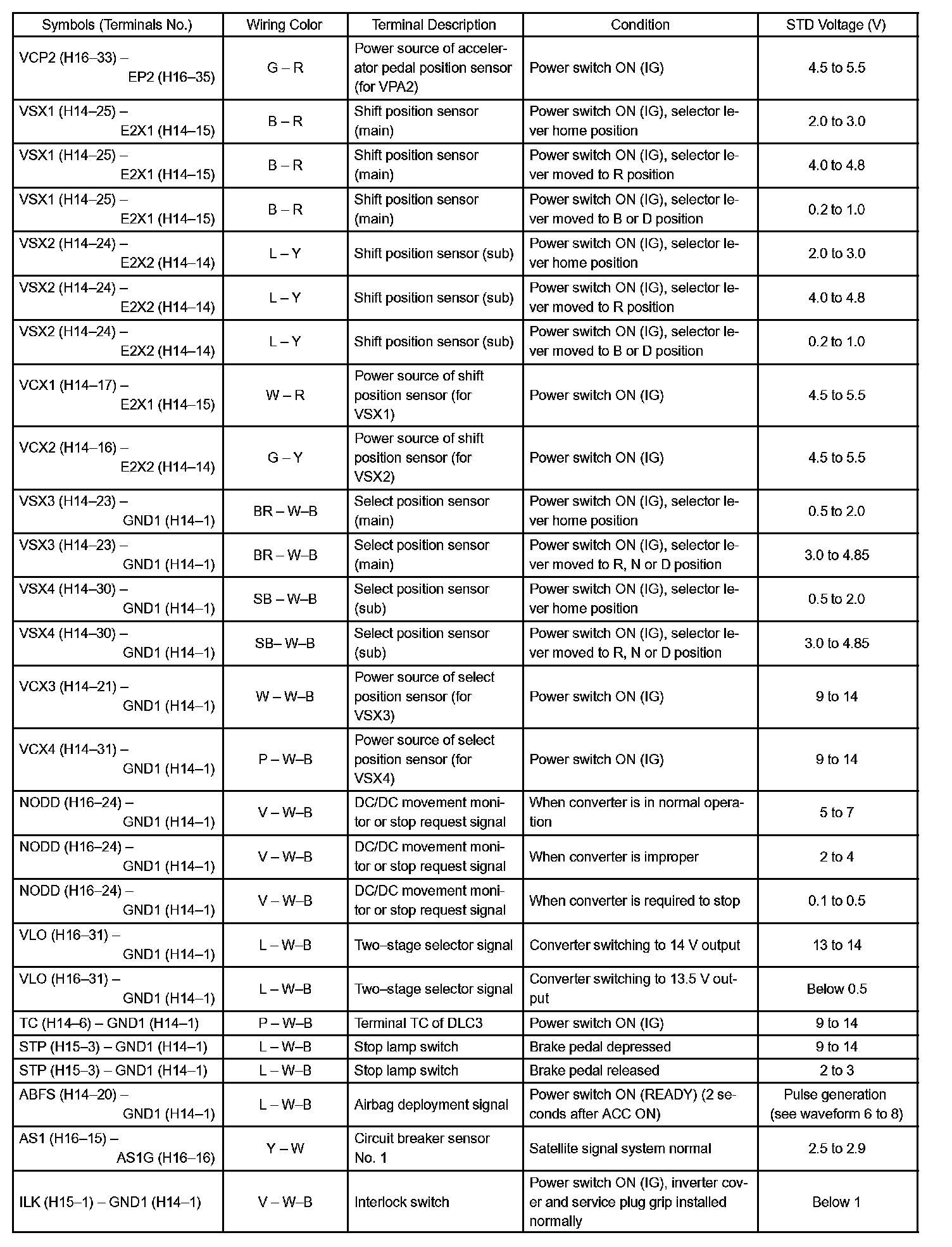

Terminals Of ECU/Pinouts Part 4:

Terminals Of ECU/Pinouts Part 5:

TERMINALS OF ECU

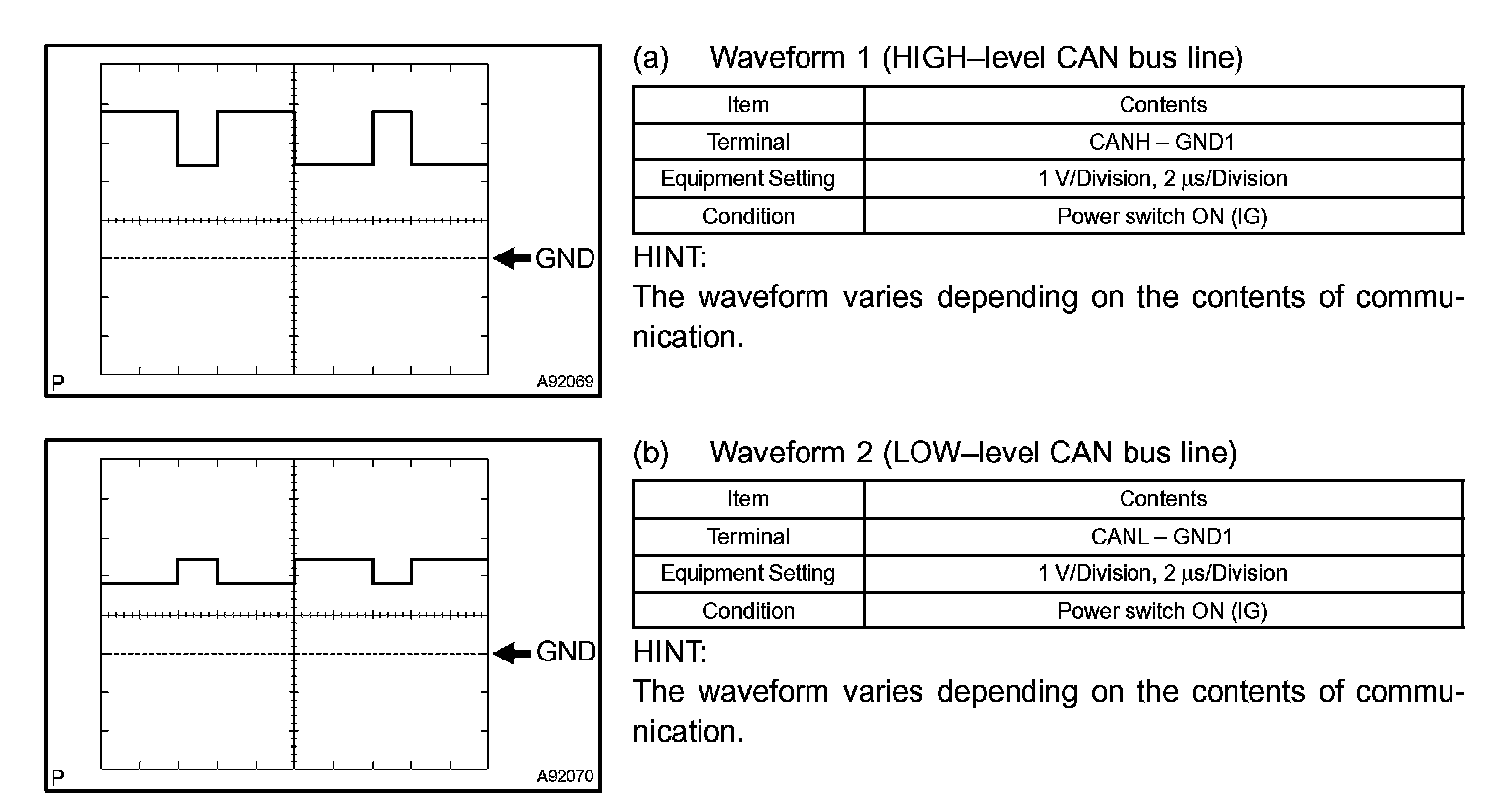

Oscilloscope Waveforms Part 1:

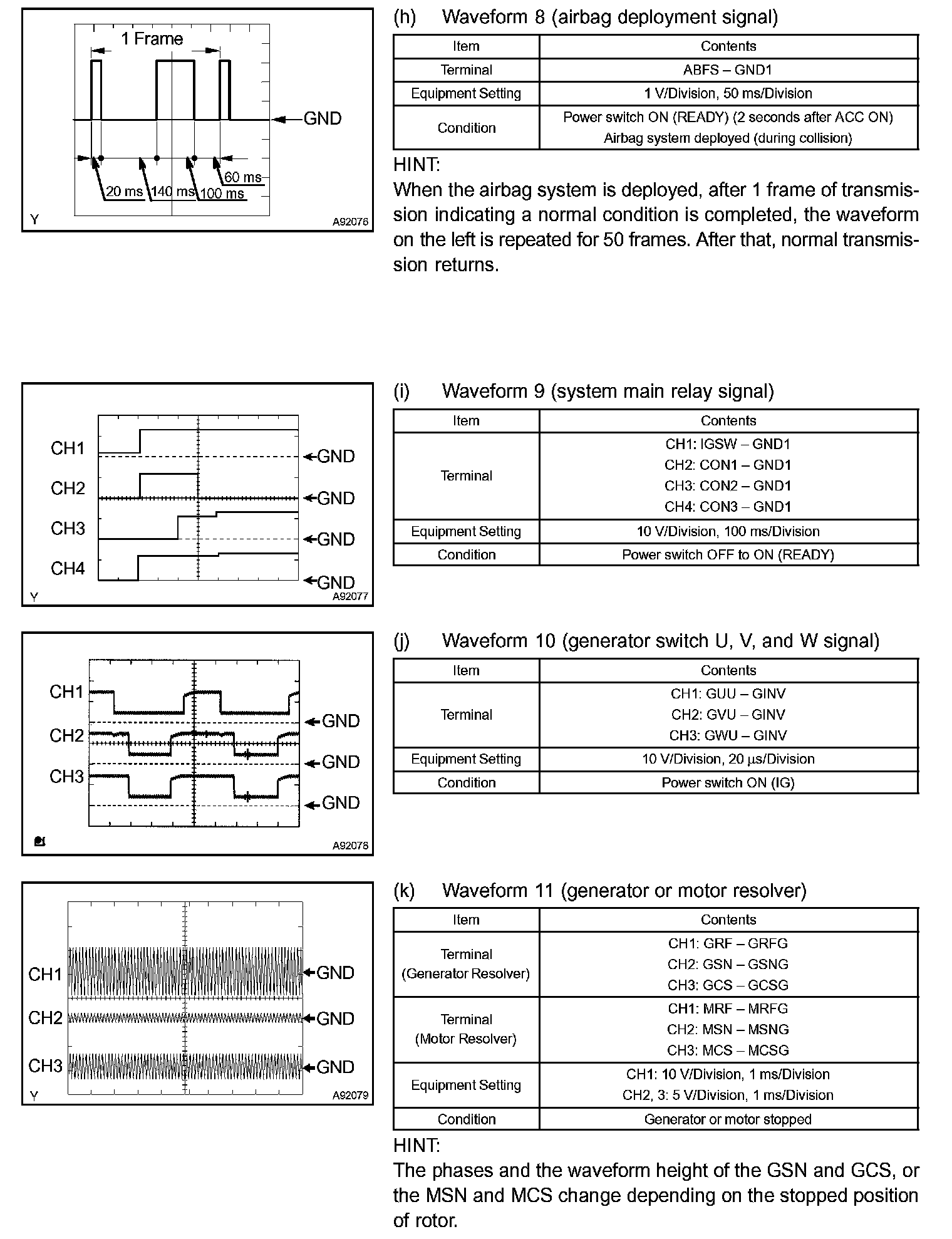

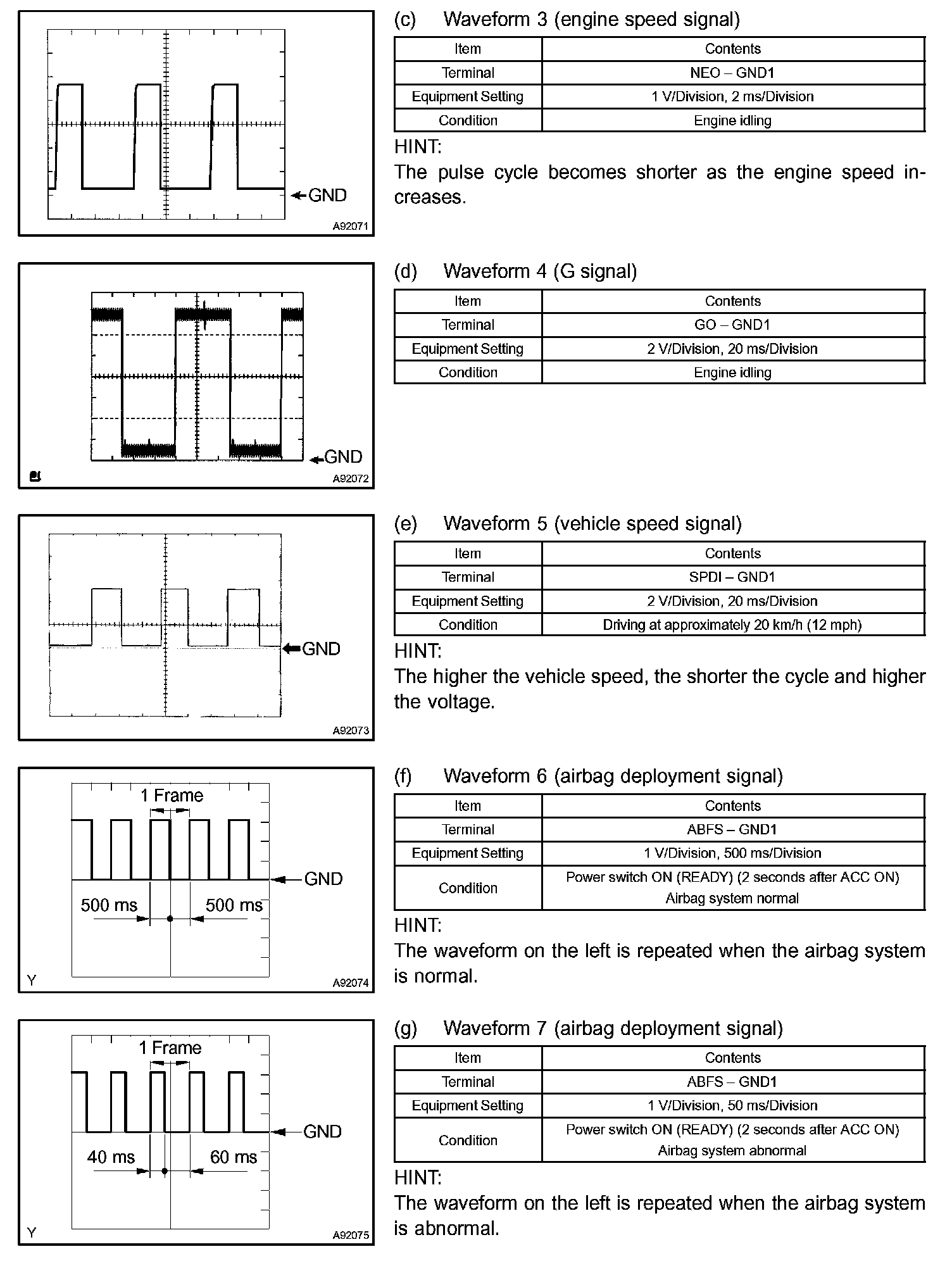

Oscilloscope Waveforms Part 2:

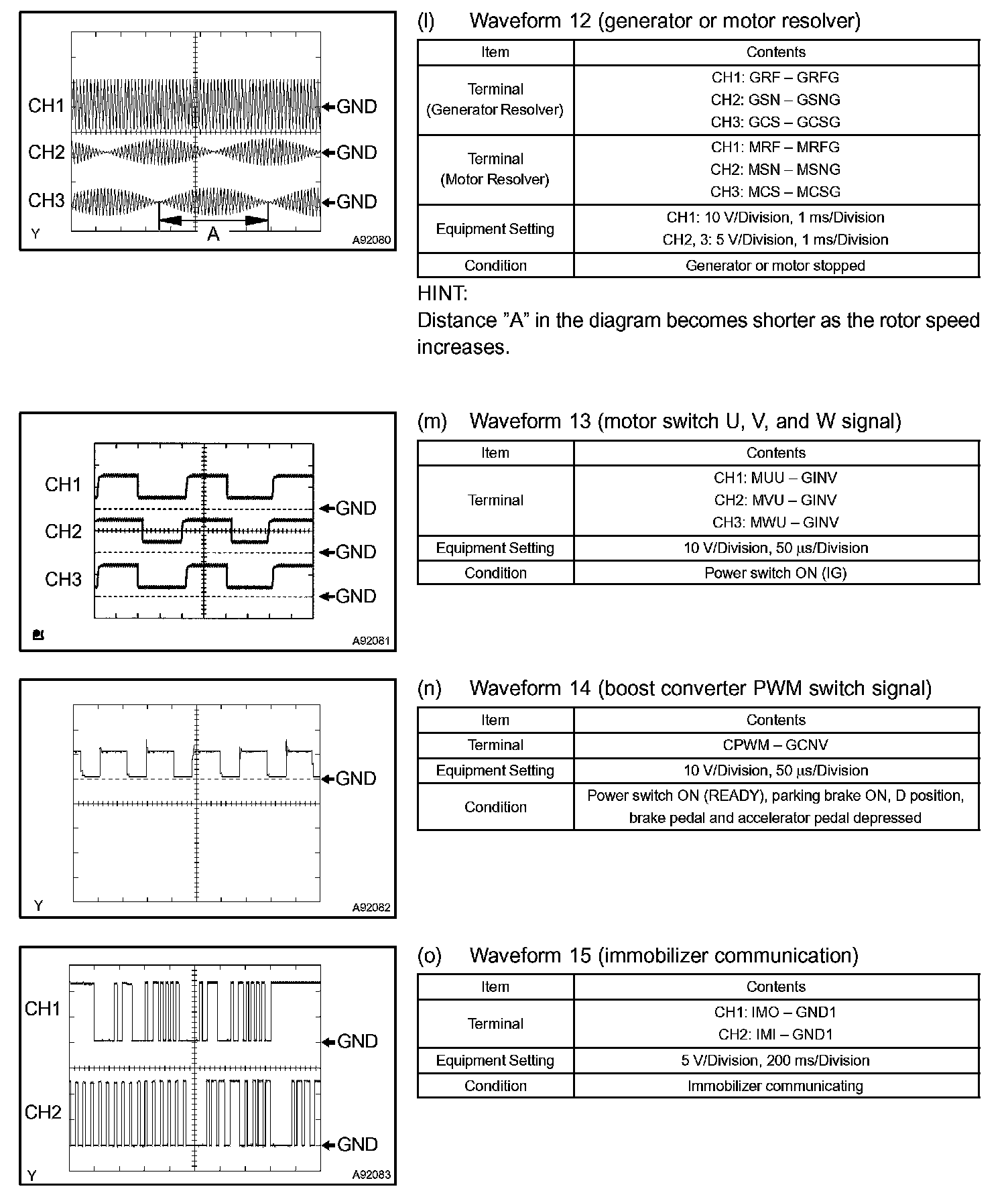

Oscilloscope Waveforms Part 3:

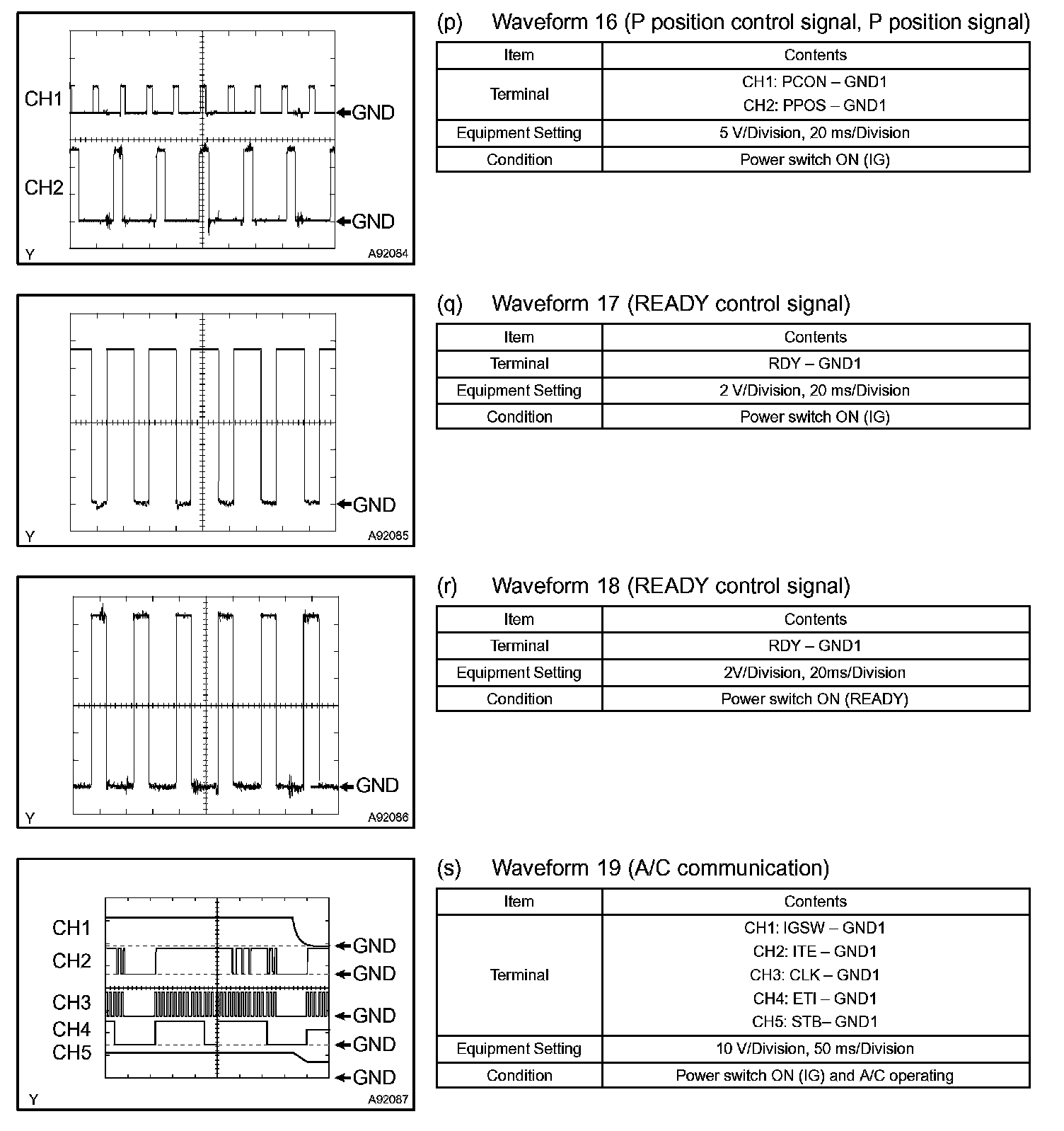

Oscilloscope Waveforms Part 4:

Oscilloscope Waveforms Part 5:

Oscilloscope waveforms

HINT: In the oscilloscope waveform samples, which are provided here for informational purposes. Noise and fluttering waveforms have been omitted.
