Hybrid Transaxle Assembly

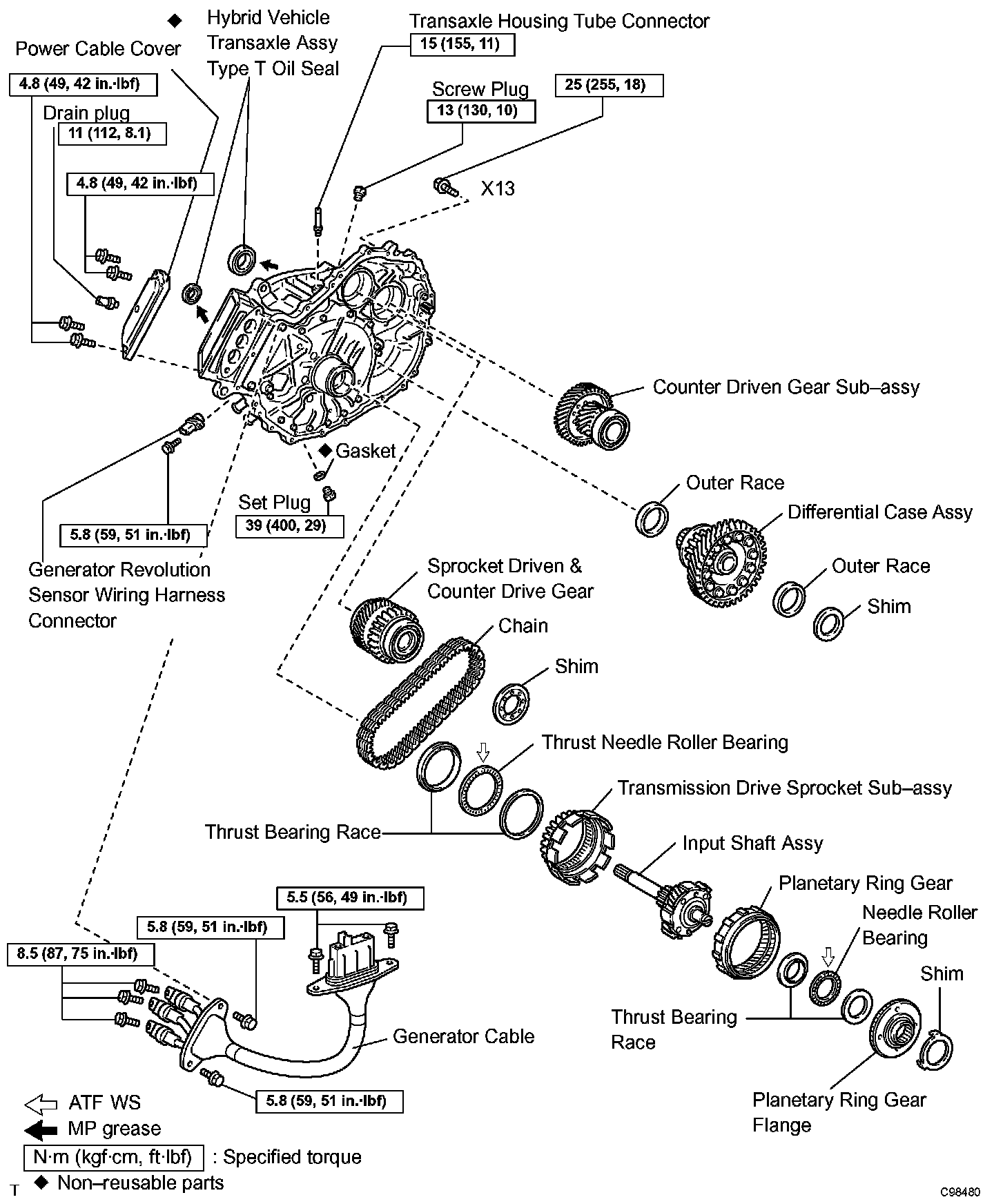

Hybrid Vehicle Transaxle Assembly:

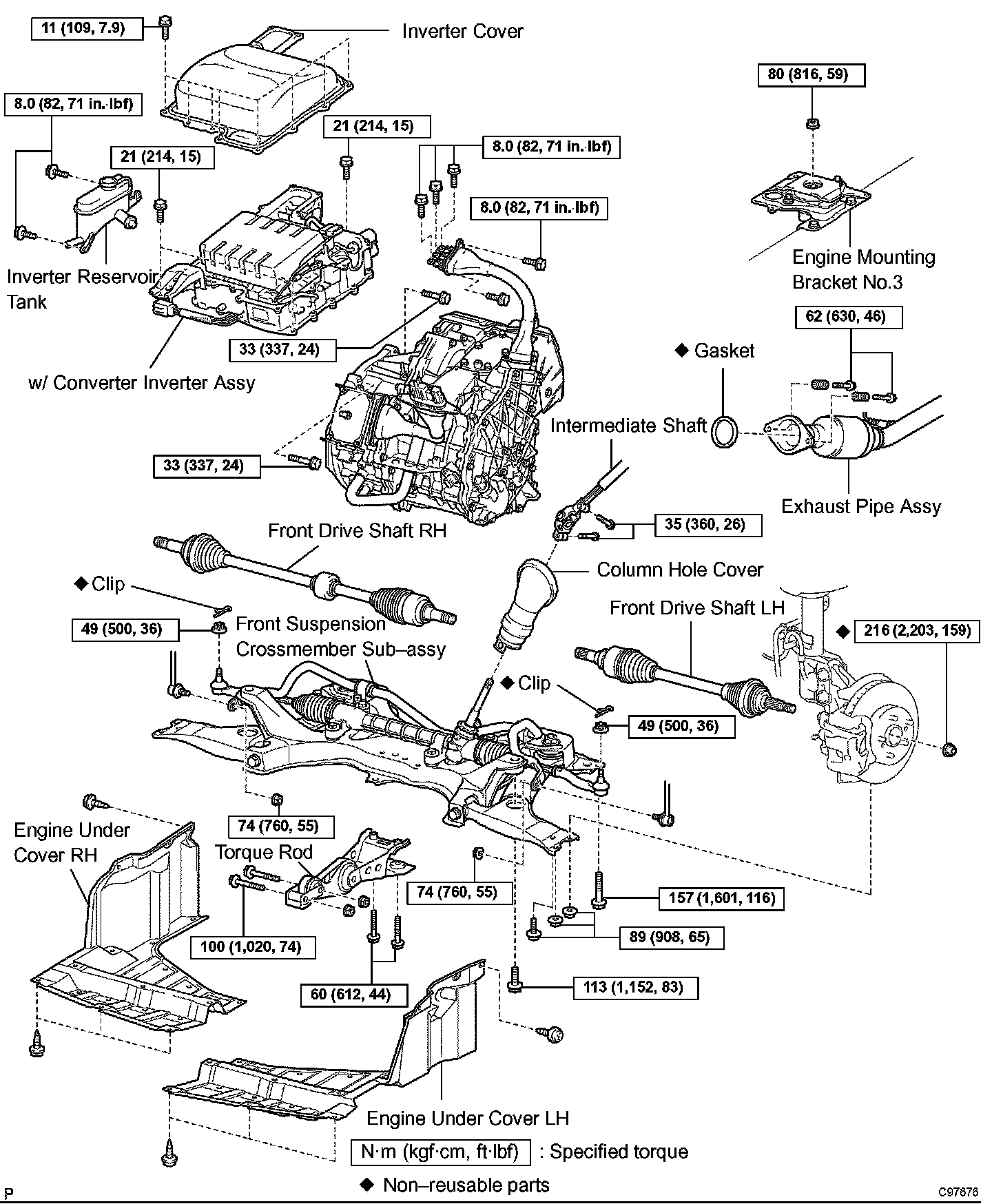

Hybrid Vehicle Transaxle Assembly:

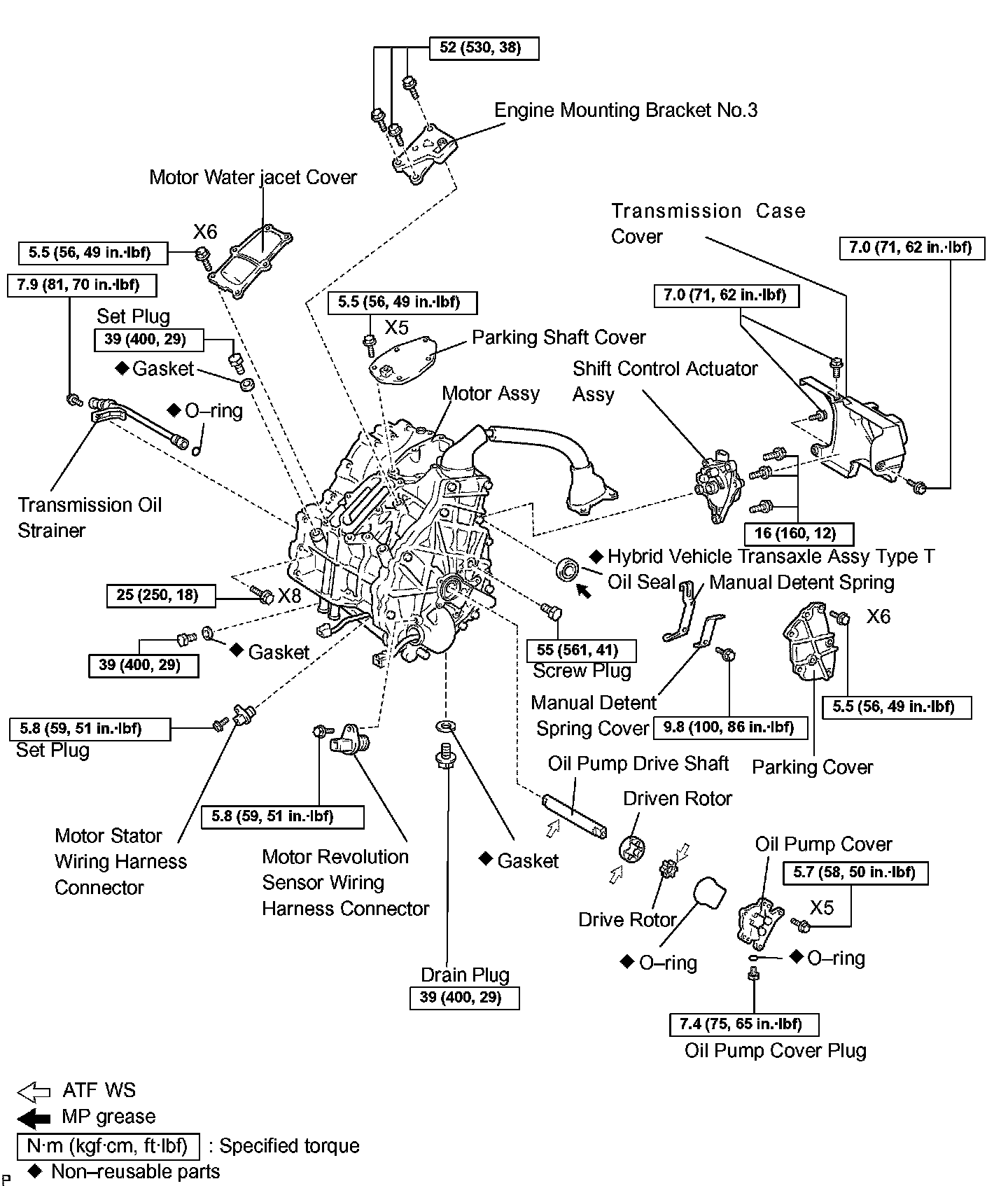

Hybrid Vehicle Transaxle Assembly:

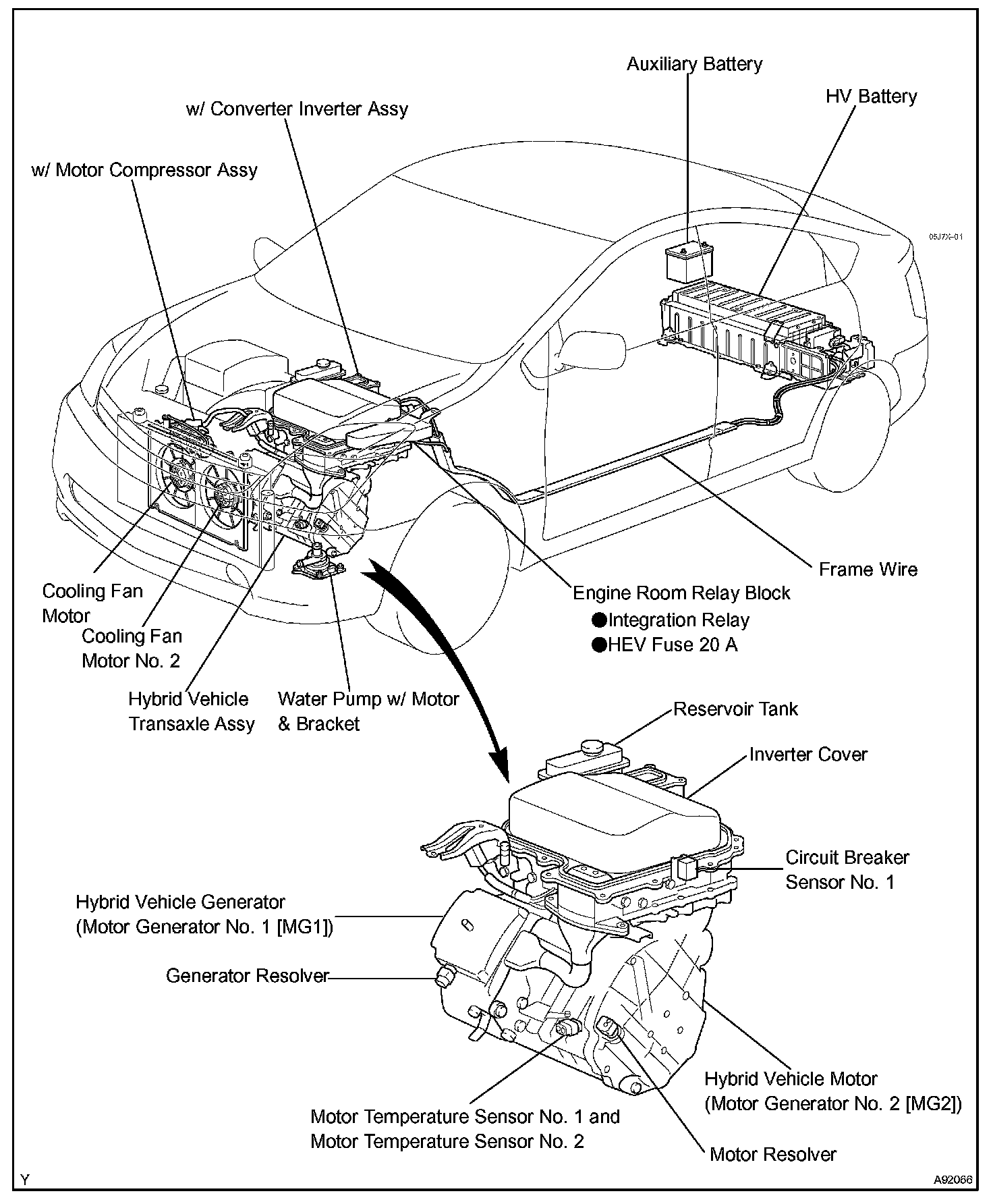

Hybrid Control System:

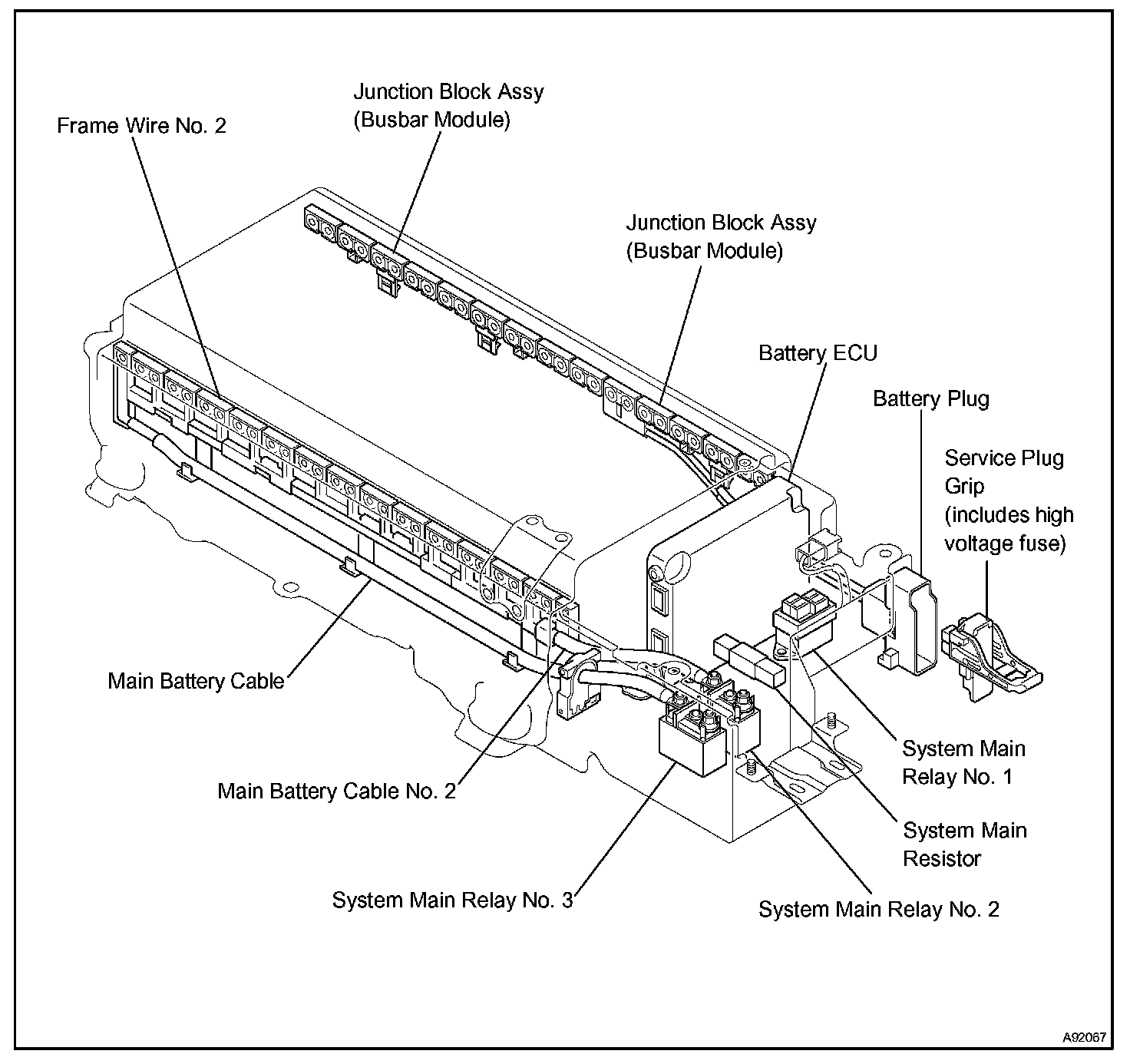

Hybrid Control System:



Hybrid Control System:

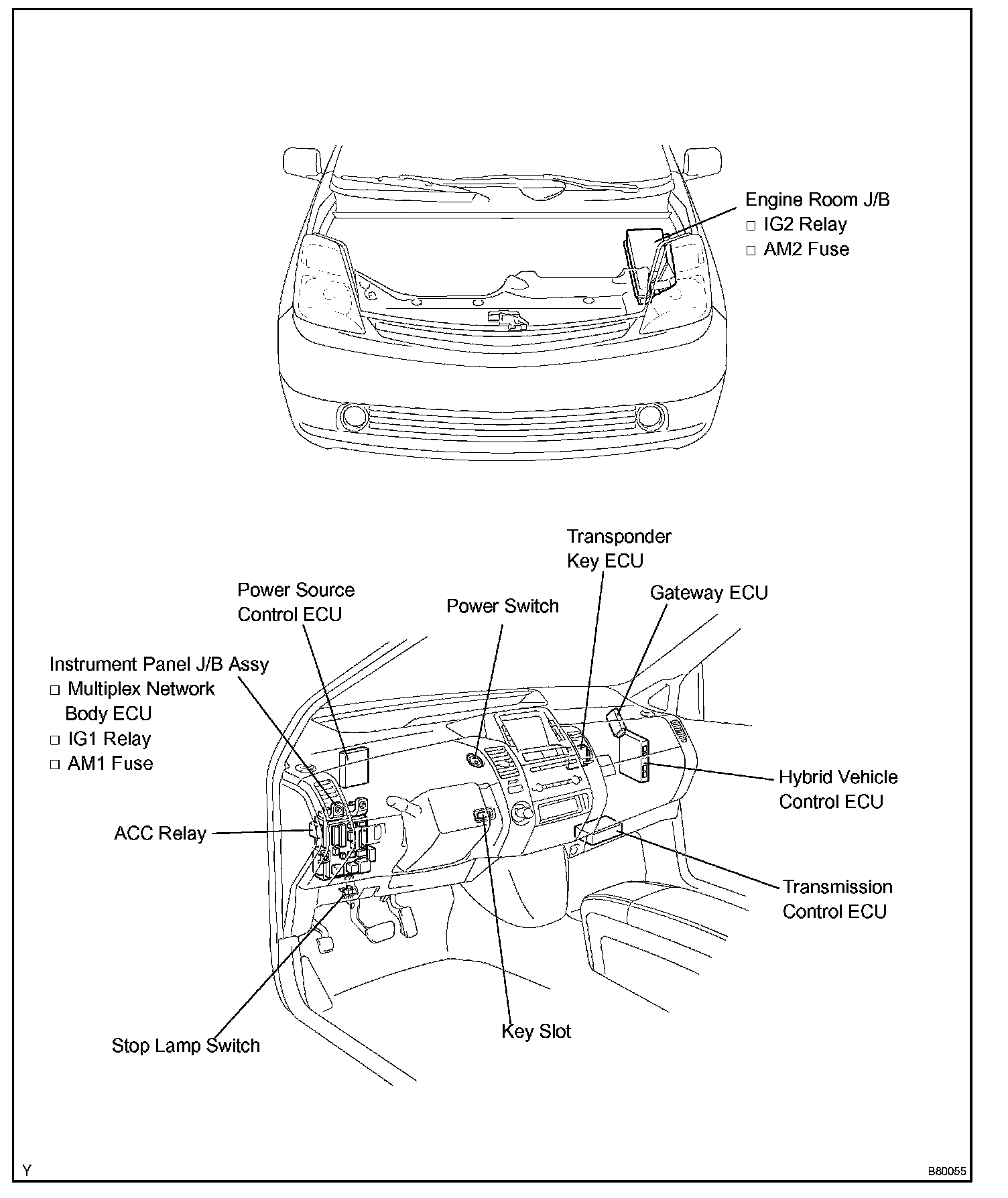

Push Button Start System:
