Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Hybrid Drive Systems
>>
Battery System, Hybrid Drive
>>
Hybrid Battery Bus / Cable
Hybrid Battery Bus / Cable

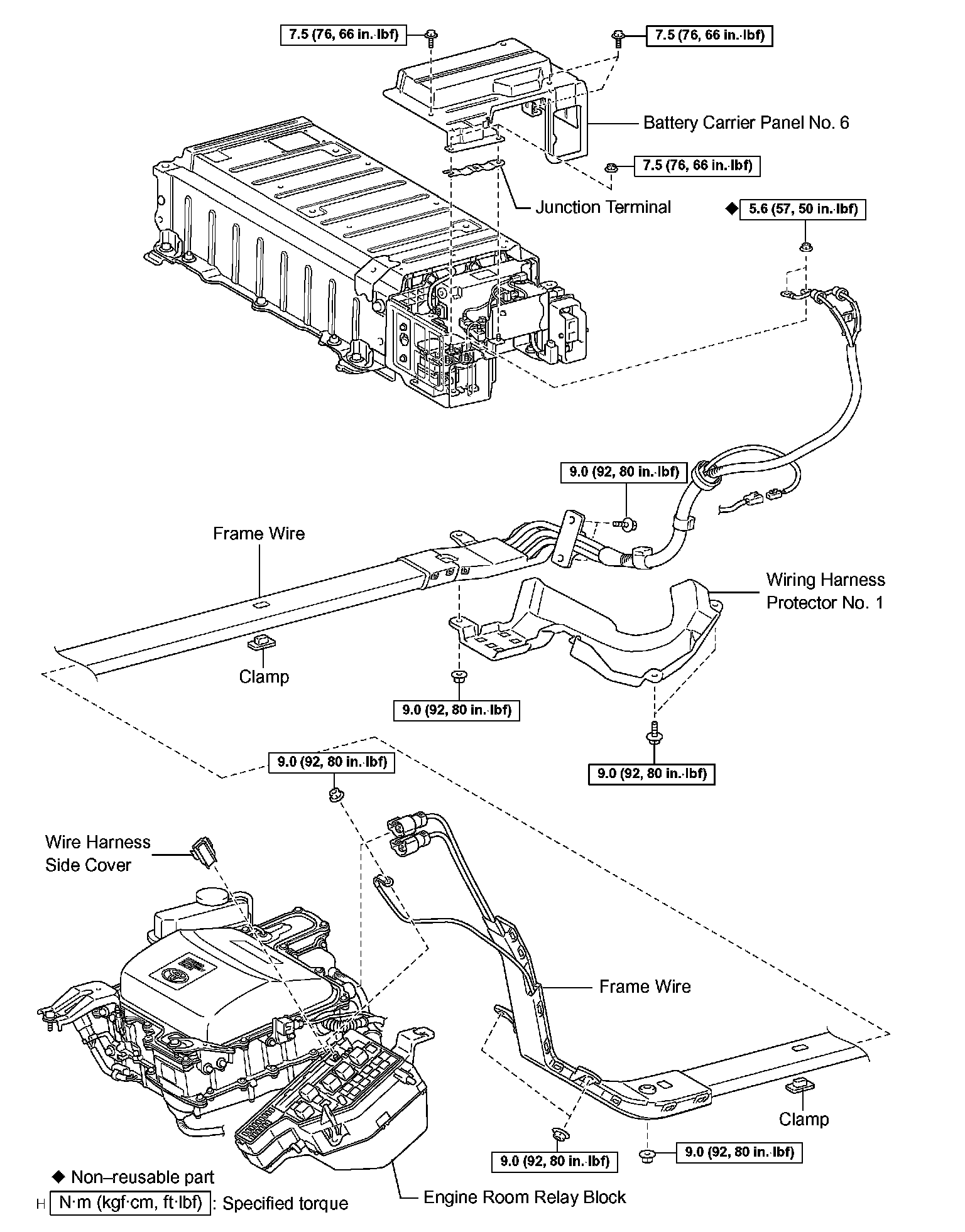

FRAME WIRE REPLACEMENT W/ RELATED COMPONENTS
