Skid Control Buzzer Circuit
SKID CONTROL BUZZER CIRCUITCIRCUIT DESCRIPTION
The skid control buzzer sounds and VSC warning lamp comes ON during Enhanced VSC operation.

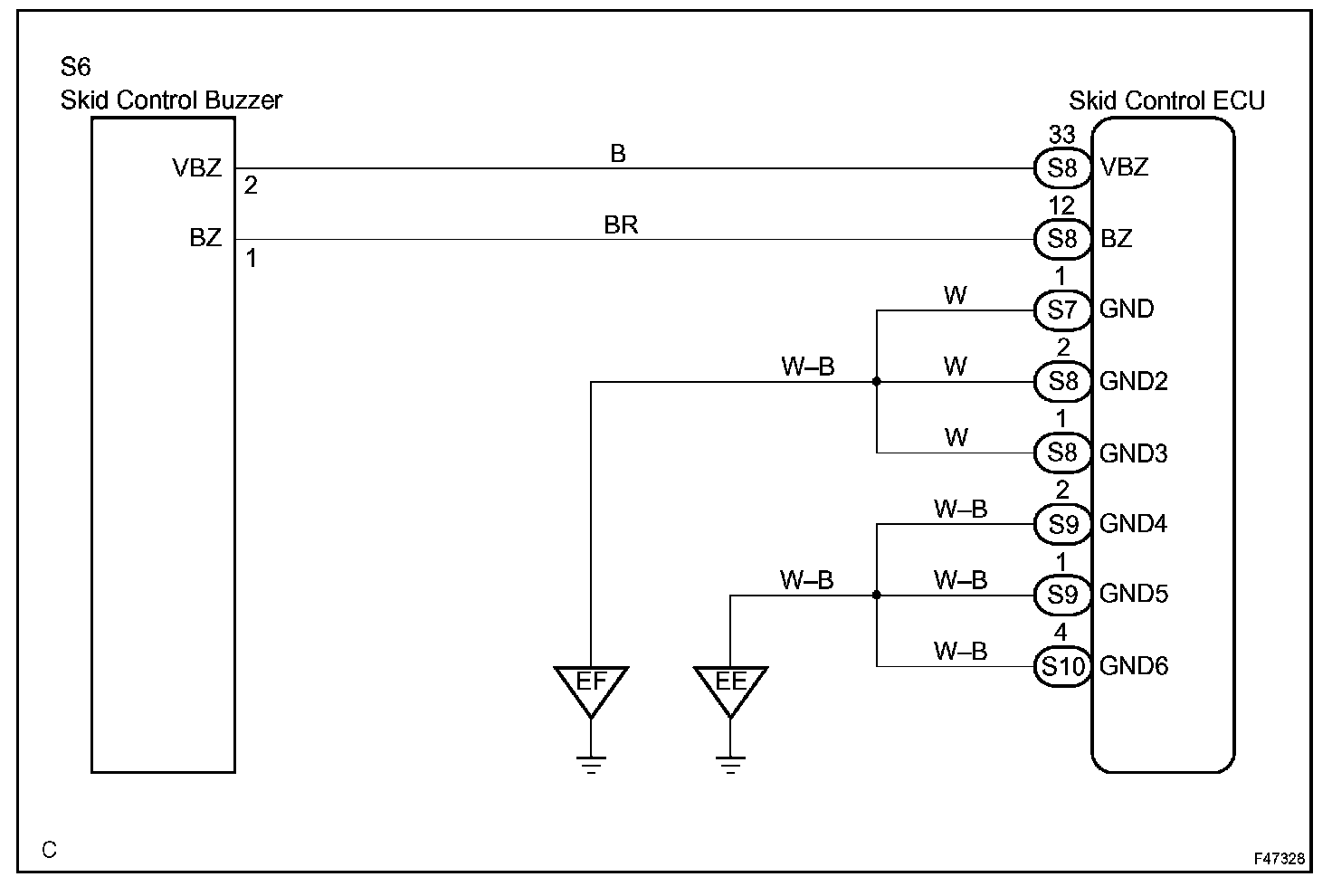

Wiring Diagram:

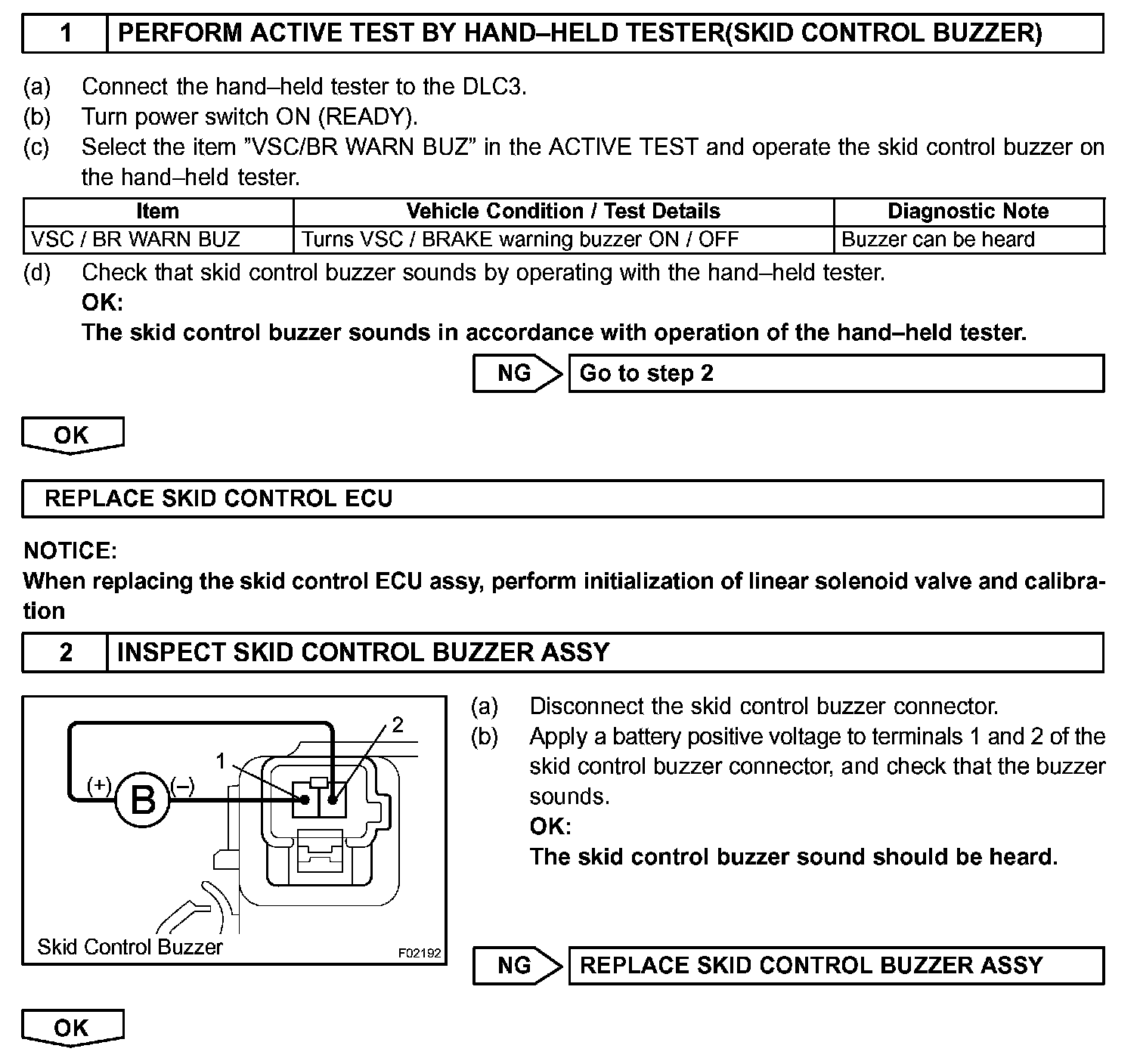

Step 1 - 2:

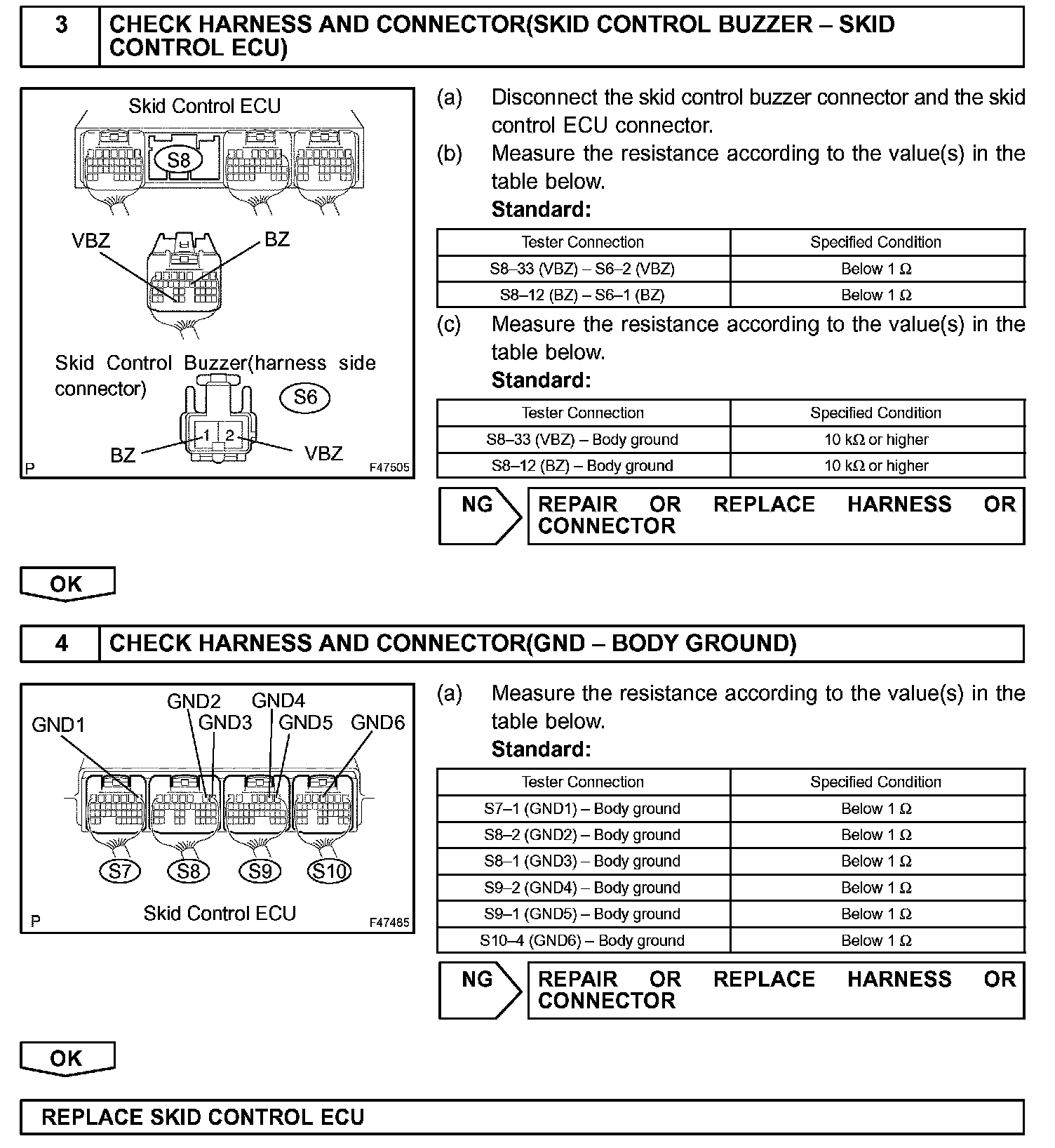

Step 3 - 4:
INSPECTION PROCEDURE
NOTE: When replacing the skid control ECU assy, perform initialization of linear solenoid valve and calibration.
