Manual Transmission/Transaxle
>>
System Diagram
>>
Removal and Installation
Removal and Installation

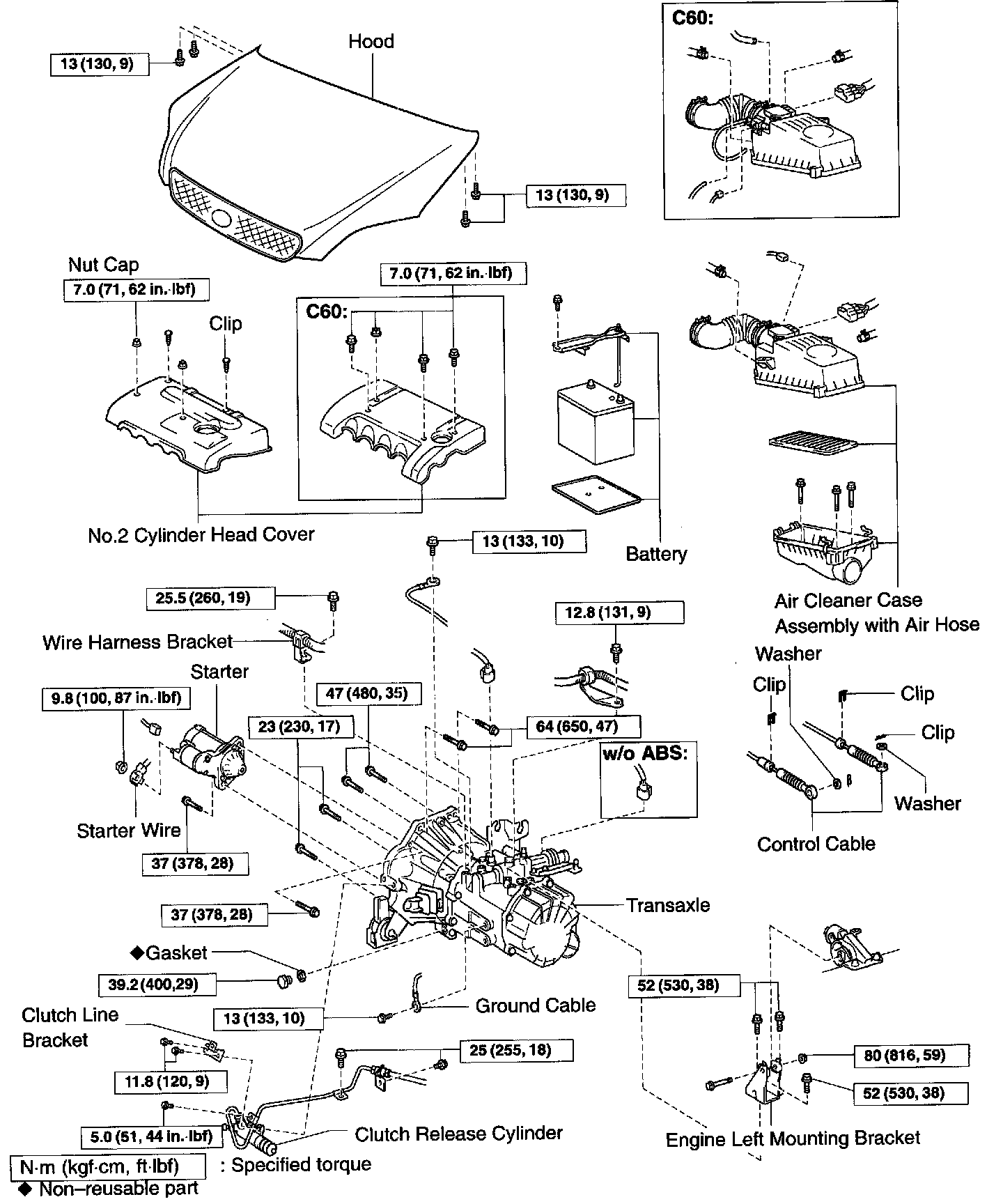

MANUAL TRANSAXLE ASSY REPLACEMENT W/ RELATED COMPONENTS
