Home
>>
Toyota
>>
2004
>>
Matrix 2WD L4-1.8L (2ZZ-GE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Oil Pump, Engine
Oil Pump, Engine

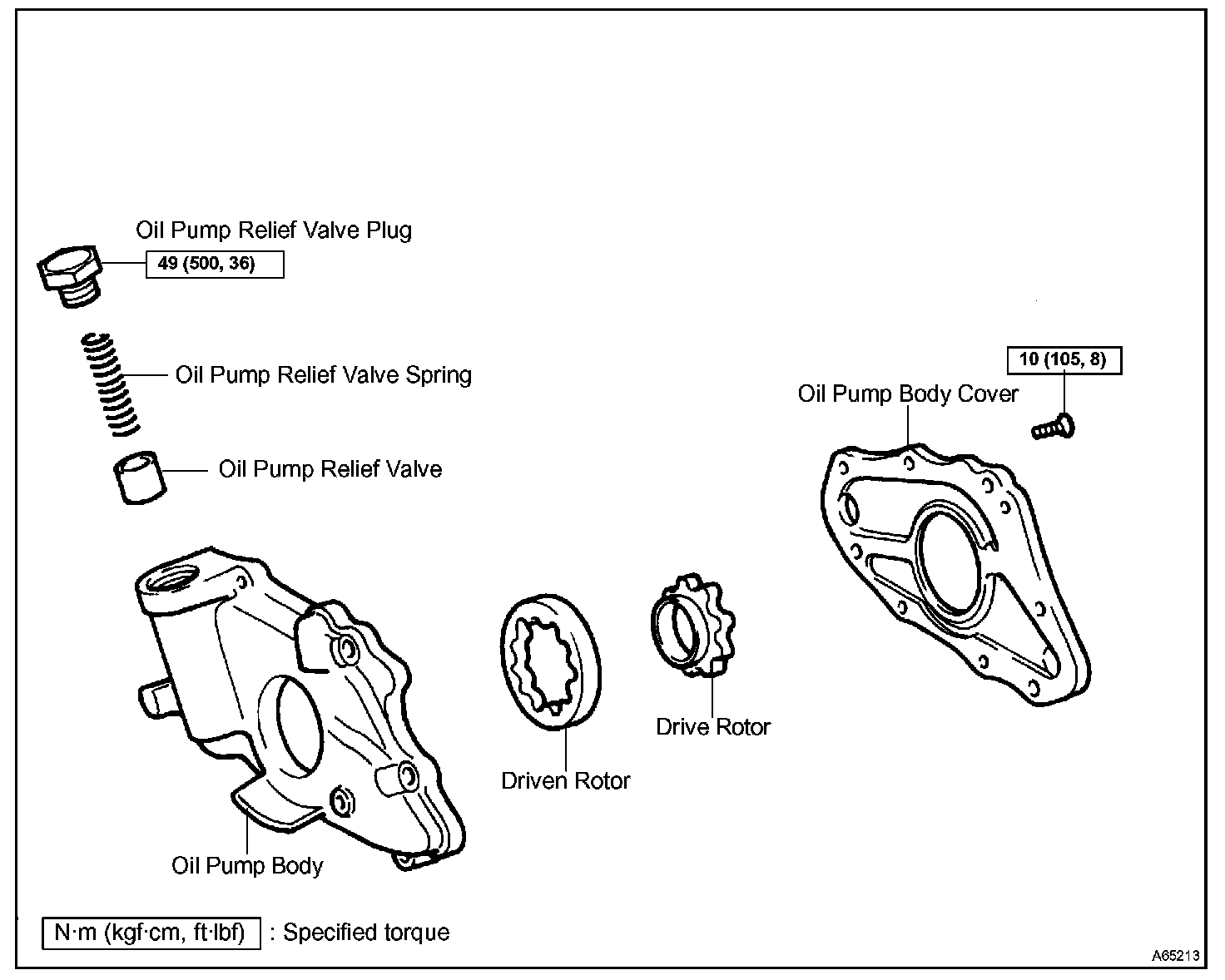

OIL PUMP ASSY REPLACEMENT W/ RELATED COMPONENTS
